Specifications:
Item no.: 25 25 160
EAN: 4003773016007
Pliers: chrome plated
Head: chrome plated
handles: with multi-component caps
Weight: 143 g
Dimensions: 160 x 57 x 18 mm
Standard: DIN ISO 5745
REACH does not contain SVHC
RoHS: not applicable
Cutting range of medium hardness wire (diameter): 2.5 mm
Cutting range of hard wire (diameter): 1.6 mm

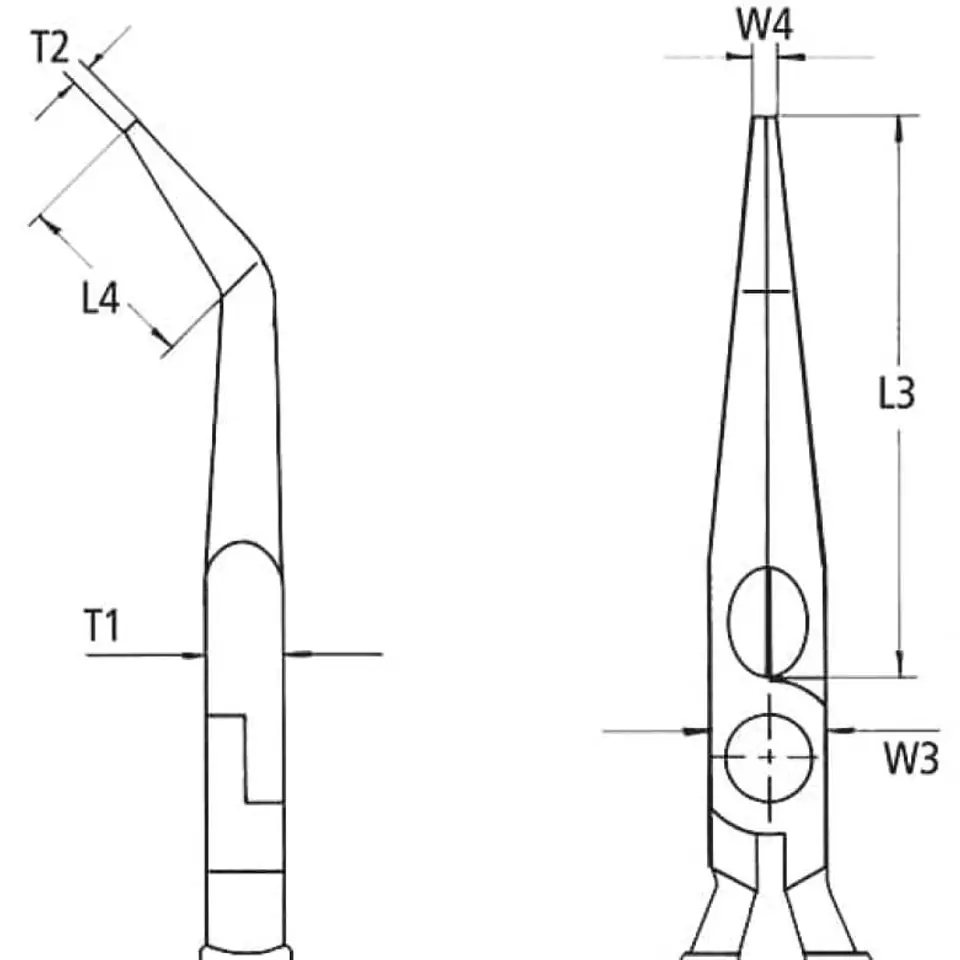

Jaw thickness (connector) (T1): 9.0 mm
Bit width (W4): 3.0 mm
Tip Thickness (T2): 2.5 mm
Jaw Length (L3): 50.0mm
Detail bar width (W3): 16.5 mm
Gripping surface length (L4): 23 mm
Ideal for precise gripping and cutting
Semicircular, long and tapered jaws
Transversely serrated gripping surfaces
With blades for cutting soft, medium hard and hard wire
Blades separately induction hardened, blade hardness approx. 61 HRC
Jaws curved at 40°
Electric steel, vanadium, forged, repeatedly oil-hardened
**
Illustrative photo.
HALF-ROUND CUTTING PLIERS 160MM
€31.30
Shipping from warehouse: U1
Estimated shipping: Tue, Dec 24 - Fri, Dec 27
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- KNIPEX
- Product code:
- 8252240160 / 4003773016007
Share this product:
Specification
| Cutting parameters, ø of hard wire: | 1.6 mm |
|---|
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
