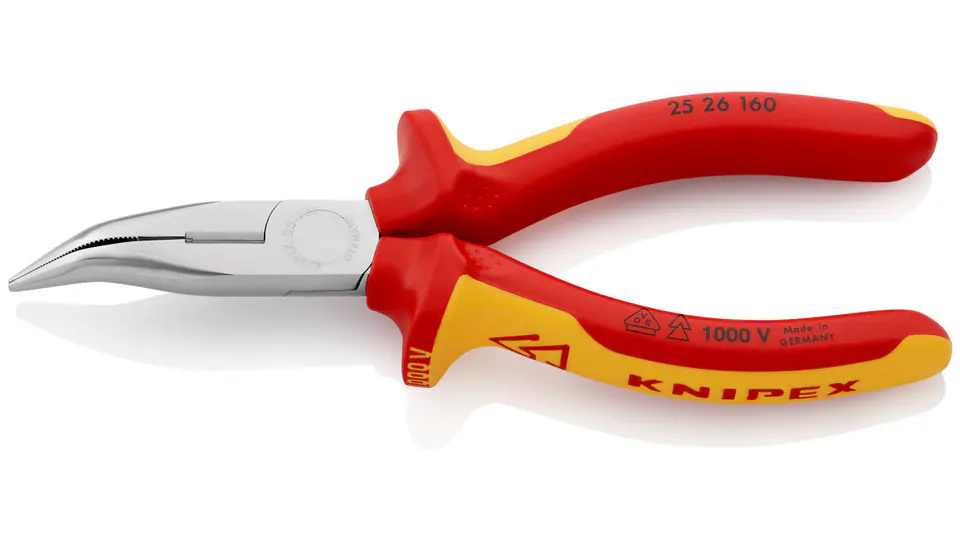

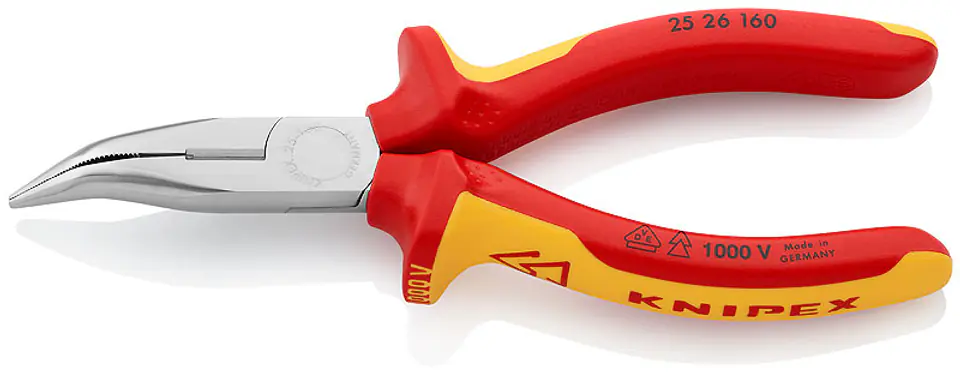

HALF-ROUND BENT INSULATED CUTTING PLIERS 160MM

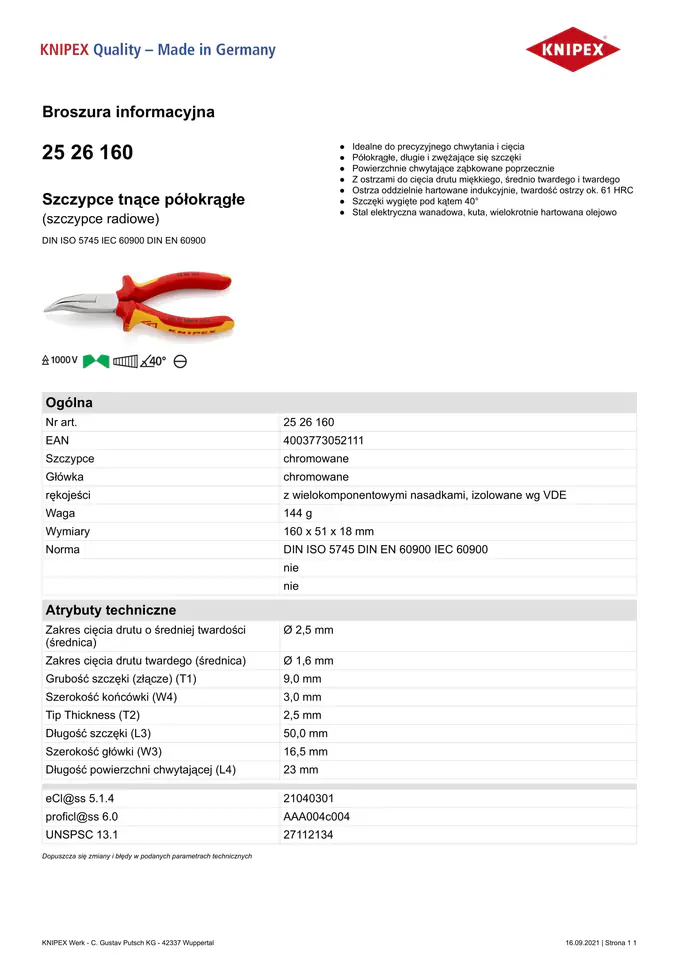

Specifications:

Item no.: 25 26 160
EAN: 4003773052111
Pliers: chrome plated
Head: chrome plated
handles: with multi-component caps, insulated according to VDE
Weight: 144 g
Dimensions: 160 x 51 x 18 mm
Standard: DIN ISO 5745 DIN EN 60900 IEC 60900
Cutting range of medium hardness wire (diameter): 2.5 mm
Cutting range of hard wire (diameter): 1.6 mm

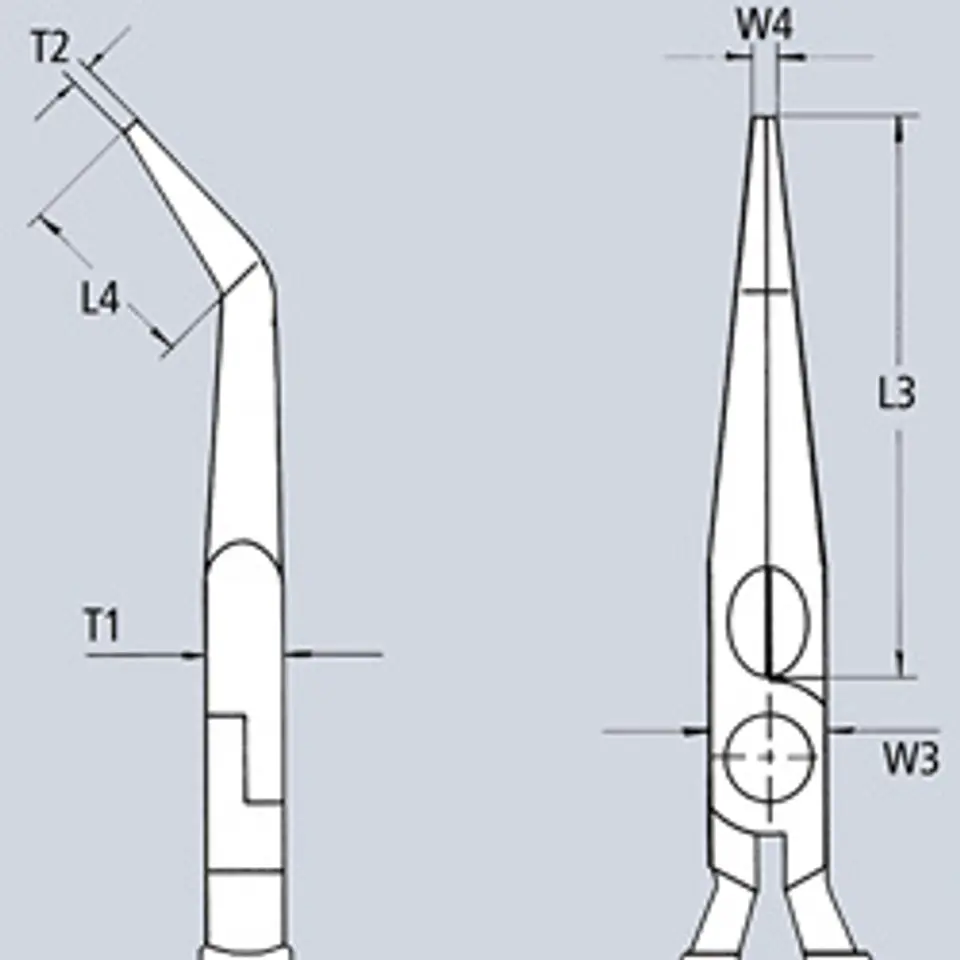

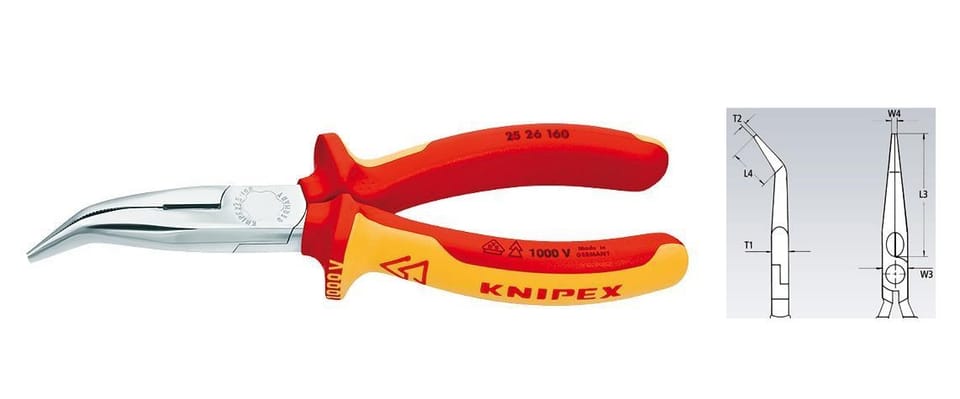

Jaw thickness (connector) (T1): 9.0 mm
Bit width (W4): 3.0 mm
Tip Thickness (T2): 2.5 mm
Jaw Length (L3): 50.0mm
Detail bar width (W3): 16.5 mm
Gripping surface length (L4): 23 mm



Ideal for precise gripping and cutting

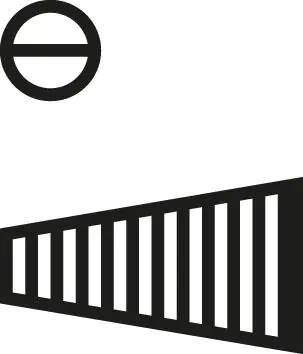

Semicircular, long and tapered jaws
Transversely serrated gripping surfaces
With blades for cutting soft, medium hard and hard wire
Blades separately induction hardened, blade hardness approx. 61 HRC
Jaws curved at 40°
Electric steel, vanadium, forged, repeatedly oil-hardened


**

Illustrative photos.
