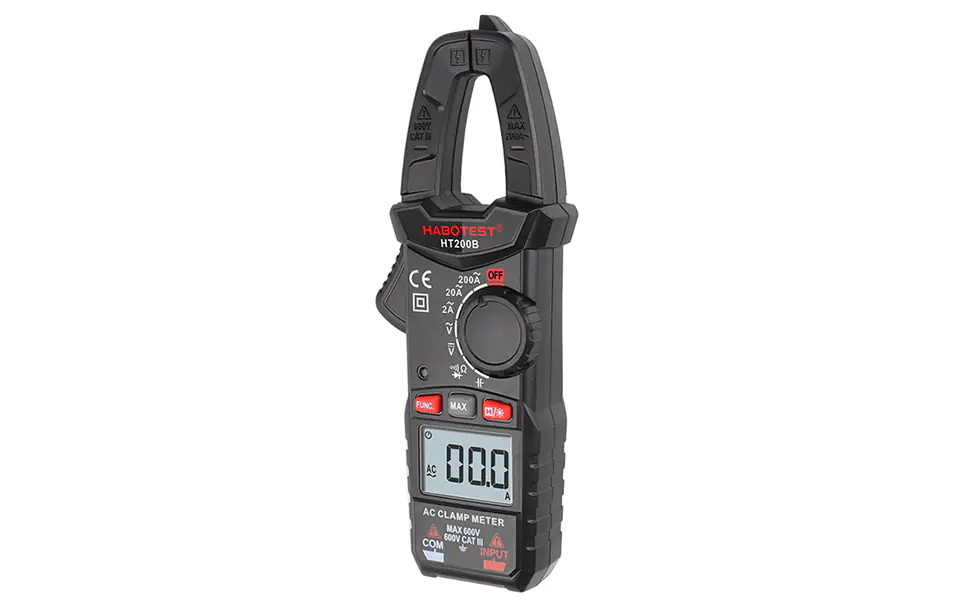

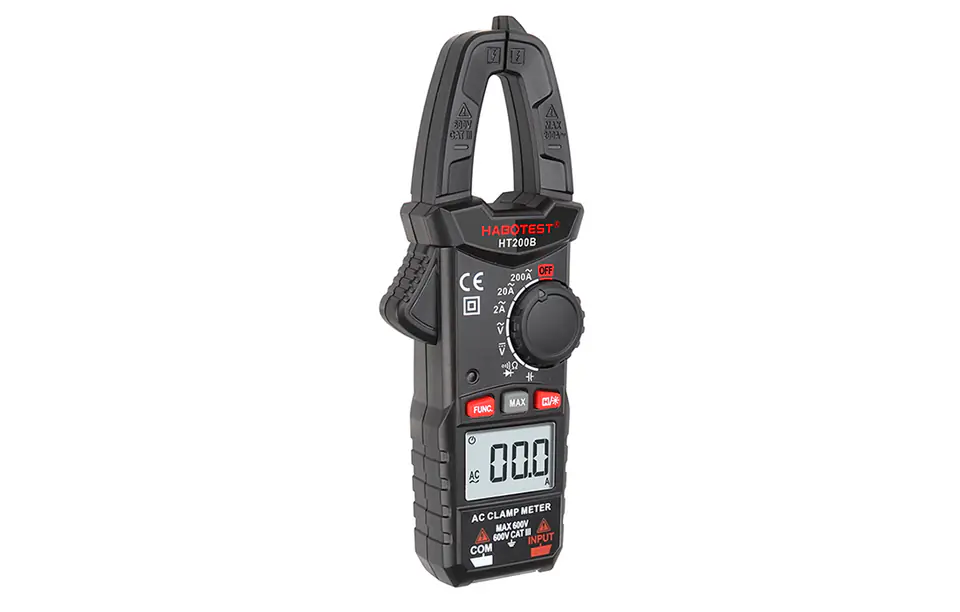

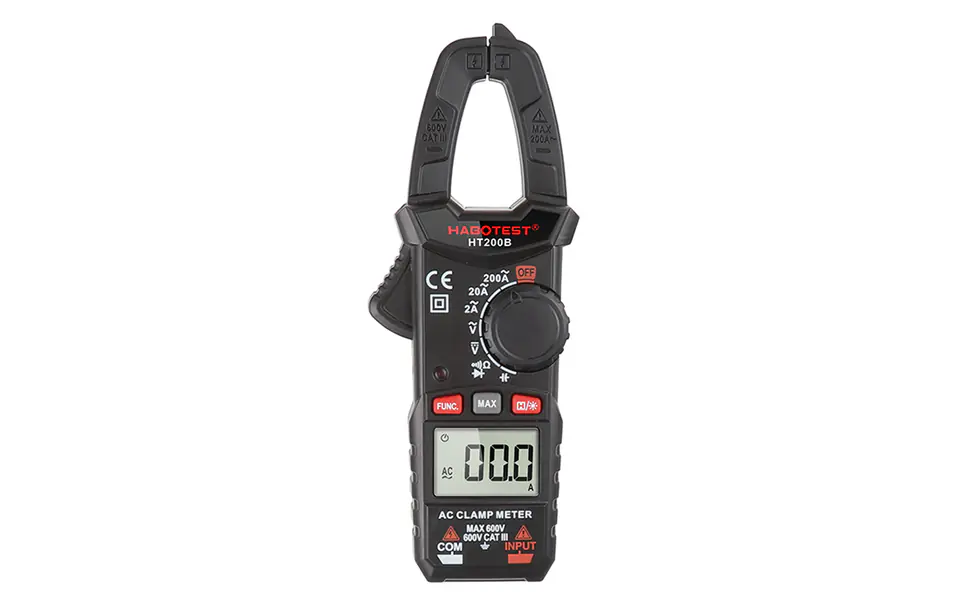

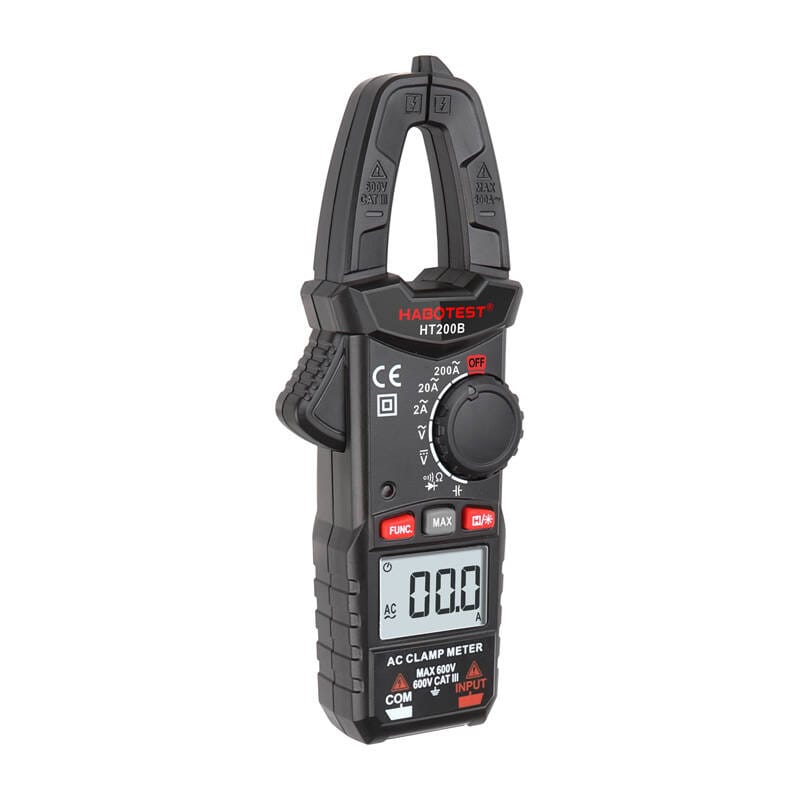

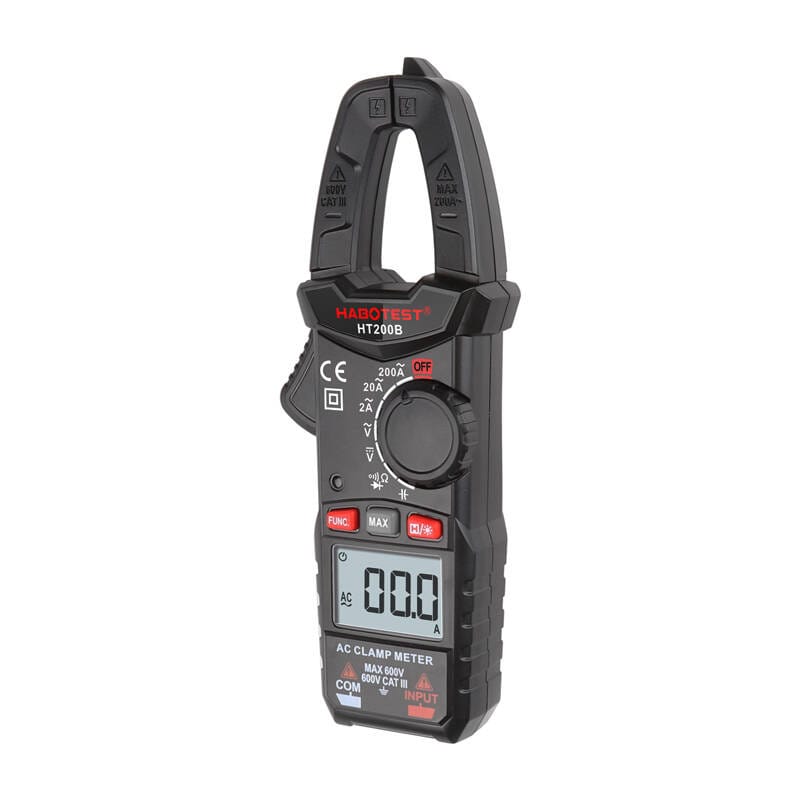

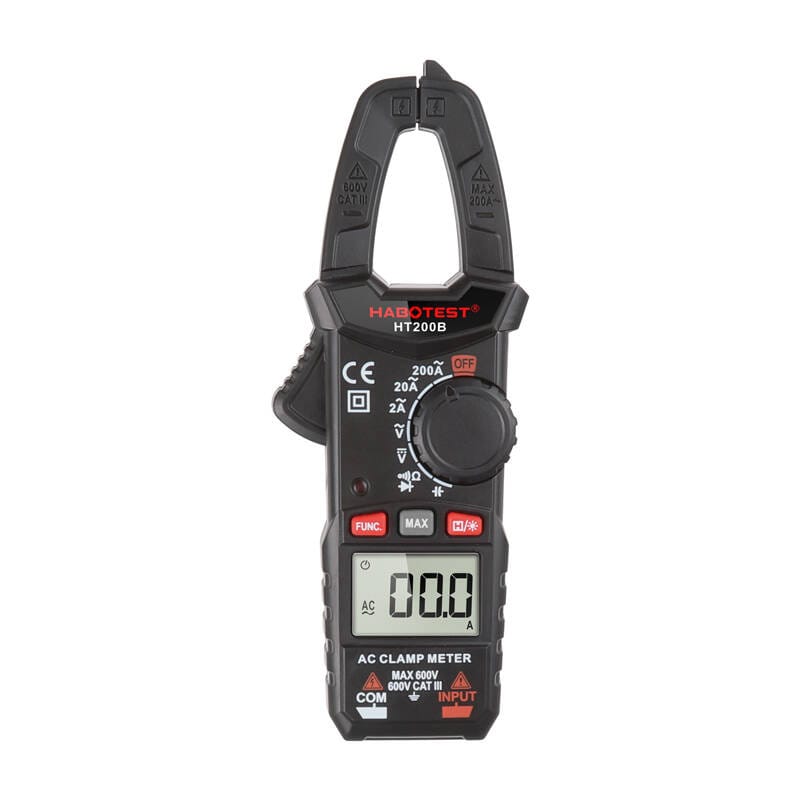

The compact clamp meter HT200B provides precise measurement of various parameters. It is equipped with a backlit HD display and jaws, the size of which is up to 18 mm. Despite its small size, it impresses with its functionality. 2 AAA 1.5V batteries are required to power it.
This small device surprises with many possibilities. With it, you can accurately measure AC and DC voltage, AC current and resistance. You will also check continuity. You can also test diodes. The measurement results are displayed on the device's clear HD screen. You will also find a low battery indicator on it, among other things. What's more, the display backlight will turn orange when the voltage value exceeds 80 V or 3 A.
The device allows you to store data. Access to this and other functions is provided by convenient, intuitive buttons. The HT200B is also easy to operate with the built-in knob. The jaw pitch of the meter is up to 18 mm, so you can use it in many different applications. The device is also incredibly handy and light - it weighs only 150 g. It fits perfectly in the hand and provides comfort of use. Its small size means that you can always have them with you. Just pack them in bags and take them wherever you need them.
| Habotest | Producent |
|---|---|
| HT200B | Model |
| 200 mV/2 V/20 V/200 V/600 V ±(0,5%+5) | Zakres pomiaru napięcia DC |
| 2 V/20 V/200 V/600 V, ±(1,0%+5) | Pomiar napięcia AC |
| 2 A/20 A/200 A, ±(2,5%+8) | Pomiar natężenia AC |
| 200 Ω/2 kΩ/20 kΩ/200 kΩ/2 MΩ/20 MΩ, ±(1,0%+5) | Pomiar oporu |
| 20 nF/200 nF/2 uF/20 uF/200 uF/2 mF, ±(4.0%+5) | Pomiar pojemności |
| 2000 | Liczba zliczeń |
| Tak | Przechowywanie danych |
| Tak, alarm dźwiękowy i świetlny | Ciągłość |
| Tak | Testowanie diod |
| Tak | Prawdziwa wartość RMS |
| Tak | Wskaźnik niskiego poziomu baterii |
| Tak | Dwukolorowe podświetlenie |
| Tak | Automatyczne wyłączanie |
| Tak | MAX |
| 2x bateria AAA 1,5 V (w zestawie) | Zasilanie |
| Ok. 150 g | Waga |
| 164x61x30 mm | Wymiary |
| Ø18x36 mm | Rozmiar szczęk |
| EN61010-1 -2-030; EN61010-2-033, EN61326-1 CAT III 600V | Bezpieczeństwo |
