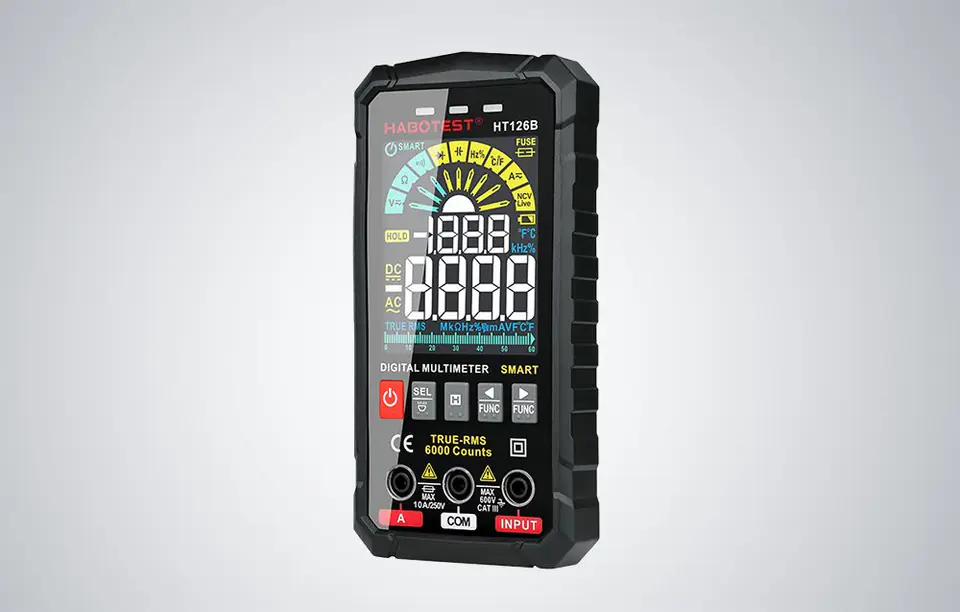

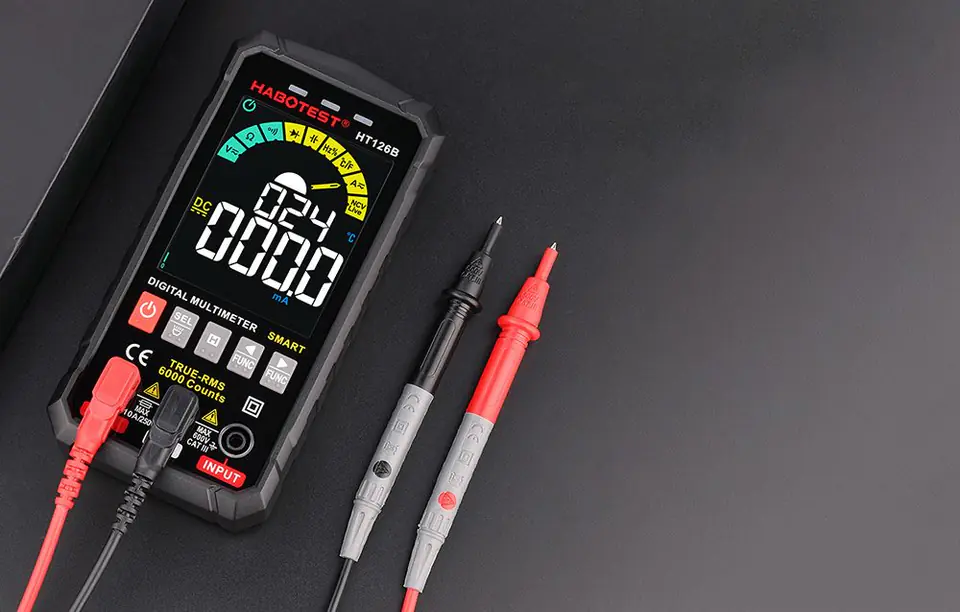

HT126B is an intelligent and durable multimeter from Habotest. It is distinguished by the precision of measurements, you can also use it outdoors. Equipped with a large color display and silicone buttons - it is simple and convenient to use. Compact and lightweight - it also has an LED flashlight that allows you to work also in dark places. To power it, you need 4 AAA 1.5 V batteries (not included). With it you will measure voltage, resistance, capacitance, etc.
The multimeter has been designed in such a way as to provide you with maximum comfort of use. It is small and handy - its thickness is 25.7 mm. The large display allows convenient access to all important information. In addition, silicone buttons facilitate the operation of the device.

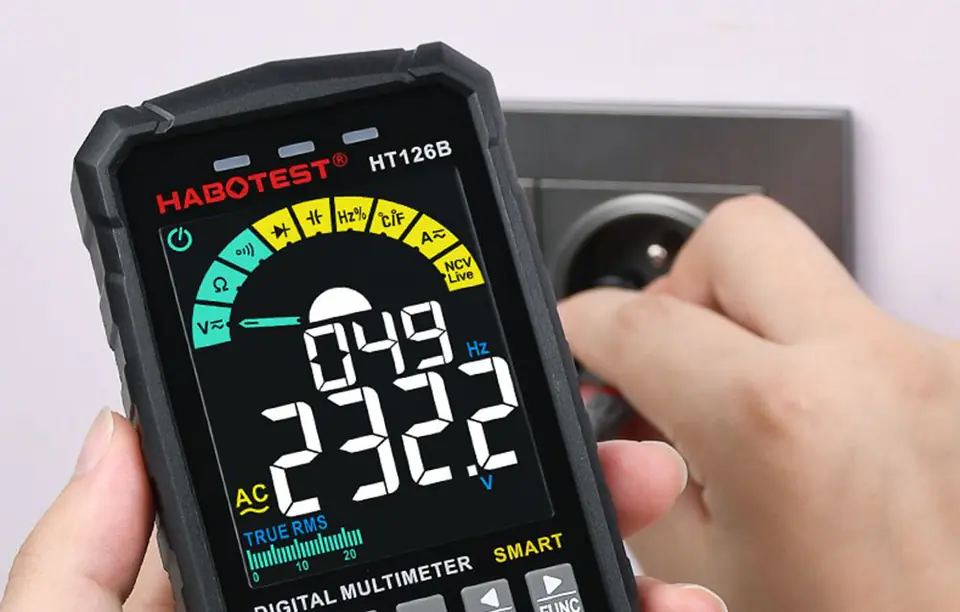

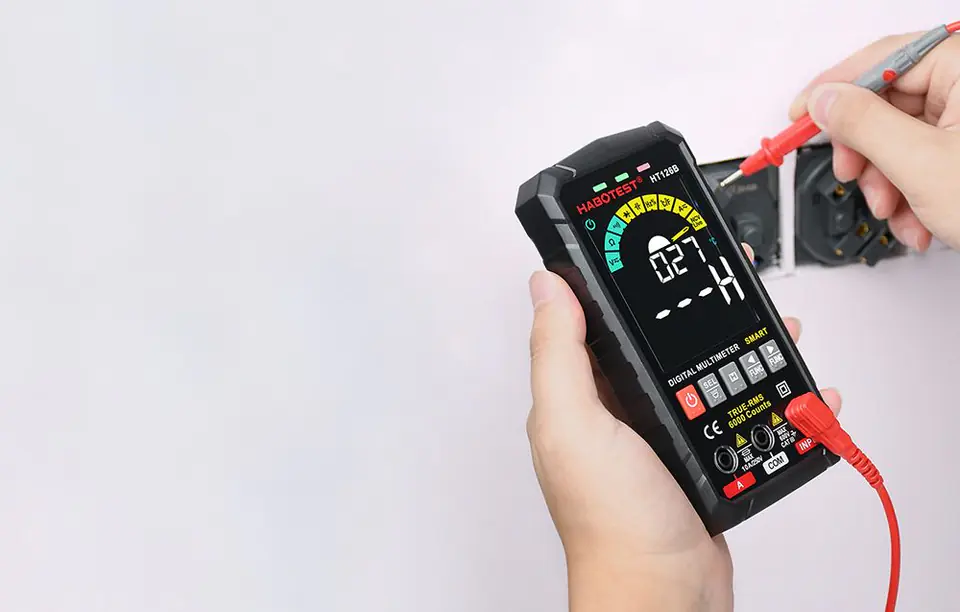

The Habotest device is distinguished by incredible precision. It accurately measures AC and DC voltage and current, resistance and capacitance, among other things. You can also check cable activity. With its help, you will test the diodes, check the continuity and true value of RMS. It also enables non-contact voltage detection (NCV). Use the arrows to change the operating mode of the device, then the LED indicator around the input jack port will light up green.
This is not the end of the advantages of a multimeter. Built-in LED flashlight will keep you illuminated when working in dark rooms. The soft protective housing not only protects the device from damage, but also makes it easy to transport and store. Replacing the HT126B battery is quick and easy, so you won't have any problem.
| Producer | Habotest |
|---|---|
| Model | HT126B |
| DC voltage measuring range | 600mV/6V/60V/600V |
| AC voltage measuring range | 6V/60V/600V |
| DC current measuring range | 600mA/10A |
| AC current measuring range | 600mA/10A |
| Resistance measuring range | 600ꭥ/6kꭥ/60kꭥ/600kꭥ/6Mꭥ/60Mꭥ |
| Capacitance measuring range | 6nF/60nF/600nF/6μF/60μF/600μF/6mF/60mF |
| Frequency measuring range | 6Hz/60Hz/600Hz/6kHz/60kHz/600kHz/6MHz/10MHz |
| Fill factor measuring range | 1.0~99.0% |
| Temperature (°C/°F) | -40°C ~ 100°C / -40°F ~ 1832°F |
| Diode Testing | Yes, 0~3V |
| NCV | Yes |
| Live test | Yes |
| Continuity | Yes, <50ꭥ |
| Number of counts | 6000 |
| Display | VA |
| Data Retention | Yes |
| True RMS Value | Yes |
| Blown fuse indication function | Yes |
| Low battery indicator | Yes |
| Automatic power off | Yes |
| LED jack input port indicator | Yes |
| Backlight | Yes |
| Flashlight | Yes |
| Power | 4x 1.5V AAA battery (not included) |
| Safety | EN61010-1; CAT III 600V |
| Scales | Approx. 182 g |
| Dimensions | Approx. 146 x 72 x 26 mm |
