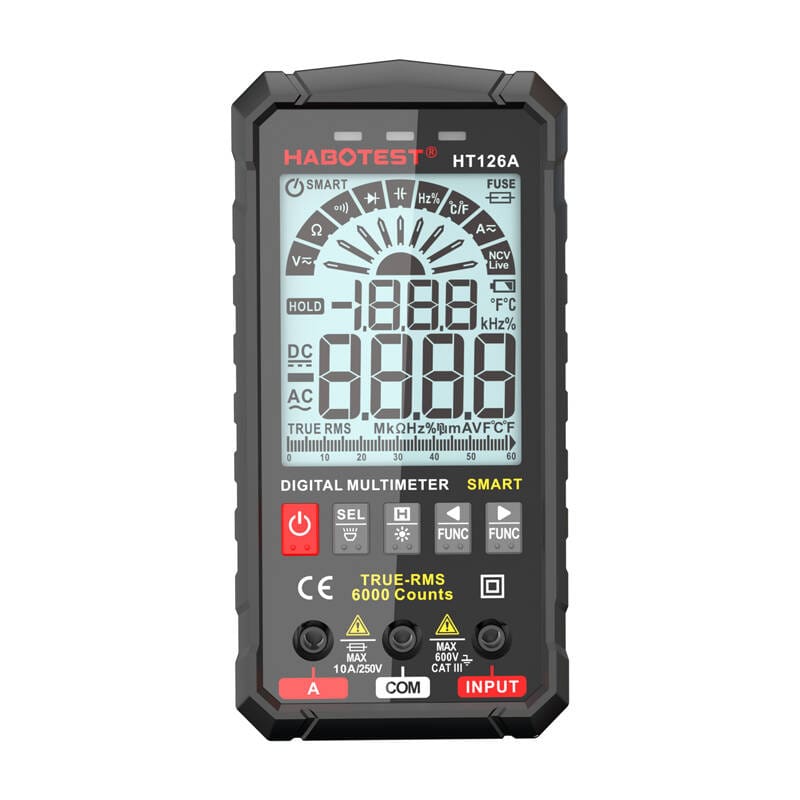

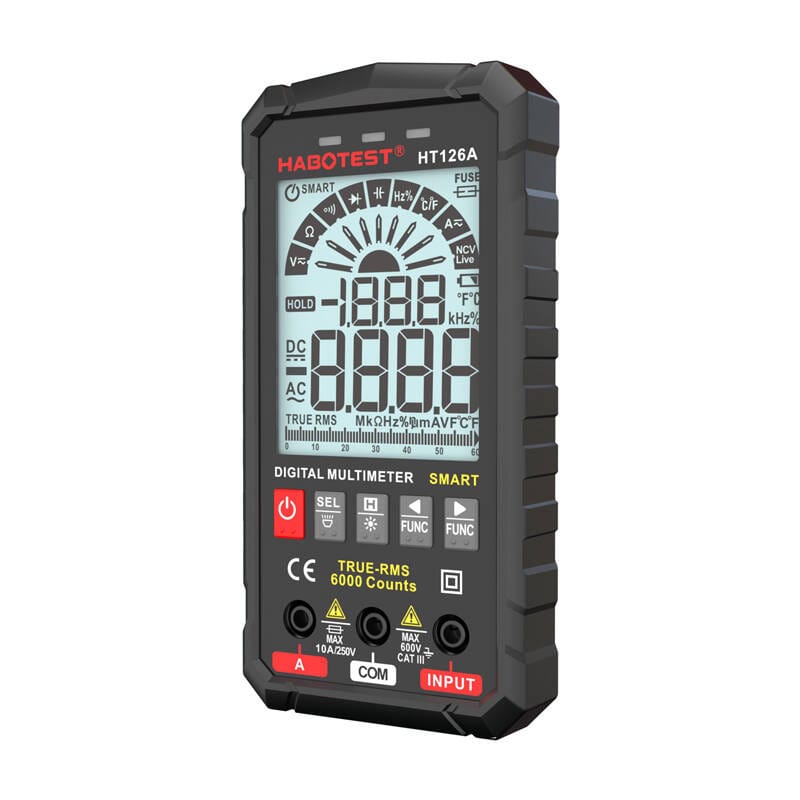

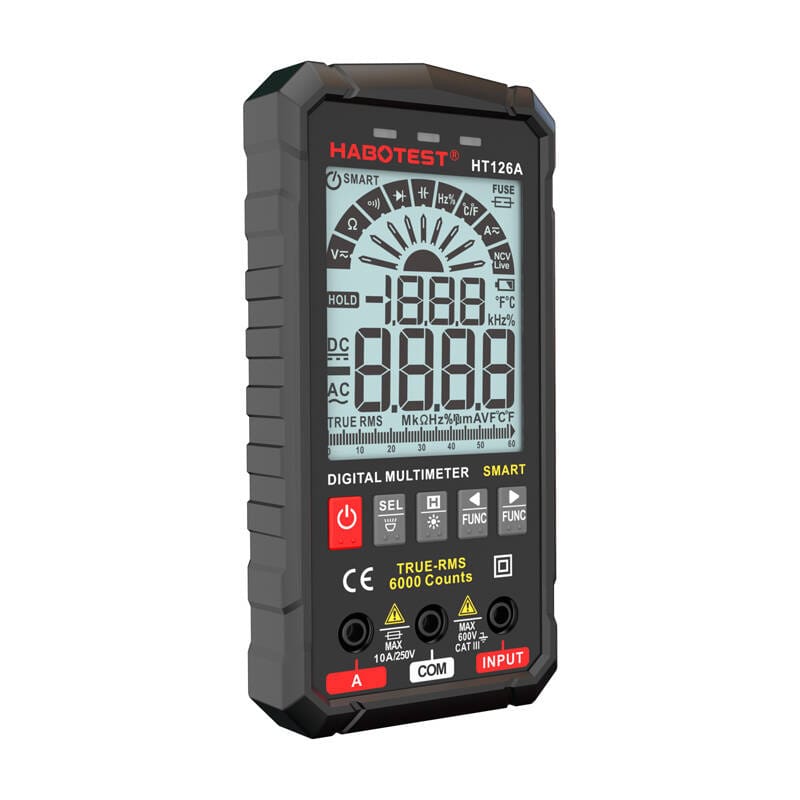

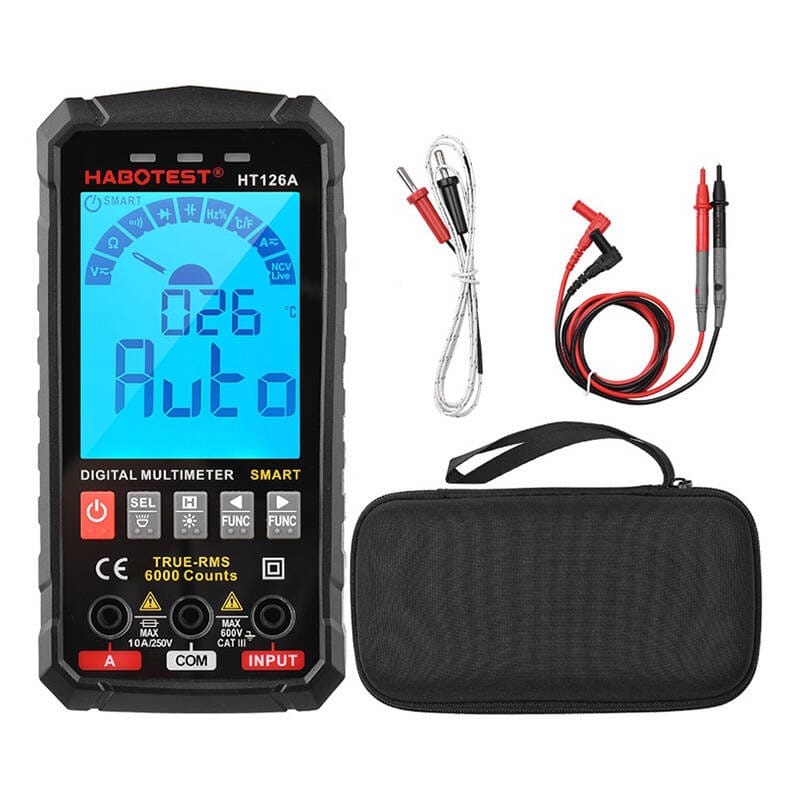

HT126A is an intelligent and robust multimeter from Habotest. It is distinguished by the precision of measurements, you can also use it outdoors. Equipped with a large display and silicone buttons - it is simple and convenient to use. Compact and lightweight - it also has an LED flashlight that allows you to work also in dark places. To power it, you need 4 AAA 1.5 V batteries, but they are not included in the kit and must be purchased separately. With it you will measure voltage, resistance, capacitance, etc.

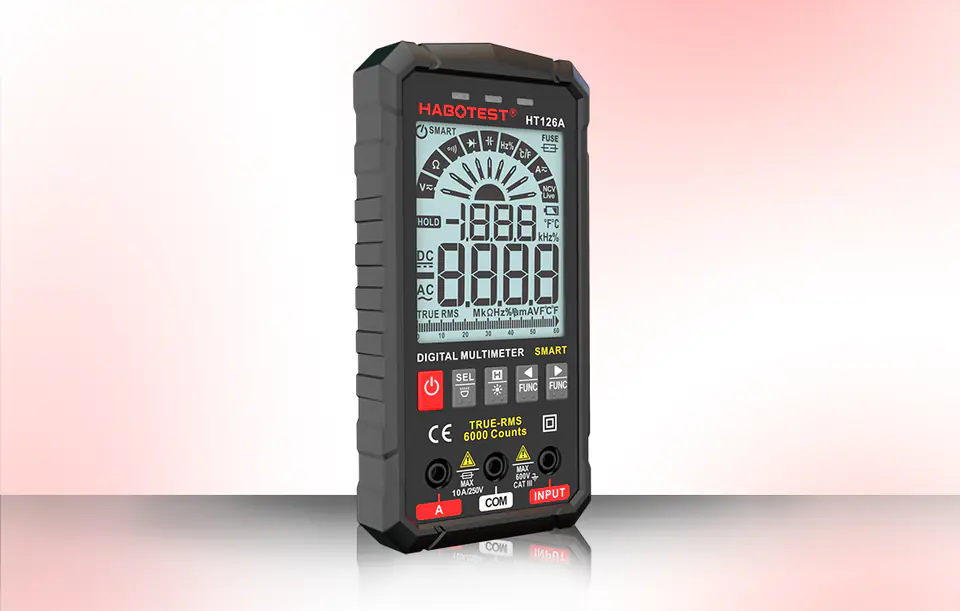

The multimeter has been designed in such a way as to provide you with maximum comfort of use. Small and handy - its thickness is 25.7 mm. The large display allows convenient access to all important information. In addition, silicone buttons facilitate the operation of the device.

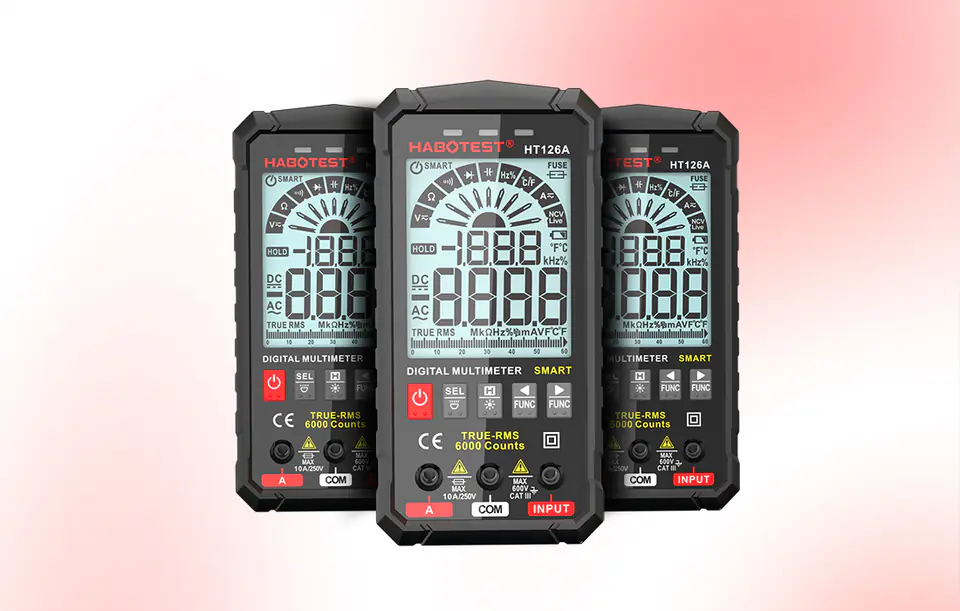

The Habotest multimeter is distinguished by incredible precision. It accurately measures AC and DC voltage and current, resistance and capacitance, among other things. You can also check cable activity. With its help, you will test the diodes, check the continuity and true value of RMS. It also enables non-contact voltage detection (NCV). Use the arrows to change the operating mode of the device, then the LED indicator around the input jack port will light up green.

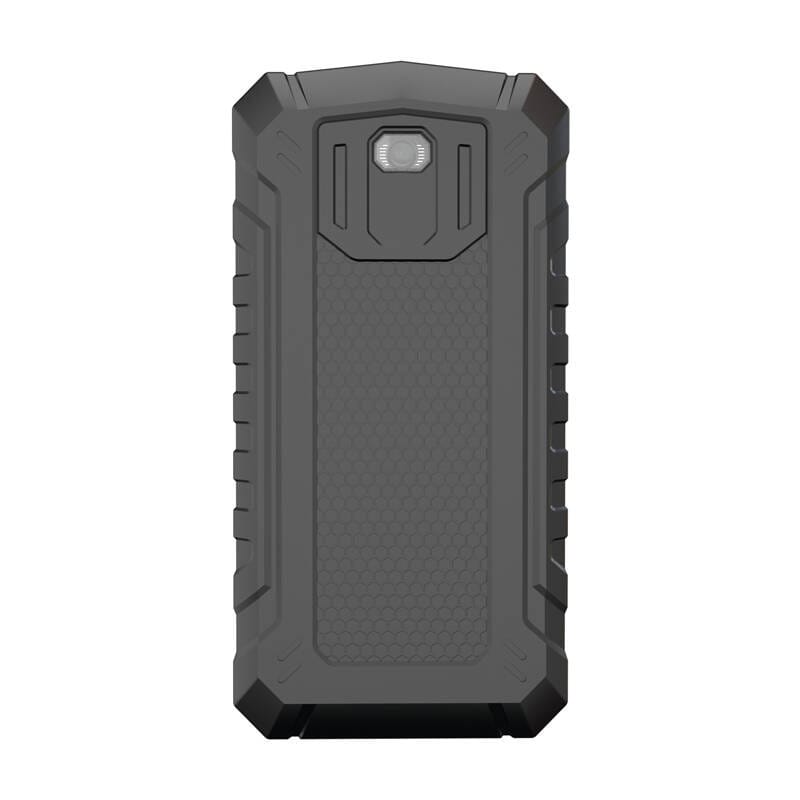

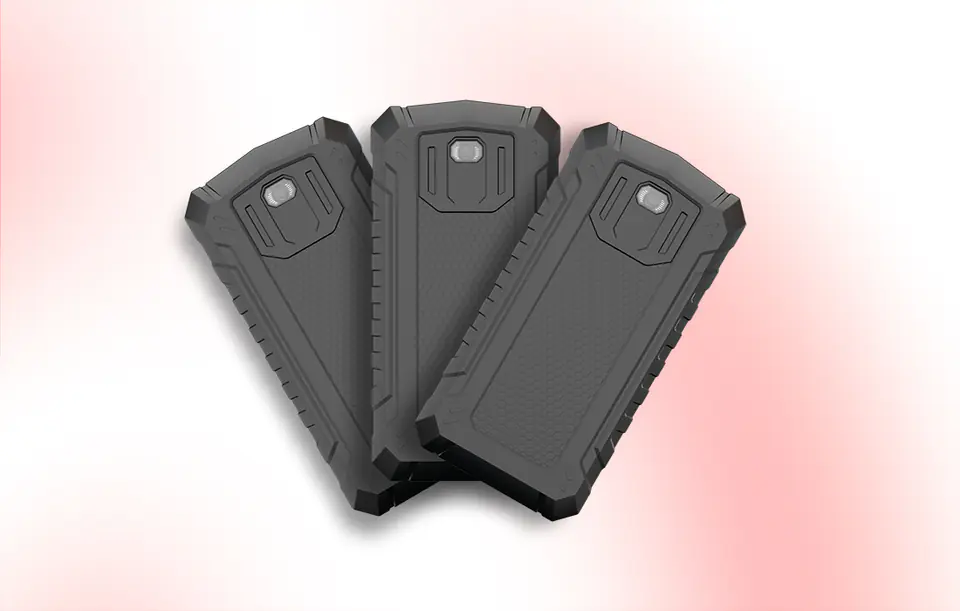

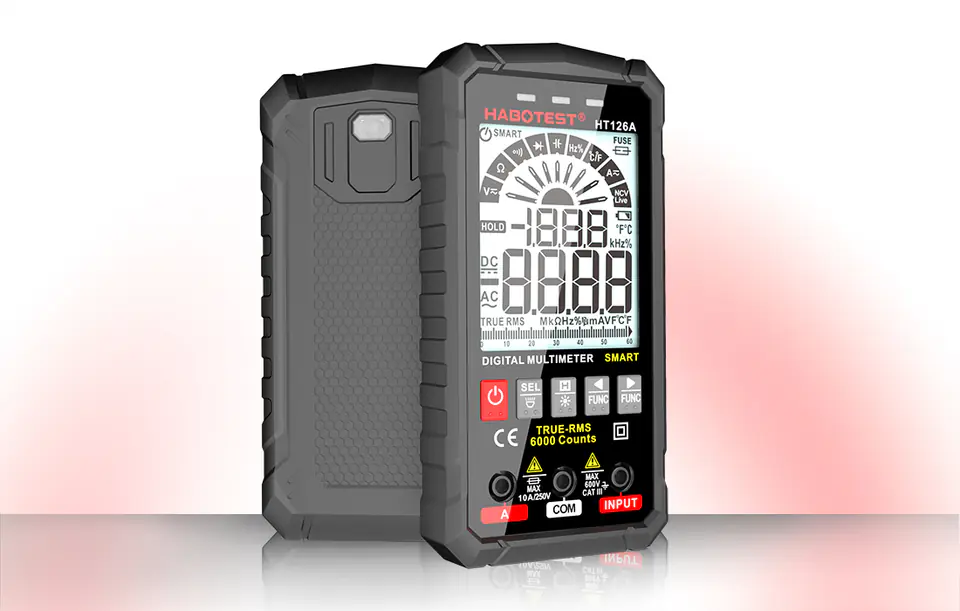

This is not the end of the advantages of the multimeter. Built-in LED flashlight will keep you illuminated when working in dark rooms. The soft protective housing not only protects the device from damage, but also makes it easy to transport and store. Replacing the HT126A battery is quick and easy, so you won't have any problem.
Habotest | Producent |
---|---|
HT126A | Model |
600mV/6V/60V/600V | Zakres pomiaru napięcia DC |
6V/60V/600V | Zakres pomiaru napięcia AC |
600mA/ 10A/6A | Zakres pomiaru natężenia DC |
600mA/ 10A/6A | Zakres pomiaru natężenia AC |
600ꭥ/6kꭥ/60kꭥ/600kꭥ/6Mꭥ/60Mkꭥ | Zakres pomiaru oporu |
6nF/60nF/600nF/6µF/60µF/600µF/6mF/60mF | Zakres pomiaru pojemności |
6Hz/60Hz/600Hz/6kHz/60kHz/600kHz/6MHz/10MHz | Zakres pomiaru częstotliwości |
1.0~99.0% | Zakres pomiaru współczynnika wypełnienia |
-40°C ~ 100°C / -40°F ~ 1832°F | Temperatura (°C/°F) |
Tak, 0~3V | Testowanie diod |
Tak | NCV |
Tak | Live test |
<50ꭥ | Ciągłość |
Tak | Testowanie diod |
Tak | Ciągłość |
6000 | Liczba zliczeń |
TN | Wyświetlacz |
Tak | Przechowywanie danych |
Tak | Prawdziwa wartość RMS |
Tak | Funkcja wskazywania przepalonego bezpiecznika |
Tak | Wskaźnik niskiego poziomu baterii |
Tak | Automatyczne wyłączanie zasilania |
Tak | Wskaźnik LED portu wejściowego jack |
Tak | Podświetlenie |
Tak | Latarka |
4x bateria 1.5V AAA (brak w zestawie) | Zasilanie |
EN61010-1;EN61326-1 CAT III 600V | Bezpieczeństwo |
ok. 182 g | Waga |
146 x 73 x 26 mm | Wymiary |
