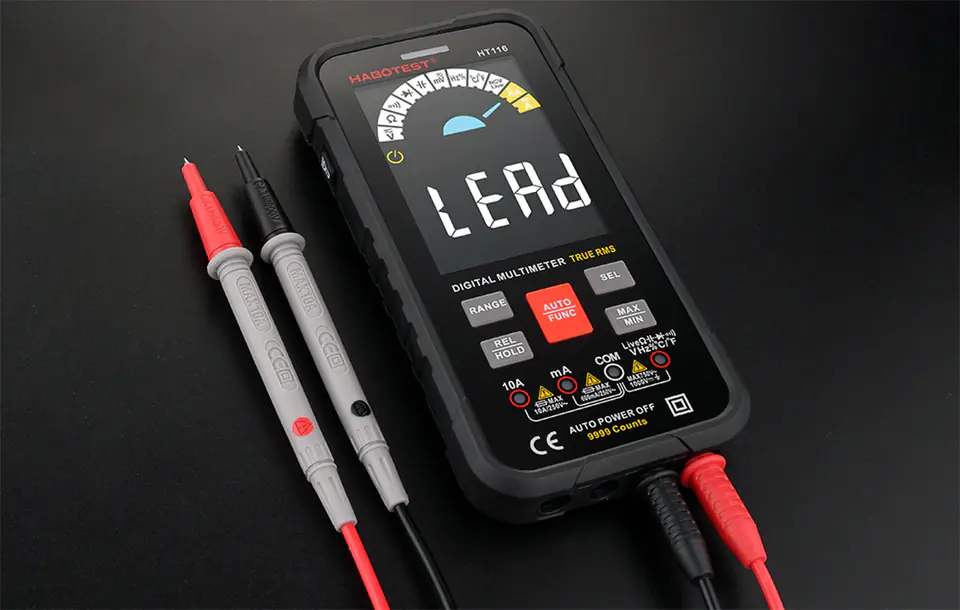

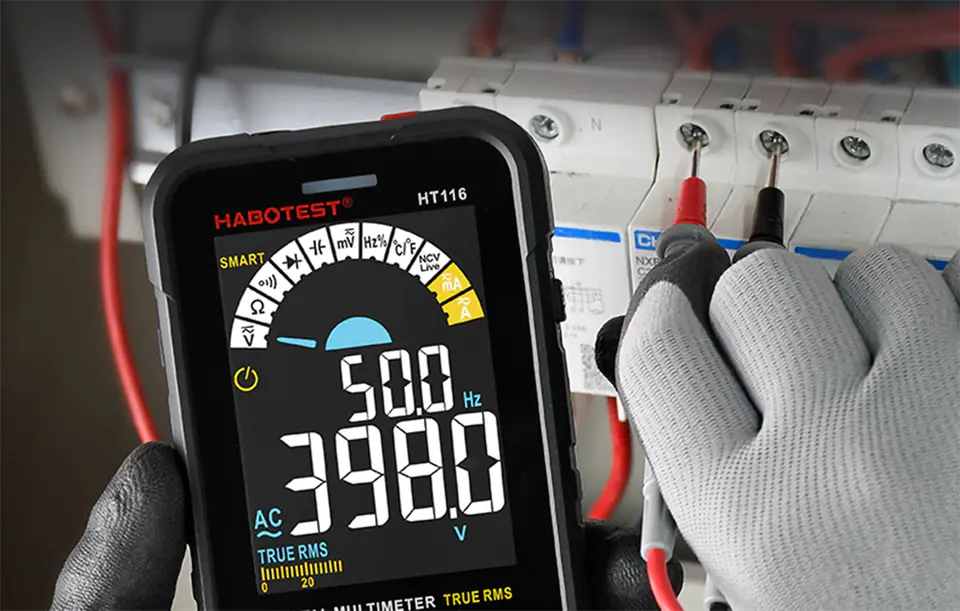

HT116 is an intelligent multimeter with which you can precisely measure AC and DC voltage, resistance, continuity, capacitance, and more. The large display and buttons facilitate operation and provide easy access to the measurement results. In addition, the device has a flashlight, which will facilitate work in dark rooms. 3 AAA batteries are needed to power the HT116.
The Habotest multimeter is characterized by incredible measurement precision. It will work well to check the continuity and true value of RMS. With it you can measure AC and DC voltage, current and resistance. It also provides non-contact voltage detection (NCV).

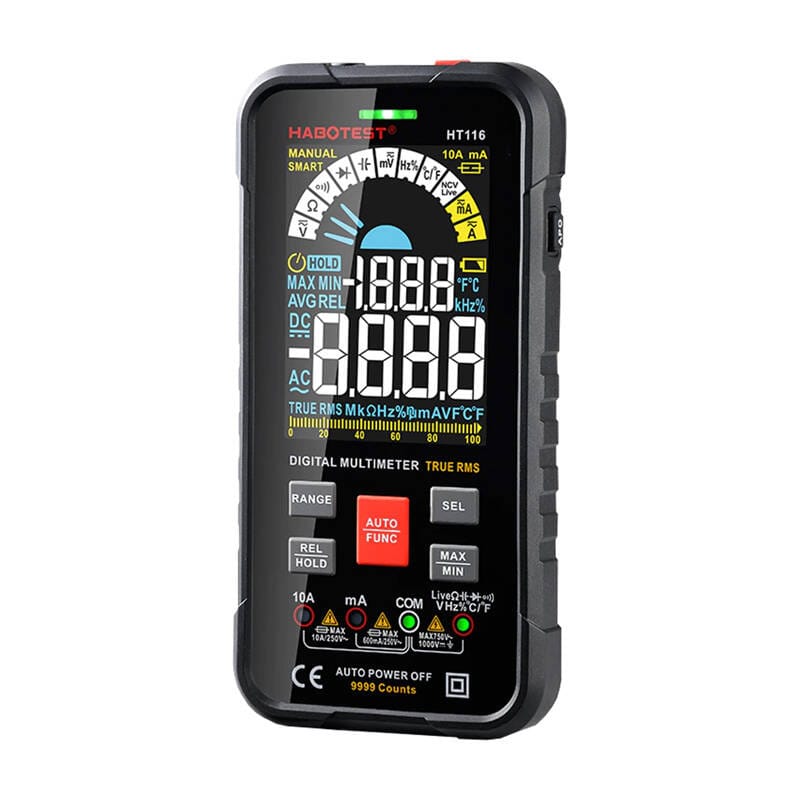

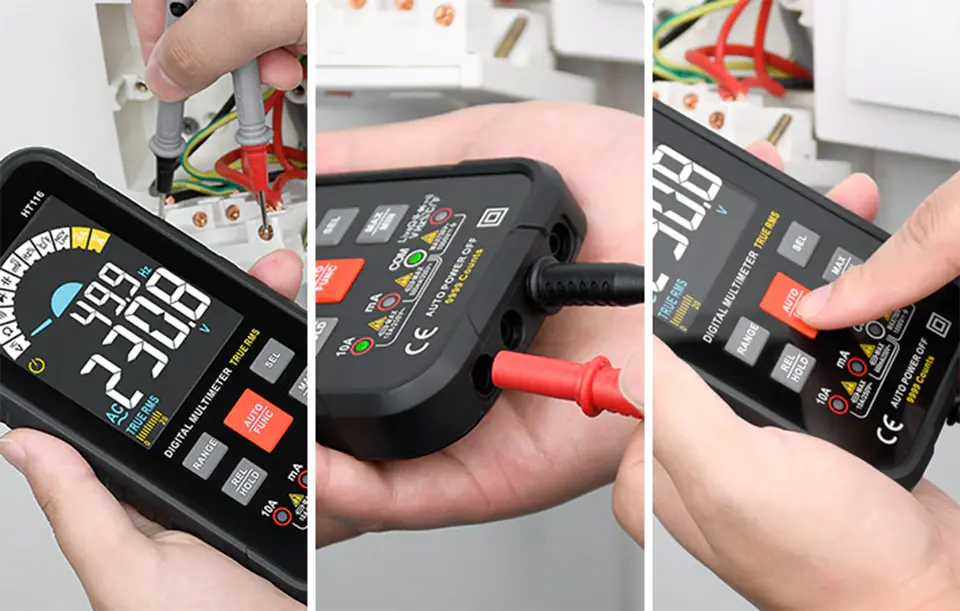

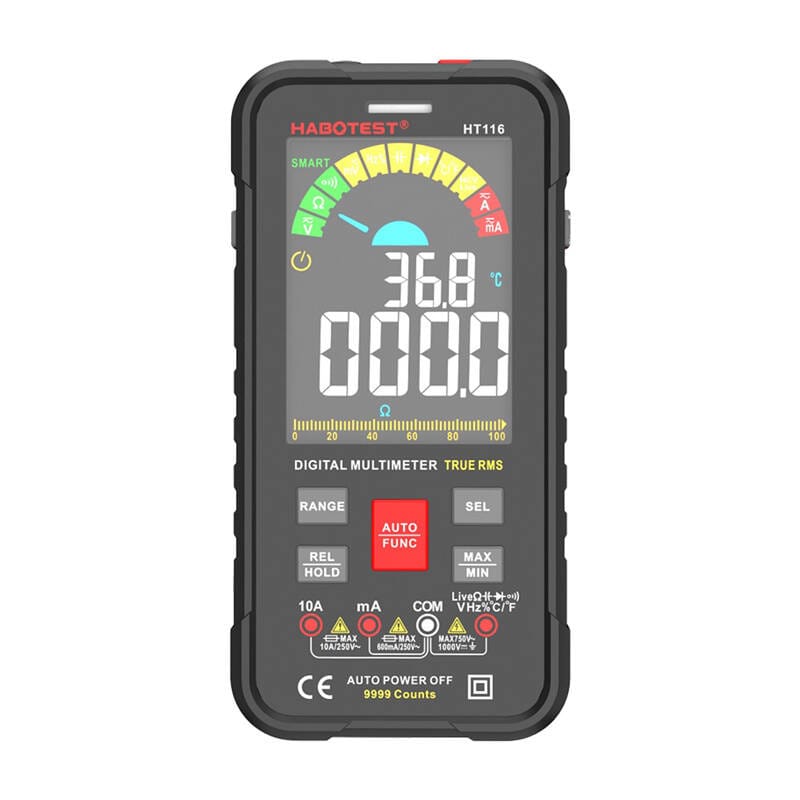

The multimeter is designed to be easy and convenient to use. Resembling a design, the HT116 has a large, easy-to-read display and silicone buttons for easy operation. It is also equipped with an LED indicator for the input jack port.

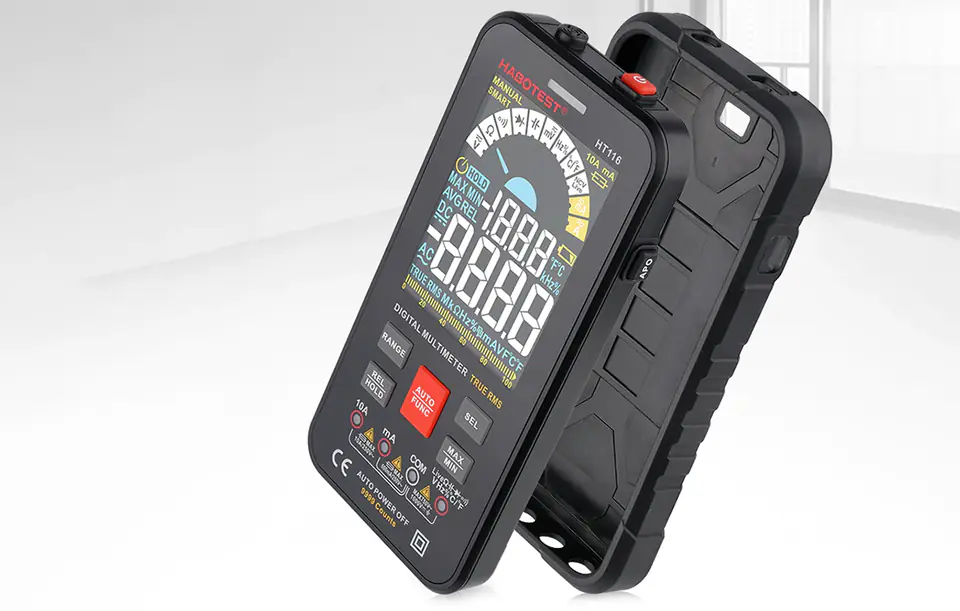

The device protects the case, so you do not have to worry about damaging it. On the right side there is an automatic power off button to save energy, and the flashlight will facilitate work in a dark room. The HT116 is powered by 3 AAA batteries that you can easily replace.
| Producer | Habotest |
|---|---|
| Model | HT116 |
| DC voltage measuring range | 0.01 mV ~ 1000 V ± (0.5%+3) |
| AC voltage measuring range | 0.01 mV ~ 750 V ± (0.8%+3) |
| DC current measuring range | 0.01 mA ~ 10 A ± (0.8%+3) |
| AC current measuring range | 0.01 mA ~ 10 A ± (0.8%+3) |
| Resistance measuring range | 0.01 ꭥ ~ 100 Mꭥ ± (1.0%+5) |
| Capacitance measuring range | 0.001 nF ~ 100 mF ± (4.0%+3) |
| Frequency measuring range | 0.001 Hz ~ 10 Hz ± (1.0%+3) |
| Fill factor measuring range | 0.1% ~ 99.9% ±(1.0%+2) |
| Temperature (°C/°F) | -40°C ~ 1000°C ; -40°F ~ 1832°F |
| Number of counts | 9999 |
| LED jack input port indicator | Yes |
| SMART function | Yes |
| Automatic output current identification | Yes |
| Live test | Yes |
| NCV | Yes |
| Diode Testing | Yes |
| MAX/MIN | Yes |
| Data Retention | Yes |
| True RMS Value | Yes |
| Blown fuse indication function | Yes |
| Low battery indicator | Yes |
| Automatic power off | Yes |
| Flashlight | Yes |
| Power | 3 x AAA battery |
| Scales | Approx. 233g |
| Dimensions | 83 x 23 x 165 mm |
