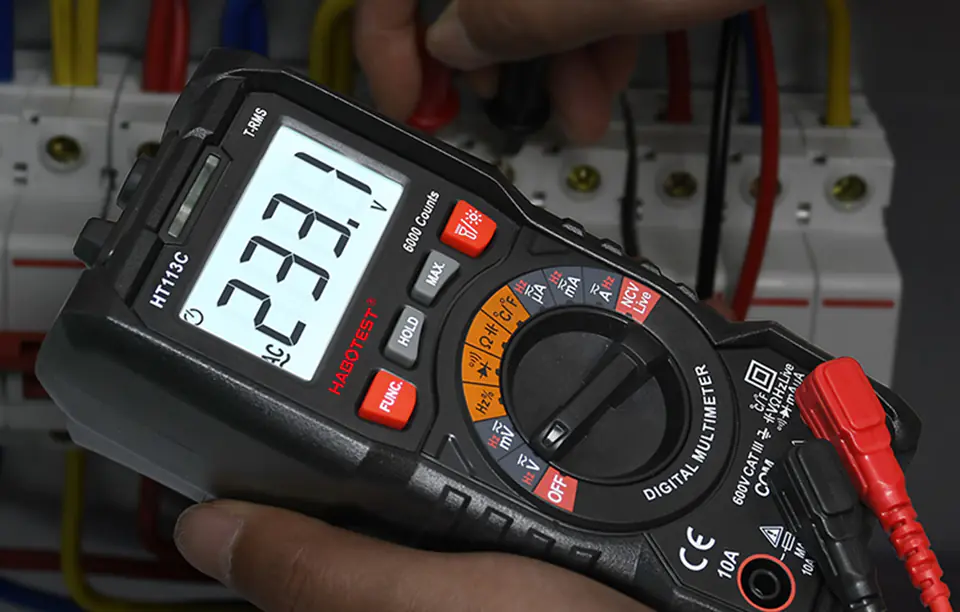

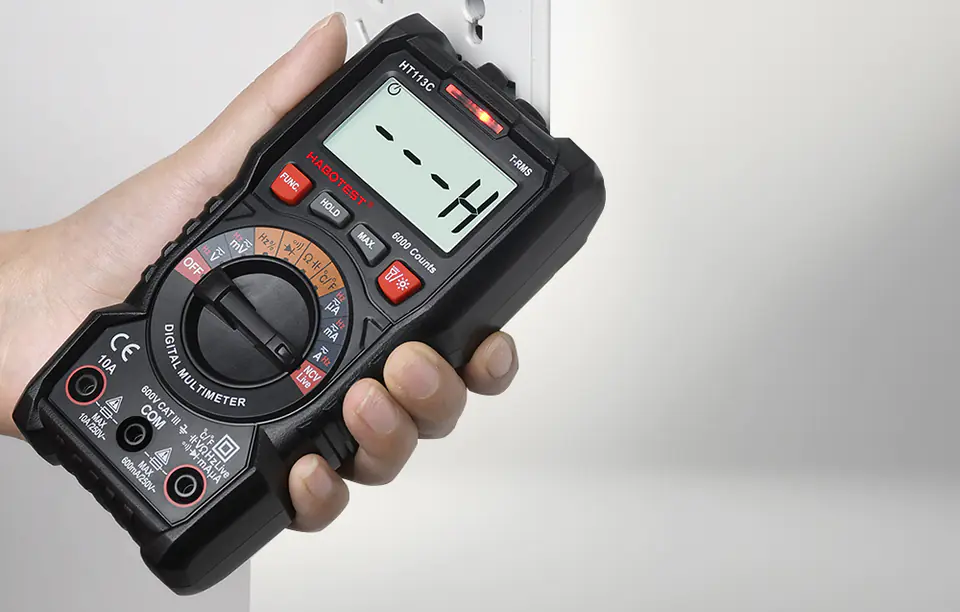

Equip yourself with the lightweight and handy Habotest HT113C digital universal multimeter, which will allow you to measure voltage, current or resistance in a convenient and safe way. Habotest HT113C has been equipped with a practical stand, thanks to which you can put the product on the shelf, its advantage is also the NCV function, the ability to test diodes and a flashlight. Made of soft material, the housing is pleasant to the touch, but also extremely durable, resistant to wear and fall.

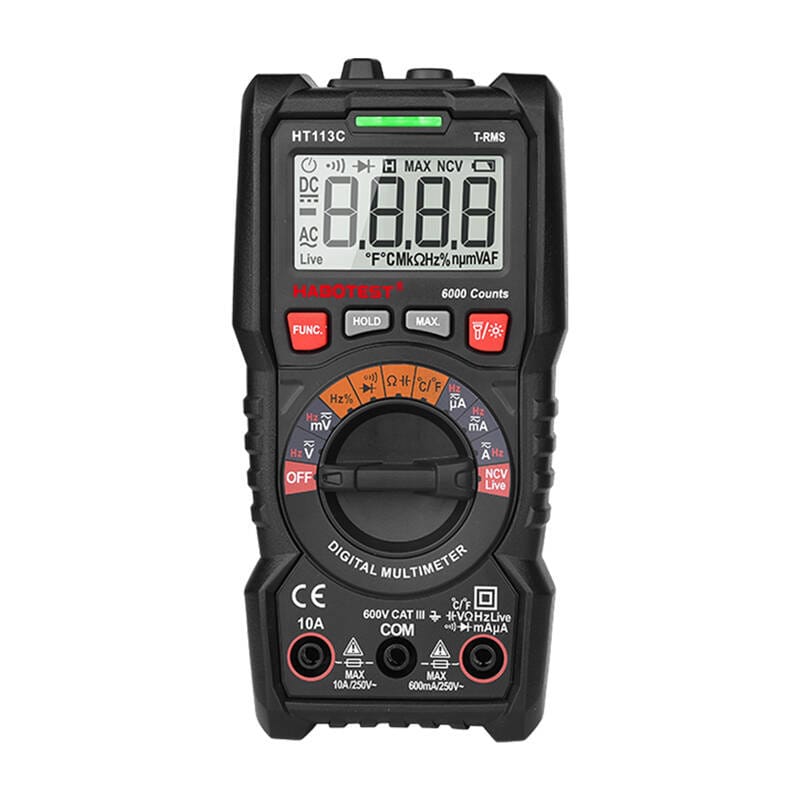

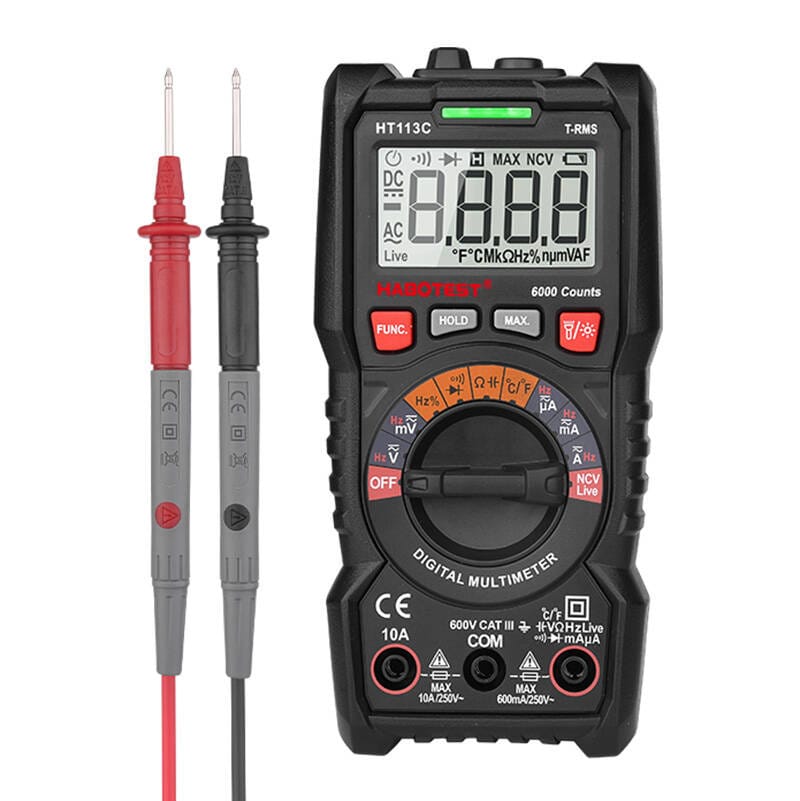

The Habotest HT113C digital universal multimeter offers a range of functions that are perfect for DIY and electrical work. The device allows the measurement of DC and AC voltage, DC and AC current and resistance, also allows testing diodes and offers NCV function. Special buttons will allow you to conveniently change functions, while the clear display provides access to the results you need. The number of counts is 6000, in addition, the multimeter allows you to measure continuity, fill factor and store data.

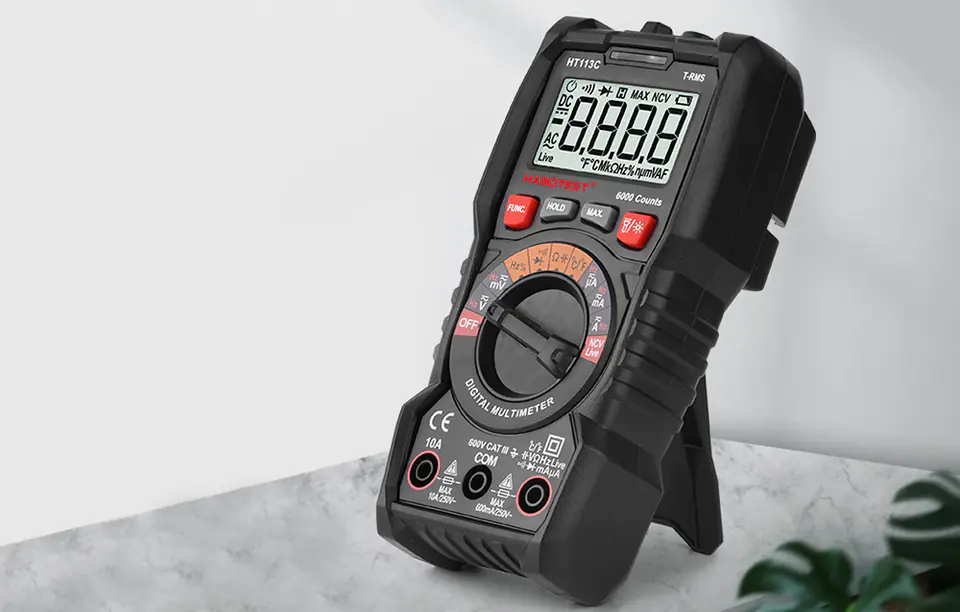

The device is distinguished by its handy design and weighs only approx. 220 g. Thanks to the use of soft material, the housing of the device is pleasant to the touch, moreover, it is distinguished by high resistance to wear and fall. The multimeter is easy to transport and facilitates various types of electrical work, and thanks to the kickstand you can place it, for example, on a table. The advantage is also a low battery indicator and backlight.
ManufacturerHabotestModelHT113HT113BHT113C Voltagemeasuring range DC200mV/2V/20V/200V/600V
±(0,5%+3)400mV/4V/40V/400V/600V
±(0,5%+3)600mV/6V/60V/600V
±(0.5%+3) Voltage measuring range AC200V/600V ±(1,0%+3)400mV/4V/40V/400V/600V
±(1,0%+3)600mV/6V/60V/600V
±(1.0%+3) Current measuring range DC20mA/ 200mA ±(1,2%+3) 10A ±(2,0%+3)400uA/4000uA/40mA/400mA
±(1,2%+3) 10A ±(2,0%+3)600uA/6000uA/60mA/600mA
±(1.2%+3) 10A ±(2.0%+3) Current measuring range: AC-400uA/4000uA/40mA/400mA
±(1,5%+3) 10A ±(2,0%+3)600uA/6000uA/60mA/600mA
±(1.5%+3) 10A ±(2.0%+3) Resistance measuring range200ꭥ/2kꭥ/20kꭥ/200kꭥ/2Mꭥ/20Mꭥ
±(1,0%+3)400ꭥ/4kꭥ/40kꭥ/400kꭥ/4Mꭥ/40Mꭥ
±(1,0%+3)600ꭥ/6kꭥ/60kꭥ/600kꭥ/6Mꭥ/60Mꭥ±(1,0%+3)Capacitance measuring range--10nF/100nF/1μF/10μF/100μF/1mF/10mF
±(4,0%+5) 100mF ±(5,0%+5) Frequency Range--10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz
±(1.0%+3) Fill Factor MeasuringRange--1%~99% ±(3.0% +3)Live TestNoNo Yes NCVNieYes YesDiodeTestingYesYesYes ContinuityYesYes Yes Number of Counts20004000 6000 Data StorageYesYes Real RMS ValueNoYes Yes Measuring Bandwidth40~400Hz1kHz1kHz LowBattery IndicatorYesYes YesAutoPower OffYes Yes BacklightYesYes YesFlashlightNoYesYes PowerSupply2x 1.5V AAA Battery2x 1.5V AAABattery 2x 1.5V AAA BatterySecurityEN61010-2-030
EN61010-2-033
CAT III 600VEN61010-2-030 EN61010-2-033
CAT III 600V EN61010-2-030EN61010-2-033
CAT III 600V WeightApprox. 220 gApprox. 220 gApprox. 220 gDimensions151 x 75 x 48 mm151 x 75 x 48 mm151 x 75 x 48 mm
