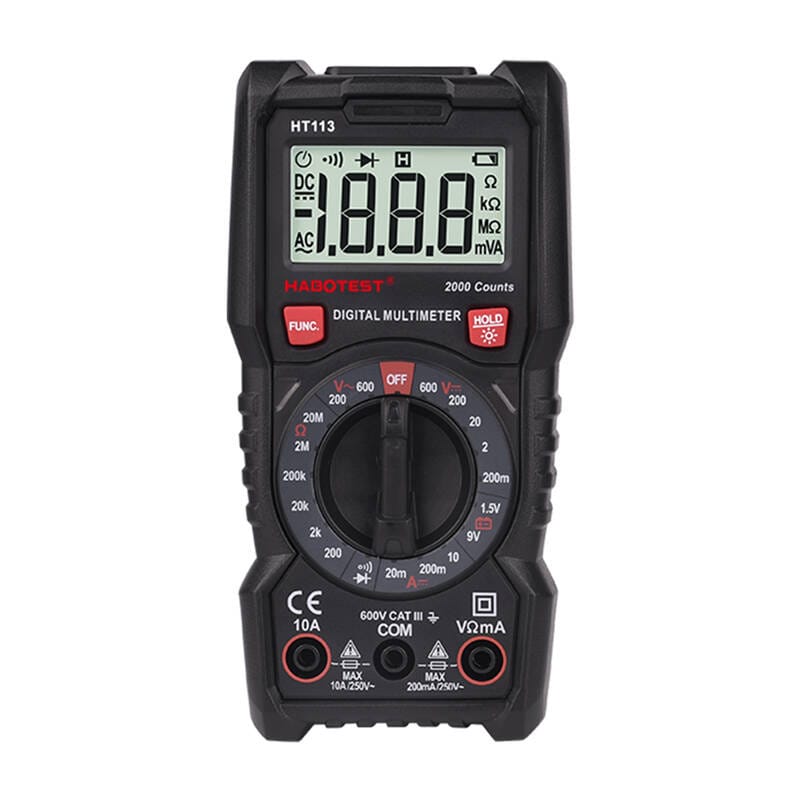

Equip yourself with the lightweight and handy Habotest HT113 digital universal multimeter, which will allow you to measure voltage, current, resistance and many other values in a convenient and safe way. Habotest HT113 is equipped with a practical stand, thanks to which you can put the product on the shelf. Made of soft material, the housing is pleasant to the touch, but also extremely durable, resistant to wear and fall.

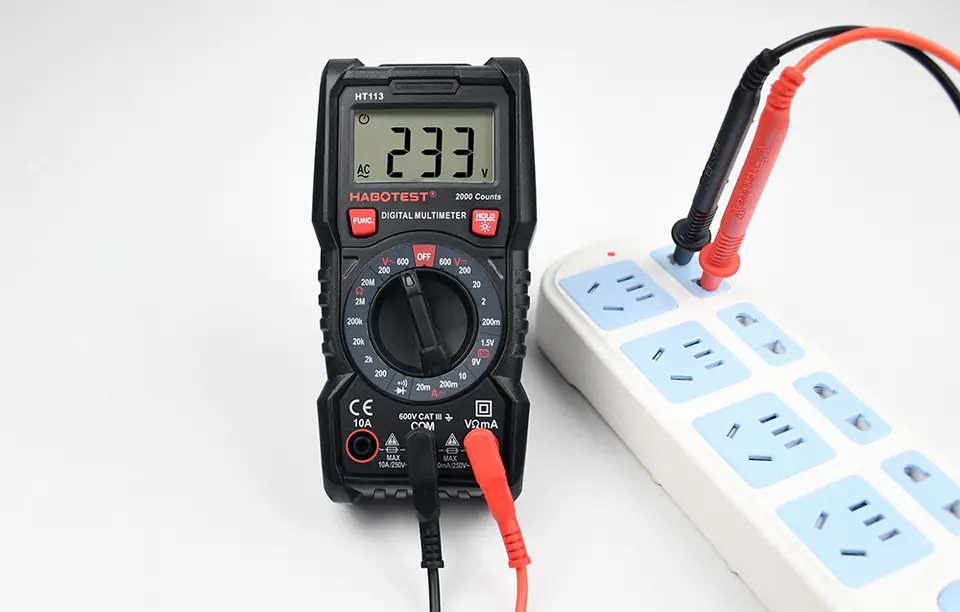

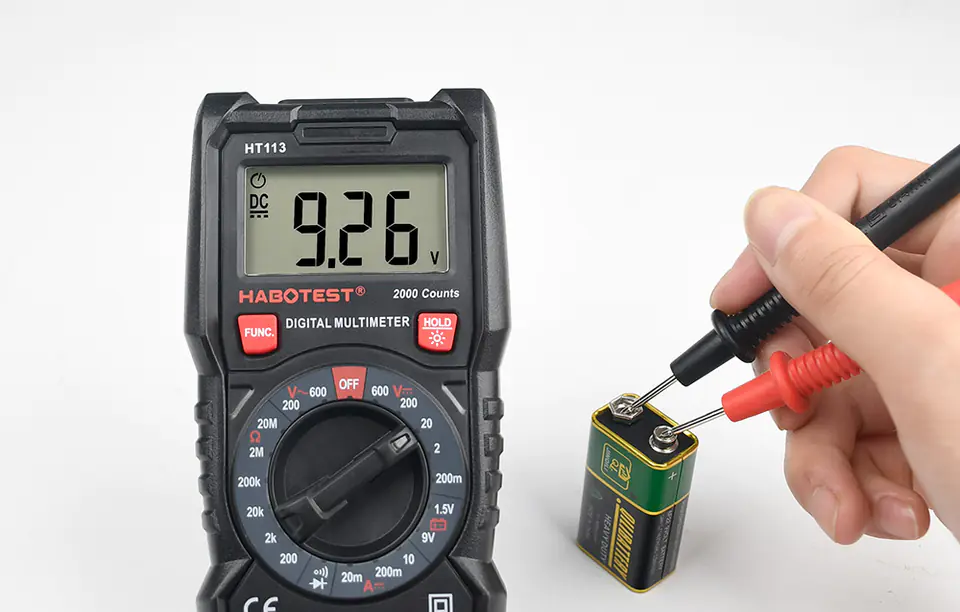

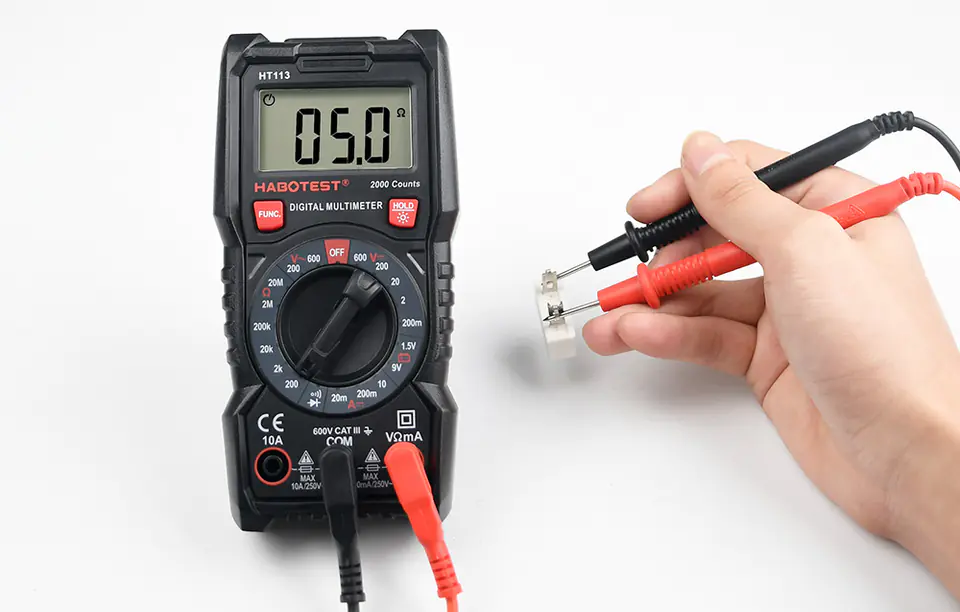

The Habotest HT113 digital universal multimeter offers many functions and is ideal for measuring DC and AC voltage, DC current or resistance, as well as testing diodes and measuring continuity. Special buttons will allow you to conveniently change functions, while the clear display provides access to the results you need.
The device is distinguished by its handy design and weighs only approx. 220 g. Thanks to the use of soft material, the housing of the device is pleasant to the touch, moreover, it is distinguished by high resistance to wear and fall. The multimeter is easy to transport and facilitates various types of electrical work, and thanks to the kickstand you can place it, for example, on a table.
ManufacturerHabotestModel HT113HT113BHT113CZvoltagemeasurement capacity DC 200mV/2V/20V/200V/600V ±(0,5%+3)400mV/4V/40V/400V/600V ±(0,5%+3)600mV/6V/60V/600V
±(0,5%+3)Voltage measuring range AC 200V/600V ±(1,0%+3)400mV/4V/40V/400V/600V
±(1,0%+3)600mV/6V/60V/600V
±(1,0%+3)Current measuring range: DC 20mA/ 200mA ±(1,2%+3)10A ±(2,0%+3)400uA/4000uA/40mA/400mA
±(1,2%+3) 10A ±(2,0%+3)600uA/6000uA/60mA/600mA
±(1,2%+3) 10A ±(2,0%+3)Current measuring range: AC-400uA/4000uA/40mA/400mA
±(1,5%+3) 10A ±(2,0%+3)600uA/6000uA/60mA/600mA
±(1,5%+3) 10A ±(2,0%+3)Resistance measuring range 200ꭥ/2kꭥ/20kꭥ/200kꭥ/2Mꭥ/20Mꭥ ±(1,0%+3)400ꭥ/4kꭥ/40kꭥ/400kꭥ/4Mꭥ/4Mꭥ±(1,0%+3) 600ꭥ/6kꭥ/60kꭥ/60kꭥ/6Mꭥ/60Mꭥ±(1,0%+3)Capacitance measuring range--10nF/100nF/1μF/10μF/100μF/1mF/10mF
±(4,0%+5) 100mF ±(5,0%+5)Frequency Measuring Range--10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz
±(1.0%+3)Fill Ratio Measuring Range--1%~99% ±(3.0% +3)Live Test No NoTakNCVNoYesYesDiode Testing YesYesYesContinuity Yes Yes Number of Counts200040006000Data Retention YesYesTrue RMSNoYesYesMeasuring band40~400Hz1kHz1kHzLow battery indicatorYesYesYesAutopower offYes YesYesBacklight YesYesYesFlashlightNoYesYesPowersupply 2x 1.5V AAAbattery 2x 1.5V AAA battery2x 1.5V AAAbatterySecurity EN61010-2-030 EN61010-2-033CAT III 600V EN61010-2-030 EN61010-2-033
CAT III 600VEN61010-2-030 EN61010-2-033
CAT III 600VWaga approx. 220 g Approx.220gApprox. 220 gDimensions 151 x 75 x 48 mm 151 x 75 x 48mm151 x 75 x 48 mm
