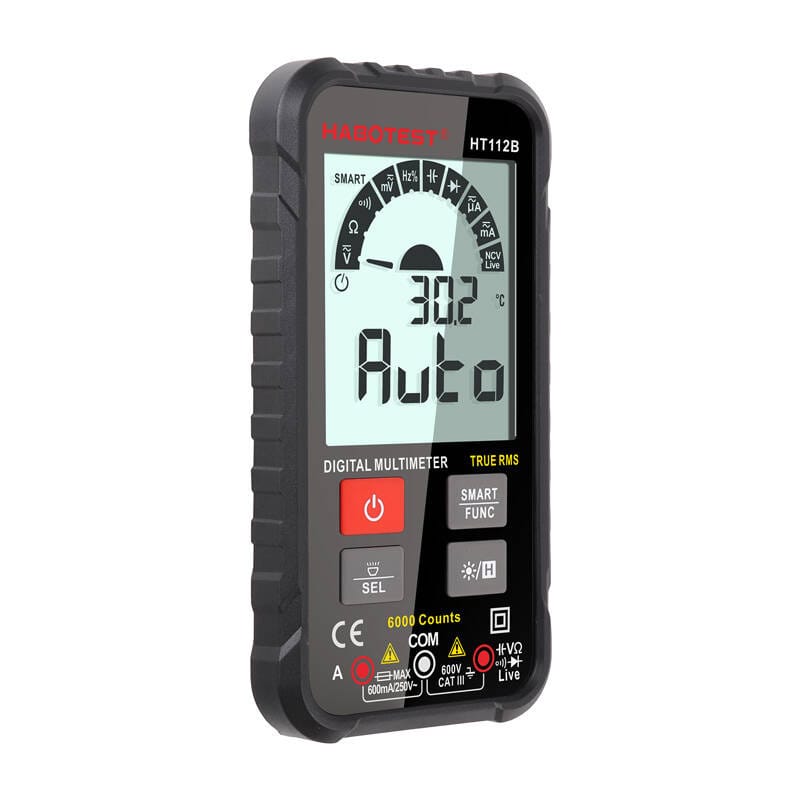

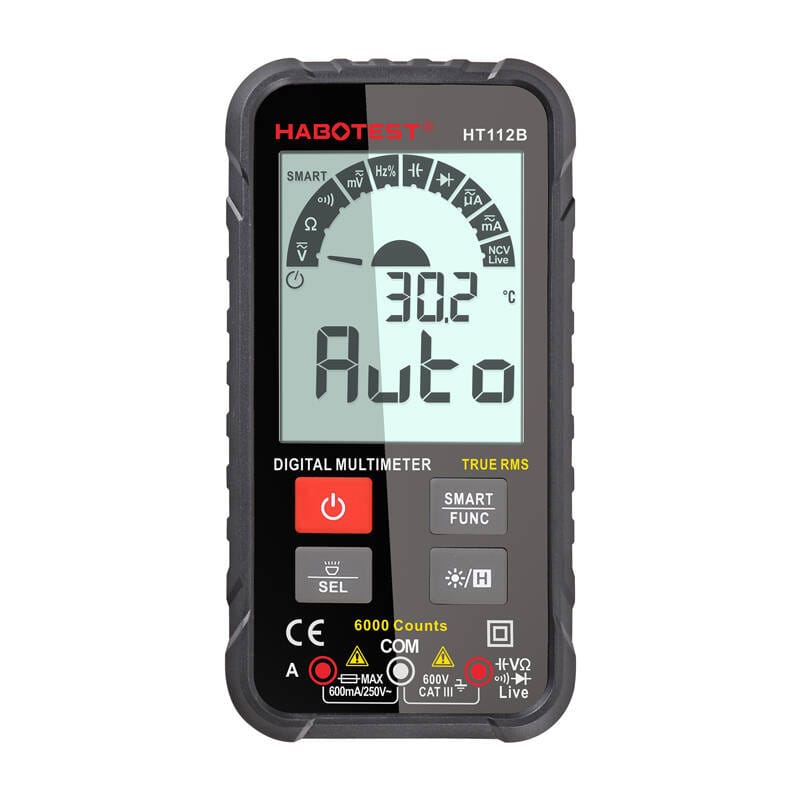

The HT112B is a next-generation ultra-thin, intelligent multimeter. Equipped with a large 2.88" display and silicone buttons - it is simple and convenient to use. It provides precise measurement of various parameters. Compact and lightweight - it also has an LED flashlight that allows you to work also in dark places. To power it, you need 2 CR2032 3 V batteries.
This practical multimeter has been designed to provide you with maximum comfort. Small and handy - its thickness is only 1.9 cm. The 2.88" display gives you convenient access to all important information. Large silicone buttons make it easy to operate.
The Habotest multimeter is distinguished by incredible precision. It accurately measures AC and DC voltage, resistance and capacitance, among other things. It also recognizes cable activity. With its help, you will test the diodes, check the continuity and true value of RMS. It also enables non-contact voltage detection (NCV). HT112B features intelligent operation and ACV auto-detection.

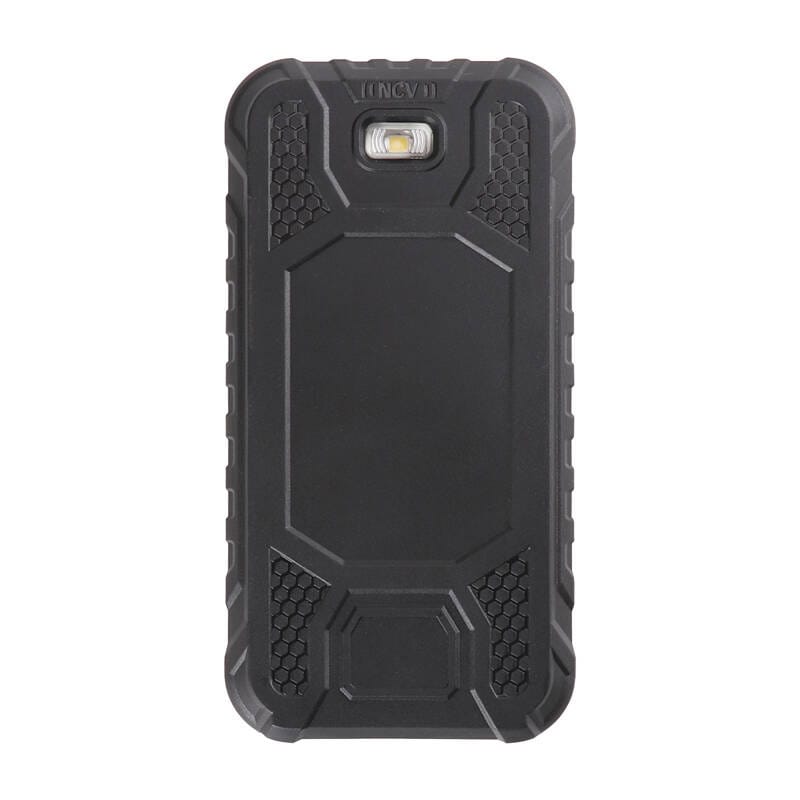

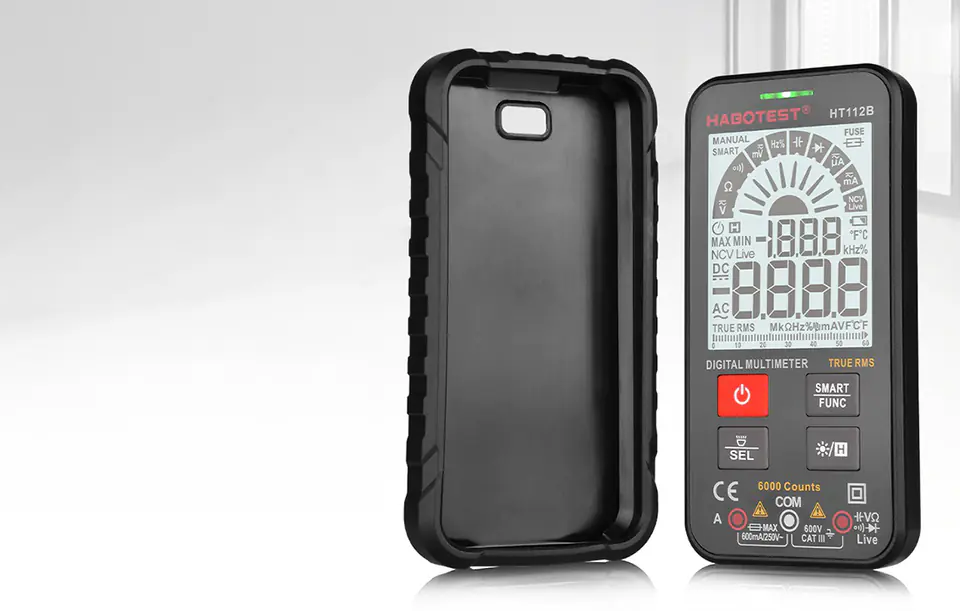

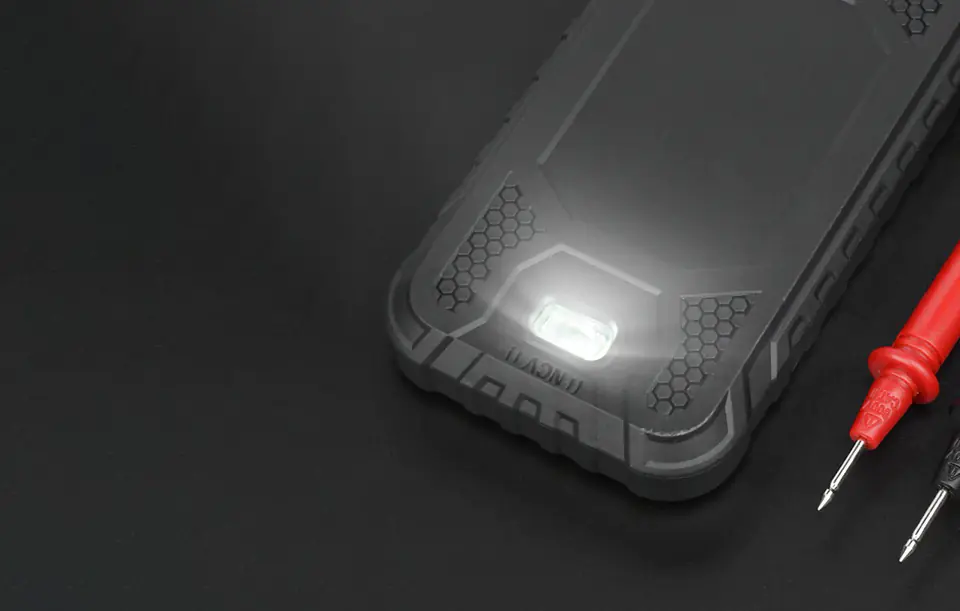

This is not the end of the advantages of the multimeter. Built-in LED flashlight will give you bright lighting when working in dark rooms. The soft protective housing not only protects the device from damage, but also makes it easy to transport and store. Replacing the HT112B battery is child's play - it won't cause you any problem.
| Habotest | Habotest2 | Producent |
|---|---|---|
| HT112A | HT112B | Model |
| 2 V/30 V/200 V/600 V ±(0,5%+3) | 60 mV/600 mV/6 V/60 V/600 V ±(0,5%+3) | Zakres pomiaru napięcia DC |
| 2 V/30 V/200 V/600 V ±(1,0%+3) | 60 mV/600 mV/6 V/60 V/600 V ±(1,0%+3) | Zakres pomiaru napięcia AC |
| 20 mA/200 mA/600 mA ±(1,2%+5) | 6000 uA/60 mA/600 mA ±(1,2%+5) | Zakres pomiaru natężenia DC |
| 20 mA/200 mA/600 mA ±(1,5%+5) | 6000 uA/60 mA/600 mA ±(1,5%+5) | Zakres pomiaru natężenia AC |
| 200 ꭥ/2 kꭥ/20 kꭥ/200 kꭥ/2 Mꭥ/20 Mꭥ ±(1,0%+5) | 600 ꭥ/6 kꭥ/60 kꭥ/600 kꭥ/6 Mꭥ/60 Mꭥ, ±(1,0%+5) | Zakres pomiaru oporu |
| Nie dotyczy | 6 nF/60 nF/600 nF/6 μF/60 μF/600 μF/6 mF/60 mF ±(4,0%+5) | Zakres pomiaru pojemności |
| Nie dotyczy | 10 Hz/100 Hz/1000 Hz/10 kHz/100 kHz/1000 kHz/10 MHz ±(1,0%+5) | Zakres pomiaru częstotliwości |
| Nie dotyczy | 1%~99%, ±(3,0%+5) | Zakres pomiaru współczynnika wypełnienia |
| 2000 | 6000 | Liczba zliczeń |
| Automatyczny | Automatyczny | Wybór zakresów |
| Tak | Tak | Funkcja SMART |
| Tak | Tak | Automatyczna identyfikacja prądu wyjściowego |
| Tak | Tak | Live test |
| Tak | Tak | NCV |
| Tak | Tak | Testowanie diod |
| Tak | Tak | Ciągłość |
| Tak | Tak | Przechowywanie danych |
| Tak | Tak | Prawdziwa wartość RMS |
| Tak | Tak | Funkcja wskazywania przepalonego bezpiecznika |
| Tak | Tak | Wskaźnik niskiego poziomu baterii |
| Tak | Tak | Automatyczne wyłączanie zasilania |
| Tak | Tak | Podświetlenie |
| Tak | Tak | Latarka |
| 2x bateria CR2032 3 V (w zestawie) | 2x bateria CR2032 3 V (w zestawie) | Zasilanie |
| EN61010-2-030;EN61010-2-033,EN61326-1 CAT III 600V | EN61010-2-030;EN61010-2-033,EN61326-1 CAT III 600V | Bezpieczeństwo |
