| Aluminium < 8% krzemu fz: | 0.032 mm/rev. |
|---|---|
| Aluminium > 8% silicon: | 190 |
| Copper alloys: | 130 |

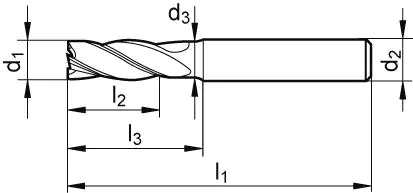

| Cutting part length l2: | 21 mm |
| Diameter d1 = e8: | 8 mm |
| Neck diameter d3: | 7.5 mm |
| Neck length l3: | 26 mm |
| Shank diameter d2 = h6: | 8 mm |
| Total length l1: | 63 mm |

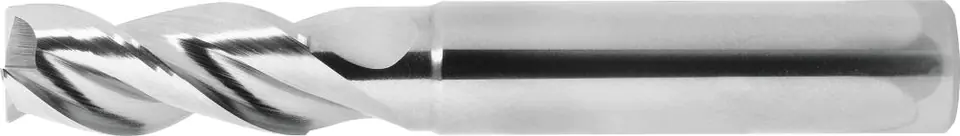

Solid carbide milling cutters, high-performance aluminium processing
Execution: with center blade, suitable for drilling. Polished surface.
Application: for processing aluminum, aluminum alloys, short and long chip brass, thermoplastics and duroplastics. Optimal for HPC machining.
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
