| Aluminium < 8% krzemu fz: | 0.073 mm/rev. |
|---|---|
| Aluminium > 8% silicon: | 190 |
| Copper alloys: | 130 |

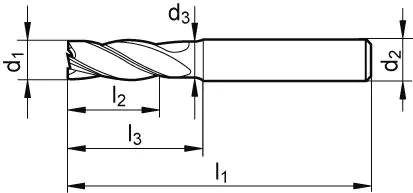

| Cutting part length l2: | 41 mm |
| Diameter d1 = e8: | 20 mm |
| Neck diameter d3: | 19 mm |
| Neck length l3: | 52 mm |
| Shank diameter d2 = h6: | 20 mm |
| Total length l1: | 104 mm |

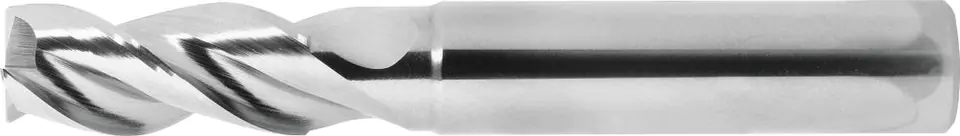

Solid carbide milling cutters, high-performance aluminium processing
Execution: with center blade, suitable for drilling. Polished surface.
Application: for processing aluminum, aluminum alloys, short and long chip brass, thermoplastics and duroplastics. Optimal for HPC machining.
