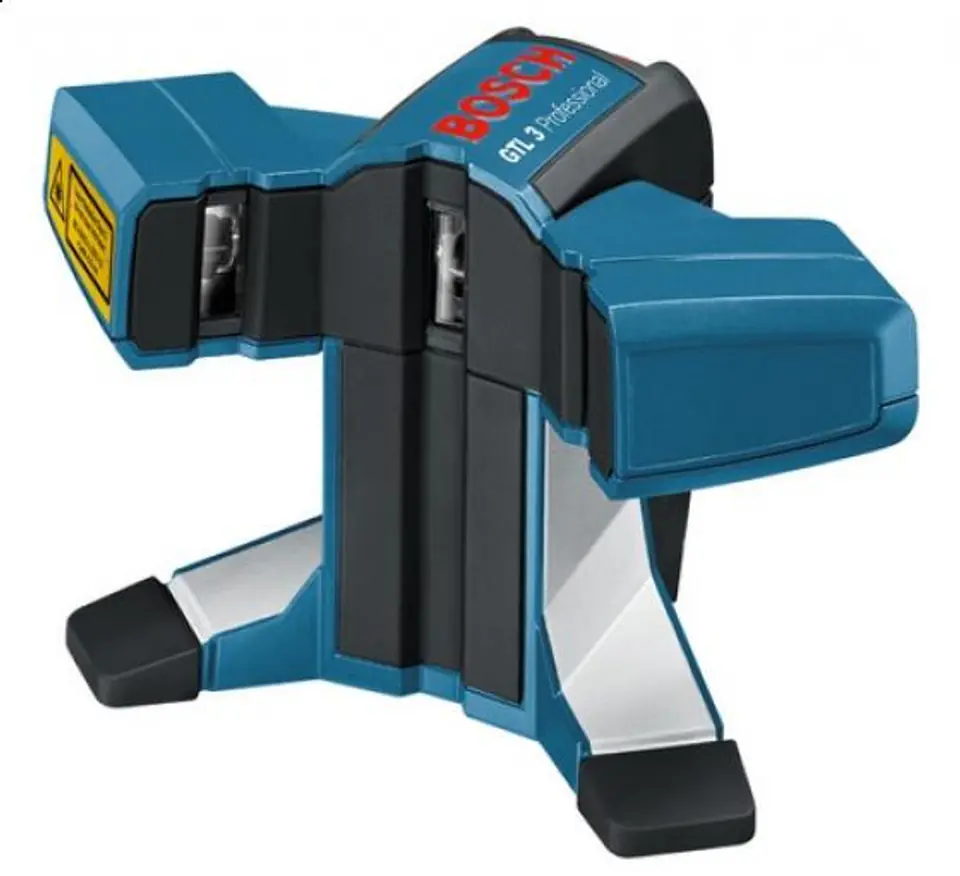

GTL 3 TILE LASER

Technical Specifications

Manufacturer: Bosch
Manufacturer no: 601015200
Projection: 3 lines
Operating range*: 20 m
Laser diode: 635nm, < 1mW
Operating temperature: -10 – 50 °C
Storage temperature: -20 – 70 °C
Laser class: 2
Working range with sight plate*: 20 m
Angular accuracy (0 – 90°): ±0.4 mm/m* (*plus additional deviation depending on application)
Protection against dust and water: IP 54
Power supply: 4 x 1.5V LR6 (AA) batteries
Max. runtime: 18 h in 2-line mode
Weight, Approx.**: 0.44 kg
Operating range, value: 20 m



GTL 3 tile laying laser

Fast tiling thanks to additional 45° inclined line
In addition to both lines at 90°, the laser emits a third line at a 45° angle for precise and fast laying of wall and floor tiles
High accuracy of 0.2 mm/m
Compact and lightweight design for high operating comfort


**

Technical photos
