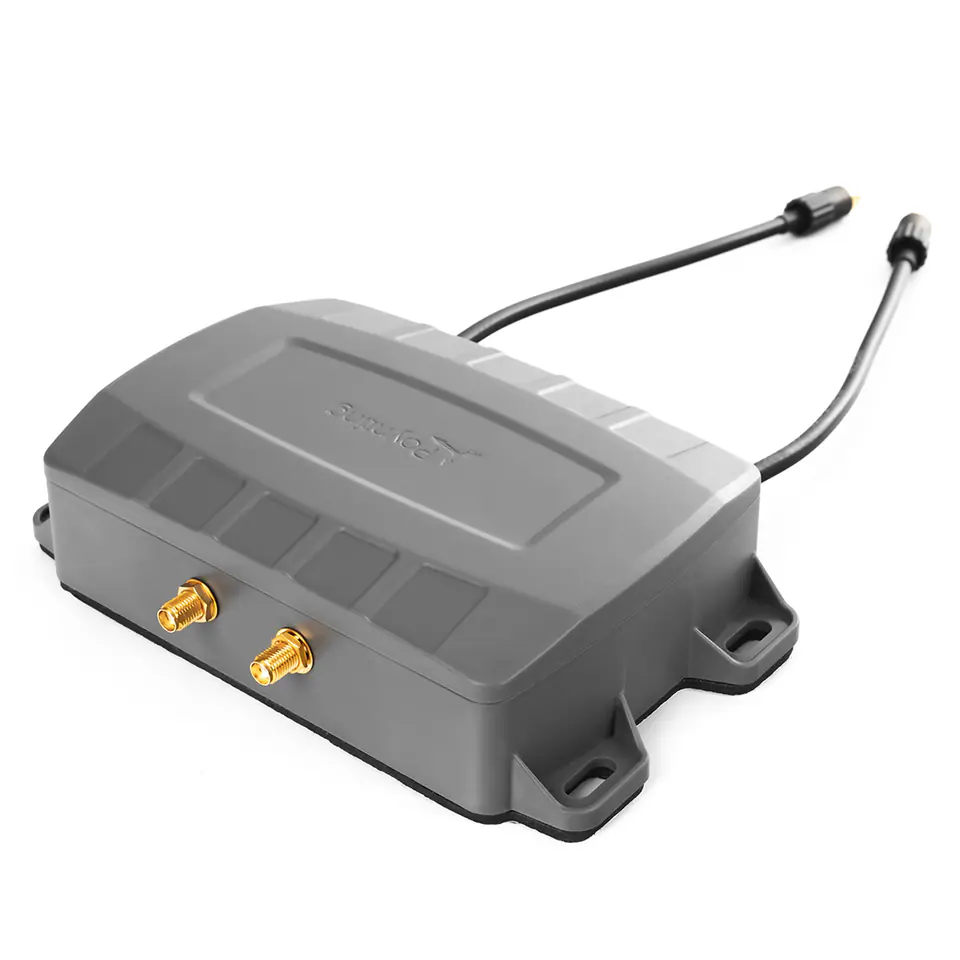

Poynting amplification antenna UDAS-1
UDAS-1 is a universal innovative ultra-broadband antenna, cross-polarized antenna that amplifies the Poynting signal. Its task is to improve any signal - WiFi 2.4GHz, WiFi 5GHz in closed environments, e.g. in a building or motorhome.
The UDAS-1 signal amplification antenna is installed between the router and the external antenna. The Poynting antenna is designed to pass a small amount of signal (transmitted or received) to the place where the device is installed. The remaining part of the energy is emitted by the antenna to the outside. Thanks to this, the user receives a better signal inside the room. The device is safe, does not require permits, does not interfere with the surrounding networks. It is certified.
The Poynting UDAS-1 signal amplification antenna works well in closed rooms (home, office, motorhome) where there is a Wi-Fi device, but there is no network signal (because the device is connected to an external antenna and the range is only outside, not inside the room or vehicle). It is also used in transport, m.in in buses, trains.
- Multi-band support: 617-960MHz, 1427-1517MHz, 1710-2700MHz, 3400-3800MHz, 5000-6000MHz
- Dual-band WiFi 2.4GHz & 5GHz (Dual-band)
- Cross-polarized, with 2X2 MIMO for better performance
- IP65 protection - waterproof housing
- Coverage of 3G/4G/LTE/5G bands
- Omnidirectional antenna

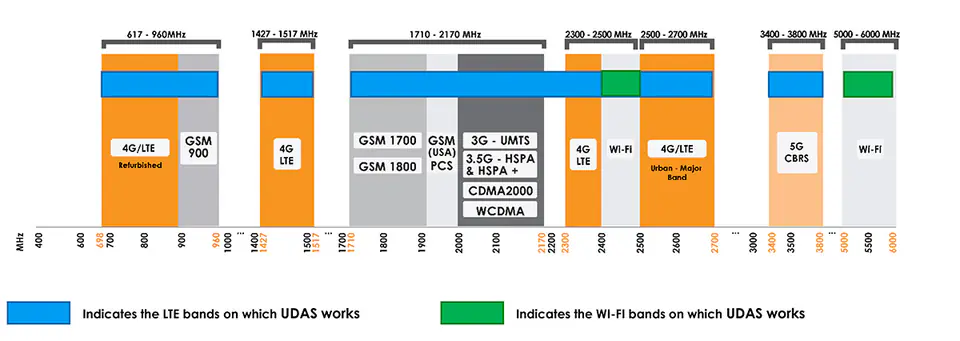

UDAS is an omnidirectional antenna operating in the range of 617-960 MHz, 1427-1517 MHz, 1710-2700 MHz, 3400-3800 MHz and in the Wi-Fi frequency bands 2400-2500 MHz and 5000-6000 MHz
- Ports: 4
- SISO / MIMO: MIMO
- Frequency bands: 617-960 MHz, 1427-1517 MHz, 1710-2700 MHz, 3400-3800 MHz, 5000-6000 MHz
- Cable type: COAX RG58
- Cable length: 0.2m

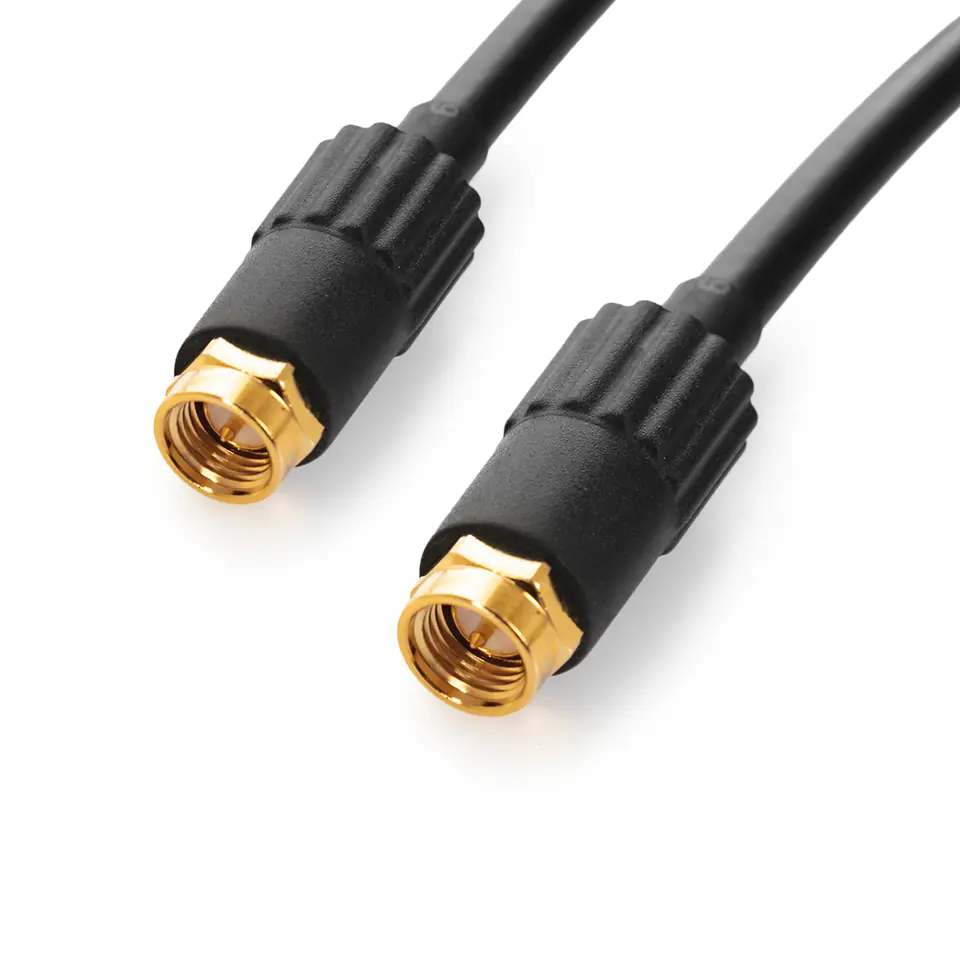

- Connector Type: SMA(F)/SMA(M)
- Bands: 617-960 MHz, 1427-1517 MHz, 1710-2700 MHz, 3400-3800 MHz, 5000-6000 MHz
- VSWR: <2:1
- Feed power handling: 10W
- Input impedance: 50 Ohm (nominal)
- Polarization: +- 45 degree linear polarization
- DC Short: Yes

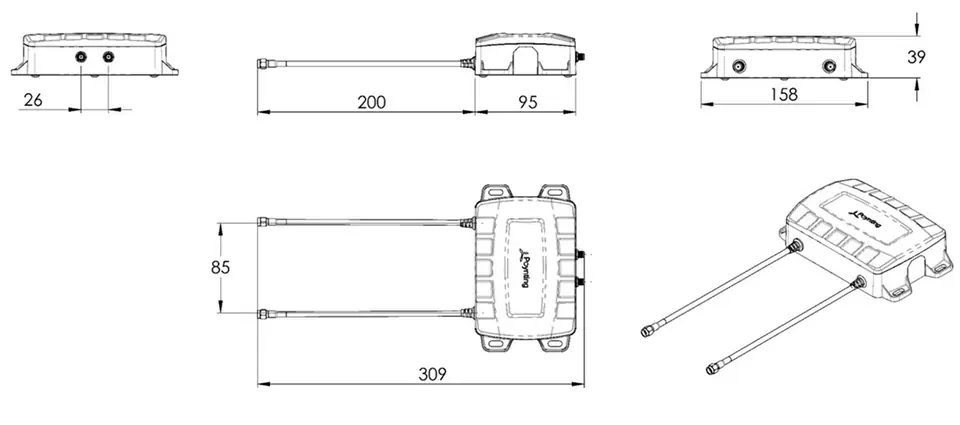

- Coaxial cable losses: 0.535 dB/m at 900 MHz 0.76 dB/m @ 1500 MHz, 0.79 dB/m @ 1800 MHz, 0.97 dB/m at 2400 MHz, 1.1 dB/m at 3000 MHz, 2.0 dB/m at 5800 MHz - Product dimensions: 95 x 158 x 39 mm
- Package dimensions: 200 x 176 x 50 mm
- Mounting type: surface
- Wind resistance: < 160 km/h
- Operating temperature: -40 deg.C - +70 deg.C
- Application: Indoor/Outdoor
- Protection: IP65 (NEMA 4X)
- Salt mist: MIL-STD 810F/ASTM B117
- Operating relative humidity: up to 98%
- Storage humidity: 5% to 95% - non-condensing
- Storage temperature: -40°C to +70°C
- Housing flammability rating: UL 94-HB
- Impact resistance: IK 08
- Product safety: Compliant with CE and RoHS standards
