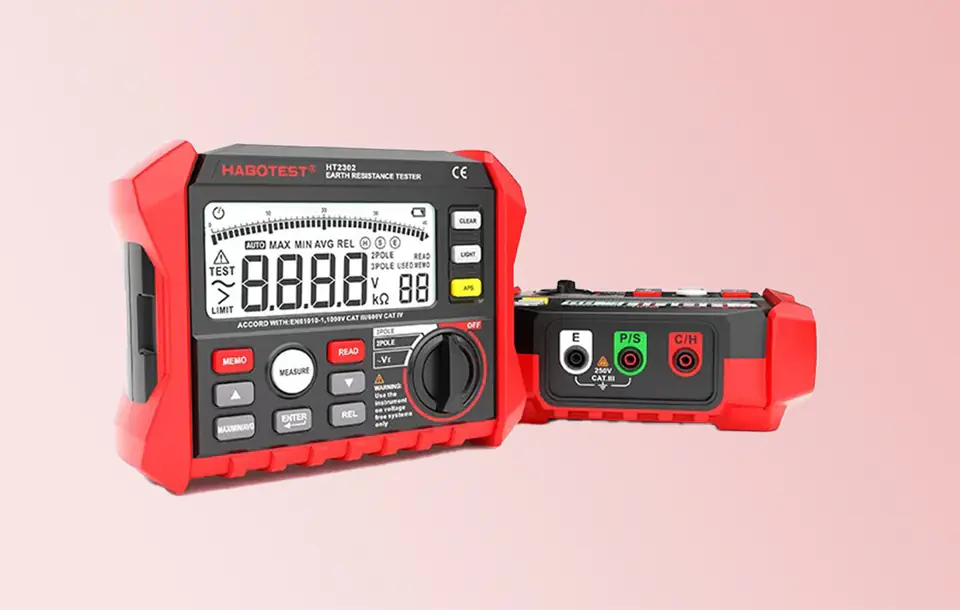

The digital insulation resistance meter is a specialized tool that will work in many situations and will examine the ground resistance of power and distribution wires or various types of electrical devices through a fixed current inverter 800Hz / 3mA. The measuring range of the earth resistance is from 0Ω to 4.00kΩ. The meter provides effective operation through bi-pole or tri-pole operating mode. What's more, it has a large and clear LCD display that allows you to efficiently read the information obtained.
Thanks to the ability to remember measurement data, you do not have to worry when there are power outages. You can easily access 100 groups that store measured data and tests performed. In addition, the device can also be used for maximum, minimum or average measurements and for relative measurements (MAX/MIN/AVG/REL). HT2302 is also equipped with an automatic shutdown function.

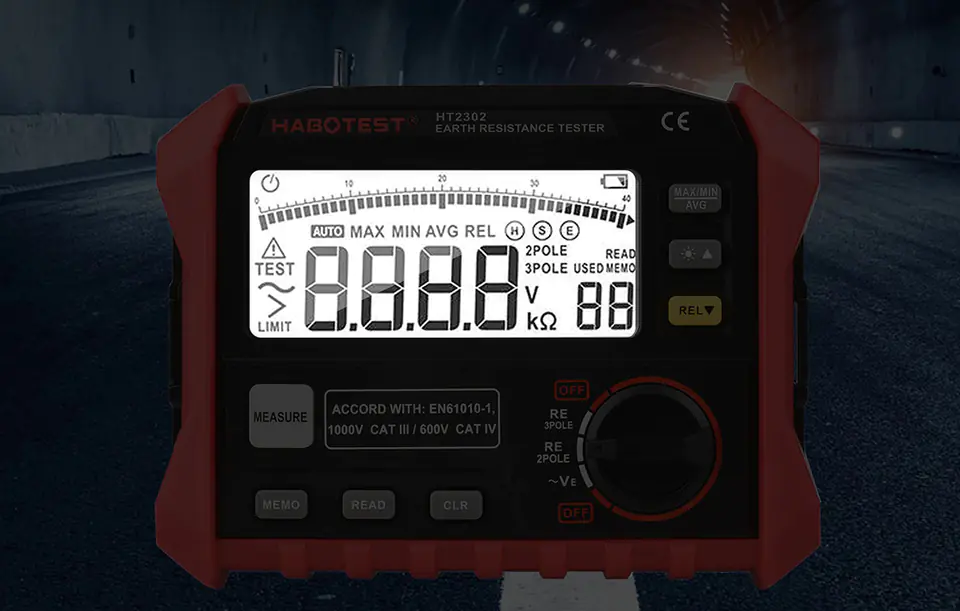

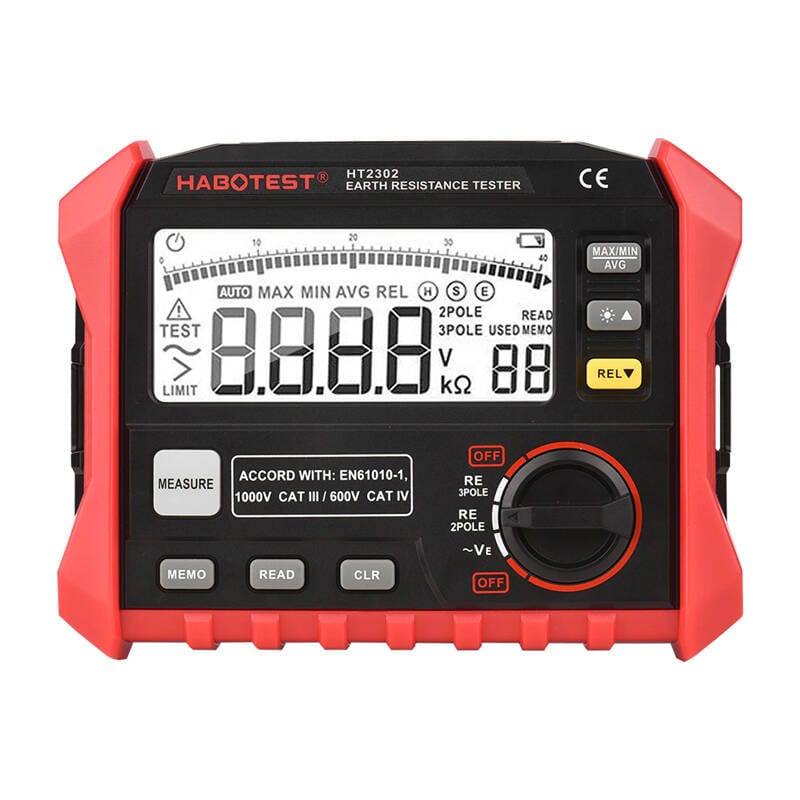

The meter has been designed in such a way as to facilitate the performance of everyday duties as much as possible. The robust design together with the clear screen allows you to read the results instantly. Regardless of the conditions or the lights in the workplace, the bright LCD display guarantees excellent visibility of indicators and markings. In addition, you can read the measurement results from the analog bar indicator. You also don't have to worry about sudden battery discharge. There is an icon on the meter screen that indicates its low level.
ManufacturerHabotestModelHT2302MaterialABS + PCWaga950 gPower SupplyAA Battery 8 x 1.5VOperating Environment0°C~40°CWstorage Environment-10°C~50°CMeasures180 x 140 x 65mm Measuring range
0Ω~29.99Ω with +/-(2%+6dgt) accuracy, 0.01Ω display accuracy
30Ω~99.9Ω with +/-(3%+3dgt) accuracy, 0.1Ω display accuracy
100Ω~999Ω with +/-(3%+3dgt) accuracy, 1Ω display accuracy
1.00kΩ~4.00kΩ with +/-(3%+3dgt) accuracy, 10Ω display accuracy
Ground voltage 0V~200V(50~60Hz) with +/-(1%+5dgt) accuracy, 0.1V display accuracy
