Technical data:
Adjustable groove depth: 0 – 35 mm
Groove width: 3 – 39 mm
No-load speed: 9.300 min-1
Disc diameter: 150 mm
Nominal output: 1.400 W
Output Power: 820W
Weight: 4.7 kg

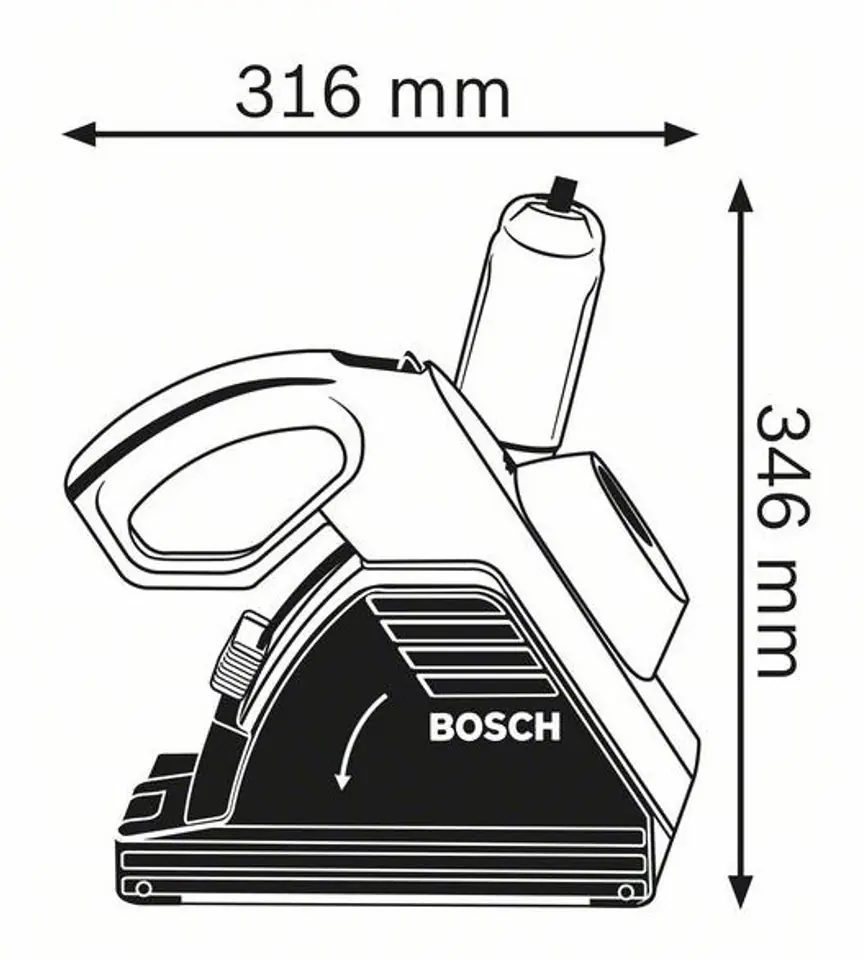

Length: 316 mm
Height: 346 mm
Dust extraction system
System Constant Electronic
Inrush current limiter
Patented sealing system for exceptional durability
Constant Electronic maintains a constant rotational speed even under increased load
Comfortable operation thanks to ergonomically shaped handle and many possible working positions
Extremely handy due to its low weight
Quick and easy blade change with just one tool
Maximum safety thanks to the closed protective cover, self-start lock and recess lock in the material
Easy and precise handling with four rollers in the base. Stability is guaranteed by a solid metal sliding plate
Dust extraction connection
Fixing flange (ET no. 3 609 202 039)
Chisel/break-off knife (ET No. 3 607 959 005)
Tool case (3 605 438 053)
Round nut (ET no. 3 609 202 040)
Ring wrench bent (3 607 950 017)
Ring wrench bent (3 607 950 017)
3 spacers 4 mm (ET no. 3 609 202 041)
4 spacers 6 mm (ET No. 3 609 202 042)
**

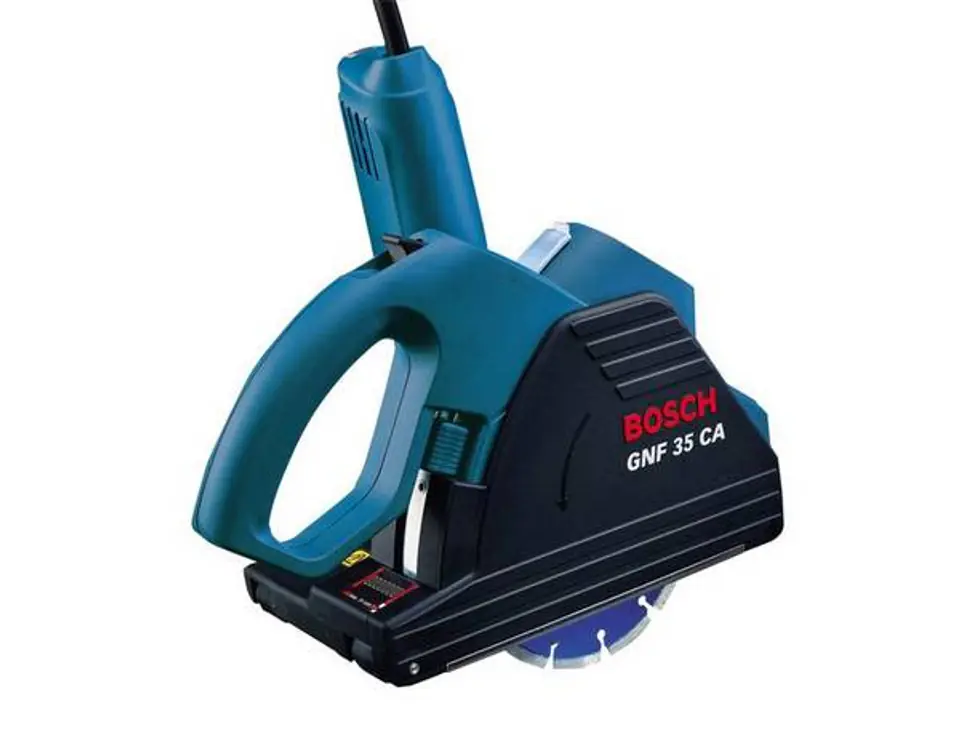

The photo has an illustrative function.
