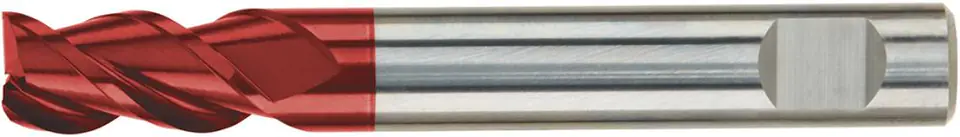

Miniature milling cutter, solid carbide
Execution: with center blade, suitable for drilling.
Application: for wedge and keyway milling and for universal machining. Compared to 2-blade milling cutters, the feed is approx. 50 % higher.
High surface quality thanks to 45° spiral angle for soft cutting. Prevents burrs at the cutting edges.
Groove cutter wpust.SL, WN,full,FIRE 2,50mm long,GÜHRING
€21.73
Shipping from warehouse: B6
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- GÜHRING
- Product code:
- 9055740025000 / 4031093660716
Share this product:

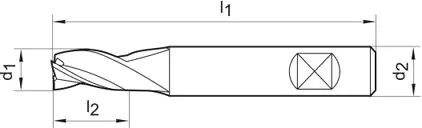

Specification
| Aluminium > 8% silicon: | 130 |
|---|---|
| Cast iron gg/gts: | 200 |
| Copper alloys: | 110 |
| Cutting part length l2: | 5.0 mm |
| Diameter d1 = e8: | 2.50 mm |
| Ggg cast iron: | 160 |
| Inox austenite.: | 56 |
| Inox duplex: | 45 |
| Inox ferrite./martenz.: | 70 |
| Shank diameter d2 = h6: | 6 mm |
| Steel < 1000 n/mm2: | 152 |
| Steel < 1000 n/mm2 fz: | 0.010 mm/rev. |
| Steel < 1400 n/mm2: | 122 |
| Steel < 700 n/mm2: | 190 |
| Titanium > 850 n/mm2: | 70 |
| Total length l1: | 45 mm |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
