Groove cutter wpust.SL, WN,full,FIRE 1,0mm short GÜHRING

€11.94
Shipping from warehouse: ⁨B6⁩
Estimated shipping: Tue, Nov 19 - Fri, Nov 22
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
GÜHRING
Product code:
9055730010000 / 4031093660396

Specification

Aluminium > 8% silicon:130
Cast iron gg/gts:120
Copper alloys:110

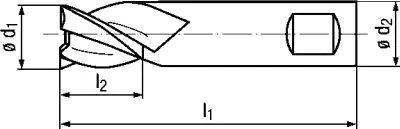

Cutting part length l2:2.0 mm
Diameter d1:1.00* mm
Execution:* With cylindrical shank, HA shape
Ggg cast iron:96
Hardened steel < 55 hrc:30
Inox austenite.:40
Inox duplex:32
Inox ferrite./martenz.:50
Shank diameter d2 = h6:3 mm
Steel < 1000 n/mm2:92
Steel < 1000 n/mm2 fz:0.005 mm/rev.
Steel < 1400 n/mm2:74
Steel < 700 n/mm2:115
Titanium > 850 n/mm2:40
Total length l1:38 mm

Miniature milling cutter, solid carbide

Design: with central blade, suitable for drilling, according to factory standard.
Application: for wedge and keyway milling and for universal machining.
Note: application to the wear limit is more cost-effective than grinding.

Material: ultrafine grain cemented carbide, type N, with central blade.
Cutting speed approx. 50 % higher than uncoated tools. Dry processing possible.
Application: for wedge and keyway milling and for universal machining. Compared to 2-blade milling cutters, the feed is approx. 50 % higher.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
