GRL300HV+BT300HD+GR240 ROTATION LASER

Technical Specifications

Manufacturer: Bosch
Manufacturer's code: 61599403Y
Operating range with receiver, value: 300 m
Tilt function: no
Levelling accuracy: ±3.0 mm at 30 m* (*plus additional deviation depending on application)
Operating range with receiver: up to 300 m (diameter)
Laser diode: 635nm, < 5mW
Operating temperature: -10 – 50 °C
Storage temperature: -20 – 70 °C
Laser class: 3R
Operating range without receiver, value: up to 60 m (diameter)
Auto-leveling range: ± 5° (8%)
Levelling time: 15 s
Protection against dust and water: IP 54
Rotational speed: 150, 300, 600 min-1
Power supply: 2 x 1.5V LR20 batteries (D)
Tripod thread: 5/8"
Weight, Approx.: 1.8 kg
Laser beam color: red



GRL300HV+BT300HD+GR240 rotary laser

Easy to operate, with automatic horizontal and vertical levelling
Easy to use thanks to a single button for each function and clear indications
Short set-up time horizontally and vertically with automatic levelling of up to 8% (± 5°)
Separately activated shock warning function prevents levelling errors in the event of vibration and laser movement


**

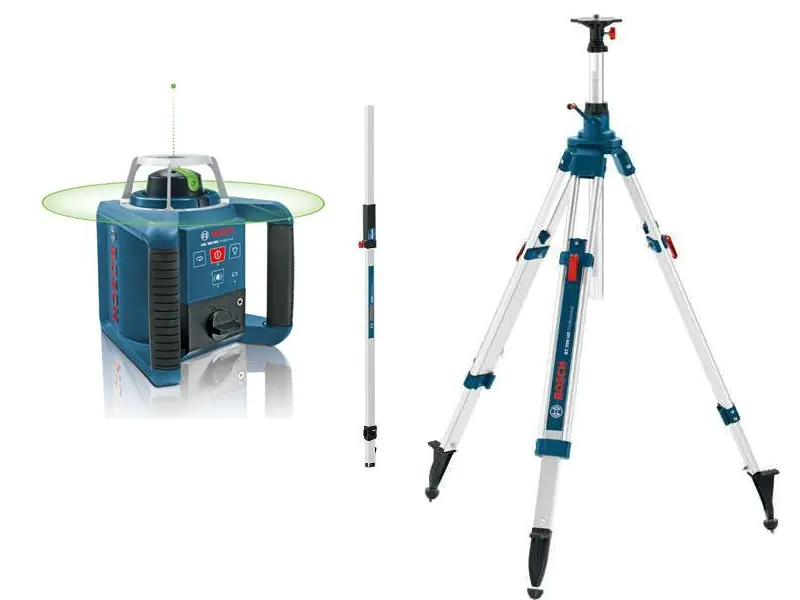

Illustrative photos
