Technical data:
Weight: 0.01433 kg
File size: 0,12 × 0,175 × 0,01286 m
Tool Shape: Cylinder
Binding: Ba.14
Housing type: Resin binder B.
Hardness: Q
Grain size: 46
Shaft length: 40 mm
Abrasives|: NK (normal corundum)
Safety standard: EN 12413
Tool holder: shaft
Tool holder dimension: 6 mm

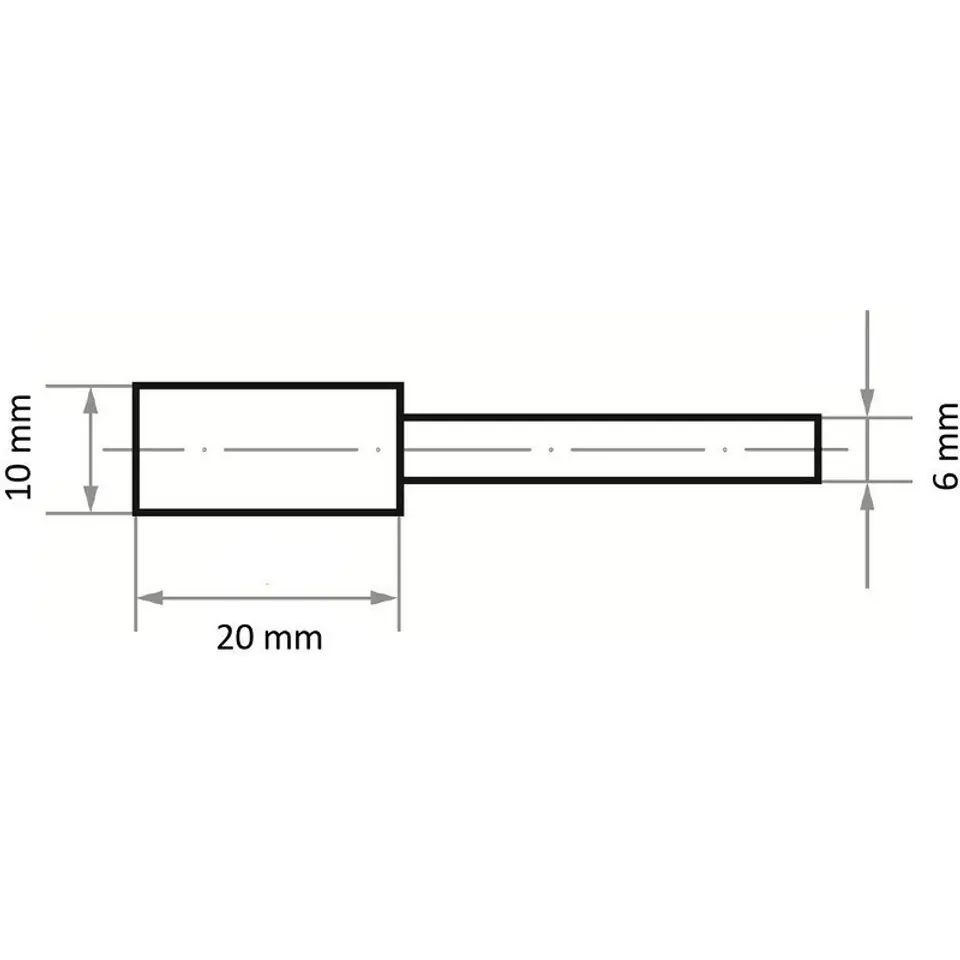

Width / length / height of the tool: 20 mm
Tool diameter: 10 mm
A wide range of grinding application technologies, from roughing to precision machining, requires grinding wheels that are optimally matched in terms of chip performance, surface quality to be achieved and tool life. The usual corundum used in this grinding pencil convinces with its long service life on mild steel, during rough and coarse grinding. It allows you to work effectively. The high-quality steel shaft of the cutter fits perfectly into the drive machine. Jamming, sliding and even shaft cracking are a thing of the past. Regular tests guarantee a high level of safety. Thanks to the zinc-nickel coating, this tool remains free of rust.
**
The presented photos have an illustrative function.
