Technical data:
Weight: 0.028 kg
File size: 0.1 × 0.14 × 0.04m
Tool Shape: Cylinder
Binding: V4
Housing type: V Ceramic binder
Hardness: N
Grain size: 46
Shaft length: 40 mm
Shaft Material: Steel
Abrasives: ECR
Safety standard: EN 12413
Tool holder: shaft
Tool holder dimension: 6 mm

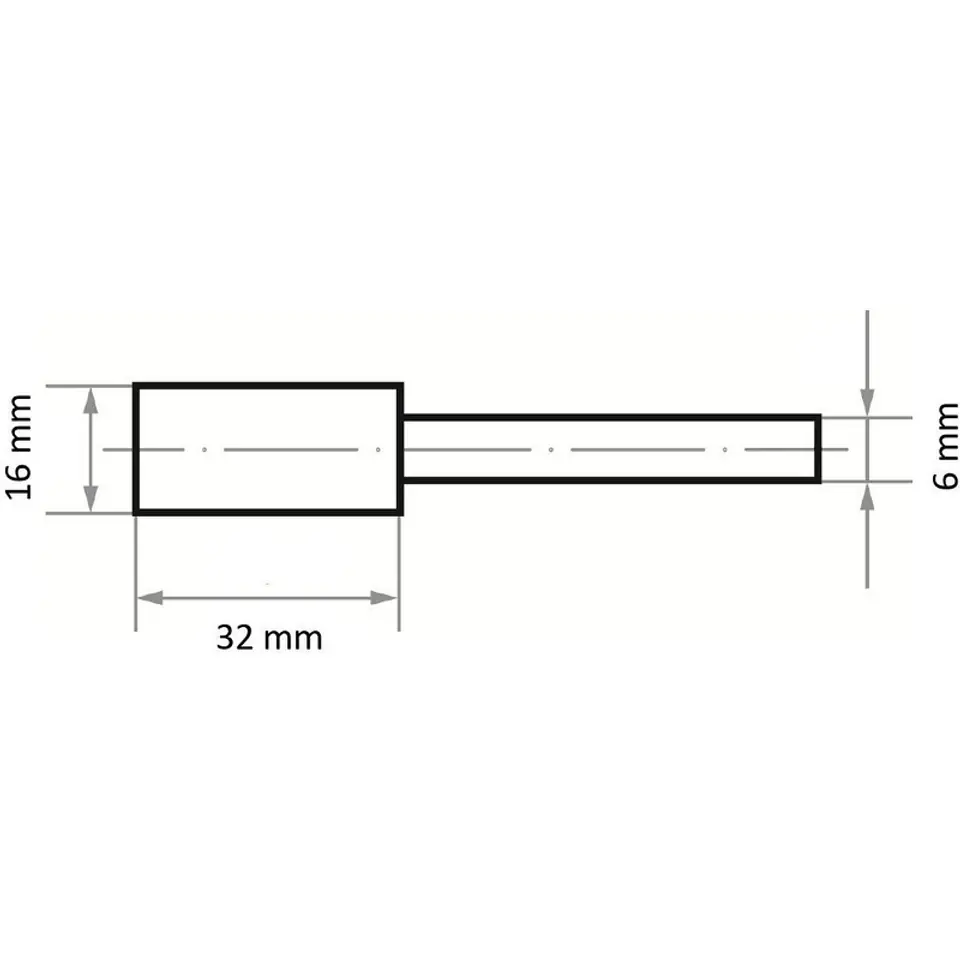

Width / length / height of the tool: 32 mm
Tool diameter: 16 mm

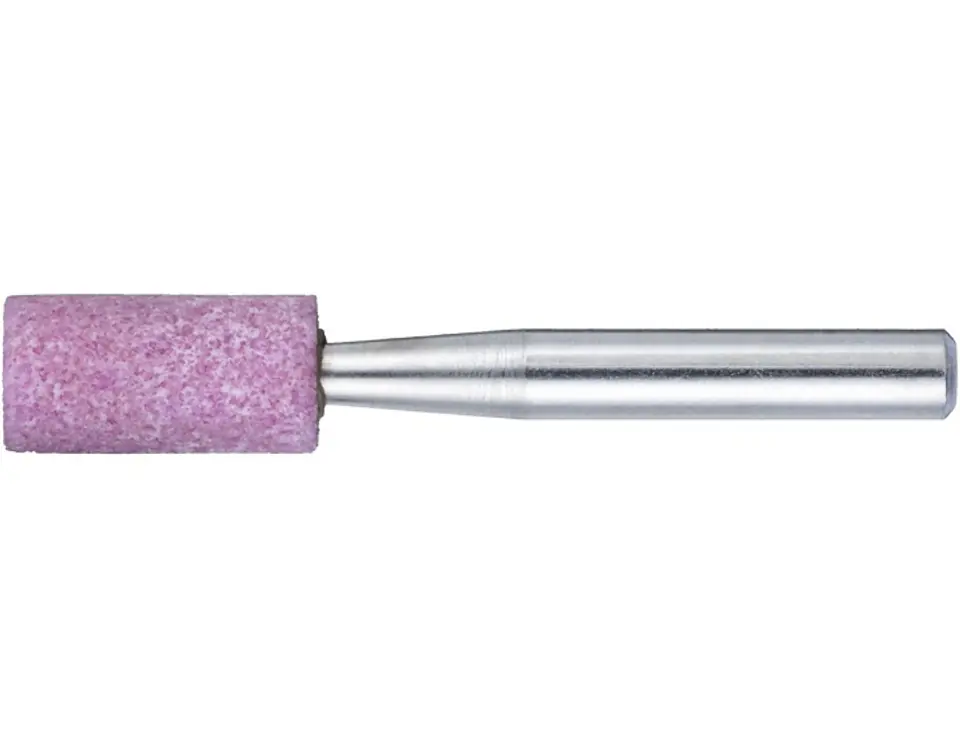

A wide range of grinding application technologies, from roughing to precision machining, requires grinding wheels that are optimally matched in terms of chip performance, surface quality to be achieved and tool life. The grinding pin with high-quality corundum (pink) is perfectly matched to steel and cast steel. High hardness and sharp high-quality corundum grain ensure a long service life. Hard materials can also be machined efficiently. The high-quality steel shaft of the cutter fits perfectly into the drive machine. Jamming, sliding and even shaft cracking are a thing of the past. Regular tests guarantee a high level of safety. Thanks to the zinc-nickel coating, this tool remains free of rust.
**
The presented photos have an illustrative function.
