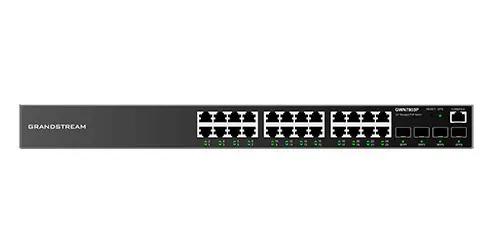

Grandstream GWN 7803P POE 24GE 4SFP zarządzalny switch L2+
€350.78
Shipping from warehouse: A3
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Grandstream
- Product code:
- GWN7803P / 6947273704270
Share this product:
Specification
| 10g support: | No |
|---|---|
| Ac input frequency: | 50/60 Hz |
| Ac input voltage: | 100 - 240 V |
| Access control list (acl): | Yes |
| Additional functions: | Syslog, alarms |
| Arp inspection: | Yes |
| Authentication: | Port-based authentication |
| Authentication type: | AAA, RADIUS, TACACS+ |
| Automatic packet detection (type): | Voice, Video, RTP, SIP, other delay-sensitive |
| Automatic packet detection and prioritisation: | Yes |
| Backup and restore: | Yes |
| Basic switching rj-45 ethernet ports quantity: | 24 |
| Basic switching rj-45 ethernet ports type: | Gigabit Ethernet (10/100/1000) |
| Bpdu filtering/protection: | Yes |
| Broadcast storm control: | Yes |
| Cable lock slot: | Yes |
| Checklist types (acl): | IPV4, IPV6 |
| Connection aggregator number of groups: | 8 |
| Console port: | RJ-45 |
| Cpu and memory monitoring: | Yes |
| Depth: | 200 mm |
| Dhcp features: | DHCP snooping, DHCP server |
| Diagnostics: | Ping, Traceroute, UDLD(TBD), Copper wire test |
| Fiber optic connector: | SFP |
| Fiber ports quantity: | 24 |
| Firmware upgradeable: | Yes |
| Flow control support: | Yes |
| Forwarding mode: | Storage and transfer |
| Height: | 44 mm |
| Housing material: | Metal |
| Installed sfp modules quantity: | 4 |
| Ip source protection: | Yes |
| Ip-mac-port binding: | Yes |
| Jumbo frames support: | Yes |
| Led indicators: | Yes |
| Link aggregation: | Yes |
| Mac address filtering: | Yes |
| Mac address table: | 8000 entries |
| Management protocols: | SNMP, Telnet |
| Maximum number of rules (acl): | 1500 |
| Multicast mac address table: | 512 entries |
| Multicast support: | Yes |
| Networking standards: | IEEE 802.3i, IEEE 802.3p, IEEE 802.3at, IEEE 802.1Q, IEEE 802.3x, IPv6, IEEE 802.3af, IPv4, IEEE 802.1D, IEEE 802.3z, IEEE 802.3, IEEE 802.3ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.3u, IEEE 802.1w |
| Number of vlans: | 4000 |
| Operating temperature (t-t): | 0 - 45 °C |
| Packet forwarding rate: | 41.66 million per second |
| Poe standard: | IEEE 802.3af/at |
| Poe+ support: | Yes |
| Port isolation: | Yes |
| Port mirroring: | Yes |
| Power over ethernet (poe): | Yes |
| Power over ethernet (poe) power per port: | 30 W |
| Priority mapping: | Yes |
| Product colour: | Black |
| Quality of service (qos) support: | Yes |
| Queue scheduling: | Yes (SP, WRR, WFQ, SP-WRR, SP-WFQ) |
| Rack mounting: | 1U |
| Security algorithms: | HTTPS, Telnet, SSH |
| Spanning tree protocol: | Yes |
| Spanning tree protocol number of instances: | 16 for STP/RSTP/MSTP |
| Supported network protocols: | RMON, LLDP, LLDP-MED |
| Switch layer: | L2+ |
| Switch type: | Managed |
| Switching capacity: | 448 Gbit/s |
| System event log: | Yes |
| Throughput: | 224 Gbps |
| Total power over ethernet (poe) budget: | 360 W |
| Traffic shaping: | Yes |
| Vlan support: | Yes |
| Web-based management: | Yes |
| Weight: | 3.3 kg |
| Width: | 440 mm |
