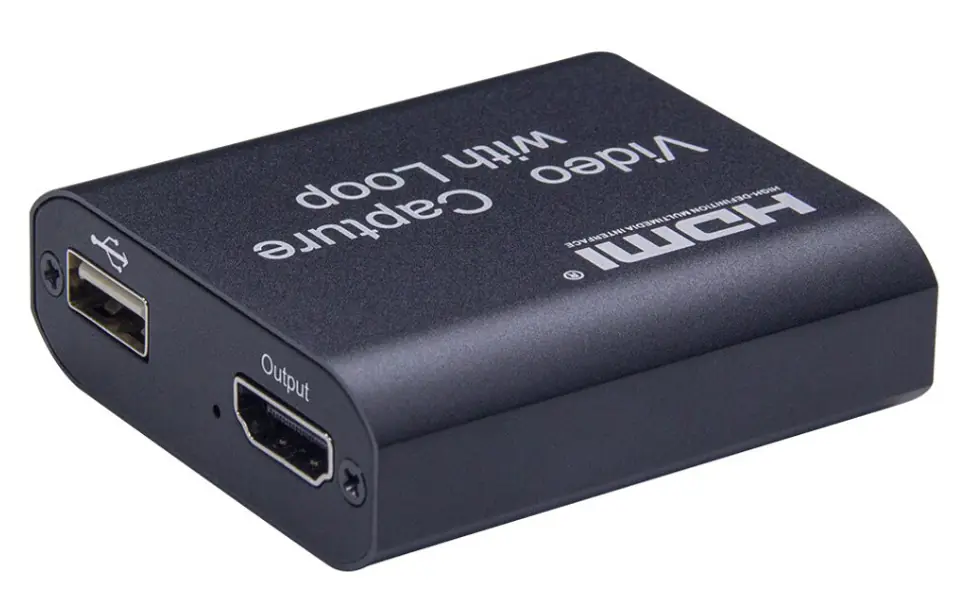

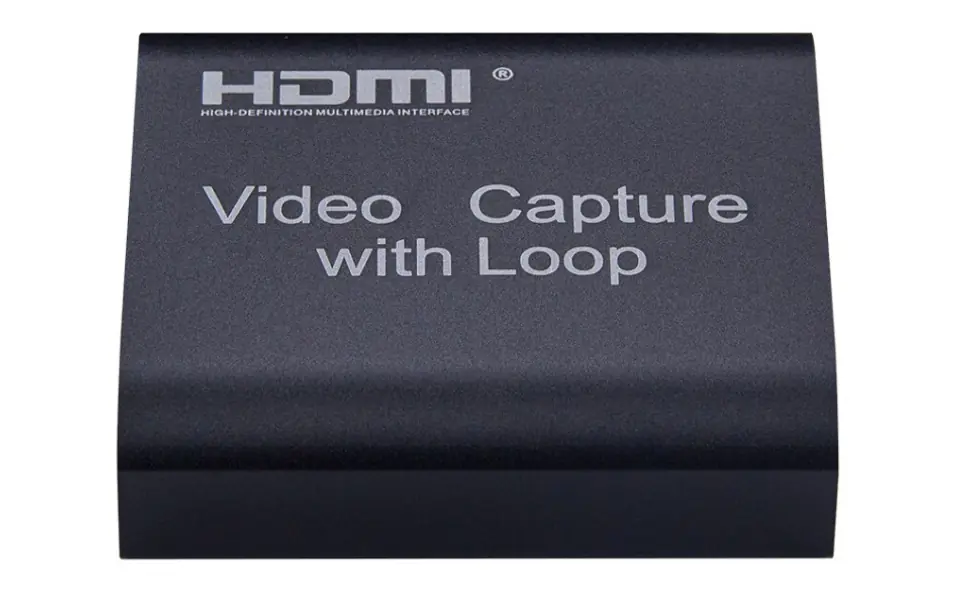

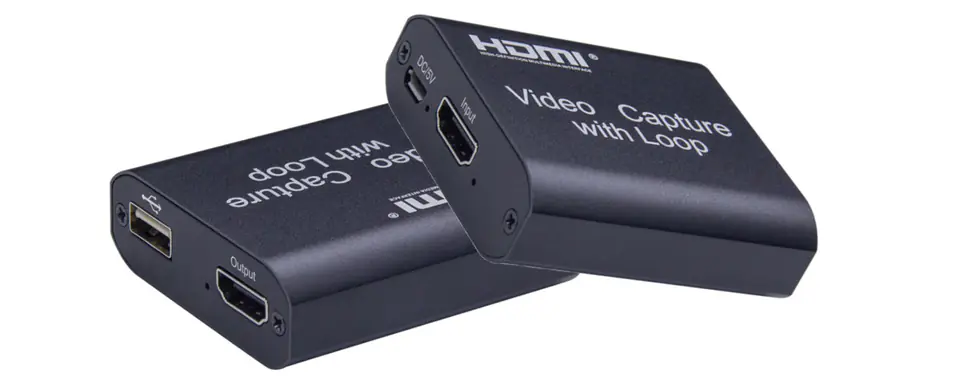

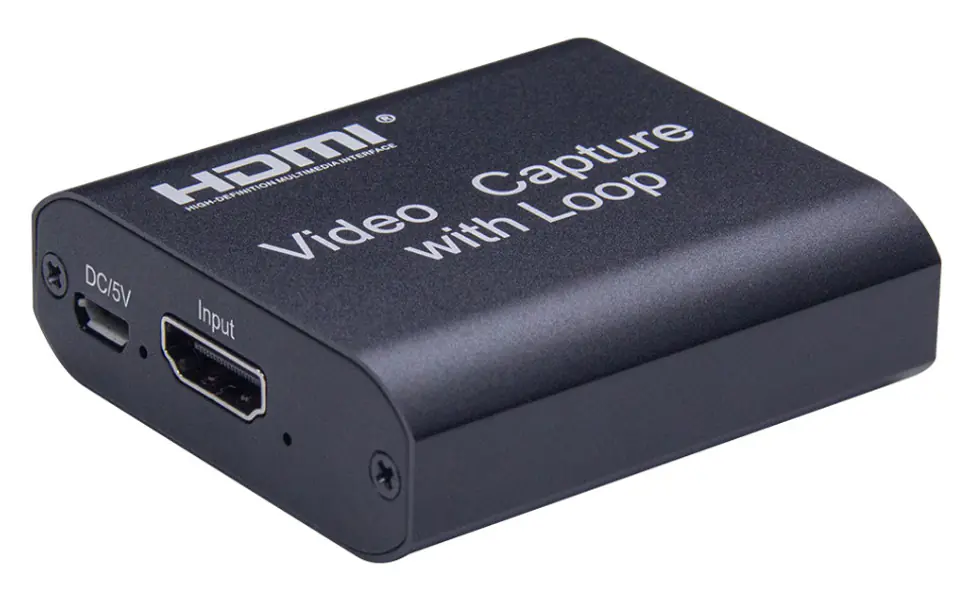

Grabber HDMI Recorder Spacetronik SP-HVG06 to PC USB 1080p
The Specatronik SP-HVG06 HDMI recorder is a device that allows you to record high-definition video from external sources over an HDMI cable to a PC hard drive. Importantly, you need a Windows computer (7/8/10) to record, recording is done by OBS Studio (link to the program below). The recorder worked great with any source (which does not have DHCP protection against recording) – from a computer, through movie media players, set-top boxes and TV tuners and game consoles.
It is an excellent tool for users of set-top boxes of paid platforms equipped with a hard drive. Thanks to the recorder, recordings from the hard disk of such a decoder can be in unencrypted form (pure MPEG4, .flv format). The recorded material is saved on the hard disk of the PC in the default Video folder. We start and end recording in OBS Studio. Interestingly, the device can be used as an HDMI to USB converter - it can be ideal for travel, e.g. when we want to connect a set-top box to a laptop.

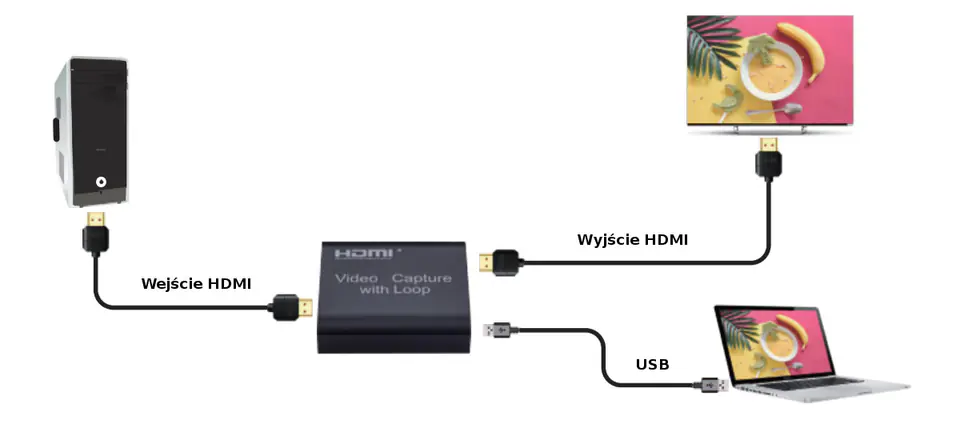

1. Connect the HDMI cable from the output device (SAT tuner, console, PC)
2. Connect your device to your computer
3. Configure the system and program settings according to the instructions from the box or the product description.
- Support maximum input resolution of 3840×2160 @ 30Hz;
- Support maximum output resolution of 1920×1080 @ 30Hz;
- Support 8/10/12bit color depth;
- Support standard AWG26 HDMI cable: input up to 15 meters, (1080P and lower resolutions);
- Support for programs such as: VLC, OBS, Acap, etc.;
- Support Windows, Android and MacOS;
- Compatible with USB Video and Audio standard – UVC and UAC;
- The device does not require an additional external power supply, compact and portable.
1. Connect the device to the USB port on your PC, it will install itself by autoinstalling the driver;
2. Check if the device is visible in Device Manager, in video and audio controllers, name: FHD Capture / FHD Webcamera;
3. In the control panel in the Sound tab, set "Digital Audio Interface" as the default and adjust the parameters in the Advanced tab;
4. Download and install OBS Studio (https://obsproject.com/download), GENUINE WINDOWS REQUIRED, the program downloads and uploads Microsoft VC software;

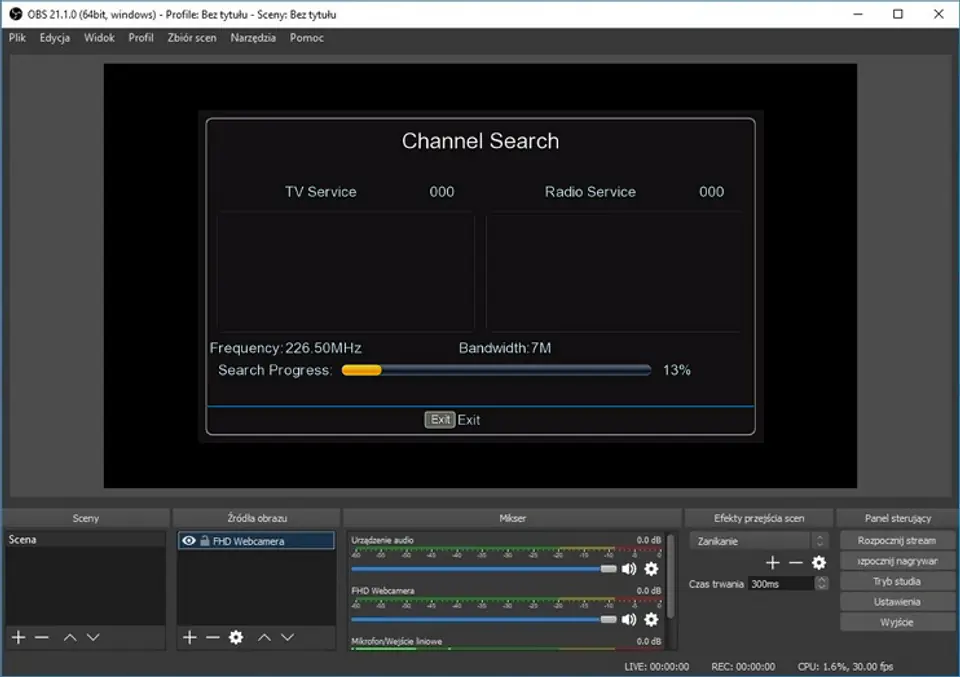

5. Launch the OBS program, add the source by clicking on "+" and selecting Image Capture Device;
6. In the Device category, we select FHD Capture / FHD Webcamer;
7th Click OK, or configure at your discretion other categories in this window.
The OBS Studio program is in Polish, the operation is simple and clear!
- HDMI resolution: The maximum input can be 3840 × 2160 at 30 Hz
- Supports video format: 8/10/12-bit deep color
- Video output format: YUV JPEG
- Video output resolution: The maximum output power can be 1920 × 1080 @ 30 Hz
- Supports audio format: L-PCM
- Input cable distance: ≤15m, standard AWG26 HDMI cable
- Maximum working current: 0.4A / 5VDC
- Operating temperature range: (-10 to +55 )
- Dimensions (LxWxH): 64x28x13 (mm)
- Weight: 21.4g

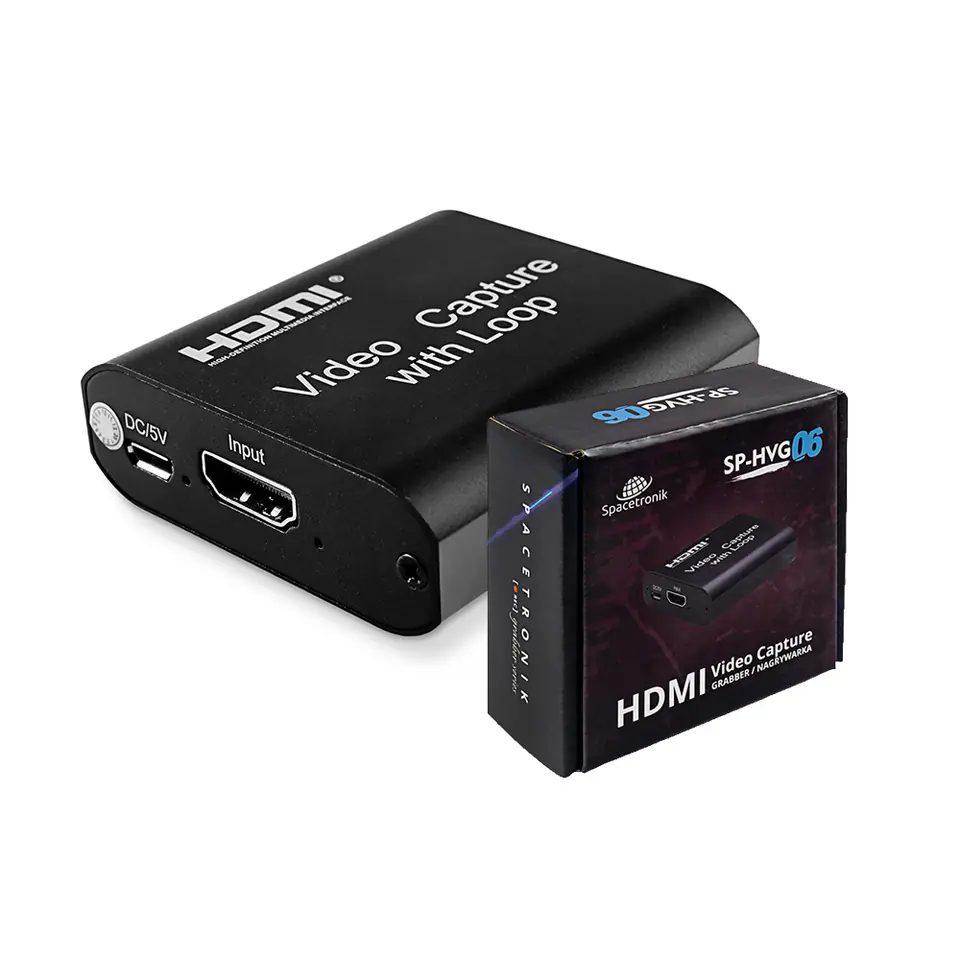

- Grabber SP-HVG06
- microUSB - USB power cable
- USB to USB cable
- User Manual
