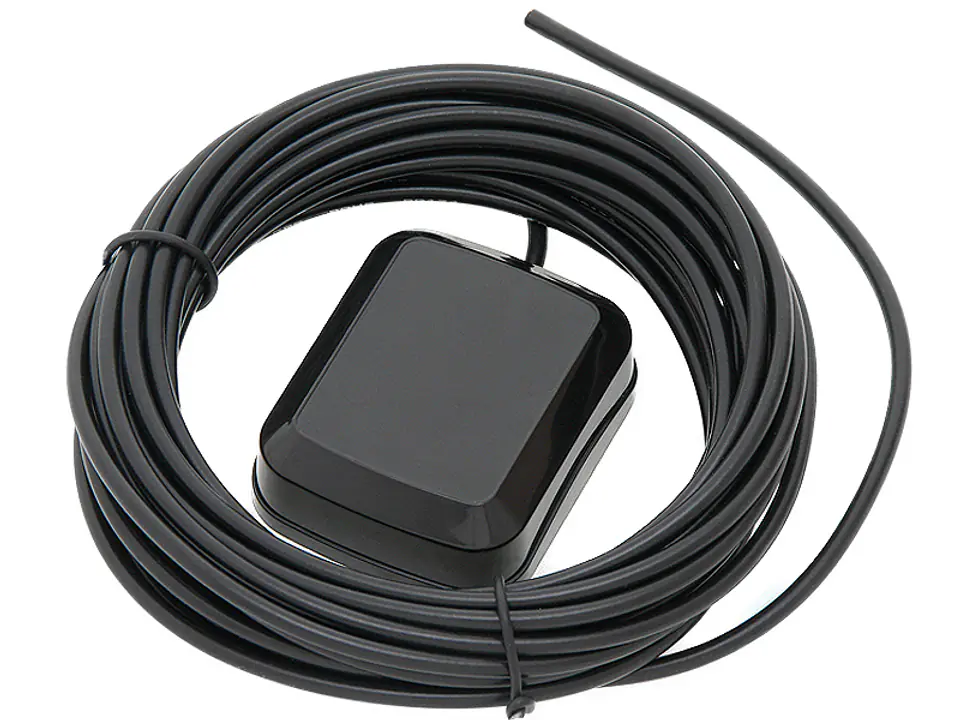

The GPS antenna can be mounted both inside (e.g. on the pit) and outside the car body through a very strong magnet placed in the housing. Placing the antenna outside the car results in better reception of the signal transmitted from the satellite.
The following specification guarantees the quality of the antenna. Device sensitive to electrostatic discharge - precautions should be taken.
Current Characteristic (Antenna)
• Frequency range 1575.42MHz±1.02 MHz
• V.S.W.R 1.5:1 3 Bandwidth > 10 MHz
• Resistance 50 Ohm
• 5dBic gain
• RHCP polarization
Low noise amplifier
• Frequency range 1575.42MHz±1.02 MHz
• Voltage DC 3 – 5V
• Gain 28±3dB
• Cut-off ranges ≥25dB (frequency range +100MHz) ≥40dB (frequency range -100MHz)
• V.S.W.R. output 1.5 6 NSR 1.2
• DC current: 10.5 mA
General (incl. connector)
• Frequency Range 1575.42MHz±1.02 MHz
• V.S.W.R. output 1.5
• Gain 26±3dBic
• Resistance 50 Ohm
Materials
• Antenna - Dielectric ceramic element
• PCB - FR4
• Shielding element - Galvanized steel
• Cable - RG174, Attenuation: 1,3dB/m, length - 500±5cm
• Dimensions: 49.5 x 40.2 x 15.5mm ±0.5mm
Environmental conditions
• Operating Temp. -25ºC ~ +65ºC
• Storage Temp. -45ºC ~ +86ºC
• IP67 resistance class
