Specification:
Antenna:
- Frequency range: 1575.42MHz +/- 1.02MHz
- V.S.W.R: 1.5:1
- Bandwidth: >10MHz
- Resistance: 50Ohm
- Gain: 5dBic
- Polarization: RHCP
Low noise amplifier:
- Frequency range: 1575.42MHz +/- 1.02NHz
- DC voltage:3 - 5V
- Gain: 28+/-3dB
- Truncated ranges: >=25dB (frequency range +100Mhz), >=40dB (frequency range -100MHz
- V.S.W.R. output: 1.5
- NSR: 1.2
- DC current: 10.5mA
Materials:
- Antenna: dielectric ceramic element
- PCB: FR4
- Shielding element: galvanized steel
- Cable: RG174, attenuation 1.3dB/m, length: 500+/-5 cm
- Connector: FAKRA 90 degree
- Dimensions: 49.5 x 40.2 x 15.5mm +/-0.5mm
Environmental conditions:
- Operating temperature: -25 degrees C ~ +65 degrees C
- Storage temperature: -45 degrees C ~ +86 degrees C
- Resistance class: IP67
COMPATIBILITY:
- VW MFD2, RNS2 in Golf 5, Golf Plus, Passat, Jetta, Touran, Touareg, T5, T5 MULTIVAN
- AUDI RNS-E 16:9 in A3, A4, A6
- MERCEDES Comand APS W211 (E-class) and APS 50 CLK W209
- Blaupunkt Travel Pilot EX

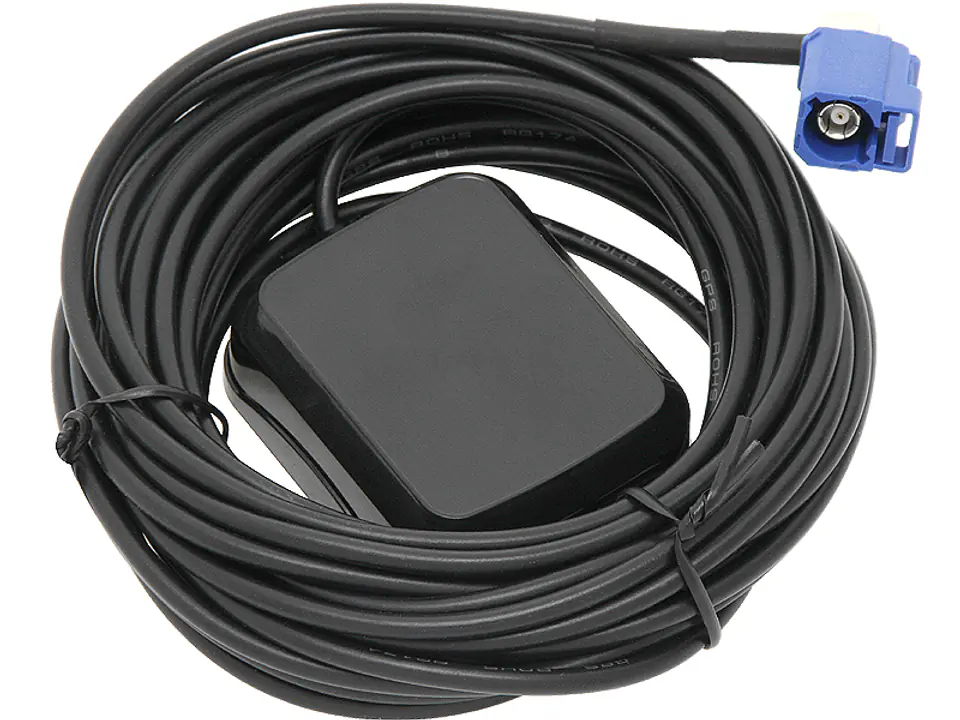

GPS antenna with an angled FAKRA 90 degree antenna connector and a 5m long cable with the possibility of mounting both inside (eg on the pit) and outside the car body through a very strong magnet placed in the housing. Placing the antenna outside results in better reception of the signal transmitted from the satellite.
