Manufacturer no: 10060483

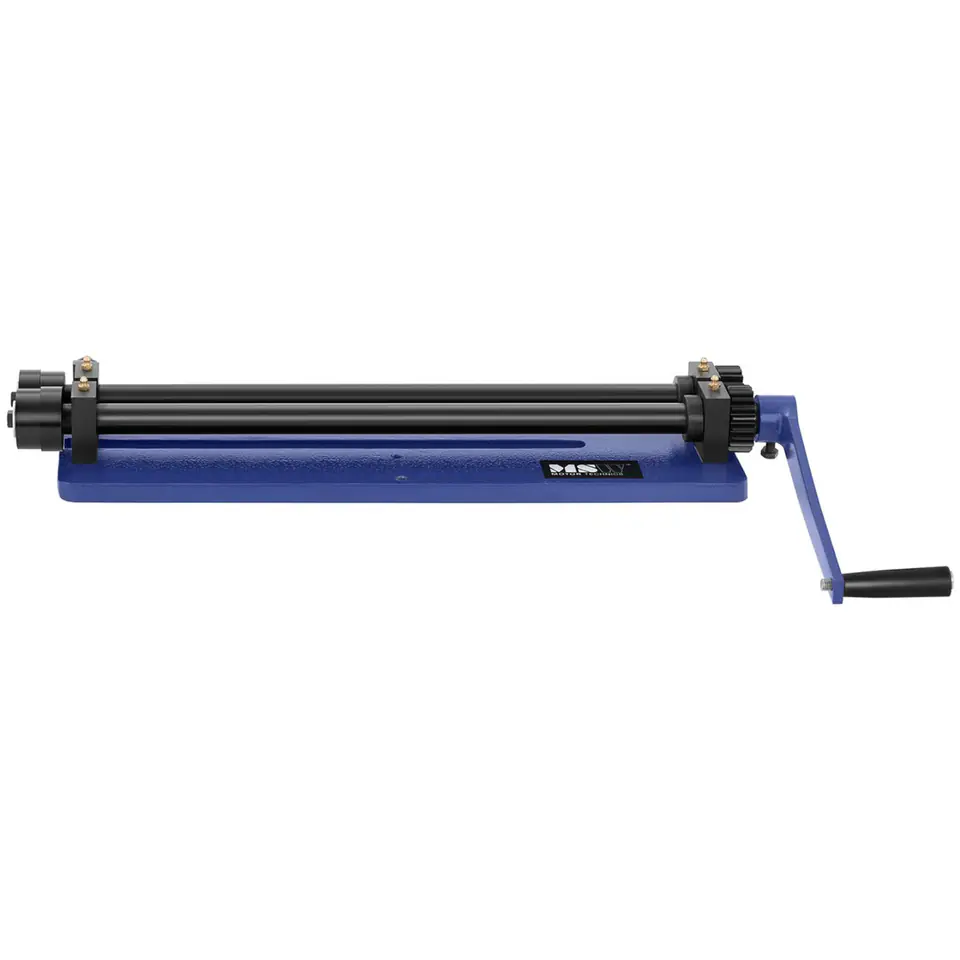

The gouging machine of the German brand MSW will work in workshops, factories and for hobby applications for gouging, grooving, bending, milling or cutting sheet metal.

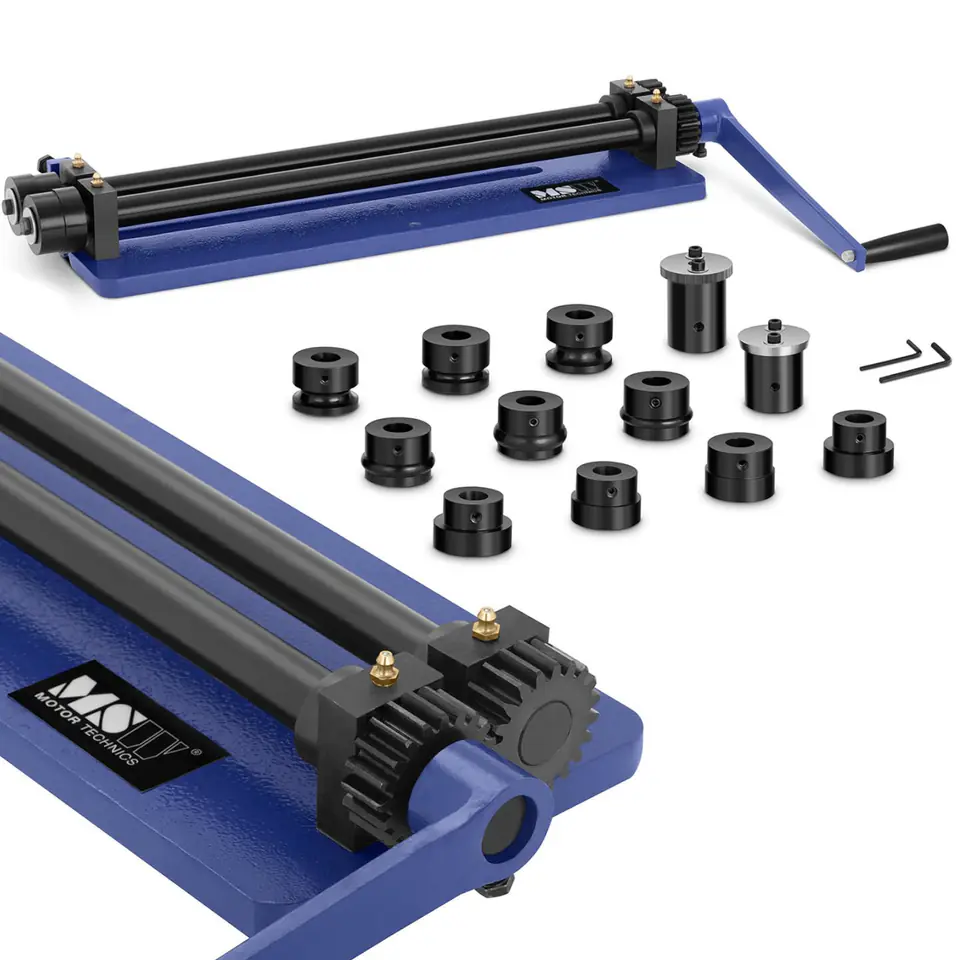

The maximum thickness for mild steel sheet is 1.2 mm and 1.8 mm for aluminum. The included 3 sets of ball stones (6.35 mm; 9.53 mm; 12.7 mm) and 3 flanged stones (1.6 mm; 3.2 mm; 6.35 mm) guarantee a variety of sheet metal forming. The manual crank allows the shaft to be rotated when feeding sheet metal for machining. The construction of the device is made of cast iron and steel, which ensures its stability and long service life.
Product features:
- - Wide application - gouging, grooving, milling, cutting, etc.,
- - Practicality - a full set of interchangeable stones,

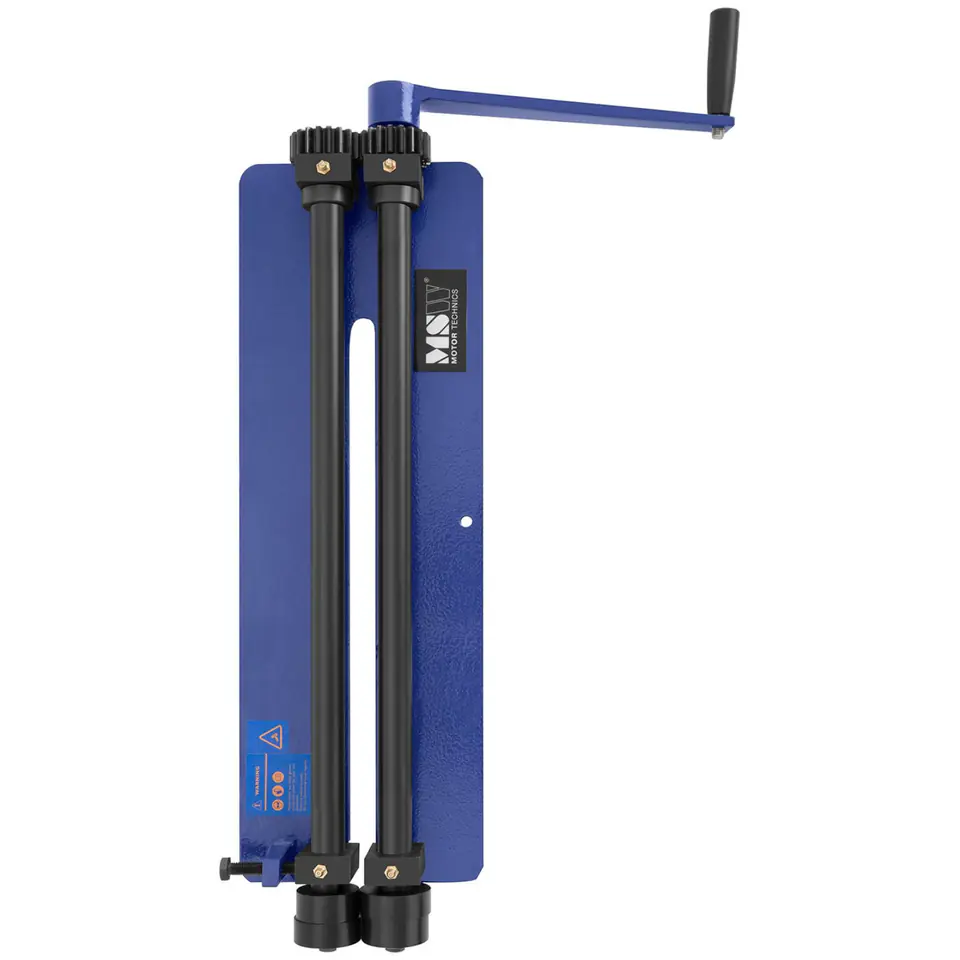

- - Simplicity of use - hand crank,

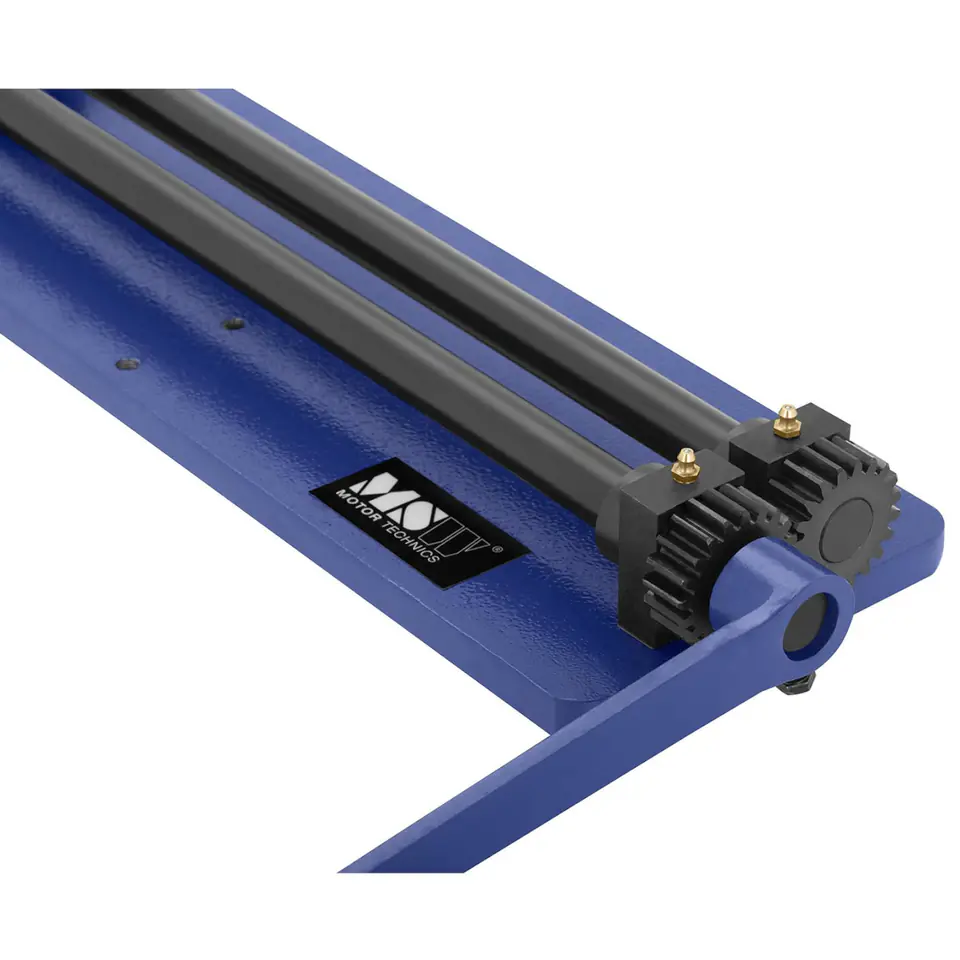

- - Stability - durable construction of cast iron and steel,
- - Protection - resistance to deformation and deformation.
- - Catalog no. - 10060483
- - Stan - New
- - Working depth - 440 mm
- - Maximum machining thickness - Steel sheet: 1.2 mm, Aluminum: 1.8 mm
- - Sets of forming stones (ball pins, flange pins and shear set) - 7 pieces: 22 mm (inner diameter) and 55 mm (outer diameter)
- - Shear set - 1 pair (diameter 53 mm, thickness 8 mm)
- - Ball pins - 3 pairs (6.35 mm; 9.53 mm; 12.7 mm)
- - Flange pins - 3 pairs (1.6 mm; 3.2 mm; 6.35 mm)
- - Material - Cast iron + steel
- - Dimensions (LxWxH) - 74 x 32 x 31.5 cm
- - Weight - 25.3 kg
- - Shipping dimensions (LxWxH) - 75 x 29 x 15 cm
- - Shipping weight - 26.3 kg

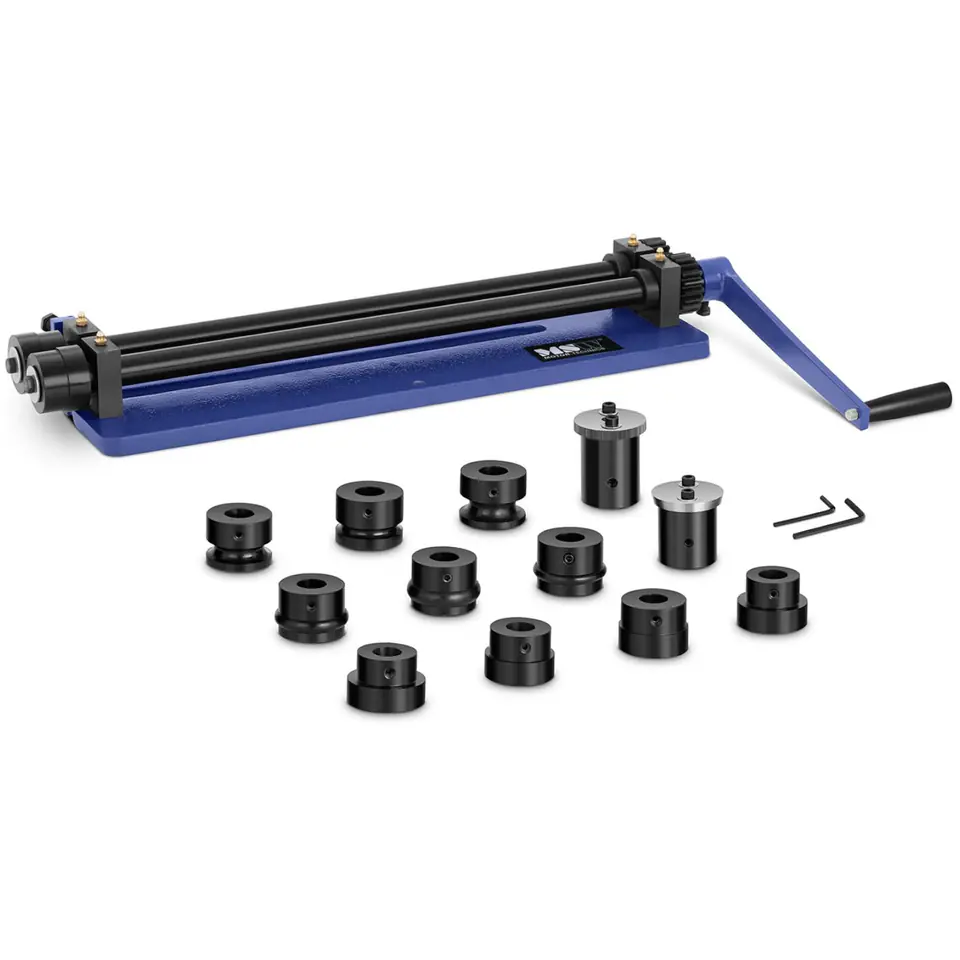

- - Nursery
- - Crank handle
- - Flange pins (1.6 mm; 3.2 mm; 6.35 mm)
- - Ball pins (6.35 mm; 9.53 mm; 12.7 mm)
- - Shear kit
- - Hexagonal wrench
- - User Manual
