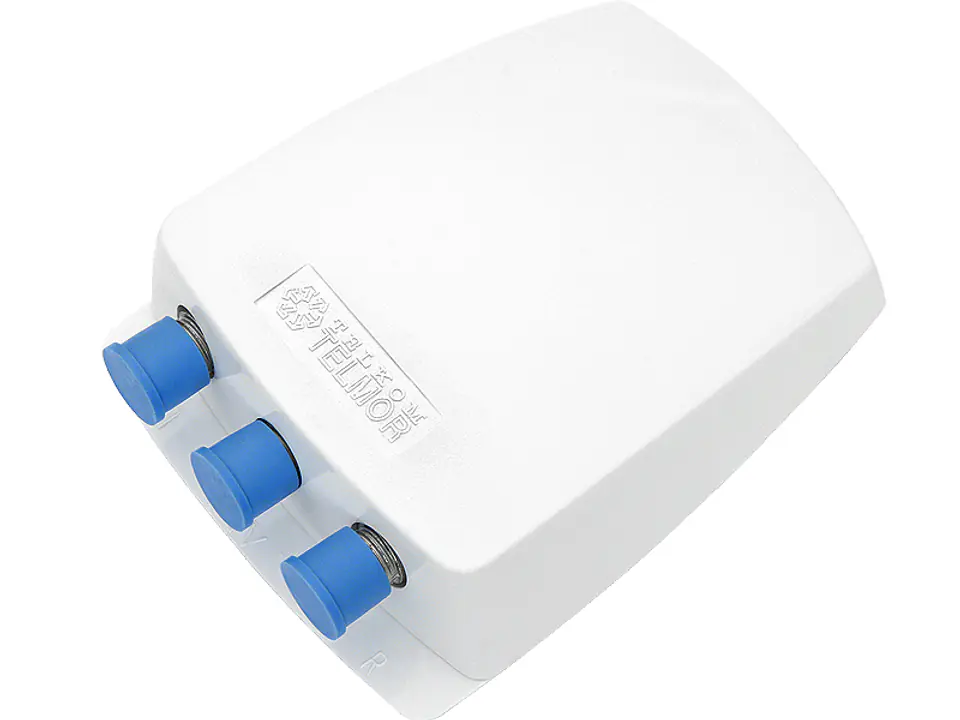

The design of the GMF multimedia socket housing allows it to be installed in a plastic OGF (mouse) housing. Thanks to this, it can be used in cable TV installations as a subscriber end socket.
Multimedia sockets of the GMF series are designed for indoor use.
TECHNICAL DATA:
- Barrier band: RTV->WE: 5-65 MHz
- RTV track band (WE->RTV): /
- TV band (WE->TV): 87-862 MHz
- Track band R (WE->R): 78-140 MHz
- Track band: WE->D: 87-862 MHz
- Track band: D->WE: 5-65 MHz
- Prohibitive attenuation (RTV->EC): /
- Prohibitive attenuation (TV and R->WE): 3.0 dB
- Track Loss Suppression (WE->RTV): /
- Attenuation of TV dB track losses: / 4.0+/-1.0 dB
- Track loss damping R dB: 13.0+/-1.0 dB
- Track loss suppression (WE->D): max. 10.5 dB
- Track loss suppression (D->EC): max. 1,0! Db
- Output separation (RTV-D): /
- Output separation (D-TV) dB: min. 30 (TV band); min.40 (5-65MHz)
- Output separation (D-TV) dB: min. 45 (5-65 MHz); Min. 22 (R-band)
- Output separation (R-TV) dB: min. 20 (TV band)
- The level of the signal fed from the modem to the output "D" (5-65 MHz): max. 120 dBuV max.
- Connector type: 4 x "F" socket
