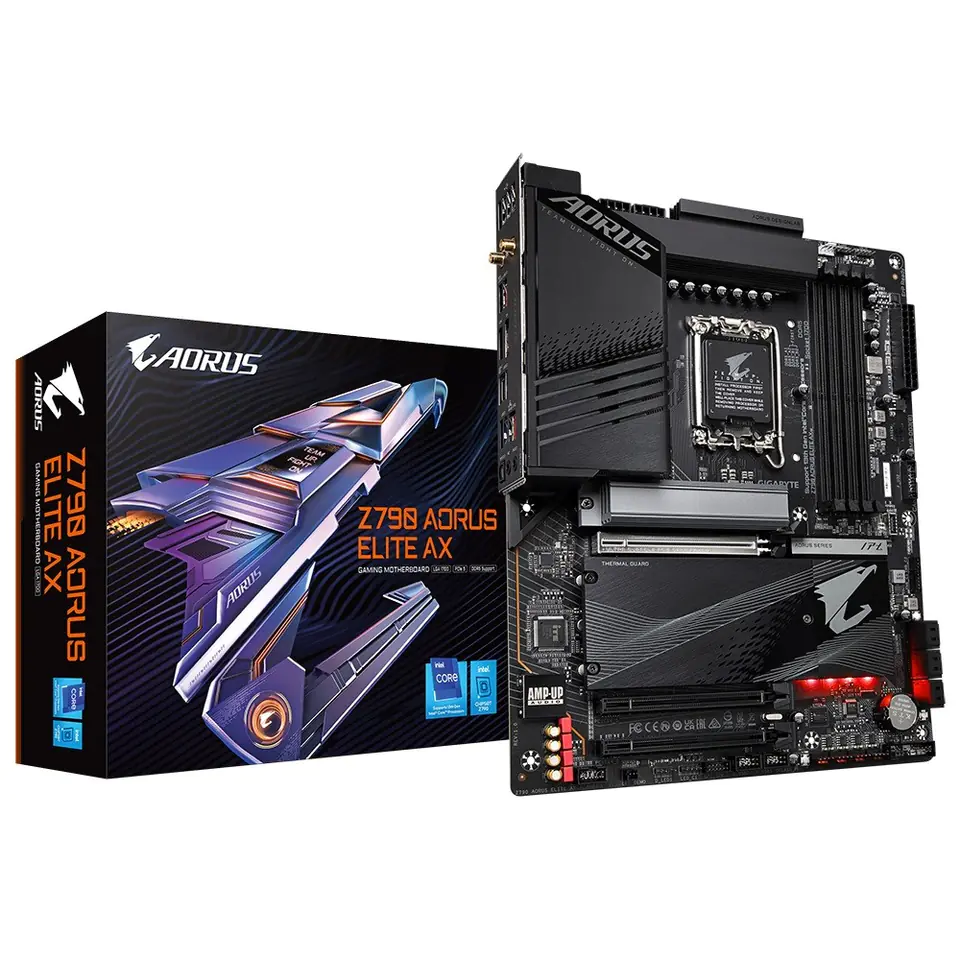

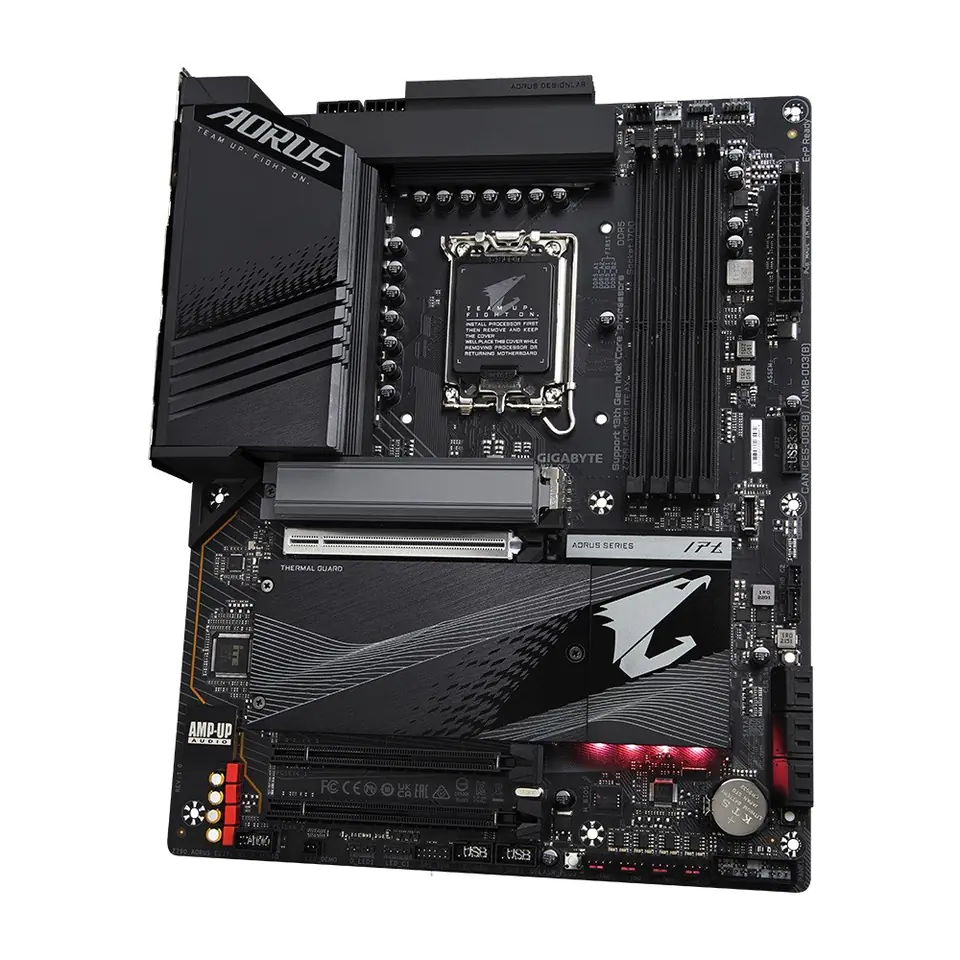

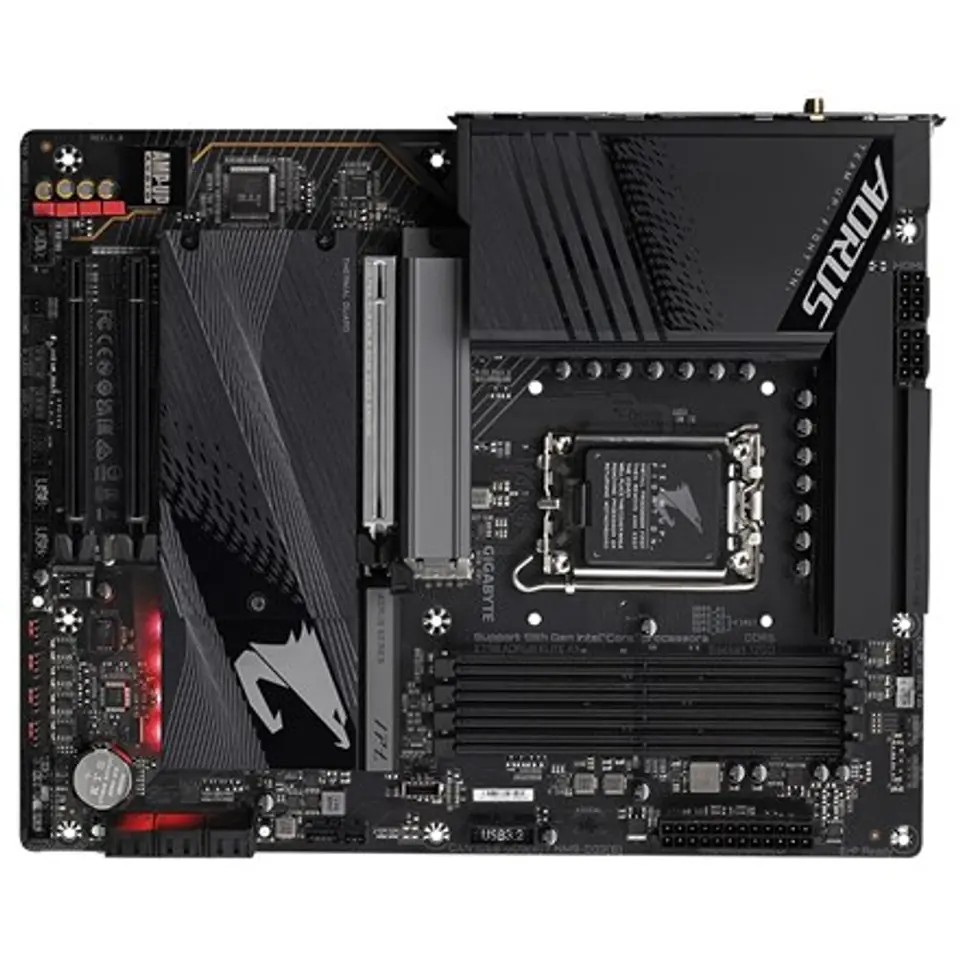

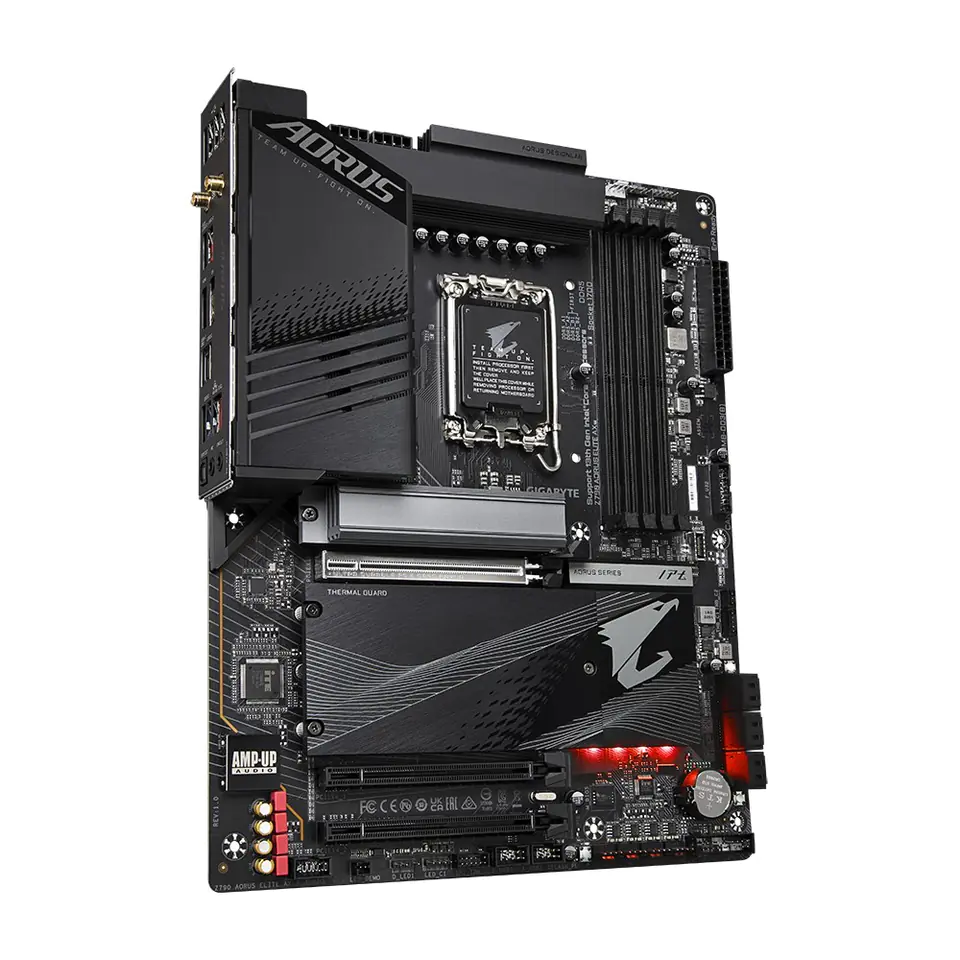

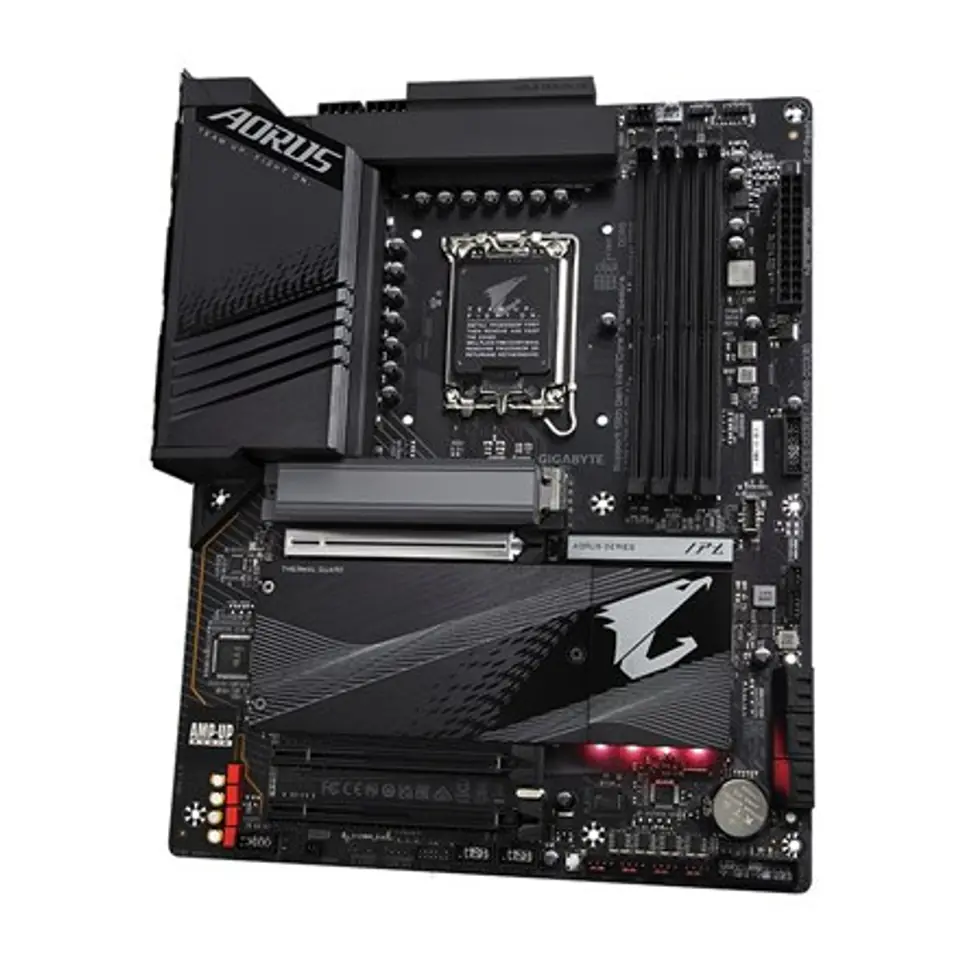

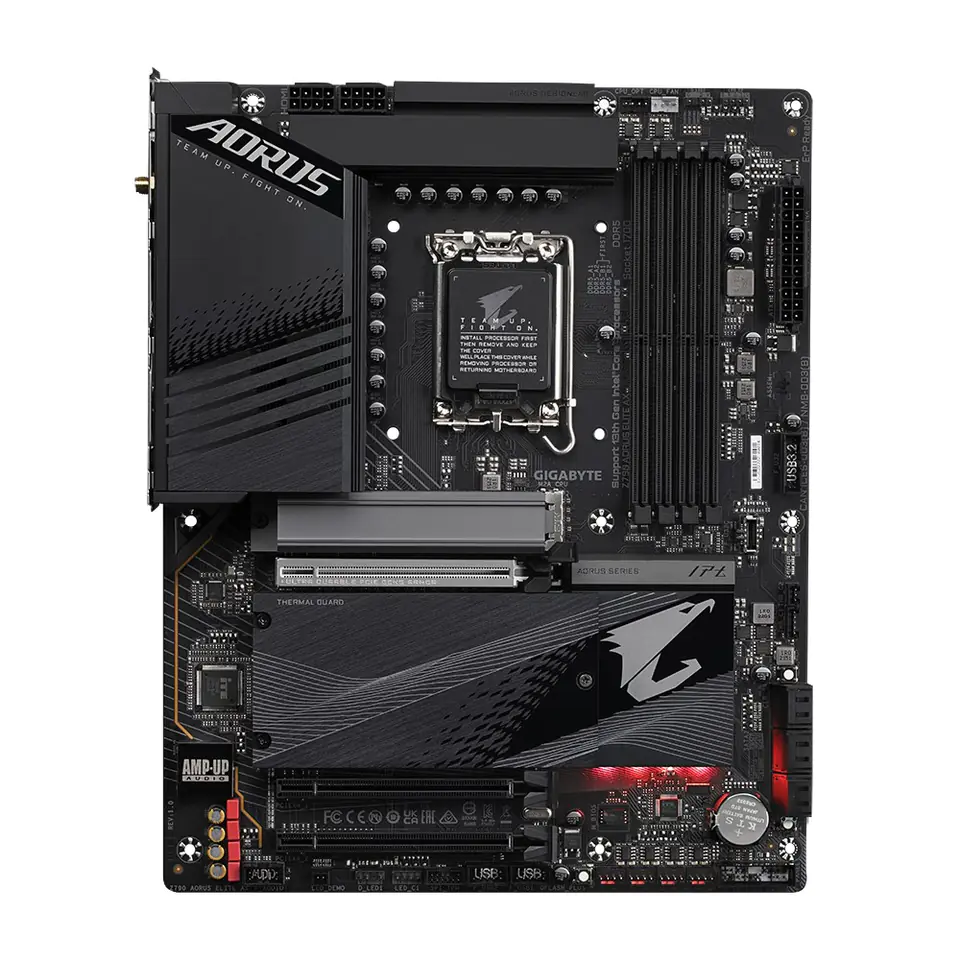

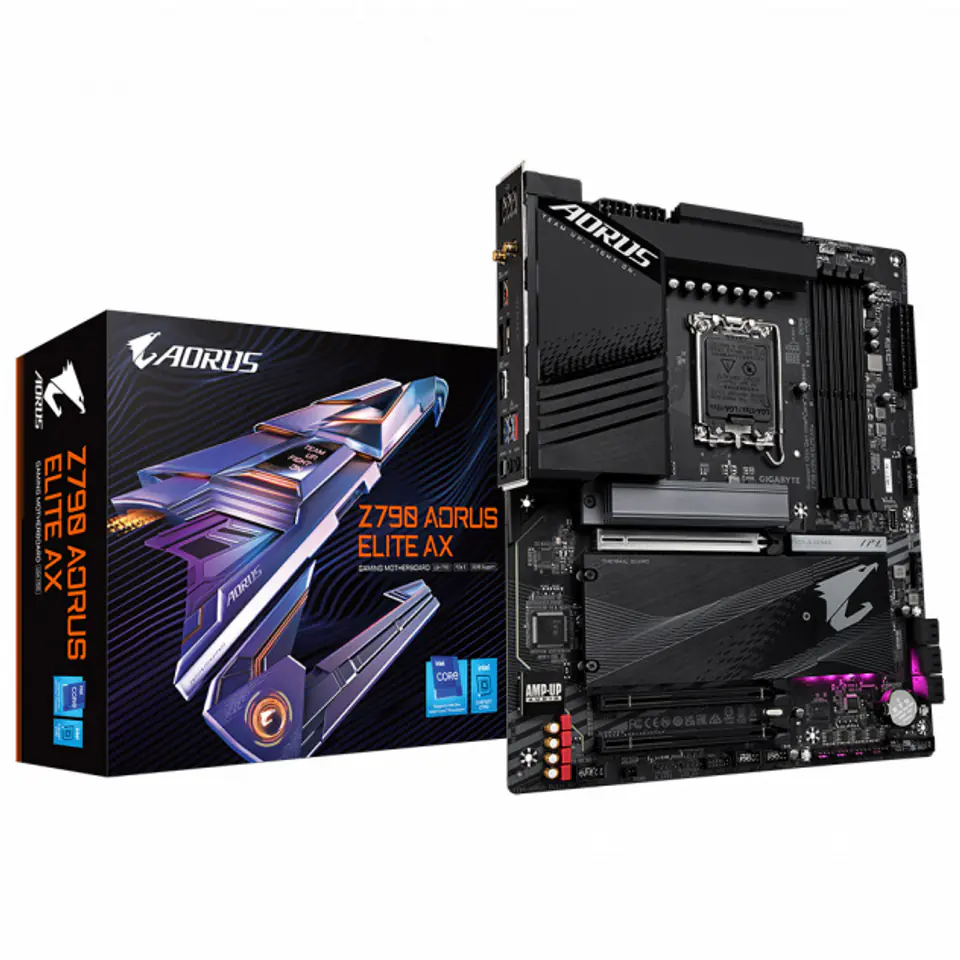

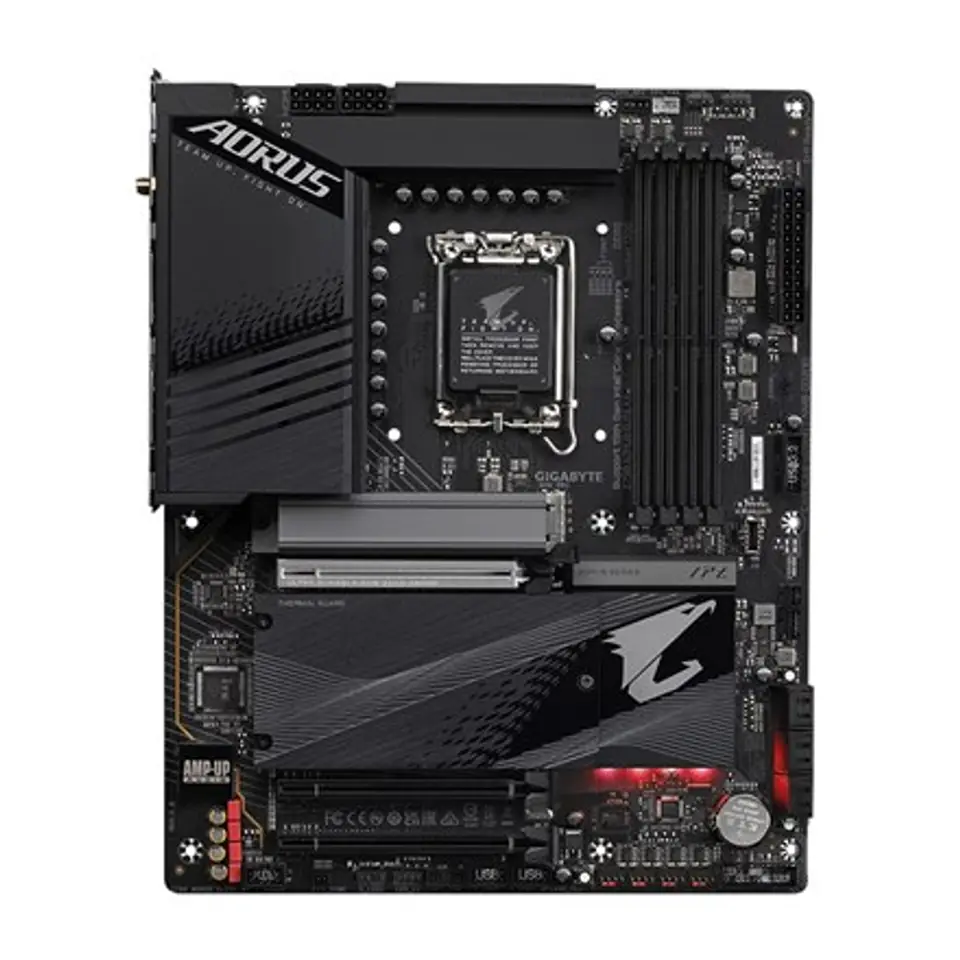

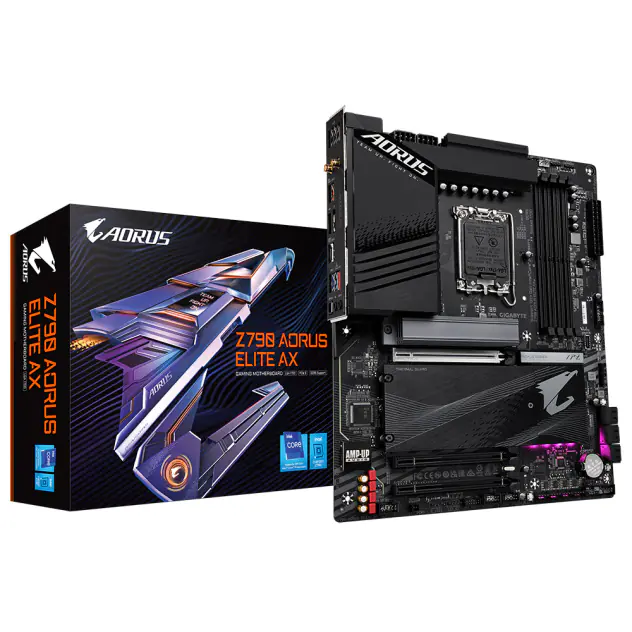

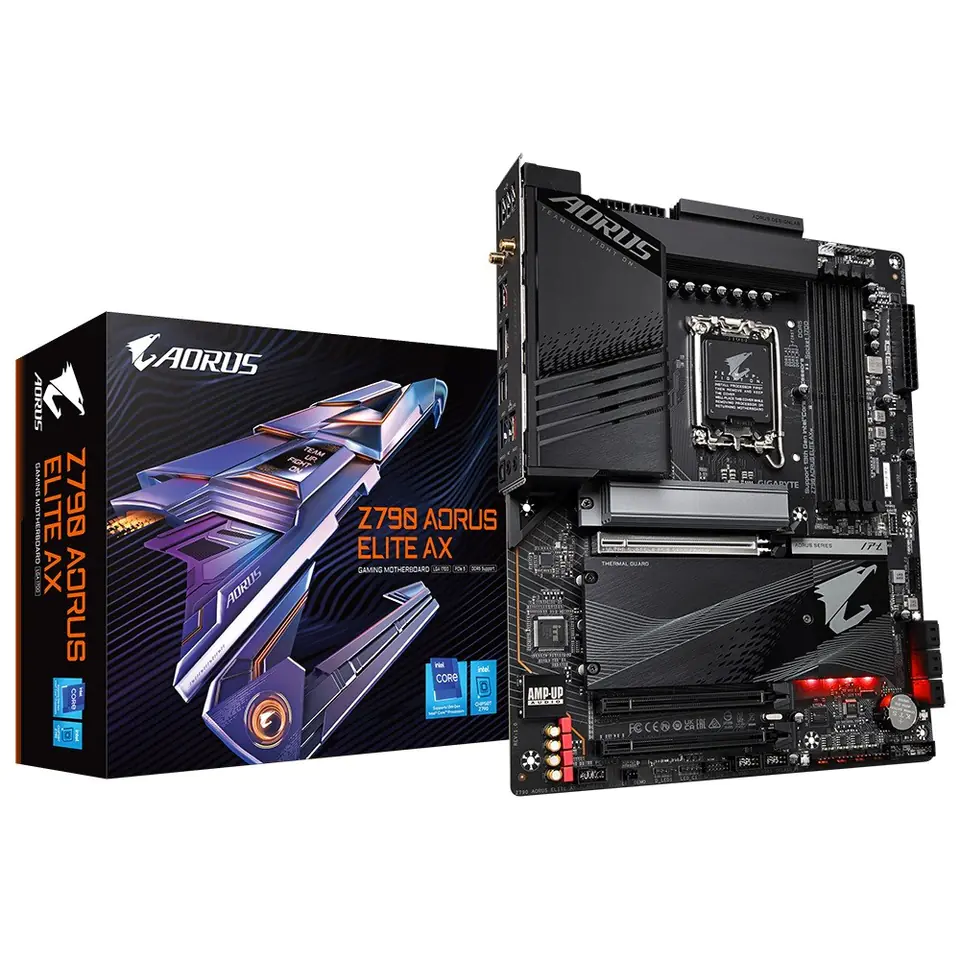

Gigabyte Z790 AORUS ELITE AX motherboard Intel Z790 LGA 1700 ATX

€330.83
Shipping from warehouse: ⁨A3⁩
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
Gigabyte
Product code:
Z790 AORUS ELITE AX / 4719331849467

Specification

12v power connector:Yes
Atx power connector (24-pin):Yes
Audio output channels:7.1 channels
Batteries included:Yes
Battery technology:Lithium-Manganese Dioxide (LiMnO2)
Battery type:CR2032
Battery weight:3 g
Bios type:UEFI AMI
Bluetooth:Yes
Bluetooth version:5.3
Cables included:SATA
Clear cmos button:Yes
Clear cmos jumper:Yes
Compatible processor series:Intel® Core™ i3, Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Country of origin:China
Cpu fan connector:Yes
Depth:244 mm
Desktop management interface (dmi) version:2.7
Directx version:12.0
Displayport version:1.2
Displayports quantity:1
Eps power connector (8-pin):Yes
Ethernet interface type:2.5 Gigabit Ethernet
Ethernet lan:Yes
Ethernet lan (rj-45) ports:1
Front panel audio connector:Yes
Front panel connector:Yes
Hdcp:Yes
Hdmi ports quantity:1
Hdmi version:2.0
Headphone outputs:2
Height:35 mm
Lithium weight per battery:0.07 g
Maximum internal memory:128 GB
Maximum internal memory supported by processor:192 GB
Maximum resolution:4096 x 2304 pixels
Memory channels:Dual-channel
Memory slots type:DIMM
Microphone in:Yes
Motherboard chipset:Intel Z790
Motherboard chipset family:Intel
Motherboard form factor:ATX
Number of battery cells:1
Number of hdds supported:6
Number of m.2 (m) slots:4
Number of memory slots:4
Number of sata iii connectors:6
Number of storage drives supported:10
On-board graphics card:No
Package depth:270 mm
Package height:80 mm
Package weight:2.32 kg
Package width:335 mm
Parallel processing technology support:CrossFire
Pc health monitoring:Fan, Temperature, Voltage, Water cooling
Pci express x16 slots:3
Processor manufacturer:Intel
Processor socket:LGA 1700
Product colour:Black
Products per shipping (inner) case:1 pc(s)
Raid levels:1, 5, 0, 10
Raid support:Yes
Rgb led pin header:Yes
S/pdif out port:Yes
Supported memory clock speed (max):7600 MHz
Supported memory clock speeds:6000, 4000, 6200, 6600, 5800, 5400, 4800, 6400, 5200, 6800, 5600, 7000, 7400, 7200, 7600 MHz
Supported memory types:DDR5-SDRAM
Supported processor sockets:LGA 1700
Supported storage drive interfaces:M.2, PCI Express 4.0, SATA III
Supported storage drive types:HDD & SSD
Thunderbolt headers:2
Top wi-fi standard:Wi-Fi 6E (802.11ax)
Total number of sata connectors:6
Tpm connector:Yes
Unbuffered memory:Yes
Usb 2.0 connectors:2
Usb 2.0 ports quantity:4
Usb 3.2 gen 1 (3.1 gen 1) connectors:1
Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity:3
Usb 3.2 gen 2 (3.1 gen 2) connectors:1
Usb 3.2 gen 2 (3.1 gen 2) type-a ports quantity:2
Usb 3.2 gen 2x2 type-c ports quantity:1
Usb connector type:USB Type-A, USB Type-C
Warranty period:3 year(s)
Wi-fi:Yes
Wi-fi standards:Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), 802.11a, Wi-Fi 6 (802.11ax), 802.11g, Wi-Fi 6E (802.11ax), 802.11b
Width:305 mm
Wifi-ap antenna jack:2
Windows operating systems supported:Windows 10 x64, Windows 11 x64
Wlan controller model:Intel Wi-Fi 6E AX211
Gwarancja:

Wraz z szybko zachodzącymi zmianami technologicznymi GIGABYTE zawsze podąża za najnowszymi trendami i zapewnia klientom zaawansowane funkcje i najnowsze technologie. Płyty główne GIGABYTE są wyposażone w ulepszone rozwiązanie zasilania, najnowsze standardy pamięci masowej i wyjątkową łączność, aby zapewnić zoptymalizowaną wydajność w grach.

Z790 AORUS ELITE AX

Intel Z790 Express

CPU:

  • 1 x złącze M.2 (gniazdo 3, klawisz M, obsługa dysków SSD typu 22110/2280 PCIe 4.0 x4/x2) (M2A_CPU)

Chipset:

  • 2 złącza M.2 (Gniazdo 3, klawisz M, obsługa dysków SSD typu 22110/2280 PCIe 4.0 x4/x2) (M2P_SB, M2Q_SB)
  • 1 x złącze M.2 (Socket 3, klawisz M, obsługa dysków SSD typu 22110/2280 i PCIe 4.0 x4) (M2M_SB)
  • 6 złączy SATA 6 Gb/s

Obsługa macierzy RAID 0, RAID 1, RAID 5 i RAID 10 dla urządzeń pamięci masowej NVMe SSDObsługa macierzy RAID 0, RAID 1, RAID 5 i RAID 10 dla urządzeń pamięci masowej SATA

Zintegrowany procesor graficzny Intel HD Graphics:

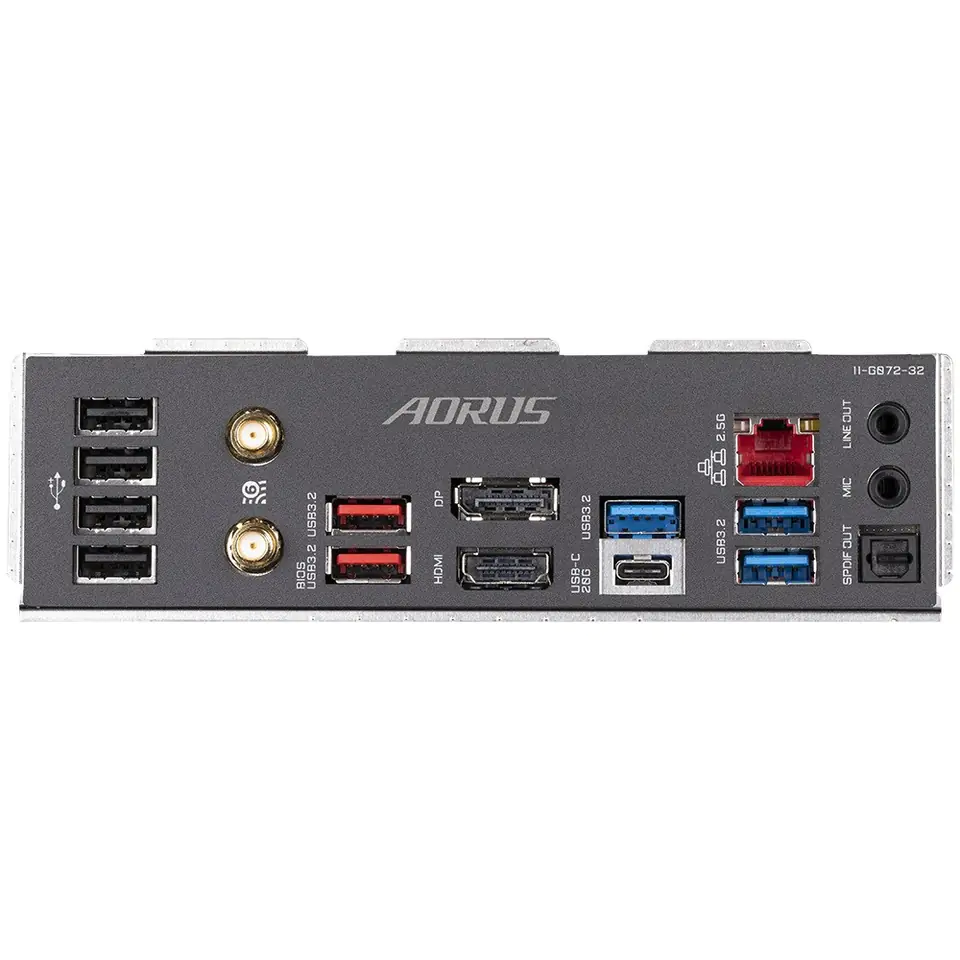

  • 1 x złącze HDMI, obsługuje maksymalną rozdzielczość 4096x2160@60 Hz

* Obsługa HDMI 2. 0 i HDCP 2. 3.

  • 1 x DisplayPort, obsługuje maksymalną rozdzielczość 4096x2304@60

* Obsługa wersji DisplayPort 1. 2 i HDCP 2. 3

(Specyfikacje graficzne mogą się różnić w zależności od obsługi procesora. )

  • KODEK Realtek Audio
  • Dźwięk wysokiej jakości
  • 2/4/5,1/7.1-kanałowy
  • 1 x 256 Mbit flash
  • Korzystanie z licencjonowanego AMI UEFI BIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

30.5 x 24.4 cm

  • Norton Internet Security (wersja OEM)
  • Oprogramowanie do zarządzania przepustowością sieci LAN
