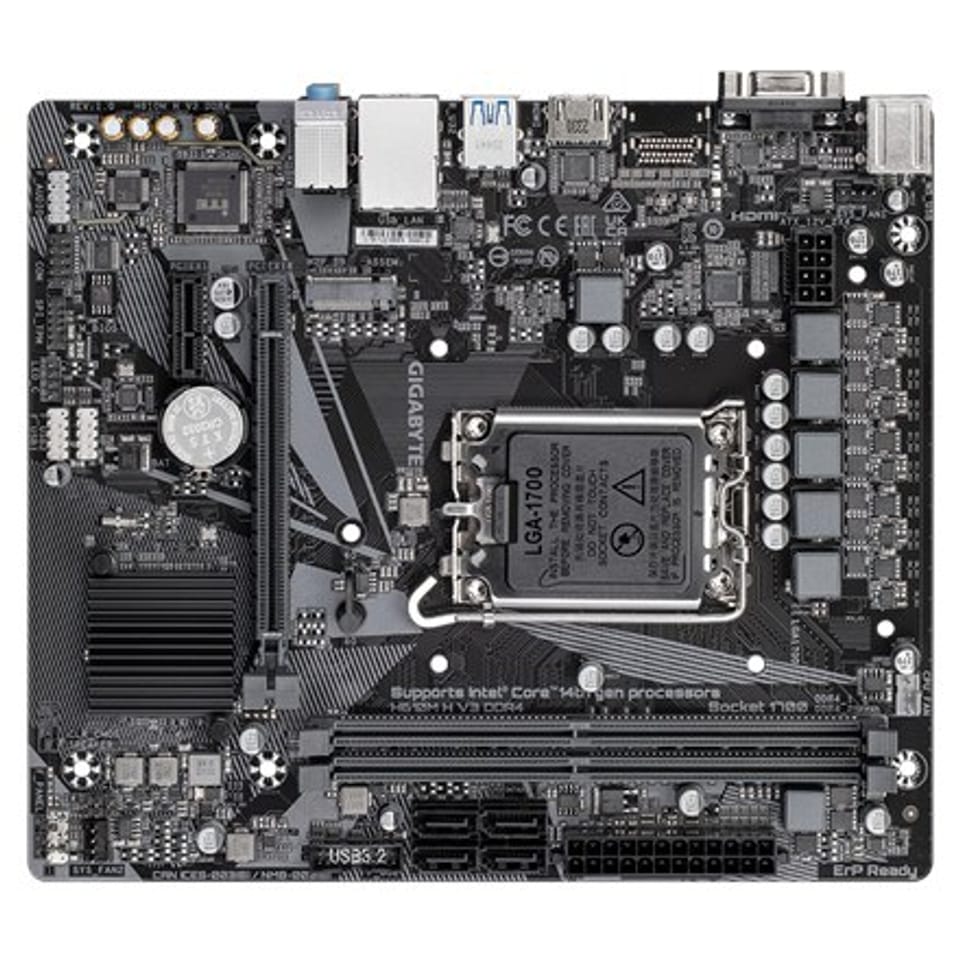

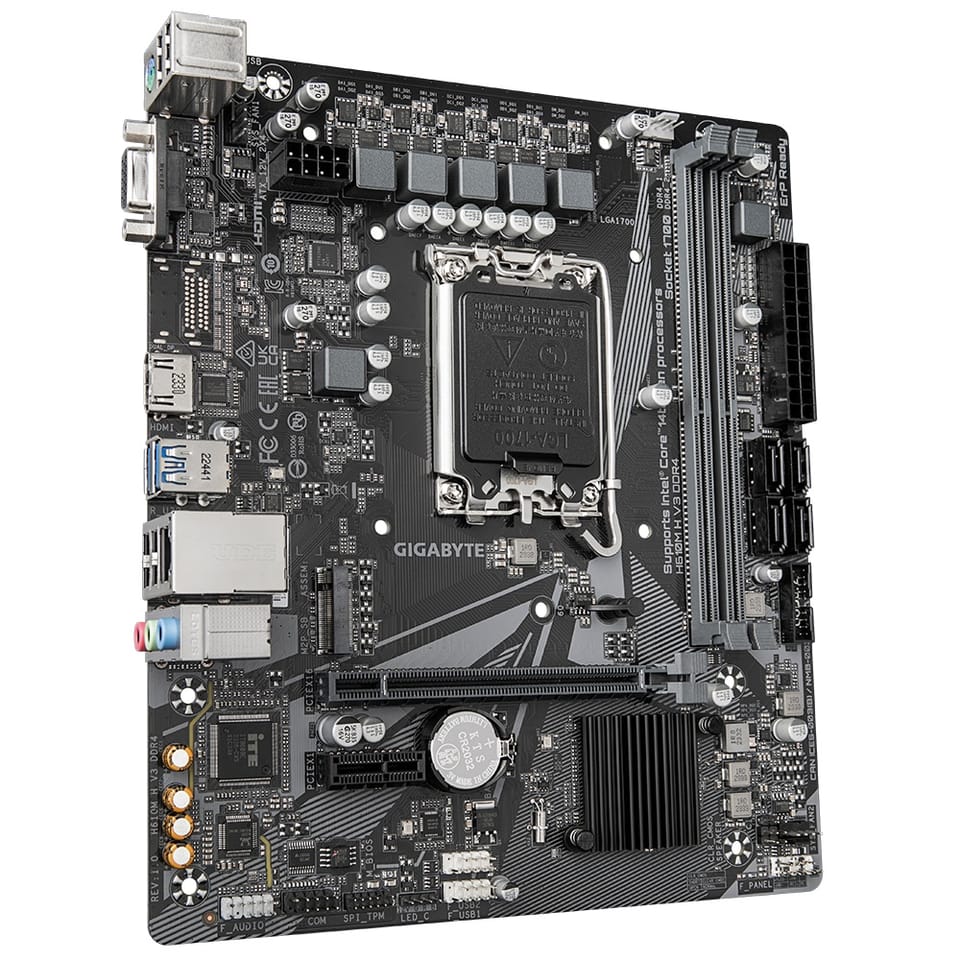

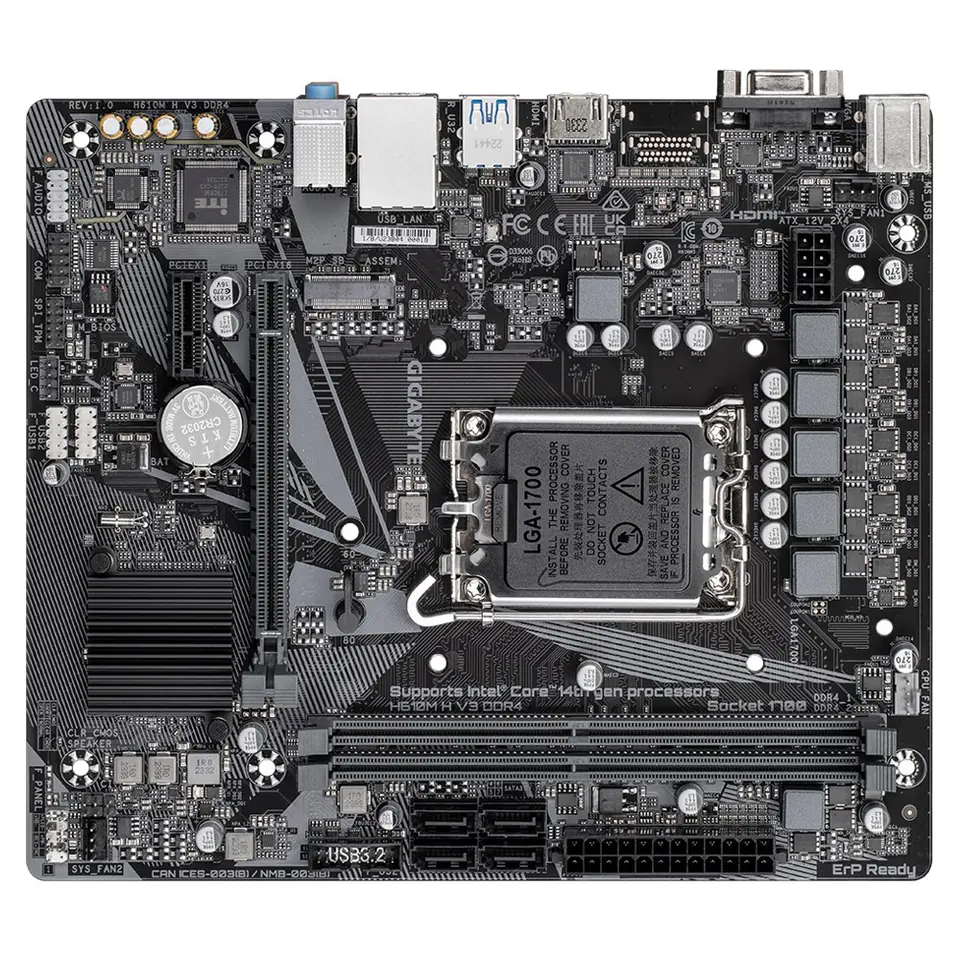

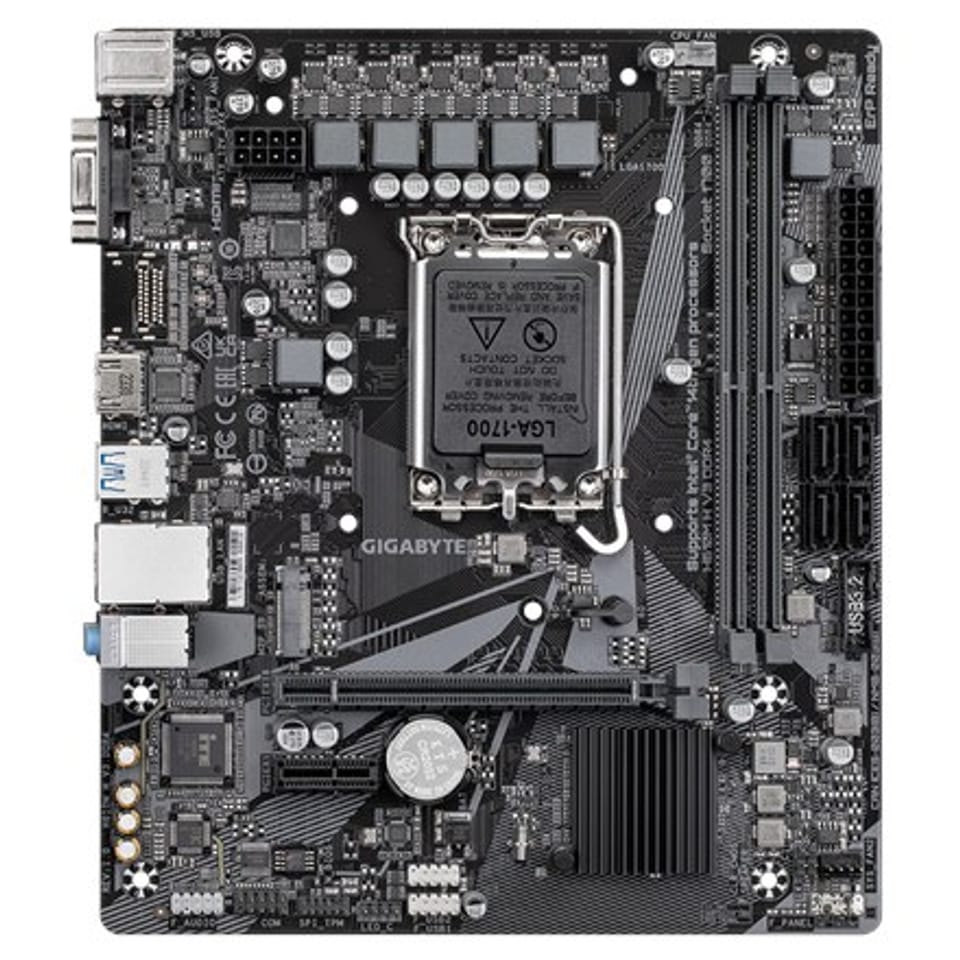

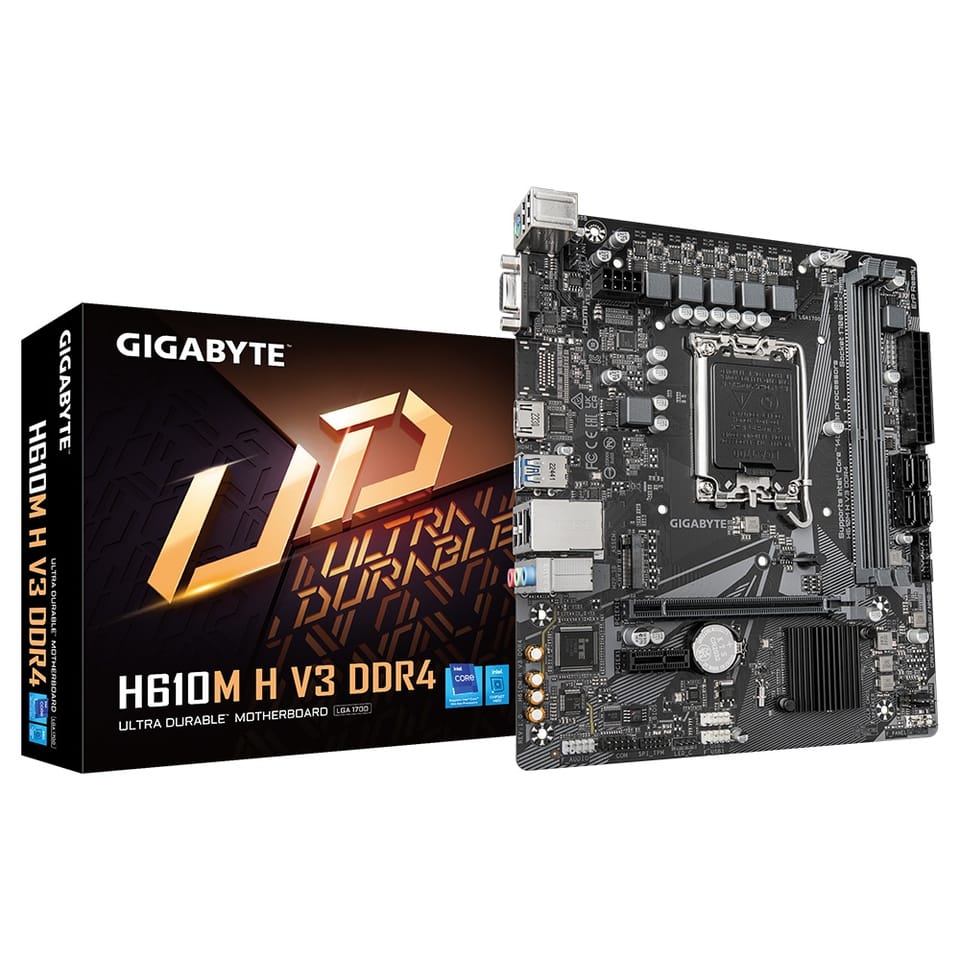

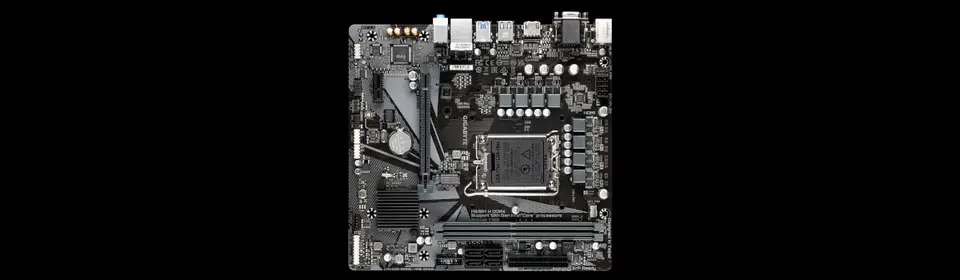

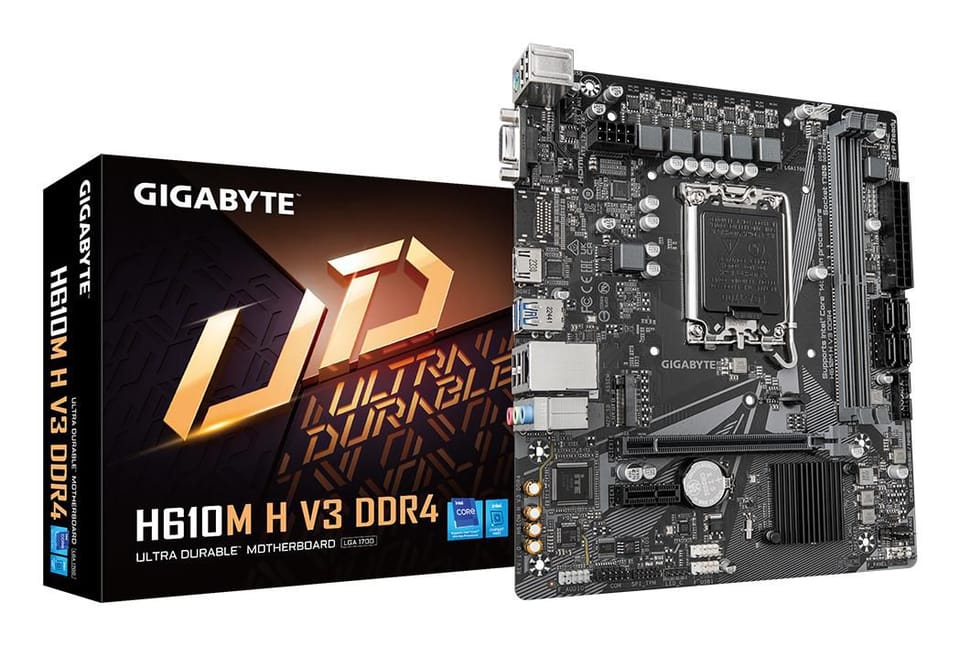

Gigabyte H610M H V3 DDR4 Motherboard - Supports Intel Core 14th CPUs, 4+1+1 Hybrid Phases Digital VRM, up to 3200MHz DDR4, 1xPCIe 3.0 M.2, GbE LAN, USB 3.2 Gen 1
€85.38
Shipping from warehouse: N2
Estimated shipping: Mon, Nov 18 - Tue, Nov 19
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Gigabyte
- Product code:
- H610M H V3 DDR4 / 4719331859718
Share this product:
Specification
| 12v power connector: | Yes |
|---|---|
| Atx power connector (24-pin): | Yes |
| Audio chip: | Realtek ALC897 |
| Audio output channels: | 7.1 channels |
| Batteries included: | Yes |
| Battery technology: | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type: | CR2032 |
| Battery weight: | 3 g |

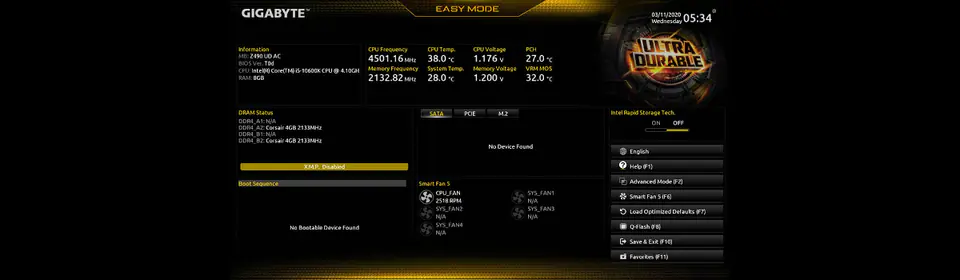

| Bios type: | UEFI AMI |
| Cables included: | SATA |
| Clear cmos button: | Yes |
| Clear cmos jumper: | Yes |
| Compatible processor series: | Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i3 |
| Cooling type: | Active |
| Country of origin: | China |
| Cpu fan connector: | Yes |
| Depth: | 215 mm |
| Desktop management interface (dmi) version: | 2.7 |
| Displayports quantity: | 2 |
| Dvi-d ports quantity: | 1 |
| Ecc сompatibility: | ECC & Non-ECC |
| Eps power connector (8-pin): | Yes |
| Ethernet interface type: | Gigabit Ethernet |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 1 |
| Front panel audio connector: | Yes |
| Front panel connector: | Yes |
| Graphics card: | HD Graphics |
| Graphics card family: | Intel |
| Hdcp: | Yes |
| Hdmi ports quantity: | 1 |
| Headphone outputs: | 3 |
| Height: | 35 mm |
| Lithium weight per battery: | 0.07 g |
| Maximum internal memory: | 64 GB |
| Maximum resolution: | 4096 x 2304 pixels |
| Memory channels: | Dual-channel |
| Memory slots type: | DIMM |
| Microphone in: | Yes |
| Motherboard chipset: | Intel H610 Express |
| Motherboard chipset family: | Intel |
| Motherboard form factor: | micro ATX |
| Number of battery cells: | 1 |
| Number of hdds supported: | 1 |
| Number of m.2 (m) slots: | 1 |
| Number of memory slots: | 2 |
| Number of sata iii connectors: | 4 |
| Number of storage drives supported: | 5 |
| Package depth: | 235 mm |
| Package height: | 52 mm |
| Package weight: | 684 g |
| Package width: | 265 mm |
| Parallel processing technology support: | Not supported |
| Pc health monitoring: | Water cooling, Voltage, Fan, Temperature |
| Pci express x1 slots: | 1 |
| Pci express x16 slots: | 1 |
| Power source type: | ATX |
| Processor manufacturer: | Intel |
| Processor socket: | LGA 1700 |
| Product colour: | Black |
| Products per shipping (inner) case: | 1 pc(s) |
| Ps/2 ports quantity: | 1 |
| Rgb led pin header: | Yes |
| Serial port headers: | 1 |
| Supported memory clock speed (max): | 3200 MHz |
| Supported memory clock speeds: | 3000, 3200 MHz, 2666, 2933, 2400, 2133 |
| Supported memory module capacities: | 8GB, 12GB, 32GB, 16GB, 1GB, 2GB, 4GB |
| Supported memory types: | DDR4-SDRAM |
| Supported processor sockets: | LGA 1700 |
| Supported storage drive interfaces: | M.2, SATA III |
| Supported storage drive types: | HDD & SSD |
| Tpm connector: | Yes |
| Unbuffered memory: | Yes |
| Usb 2.0 connectors: | 2 |
| Usb 2.0 ports quantity: | 4 |
| Usb 3.2 gen 1 (3.1 gen 1) connectors: | 1 |
| Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: | 2 |
| Usb connector type: | USB Type-A |
| Vga (d-sub) ports quantity: | 1 |
| Warranty period: | 3 year(s) |
| Wi-fi: | No |
| Width: | 230 mm |
| Windows operating systems supported: | Windows 11 x64, Windows 10 x64 |
