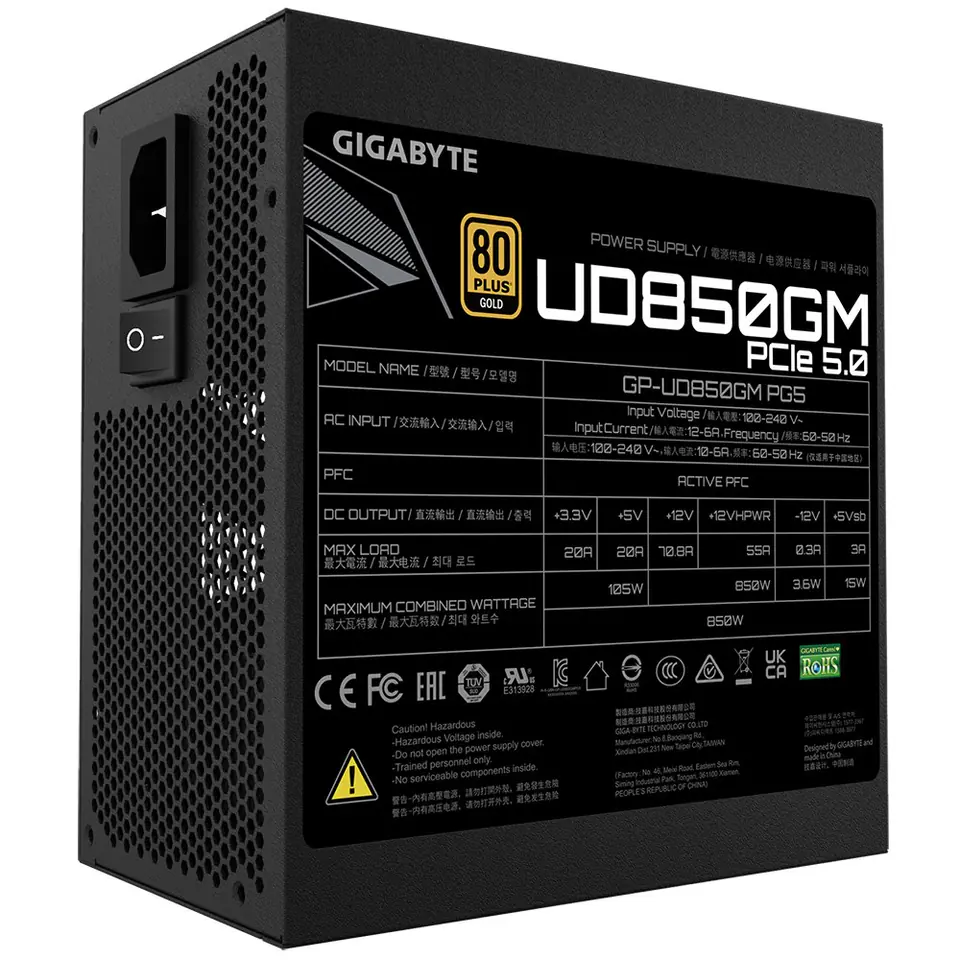

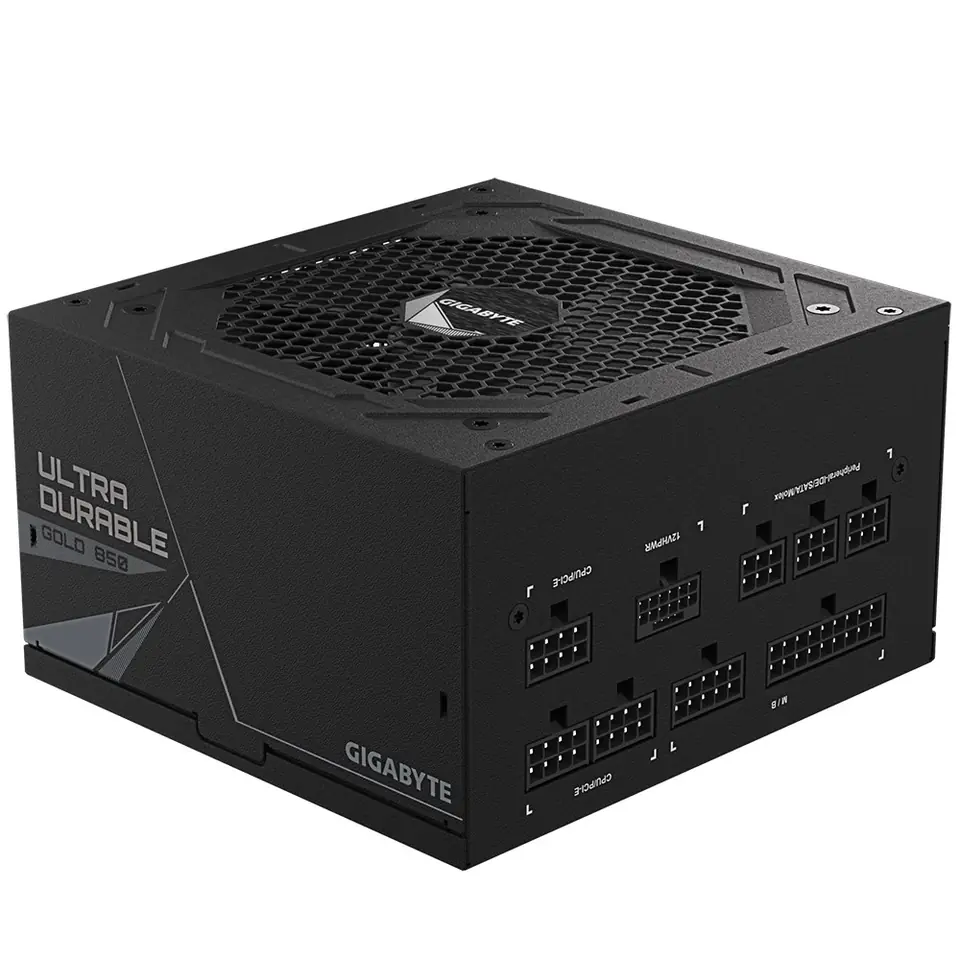

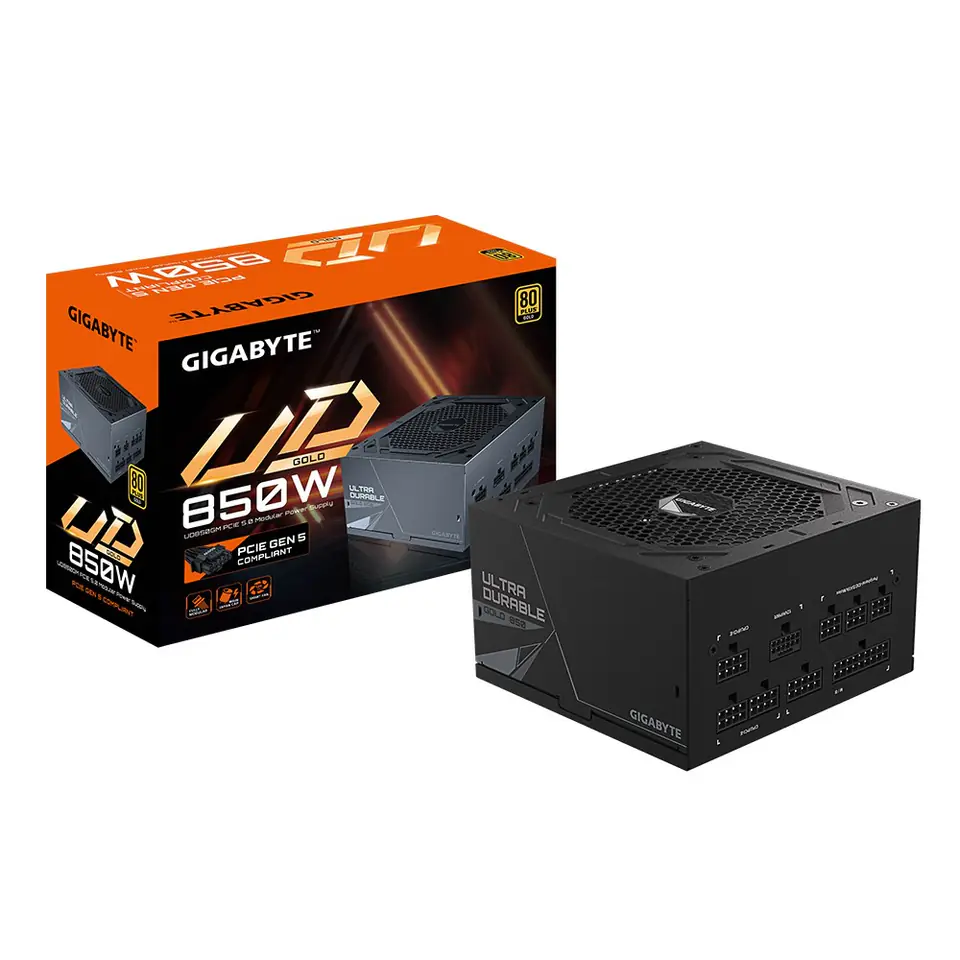

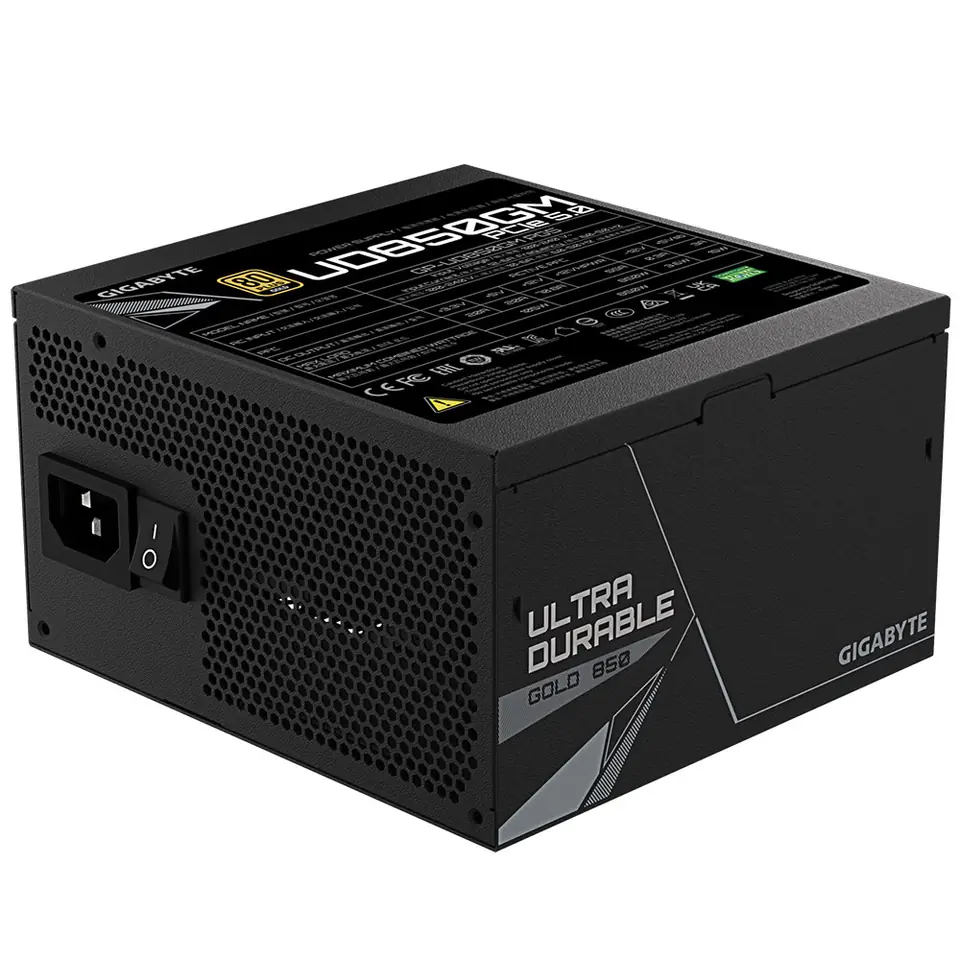

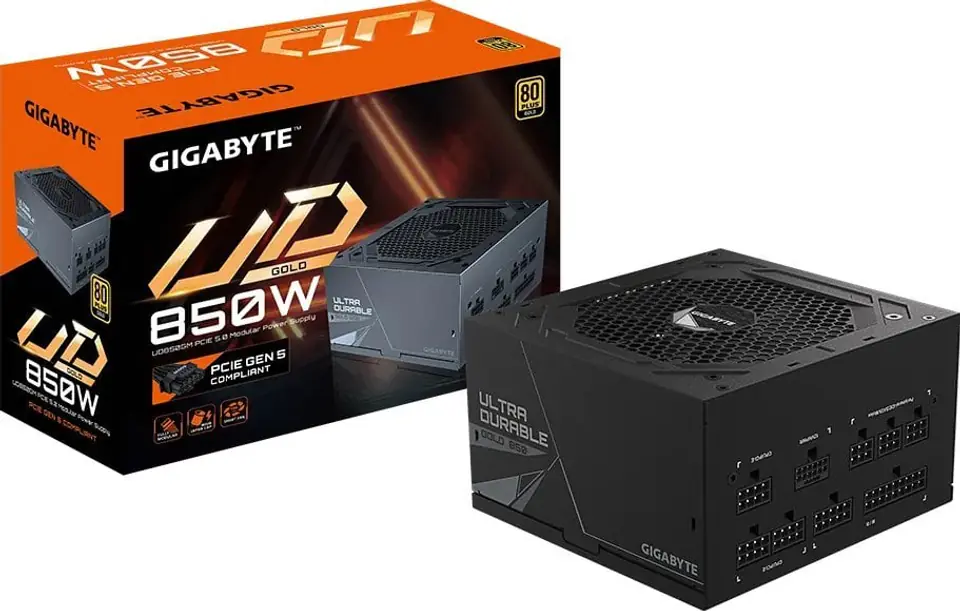

Gigabyte GP-UD850GM PG5 power supply unit 850 W 20+4 pin ATX ATX Black

€127.27
Shipping from warehouse: ⁨A3⁩
Estimated shipping: Mon, Nov 25 - Wed, Nov 27
14 days returnUnconditional return policy
Availability:
large quantity
Brand:
Gigabyte
Product code:
GP-UD850GM PG5 / 4719331553104

Specification

80 plus certification:80 PLUS Gold
Ac input frequency:50 - 60 Hz
Ac input voltage:100 - 240 V
Atx power connector (20+4 pin):Yes
Cable tie(s) included:Yes
Cables included:CPU, PATA, Peripheral (Molex), SATA

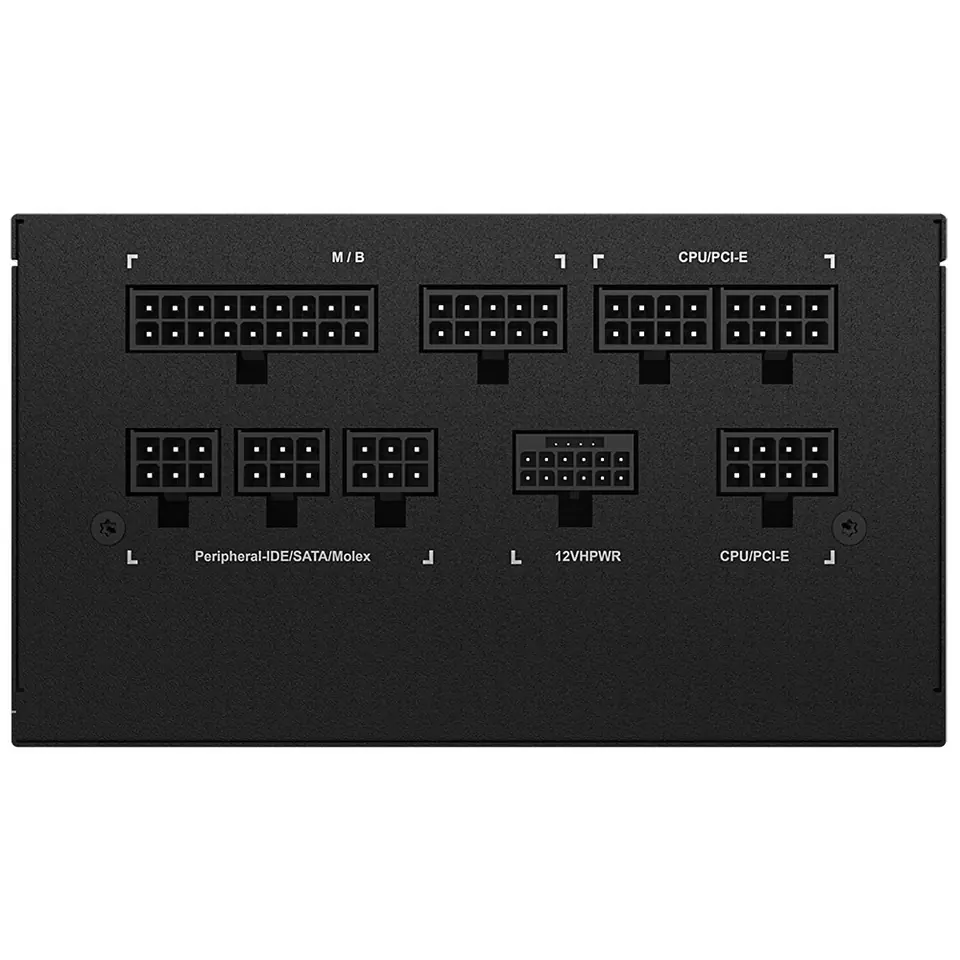

Cabling type:Fully-Modular
Combined power (-12v):3.6 W
Combined power (+12v):850 W
Combined power (+3.3v):105 W
Combined power (+5v):105 W
Combined power (+5vsb):15 W
Compliance certificates:CCC, RoHS, CE, Federal Communications Commission (FCC)
Cooling type:Active
Cpu power connector (4+4 pin):Yes
Depth:140 mm
Efficiency:90%

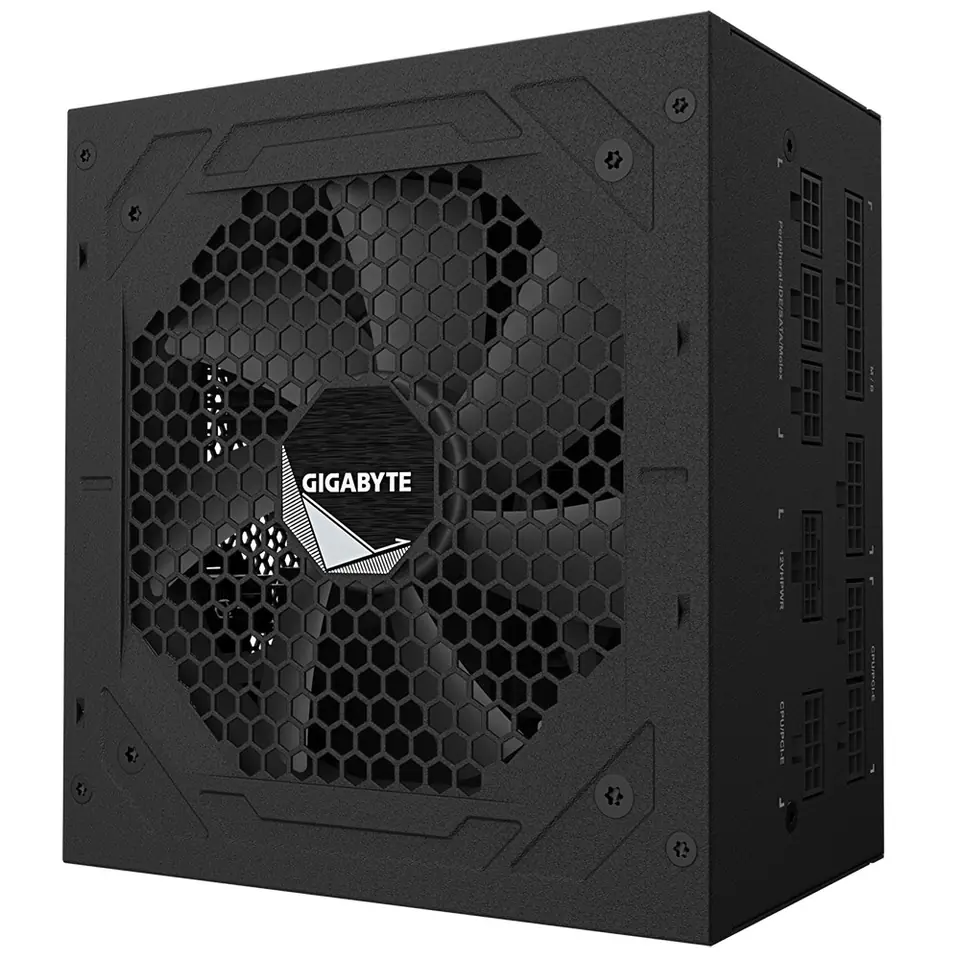

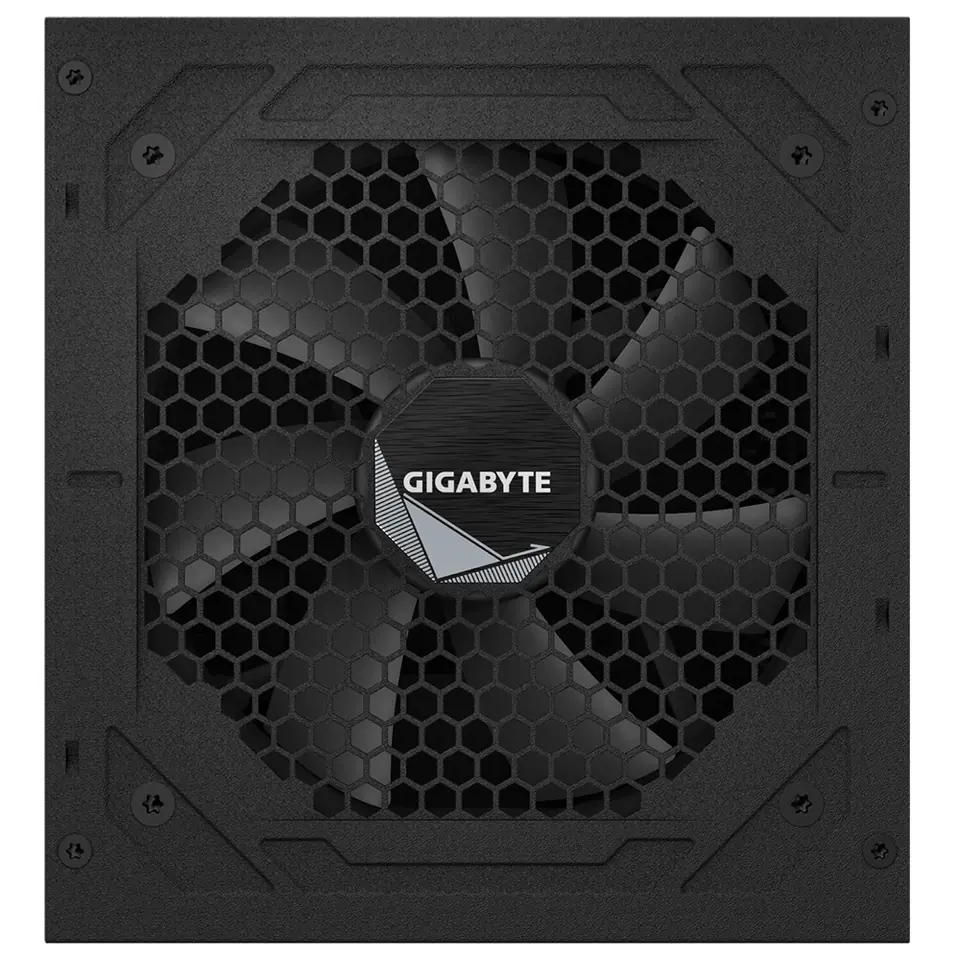

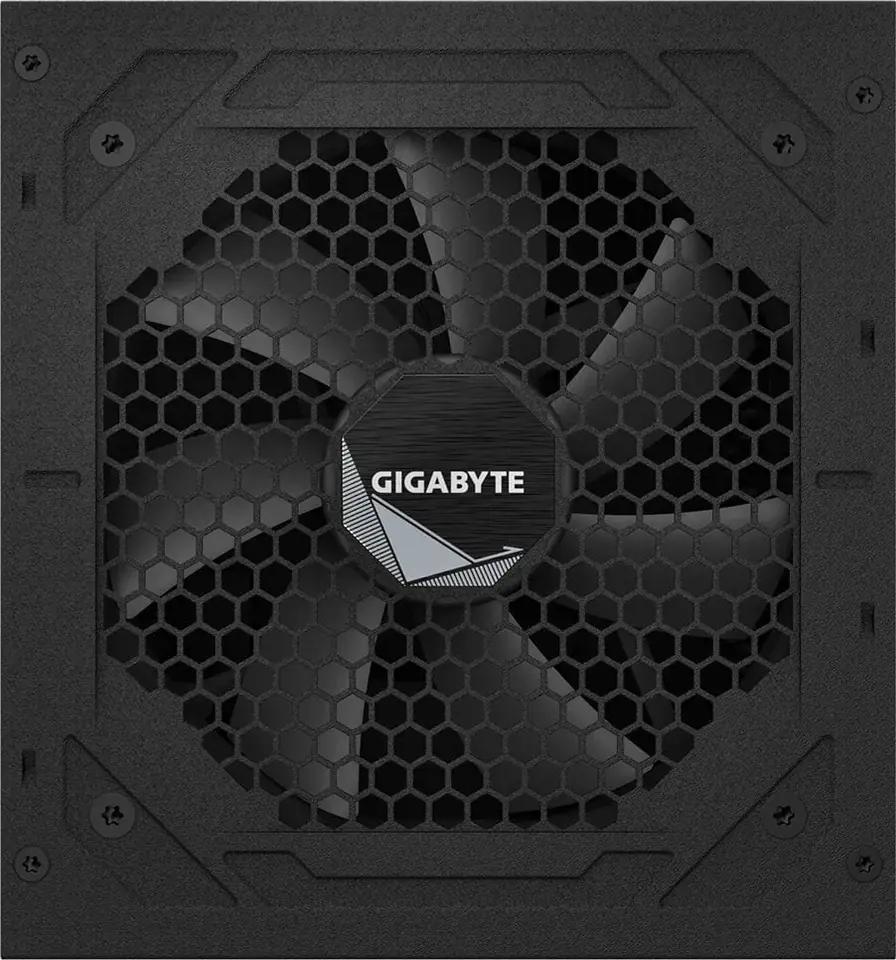

Fan diameter:12 cm
Fan location:Top
Height:85 mm
Hold time:16 ms
Illumination:No
Input current:12 - 6 A
Max output current (-12v):0.3 A
Max output current (+12v):70.8 A
Max output current (+3.3v):20 A
Max output current (+5v):20 A
Max output current (+5vsb):3 A
Maximum input current (@110v):6 A
Maximum input current (@220v):12 A
Mean time between failures (mtbf):100000 h
Motherboard power cable length:61 cm
Motherboard power connector:20+4 pin ATX
Noise level:40 dB
Number of fans:1 fan(s)
Number of pata power connectors:3
Number of sata power connectors:8
Package type:Box
Pci express connector:Yes
Pci express power cable length:70 cm
Pci express power connectors (16-pin):1
Pci express power connectors (6+2 pin):4
Peripheral (molex) power cable length:600 mm, 200
Peripheral (molex) power connectors (4-pin):2
Power factor correction (pfc) type:Active
Power protection features:Over power, Overheating, Under voltage, Over current, Short circuit, Over voltage
Power supply unit (psu) form factor:ATX
Product colour:Black
Purpose:PC
Sata power cable length:150, 600 mm
Sustainability certificates:CE, CCC, Federal Communications Commission (FCC), RoHS
Total power:850 W
Warranty period:5 year(s)
Width:150 mm
