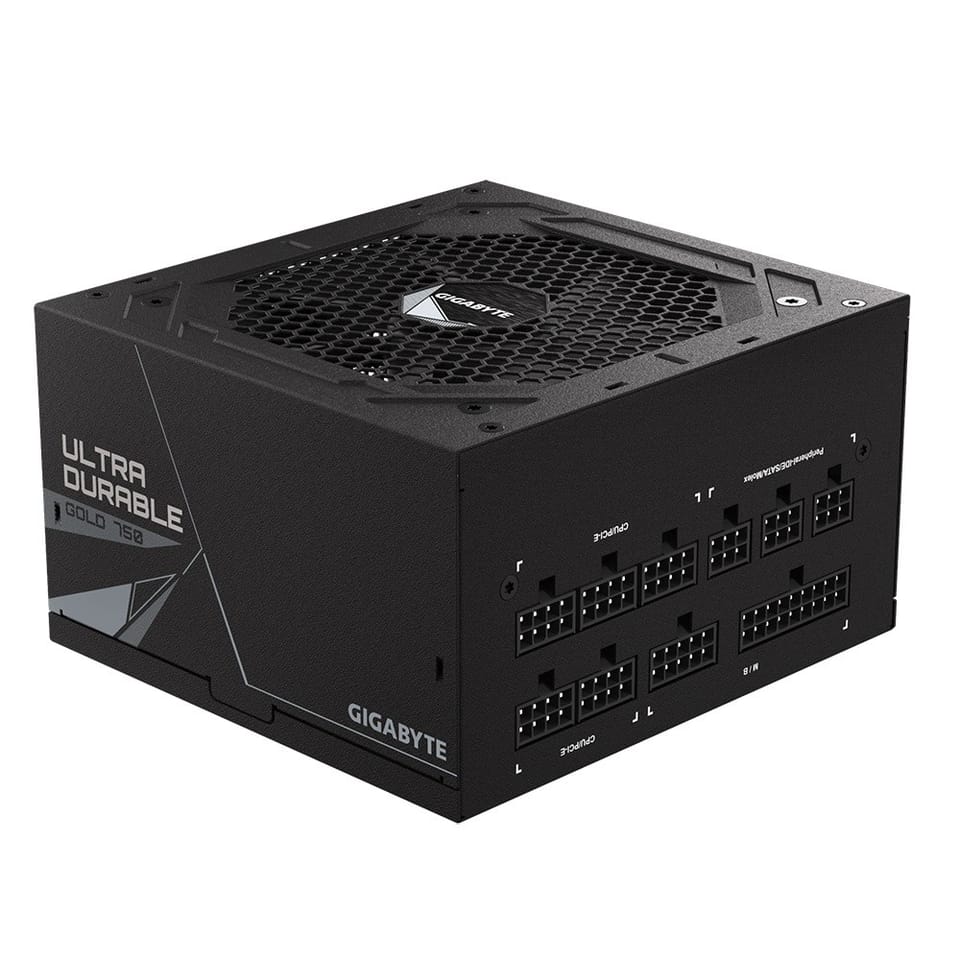

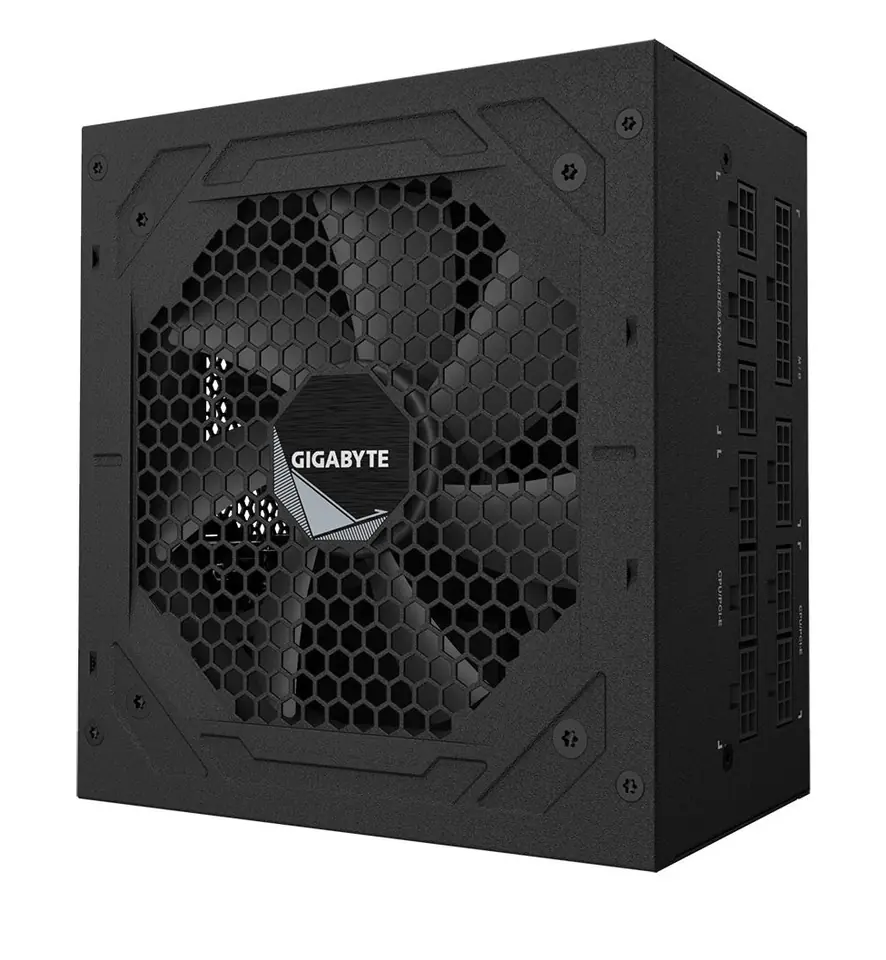

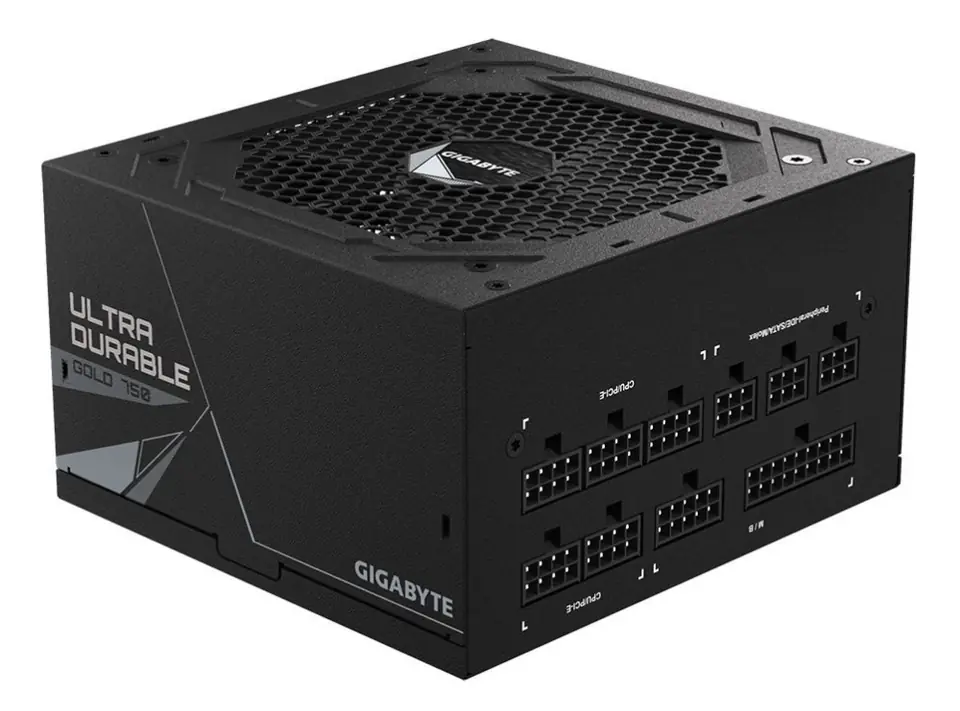

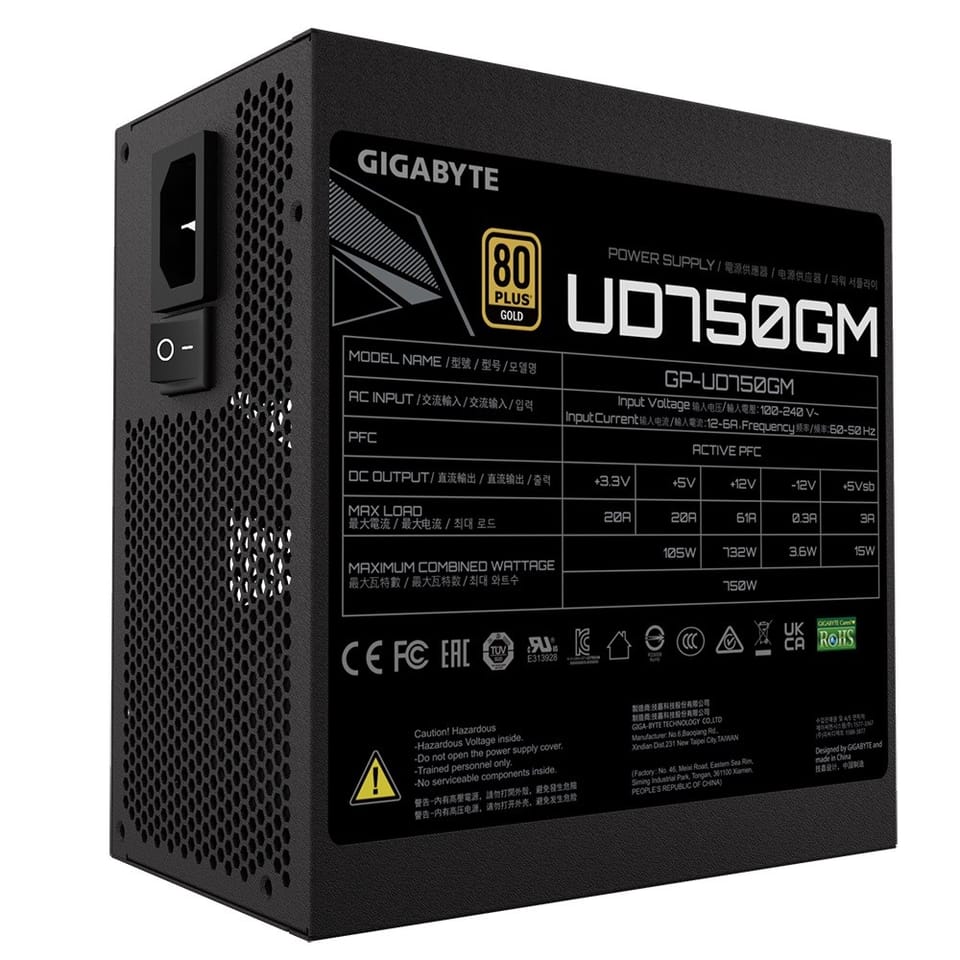

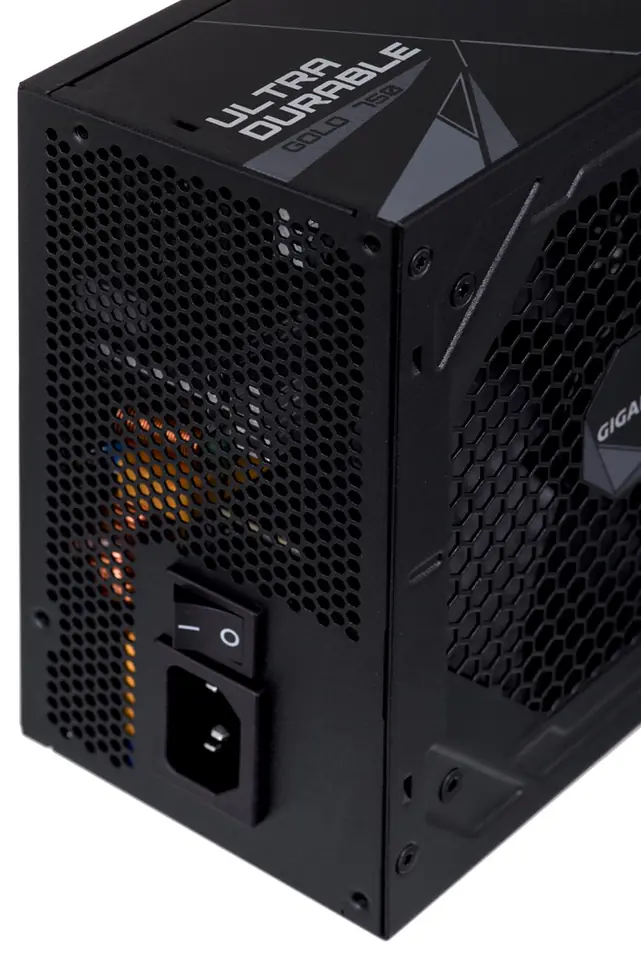

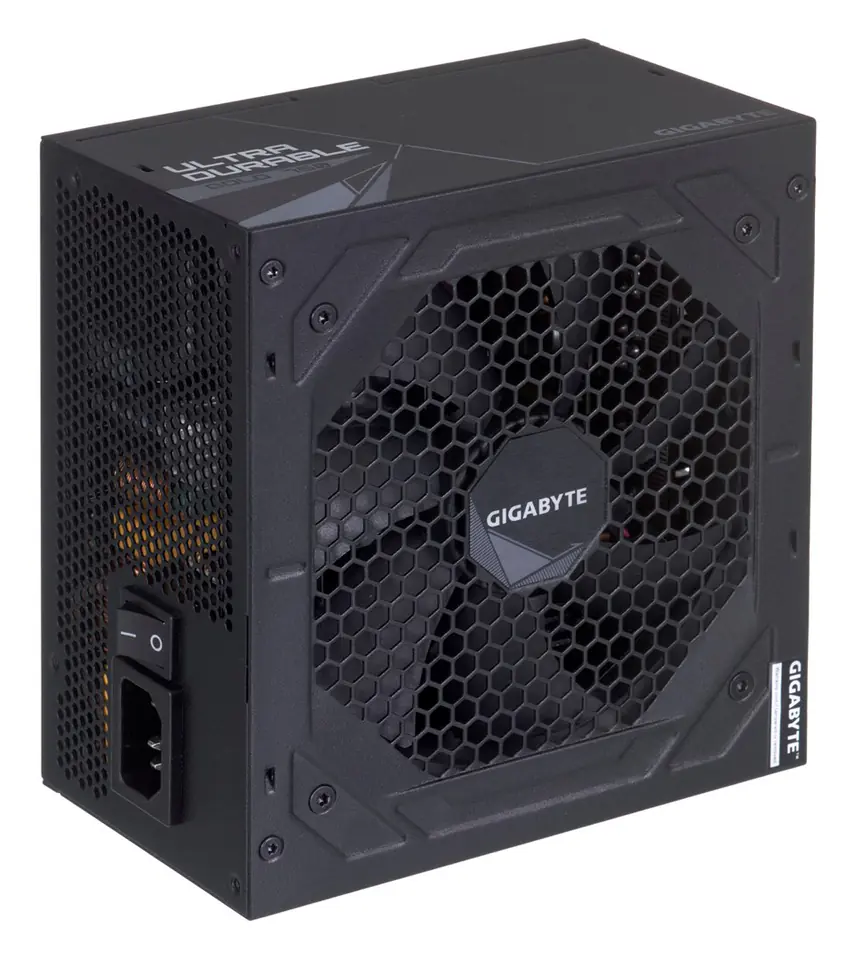

Gigabyte GP-UD750GM power supply unit 750 W 20+4 pin ATX ATX Black
€120.12
Shipping from warehouse: A3
Estimated shipping: Fri, Nov 15 - Mon, Nov 18
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Gigabyte
- Product code:
- GP-UD750GM / 4719331552671
Share this product:
Specification
80 plus certification: | 80 PLUS Gold |
---|---|
Ac input frequency: | 50/60 Hz |
Ac input voltage: | 100 - 240 V |
Atx power connector (20+4 pin): | Yes |
Atx version: | 2.31 |
Bearing technology: | HYB |

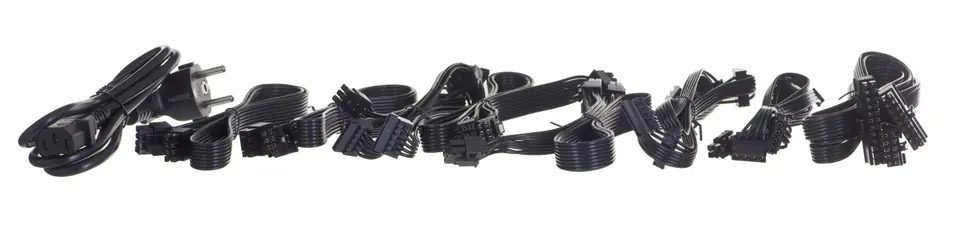

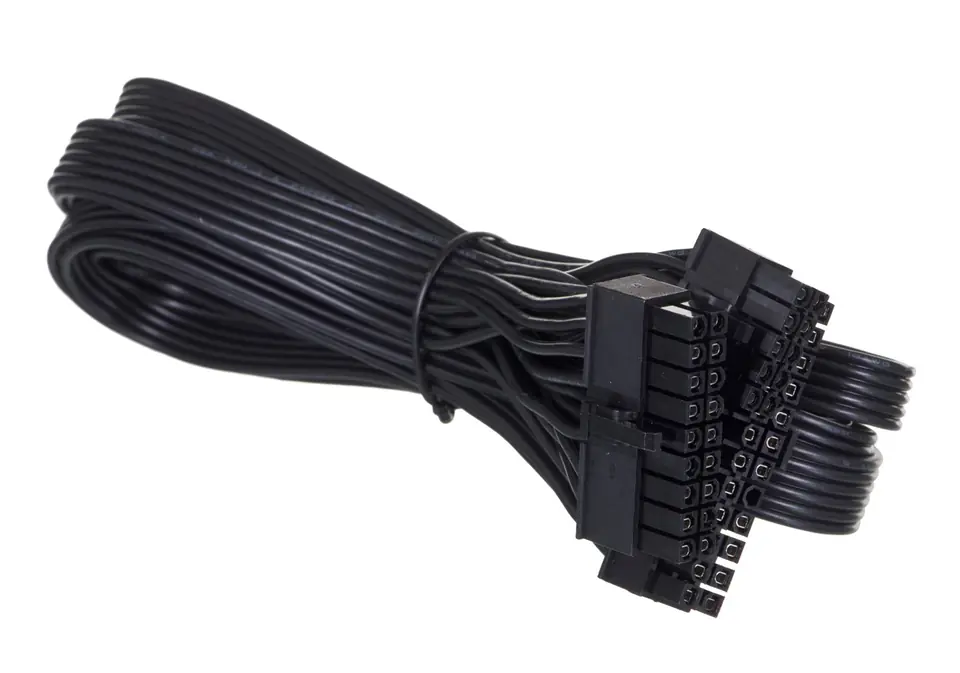

Cables included: | CPU, PCIe, Peripheral (Molex), SATA |

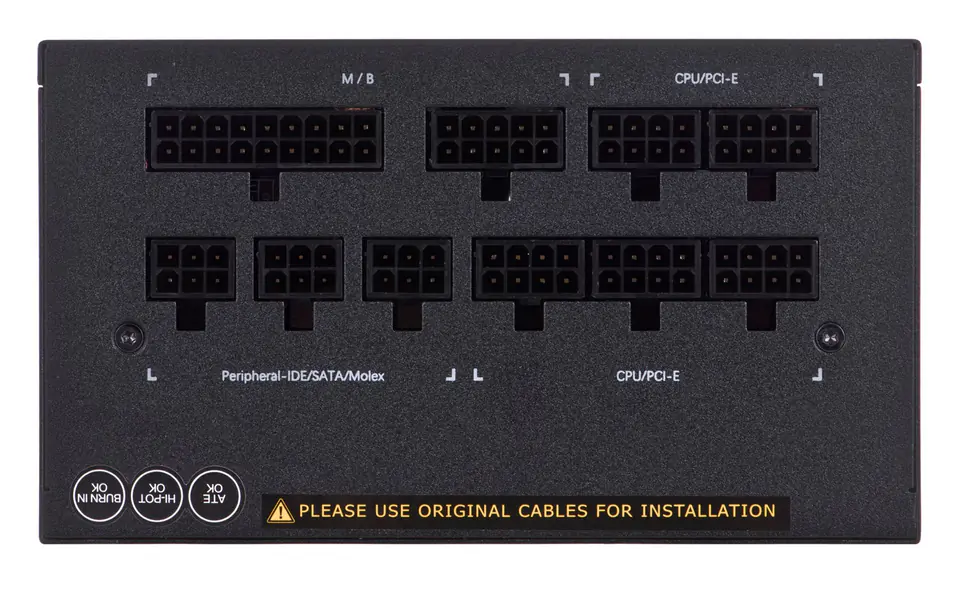

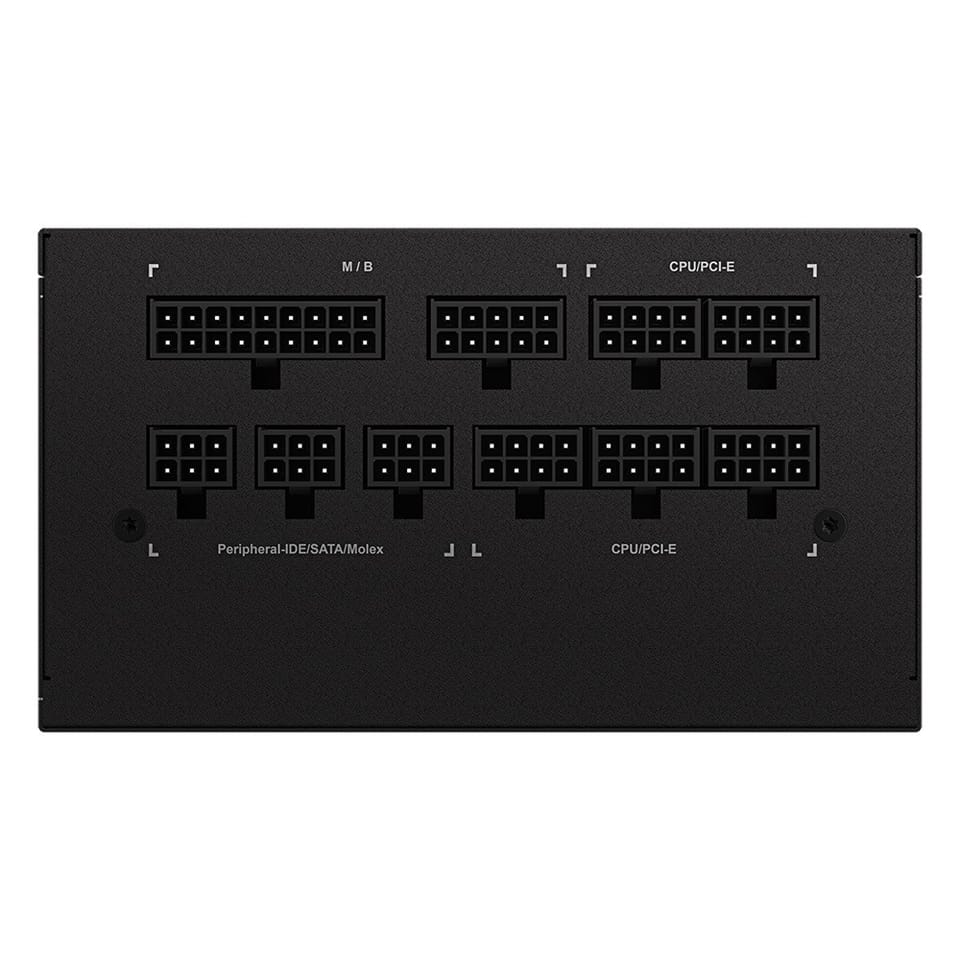

Cabling type: | Modular |
Combined power (-12v): | 3.6 W |
Combined power (+12v): | 732 W |
Combined power (+3.3v): | 105 W |
Combined power (+5v): | 105 W |
Combined power (+5vsb): | 15 W |
Cooling type: | Active |
Cpu power cable length: | 60 cm |
Cpu power connector (4+4 pin): | Yes |
Depth: | 140 mm |
Efficiency: | 90% |
Eps power connector (4+4 pin): | Yes |

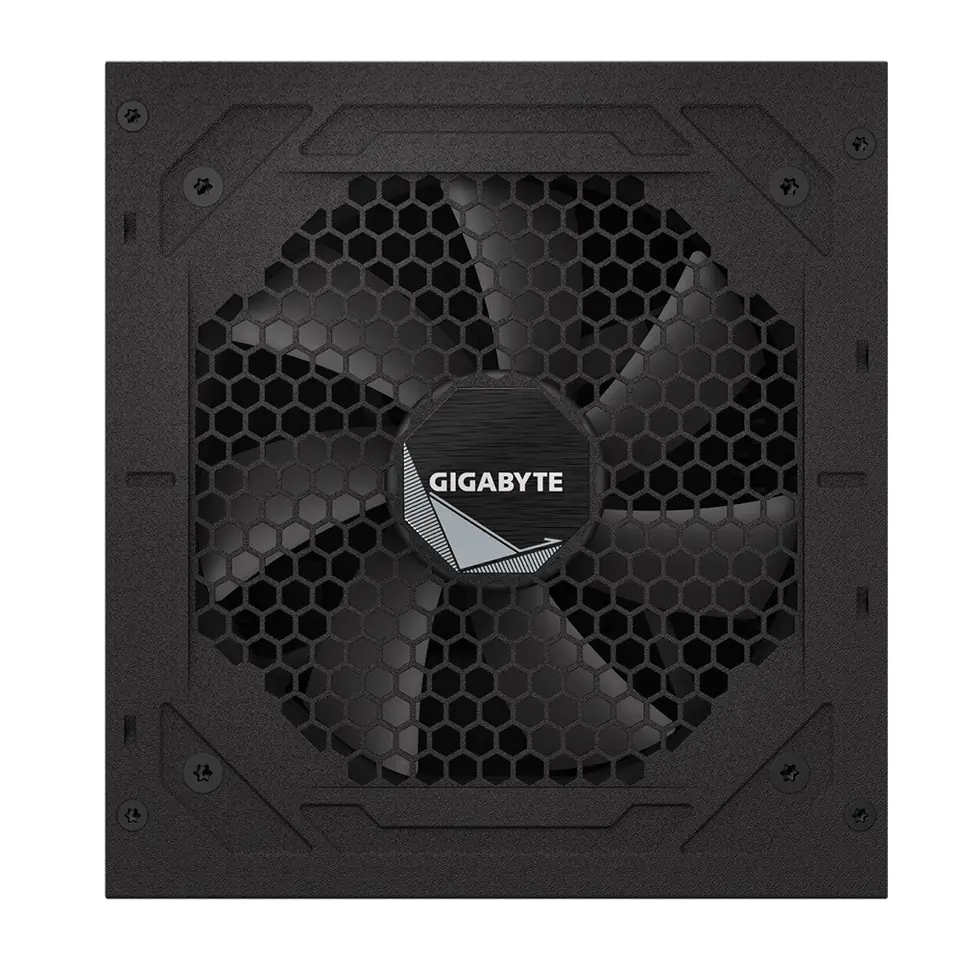

Fan diameter: | 12 cm |
Fan location: | Top |
Floppy disk drive cable length: | 15 cm |
Floppy disk drive connector: | Yes |
Floppy drive power connector: | 1 |
Height: | 86 mm |
Hold time: | 16 ms |
Input current: | 12 A |
Max output current (-12v): | 2.3 A |
Max output current (+12v): | 61 A |
Max output current (+3.3v): | 20 A |
Max output current (+5v): | 20 A |
Max output current (+5vsb): | 3 A |
Mean time between failures (mtbf): | 100000 h |
Motherboard power cable length: | 61 cm |
Motherboard power connector: | 20+4 pin ATX |
Number of fans: | 1 fan(s) |
Number of sata power connectors: | 8 |
On/off switch: | Yes |

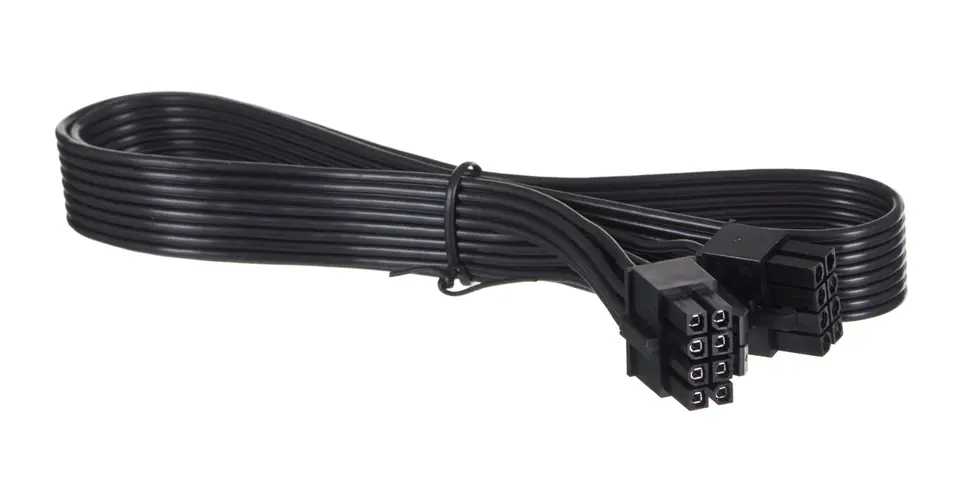

Pci express power cable length: | 60 cm |
Pci express power connectors (6+2 pin): | 4 |
Peripheral (molex) power cable length: | 120, 500 mm |
Peripheral (molex) power connectors (4-pin): | 3 |
Power factor correction (pfc) type: | Active |
Power protection features: | Over power, Short circuit, Over voltage, Overheating, Under voltage, Over current |
Power supply unit (psu) form factor: | ATX |
Product colour: | Black |
Purpose: | PC |

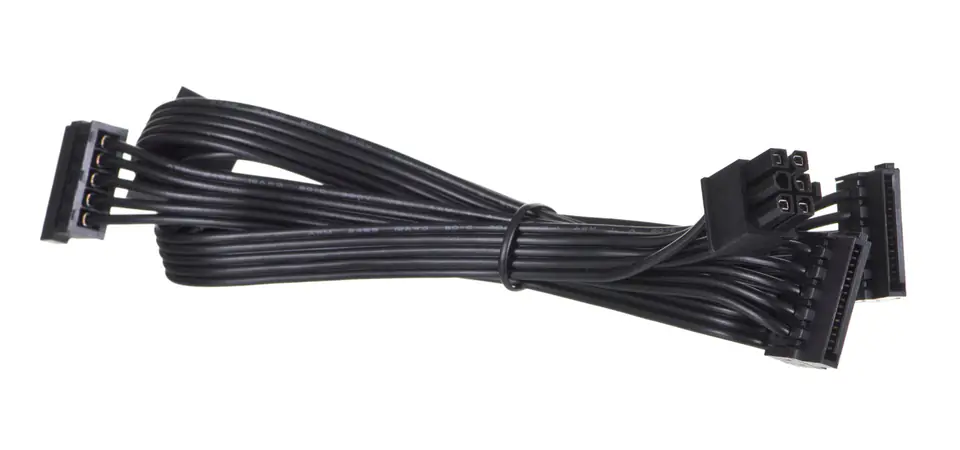

Sata power cable length: | 300 mm, 450 mm, 150, 600 mm |
Total power: | 750 W |
Width: | 150 mm |
