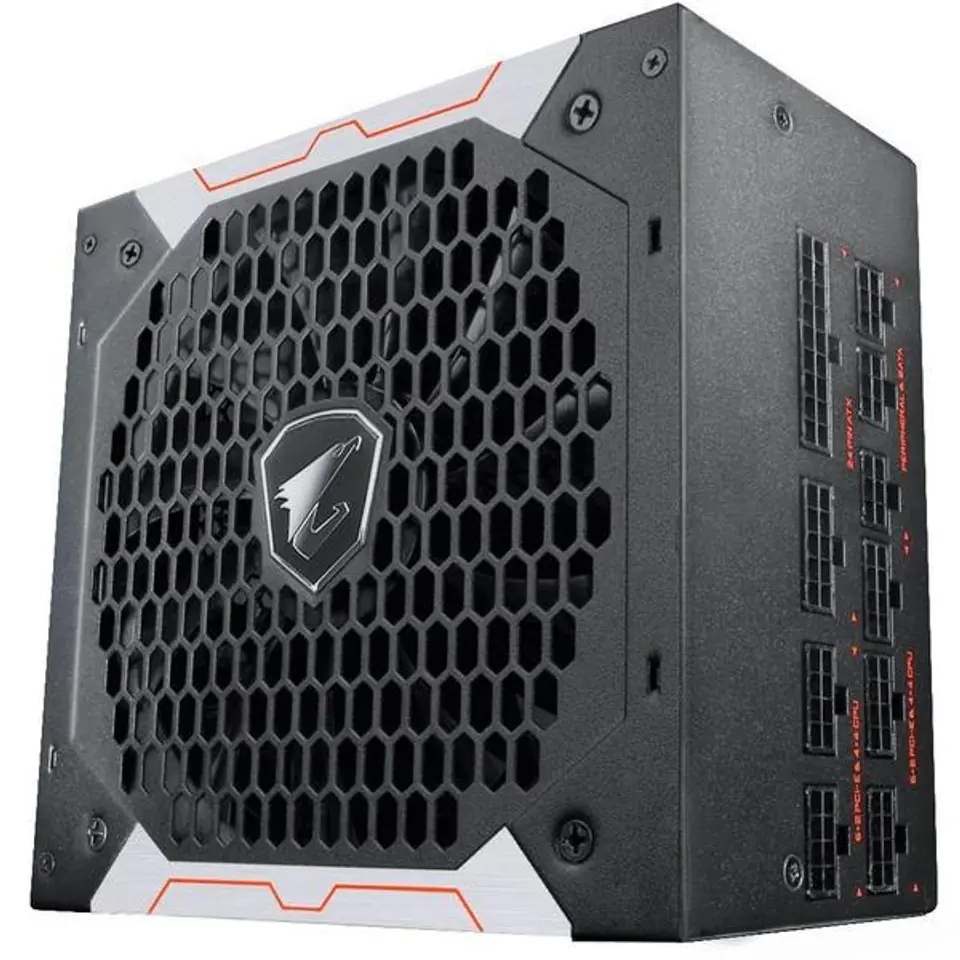

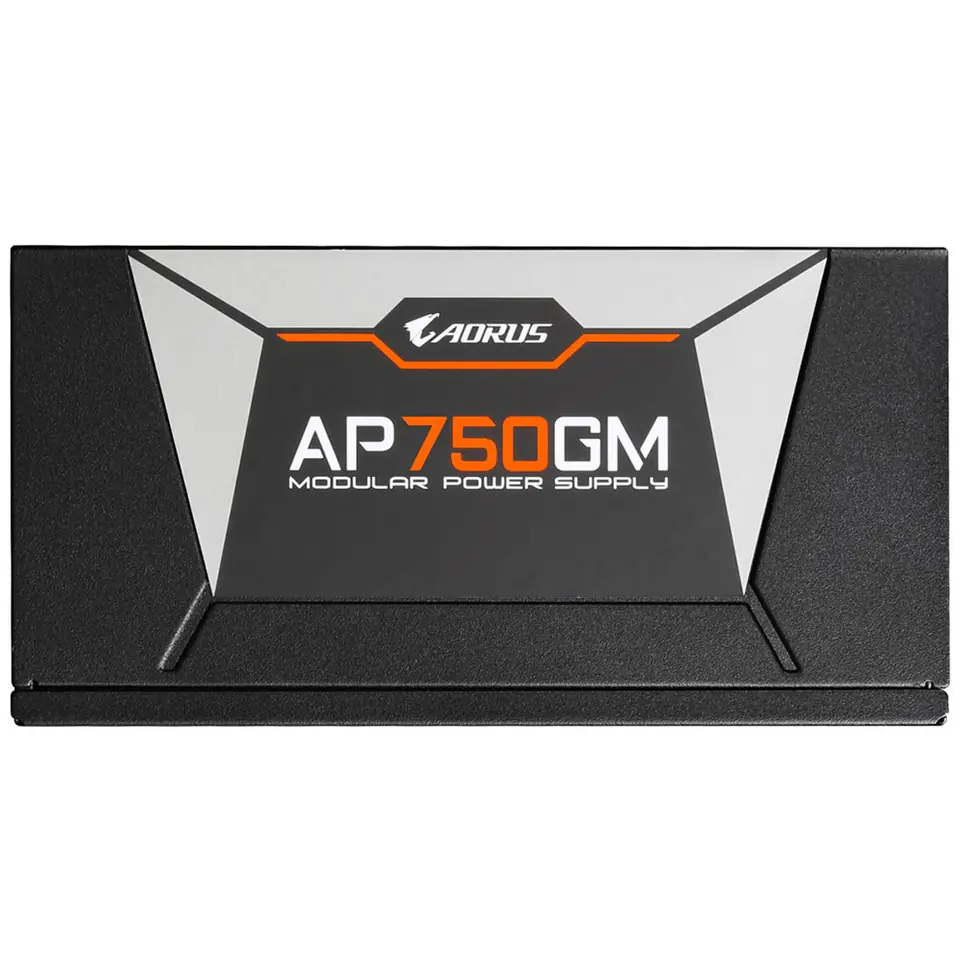

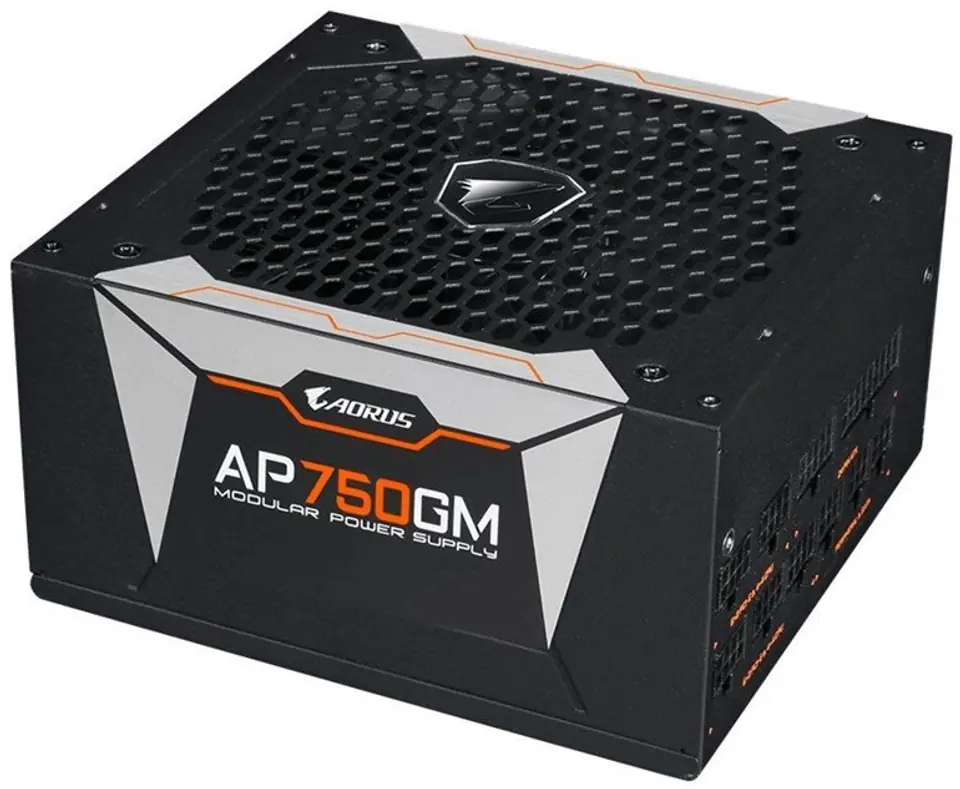

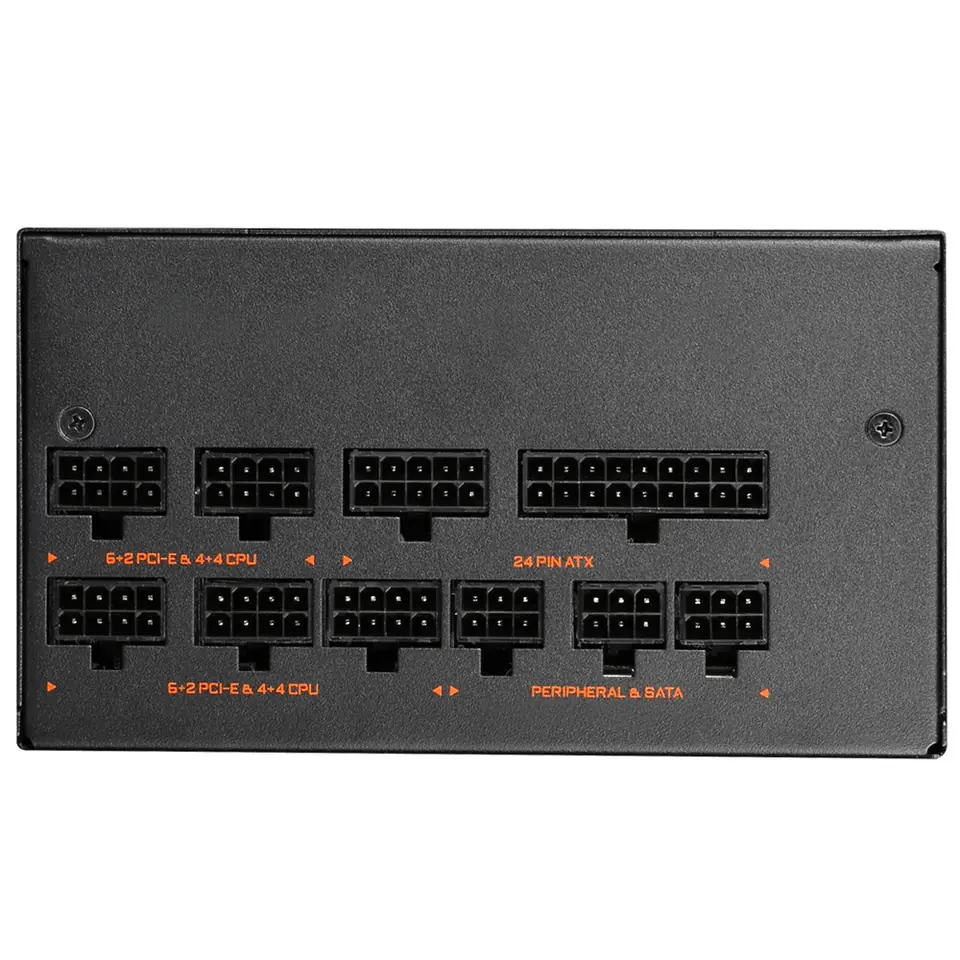

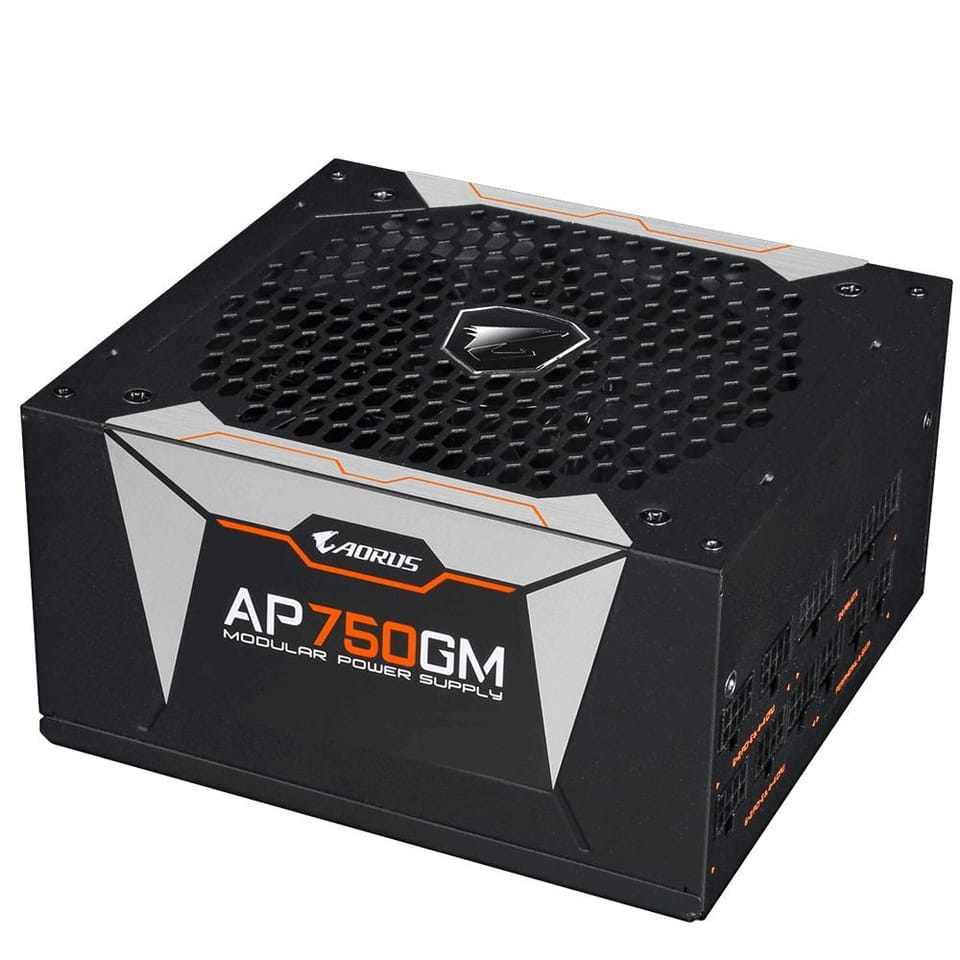

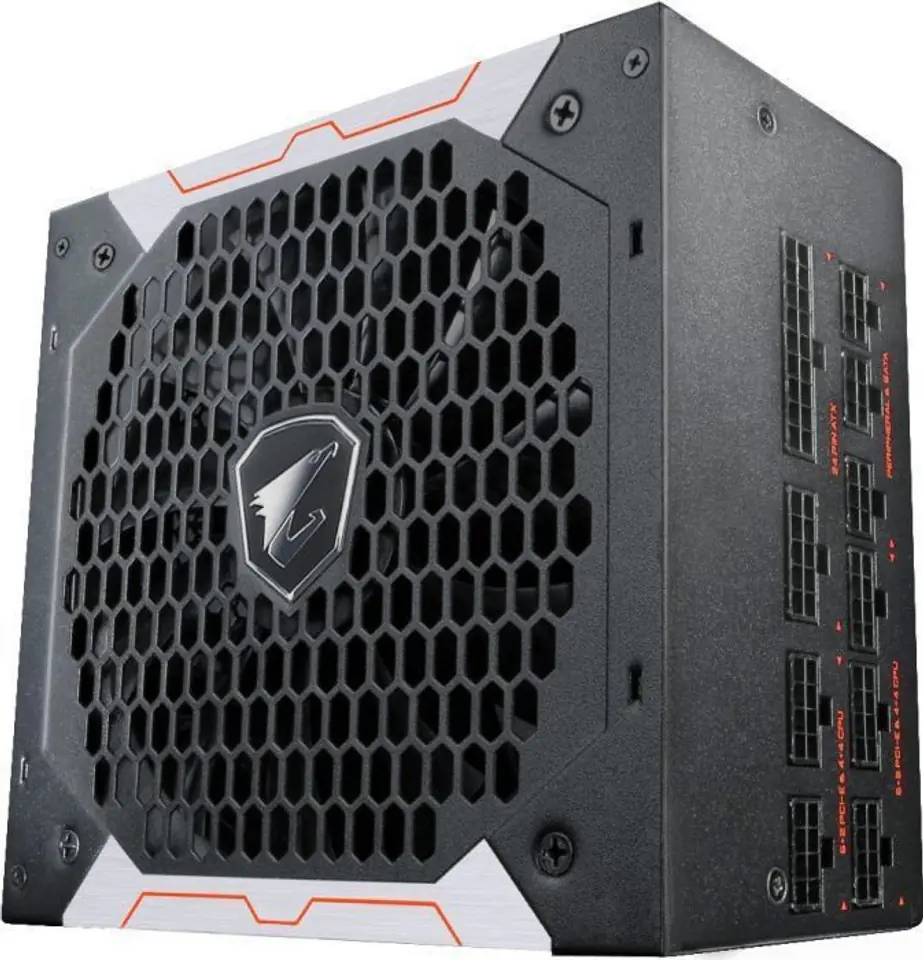

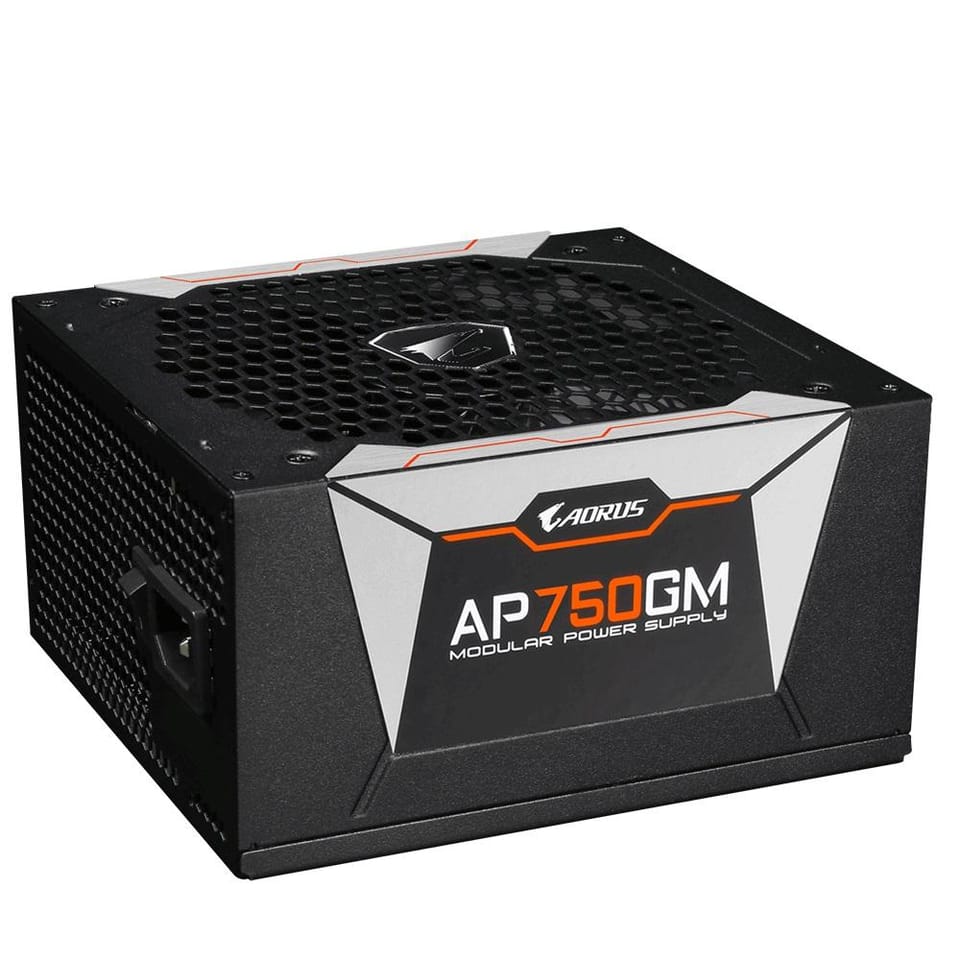

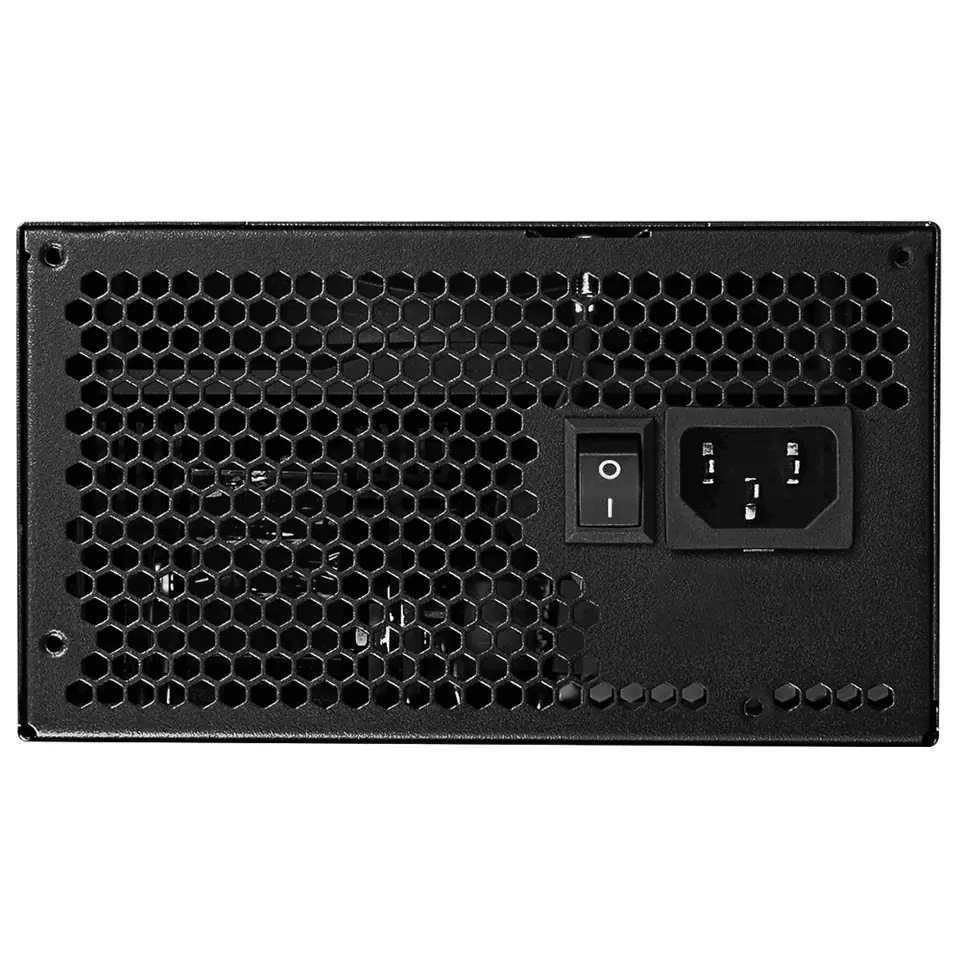

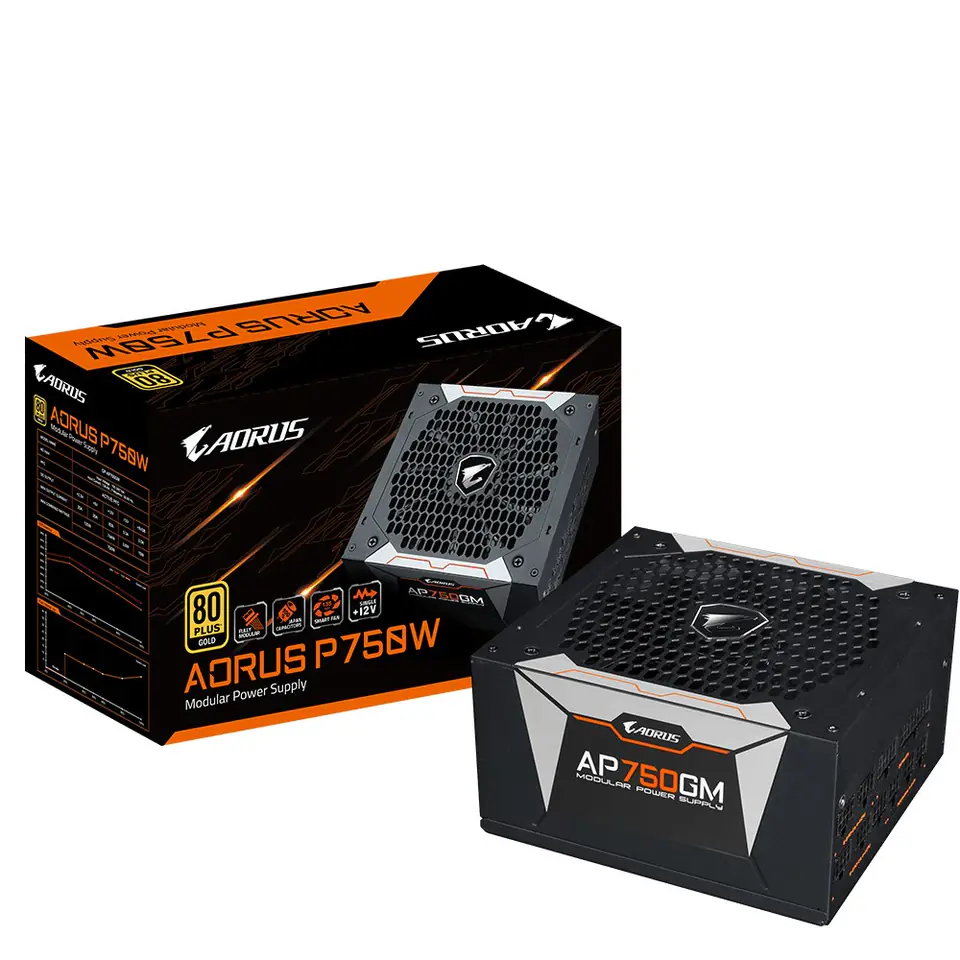

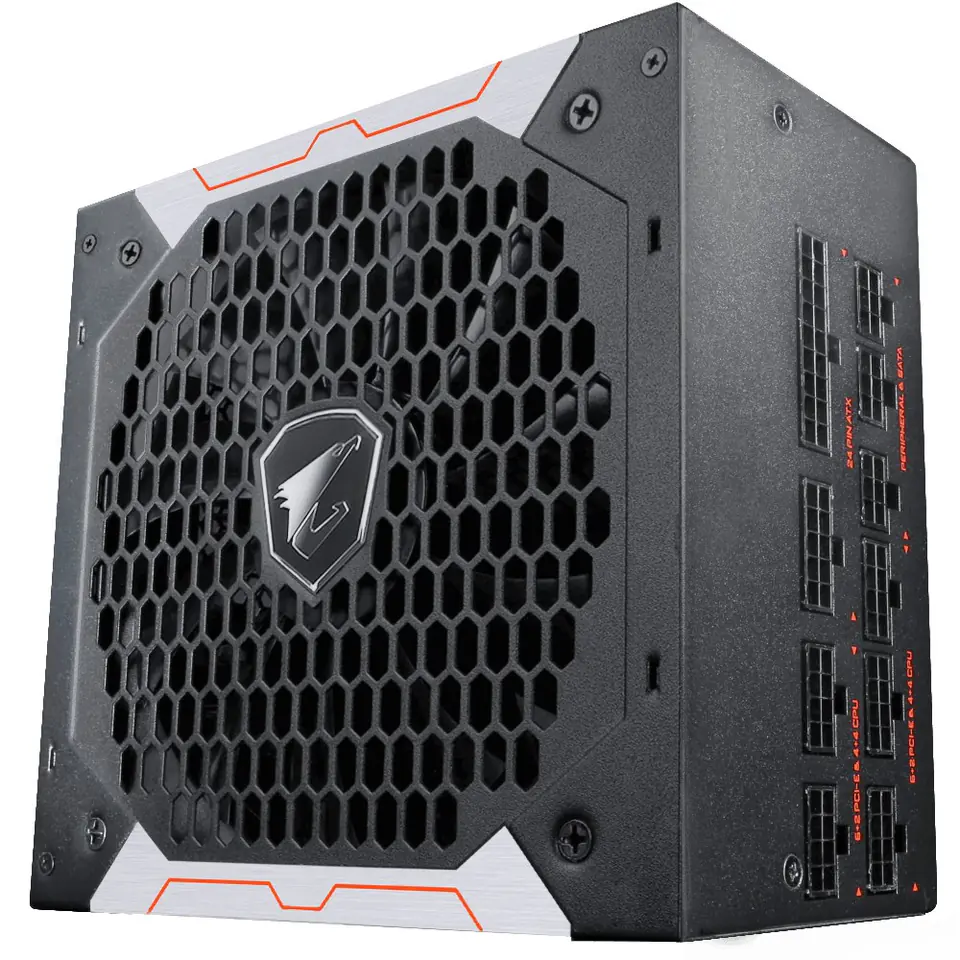

Gigabyte GP-AP750GM ATX, 80 PLUS Gold certified
€127.99
Shipping from warehouse: A3
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Gigabyte
- Product code:
- GP-AP750GM / 4719331551025
Share this product:
Specification
| 80 plus certification: | 80 PLUS Gold |
|---|---|
| Ac input frequency: | 47 - 63 Hz |
| Ac input voltage: | 100 - 240 V |
| Atx power connector (20+4 pin): | Yes |
| Atx version: | 2.31 |
| Bearing technology: | Ball bearing |

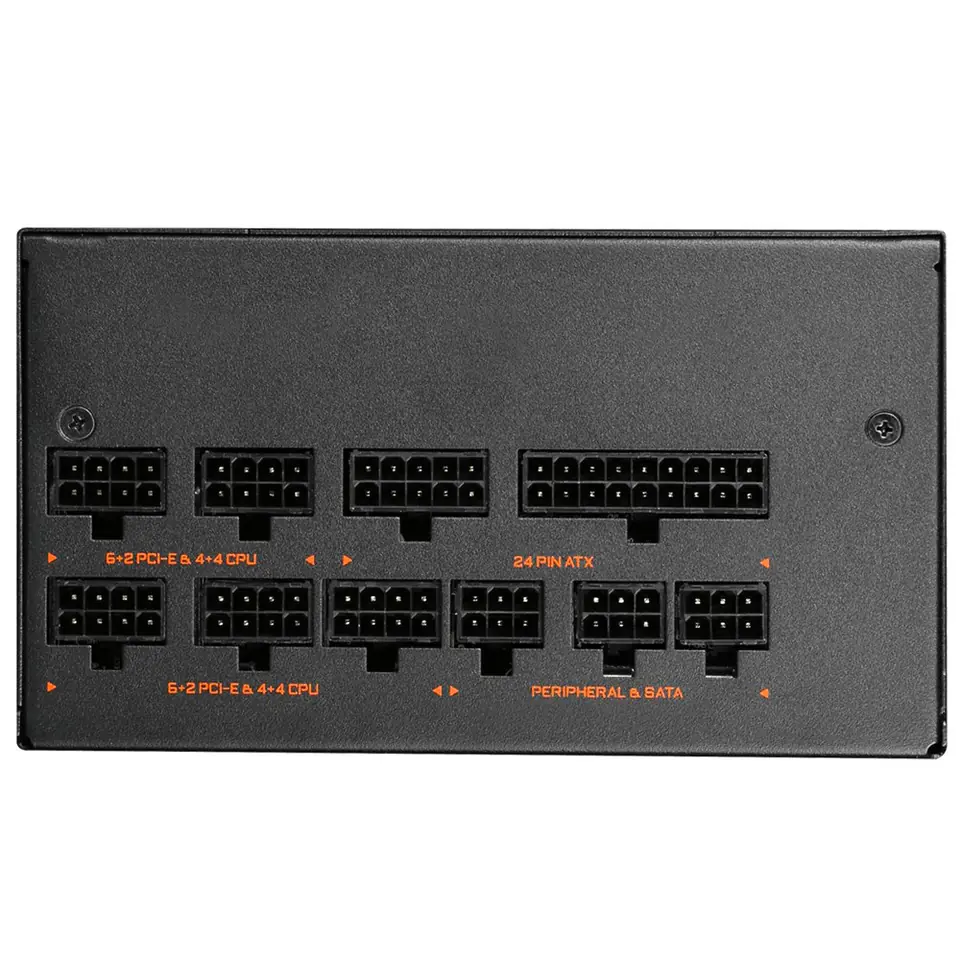

| Cabling type: | Fully-Modular |
| Combined power (-12v): | 3.6 W |
| Combined power (+12v): | 744 W |
| Combined power (+3.3v): | 120 W |
| Combined power (+5v): | 120 W |
| Combined power (+5vsb): | 15 W |
| Cooling type: | Active |
| Cpu power cable length: | 80 cm |
| Cpu power connector (4+4 pin): | Yes |
| Depth: | 160 mm |
| Efficiency: | 90% |
| Eps power connector (8-pin): | Yes |

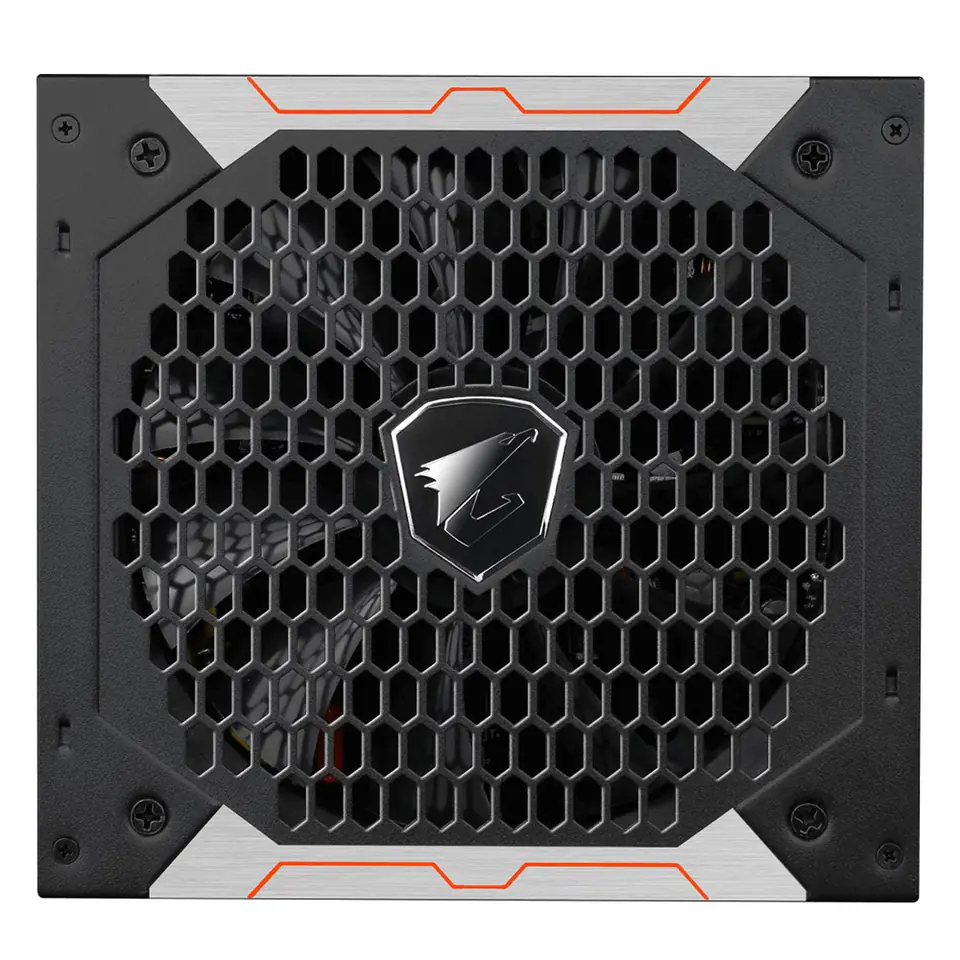

| Fan diameter: | 13.5 cm |
| Fan location: | Top |
| Floppy disk drive cable length: | 75 cm |
| Floppy disk drive connector: | Yes |
| Floppy drive power connector: | 2 |
| Harmonized system (hs) code: | 84733020 |
| Height: | 86 mm |
| Hold time: | 16 ms |
| Input current: | 10 A |
| Max output current (-12v): | 0.3 A |
| Max output current (+12v): | 62 A |
| Max output current (+3.3v): | 20 A |
| Max output current (+5v): | 20 A |
| Max output current (+5vsb): | 3 A |
| Mean time between failures (mtbf): | 100000 h |
| Motherboard power cable length: | 65 cm |
| Motherboard power connector: | 20+4 pin ATX |
| Number of fans: | 1 fan(s) |
| Number of sata power connectors: | 6 |
| On/off switch: | Yes |
| Pci express connector: | Yes |
| Pci express power cable length: | 80 cm |
| Pci express power connectors (6+2 pin): | 6 |
| Peripheral (molex) power cable length: | 650, 550, 850 mm, 450 |
| Peripheral (molex) power connectors (4-pin): | 6 |
| Power factor: | 0.9 |
| Power factor correction (pfc) type: | Active |
| Power good signal delay range: | 100 - 150 ms |
| Power protection features: | Under voltage, Over current, Over voltage, Overheating, Over power, Short circuit |
| Power supply unit (psu) form factor: | ATX |
| Product colour: | Black |
| Purpose: | PC |
| Sata power cable length: | 750, 450, 550, 650 mm |
| Total power: | 750 W |
| Width: | 150 mm |
