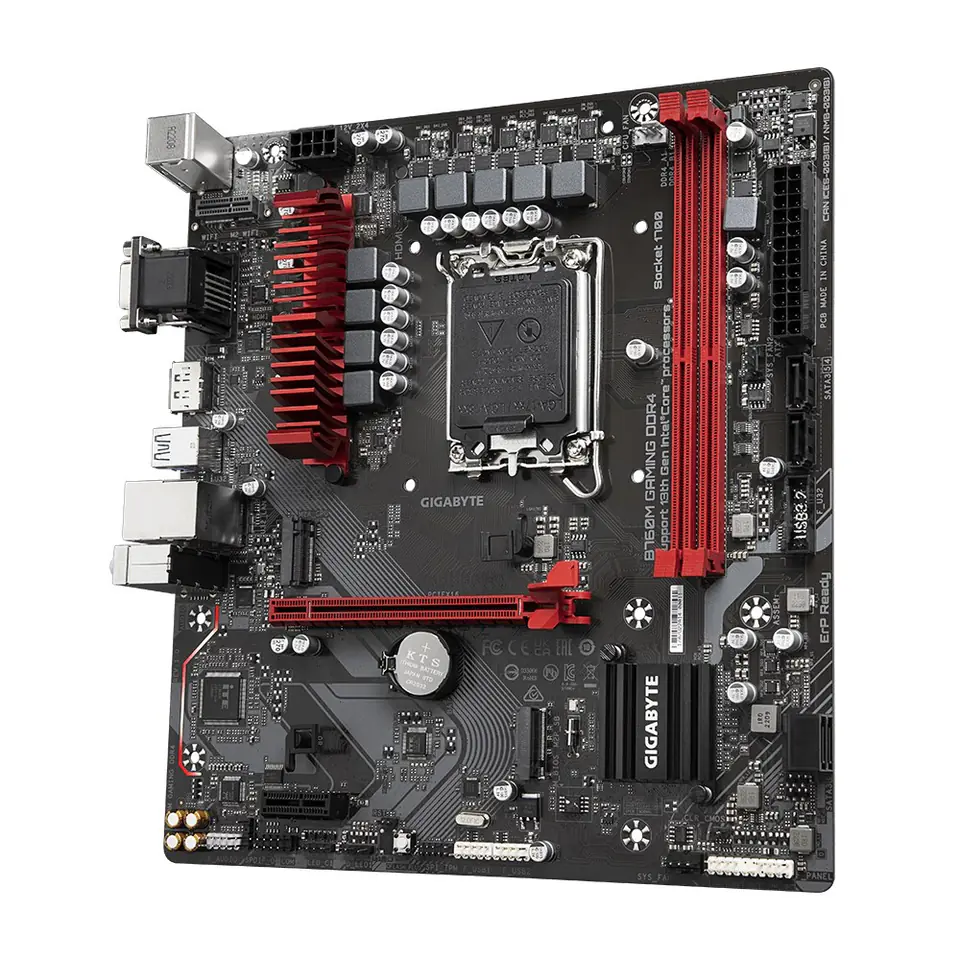

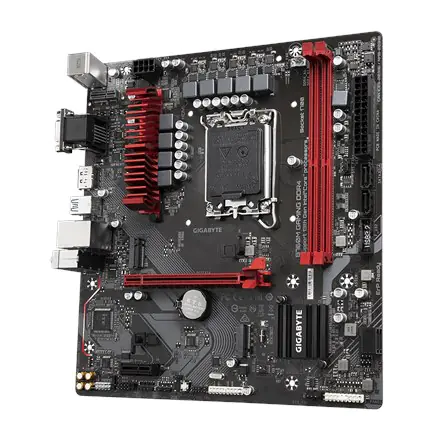

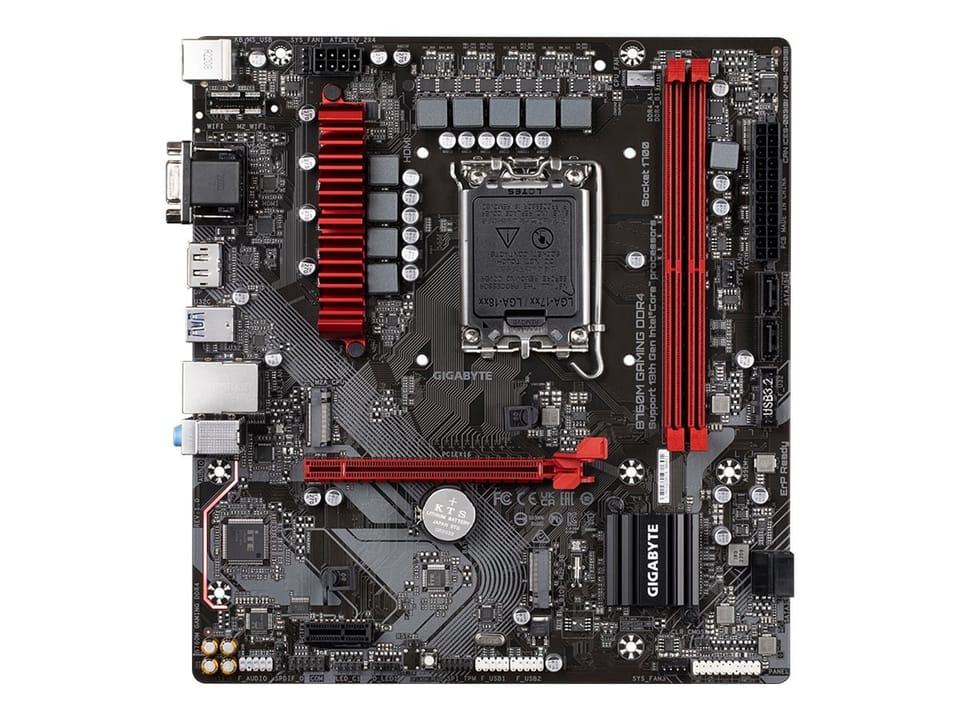

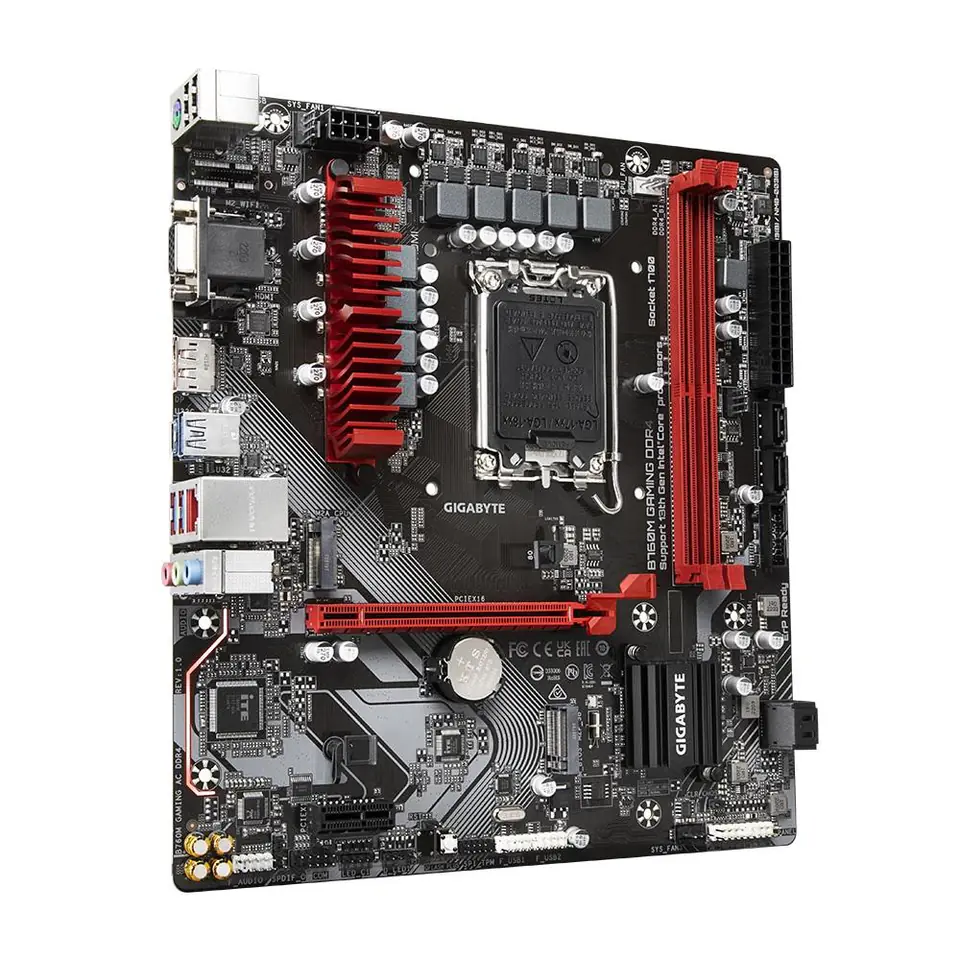

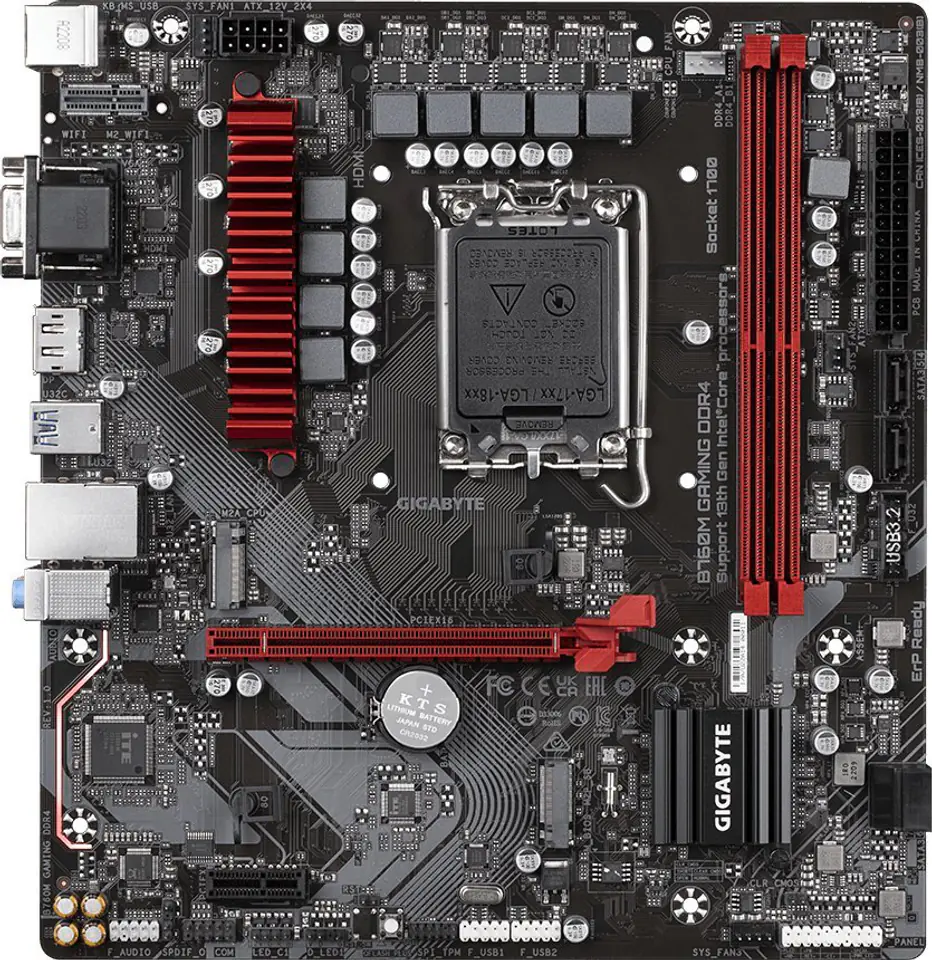

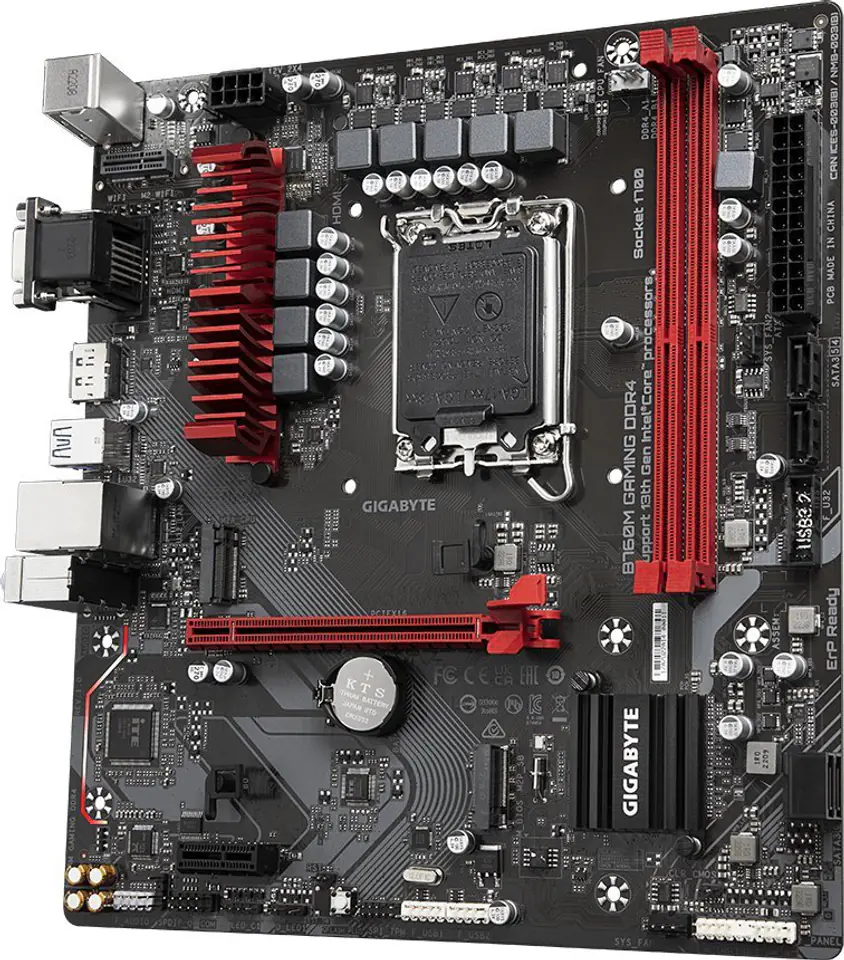

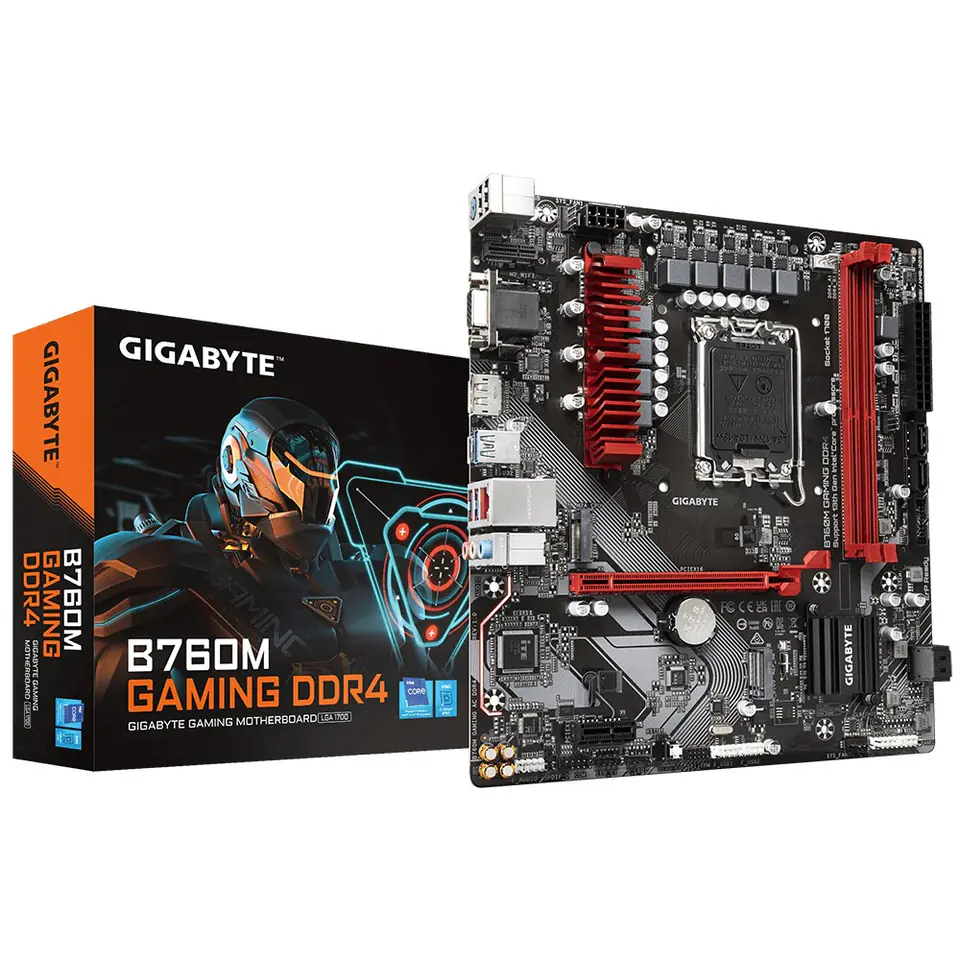

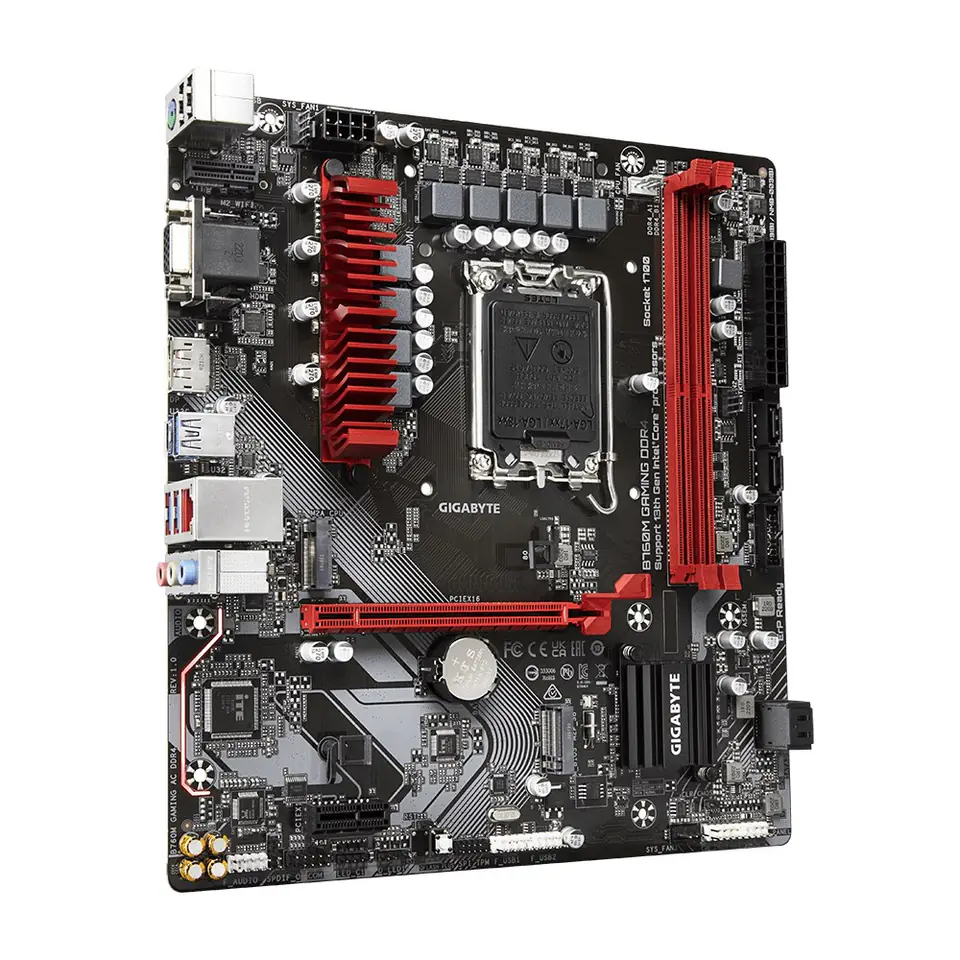

Gigabyte B760M GAMING DDR4 motherboard Intel B760 Express LGA 1700 micro ATX

Name: Gigabyte B760M GAMING DDR4 motherboard Intel B760 Express LGA 1700 micro ATX
Brand: Gigabyte
SKU: 1359241
Price: 128.35 EUR
Availability: InStock

€128.35

Shipping from warehouse: ⁨A3⁩

Estimated shipping: Mon, Apr 7 - Tue, Apr 8

14 days returnUnconditional return policy

Availability:: large quantity
Brand:: Gigabyte
Product code:: B760M GAMING DDR4 / 4719331851415

Specification

12v power connector:	Yes
Acpi version:	5.0
Atx power connector (24-pin):	Yes
Audio output channels:	7.1 channels
Bios memory size:	128 Mbit

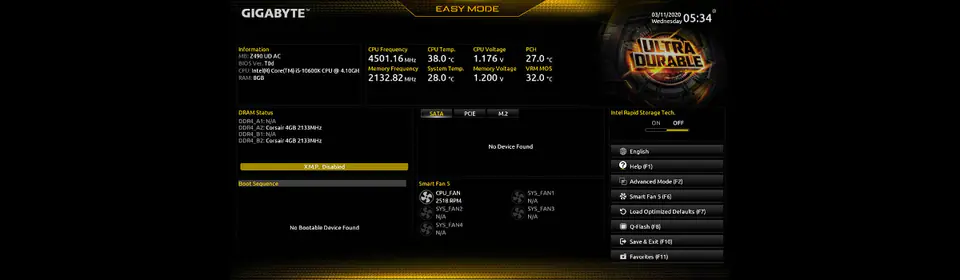

Bios type:	UEFI AMI
Cables included:	SATA
Clear cmos jumper:	Yes
Compatible processor series:	Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i3
Component for:	PC
Cpu fan connector:	Yes
Depth:	225 mm
Desktop management interface (dmi) version:	2.7
Displayport version:	1.2
Displayports quantity:	1
Ecc:	Y
Eps power connector (8-pin):	Yes
Ethernet interface type:	2.5 Gigabit Ethernet
Ethernet lan:	Yes
Ethernet lan (rj-45) ports:	1
Front panel audio connector:	Yes
Front panel connector:	Yes
Hdcp:	Yes
Hdmi ports quantity:	1
Hdmi version:	2.0
Headphone outputs:	3
Maximum internal memory:	64 GB
Maximum resolution:	4096 x 2304 pixels
Memory channels:	Dual-channel
Memory slots type:	DIMM
Microphone in:	Yes
Motherboard chipset:	Intel B760 Express
Motherboard chipset family:	Intel
Motherboard form factor:	micro ATX
Non-ecc:	Y
Number of displays supported:	3
Number of m.2 (m) slots:	2
Number of memory slots:	2
Number of sata iii connectors:	4
Number of storage drives supported:	6
Parallel processing technology support:	Not supported
Pc health monitoring:	Temperature, Fan, Water cooling, Voltage
Pci express x1 slots:	1
Pci express x16 slots:	1
Processor manufacturer:	Intel
Processor socket:	LGA 1700
Ps/2 ports quantity:	1
Raid levels:	1, 10, 0, 5
Raid support:	Yes
Rgb led pin header:	Yes
S/pdif out connector:	Yes
Serial port headers:	1
Supported memory clock speeds:	4600, 3000, 5333, 4500, 3466, 3733, 4300, 4400 MHz, 5000, 4133, 4000, 3666, 4800 MHz, 4933 MHz, 2133, 3200 MHz, 2666, 4266, 3800, 3333, 2933, 3600, 3300, 5133, 3400, 3866, 2400, 4700
Supported memory types:	DDR4-SDRAM
Supported processor sockets:	LGA 1700
Supported storage drive interfaces:	M.2, PCI Express 4.0, SATA III
Supported storage drive types:	HDD & SSD
System management bios (smbios) version:	2.7
Tpm connector:	Yes
Unbuffered memory:	Yes
Usb 2.0 connectors:	2
Usb 2.0 ports quantity:	2
Usb 3.2 gen 1 (3.1 gen 1) connectors:	1
Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity:	3
Usb 3.2 gen 1 (3.1 gen 1) type-c ports quantity:	1
Usb connector type:	USB Type-C, USB Type-A
Vga (d-sub) ports quantity:	1
Wi-fi:	No
Width:	244 mm
Windows operating systems supported:	Windows 10 x64, Windows 11 x64

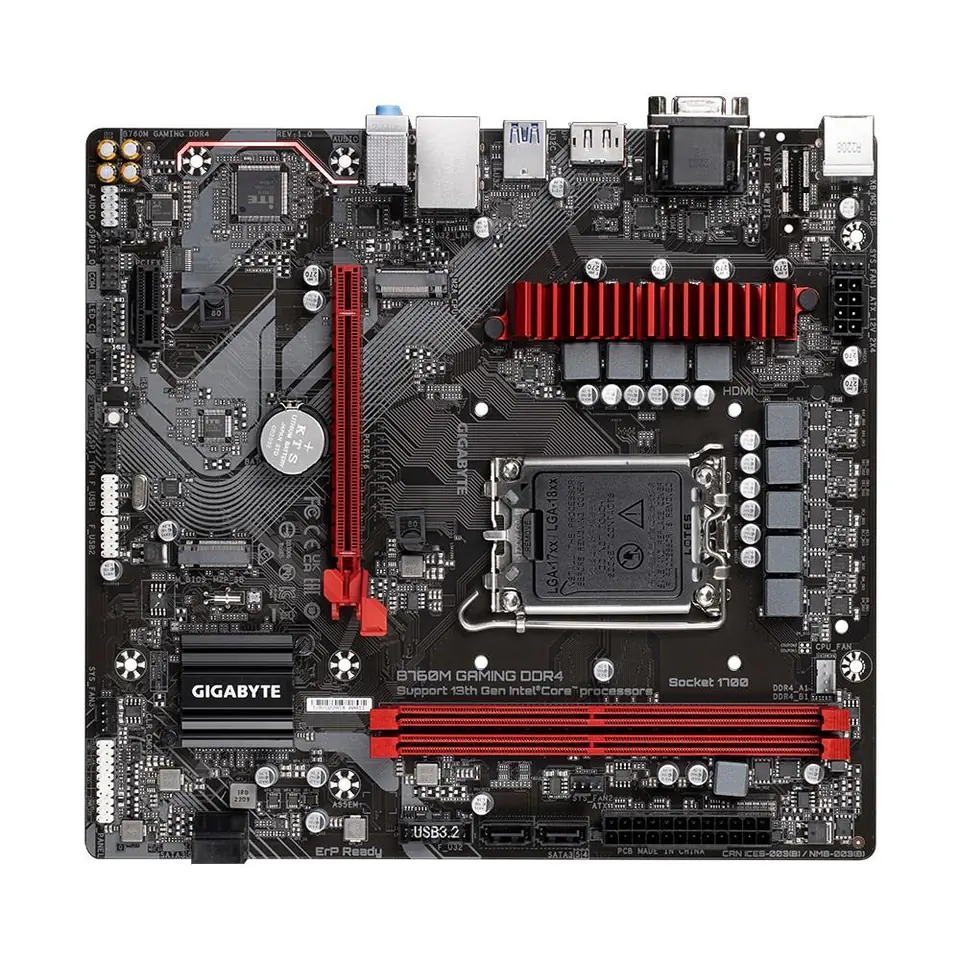

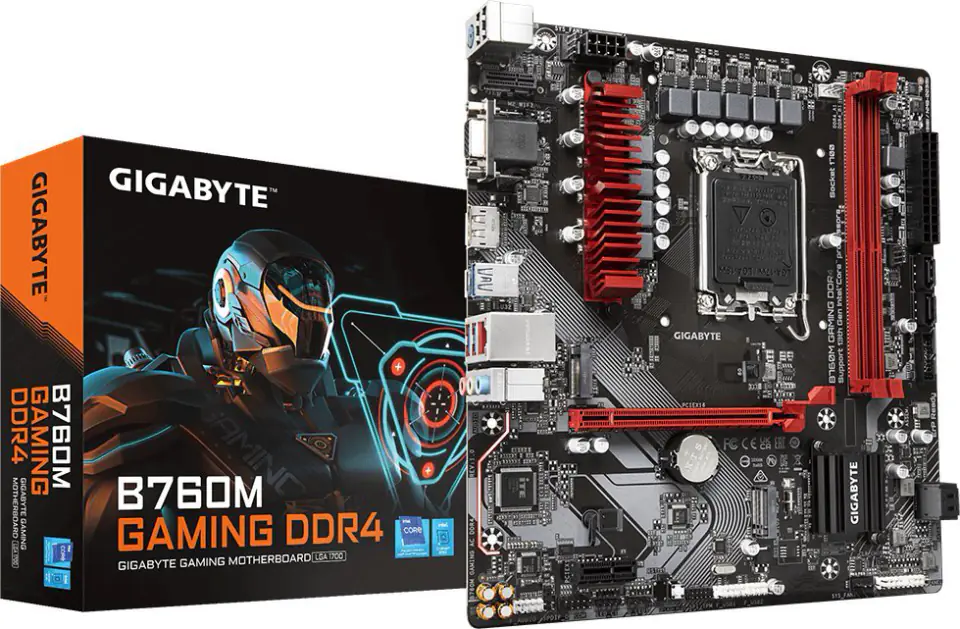

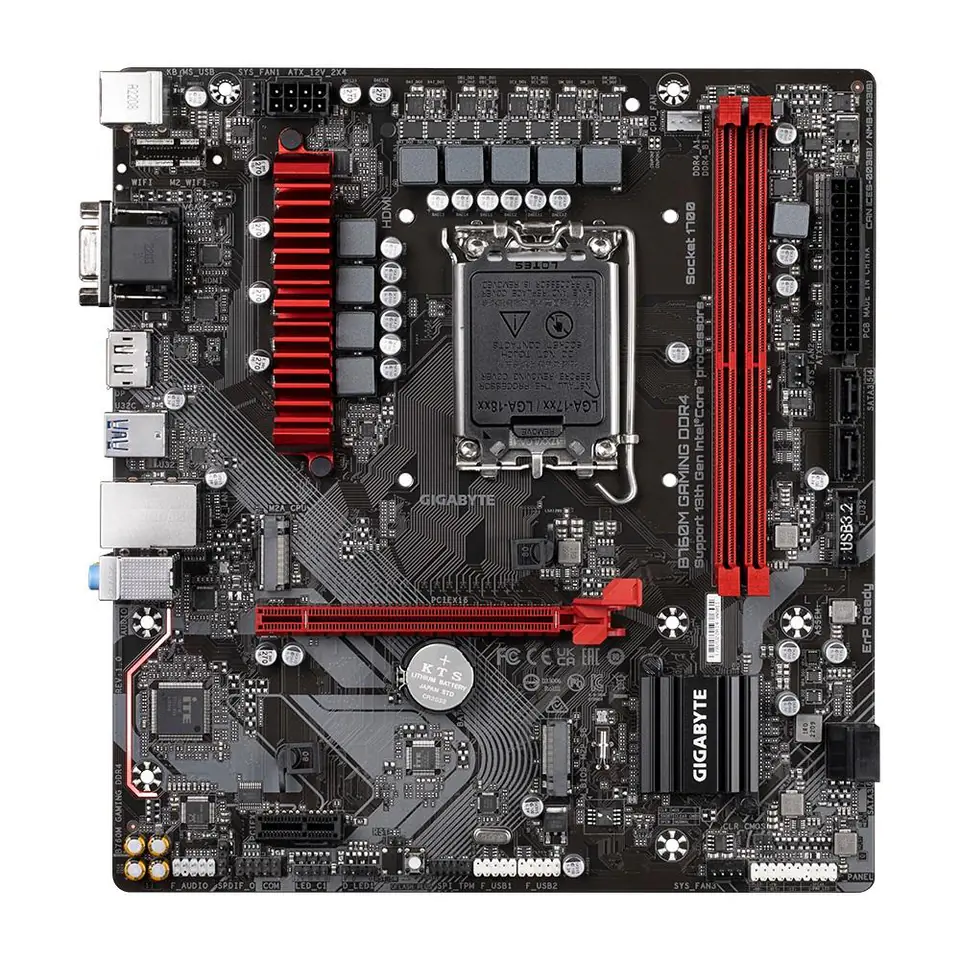

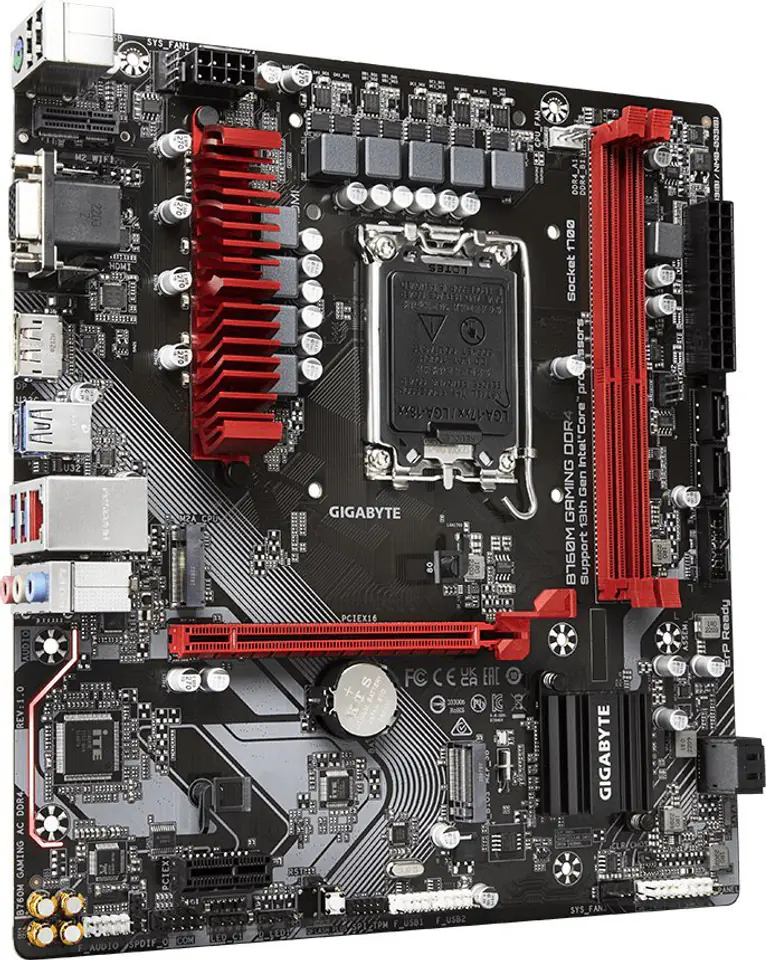

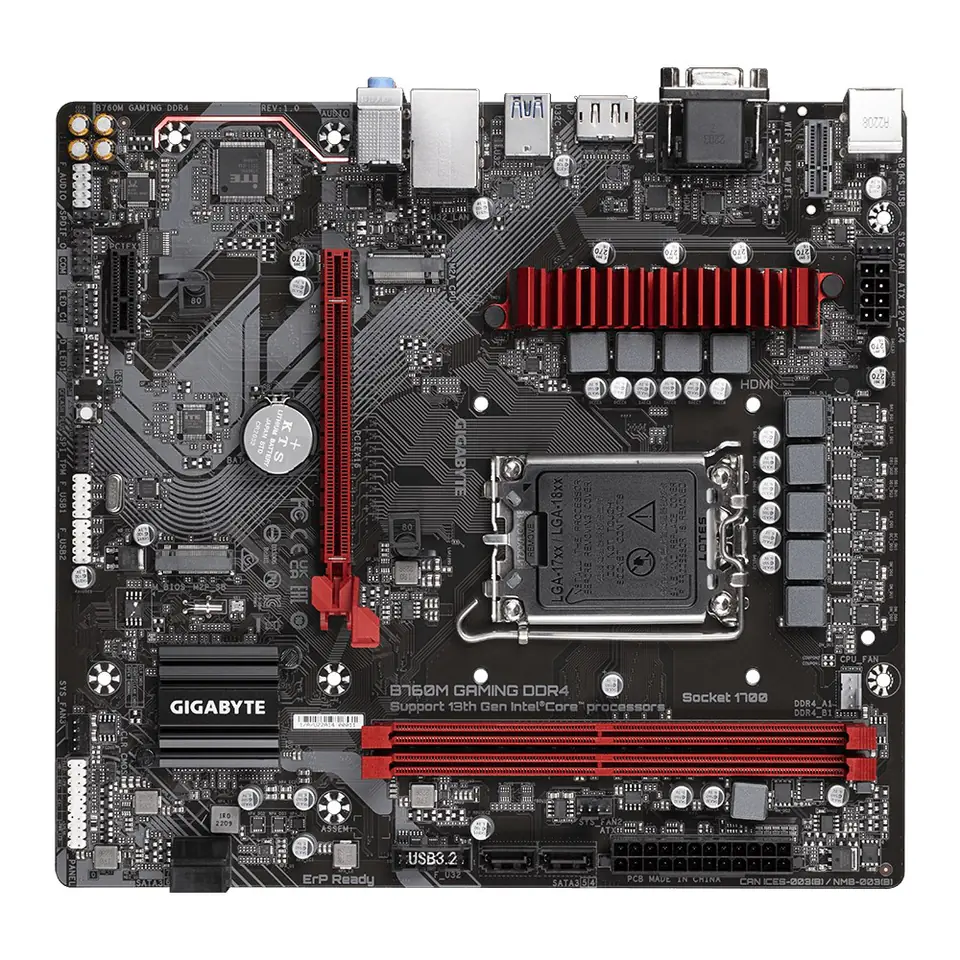

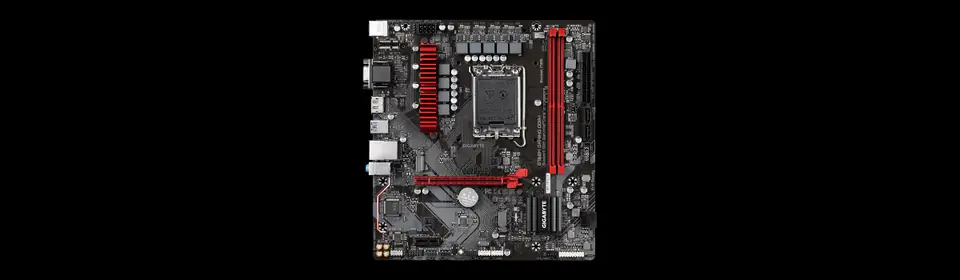

B760M GAMING DDR4

Supports 14th/13th/12th Generation Intel Core Processors
Unmatched Performance: Hybrid 6+2+1 Phases Digital VRM Solution
Dual Channel DDR4 Memory: Supports 2*XMP DIMMs
Next Generation Storage: 2 PCIe 4.0 x4 M.2 Slots
EZ-Latch: PCIe 4.0x16 Slot with Quick Release Design
High Speed Networking: 2.5GbE LAN

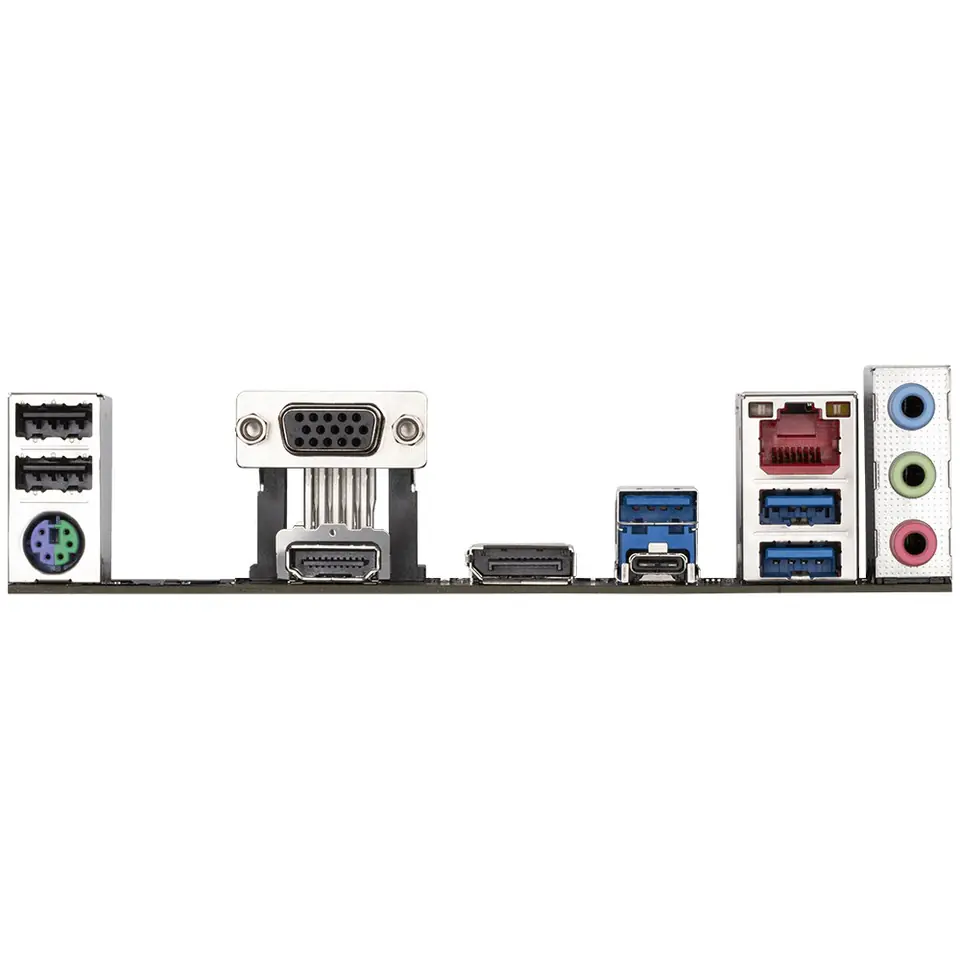

Expanded Connectivity: Rear USB-C 5Gbps, DP, HDMI, D-Sub
Smart Fan 6: Includes Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP Function
Q-Flash Plus: Update BIOS without installing CPU, Memory and Graphics Card

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
