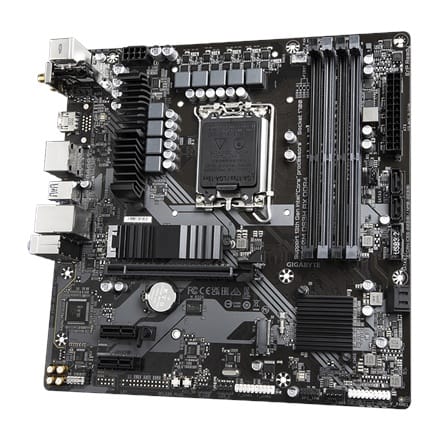

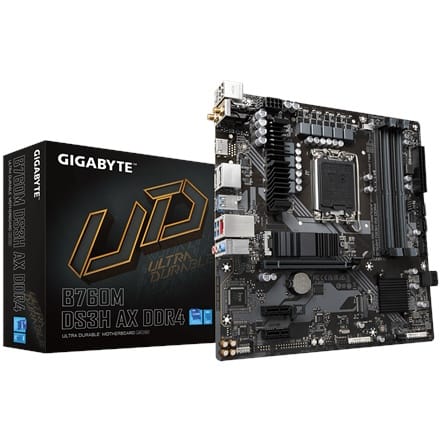

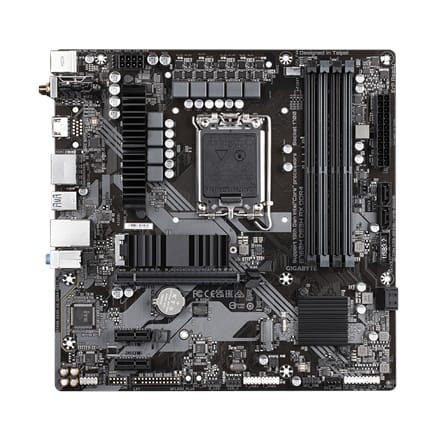

Gigabyte B760M DS3H AX 1.3 M/B Processor family Intel Processor socket LGA1700 DDR4 DIMM Memory slots 4 Supported hard disk drive interfaces SATA, M.2 Number of SATA connectors 4 Chipset Intel B760 Express Micro ATX
€178.02
Shipping from warehouse: M7
Estimated shipping: Mon, Apr 7 - Thu, Apr 10
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Gigabyte
- Product code:
- B760M DS3H AX / 4719331851767
Share this product:
Specification
| 12v power connector: | Yes |
|---|---|
| Acpi version: | 5.0 |
| Atx power connector (24-pin): | Yes |
| Audio output channels: | 7.1 channels |
| Batteries included: | Yes |
| Battery technology: | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type: | CR2032 |
| Battery weight: | 3 g |
| Bios memory size: | 128 Mbit |
| Bios type: | UEFI AMI |
| Bluetooth: | Yes |
| Bluetooth version: | 5.3 |
| Cables included: | SATA |
| Clear cmos jumper: | Yes |
| Compatible processor series: | Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i3 |
| Component for: | PC |
| Country of origin: | China |
| Cpu fan connector: | Yes |
| Depth: | 244 mm |
| Desktop management interface (dmi) version: | 2.7 |
| Directx version: | 12.0 |
| Displayports quantity: | 2 |
| Ecc: | Yes |
| Ecc сompatibility: | ECC & Non-ECC |
| Eps power connector (8-pin): | Yes |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 1 |
| Front panel audio connector: | Yes |
| Front panel connector: | Yes |
| Hdcp: | Yes |
| Hdmi ports quantity: | 1 |
| Headphone outputs: | 3 |
| Height: | 35 mm |
| Lithium weight per battery: | 0.07 g |
| Maximum internal memory: | 192 GB |
| Maximum internal memory supported by processor: | 192 GB |
| Maximum resolution: | 4096 x 2304 pixels |
| Memory channels: | Dual-channel |
| Memory slots type: | DIMM |
| Microphone in: | Yes |
| Motherboard chipset: | Intel B760 Express |
| Motherboard chipset family: | Intel |
| Motherboard form factor: | micro ATX |
| Non-ecc: | Yes |
| Number of battery cells: | 1 |
| Number of hdds supported: | 4 |
| Number of m.2 (m) slots: | 2 |
| Number of memory slots: | 4 |
| Number of sata iii connectors: | 4 |
| Number of storage drives supported: | 6 |
| Package depth: | 265 mm |
| Package height: | 54 mm |
| Package weight: | 1.02 kg |
| Package width: | 265 mm |
| Parallel processing technology support: | Not supported |
| Pc health monitoring: | Temperature, Fan, Water cooling, Voltage |
| Pci express x1 (gen 2.x) slots: | 1 |
| Pci express x16 slots: | 1 |
| Processor manufacturer: | Intel |
| Processor socket: | LGA 1700 |
| Product colour: | Bronze |
| Products per shipping (inner) case: | 1 pc(s) |
| Ps/2 ports quantity: | 1 |
| Raid levels: | 0, 5, 1, 10 |
| Raid support: | Yes |
| Rgb led pin header: | Yes |
| S/pdif out connector: | Yes |
| Supported memory clock speed (max): | 7600 MHz |
| Supported memory clock speeds: | 6000 MHz, 6800, 5800, 5400, 5200, 4000, 4800 MHz, 7400, 7000, 5600, 7200, 7600 MHz, 6400, 6200 |
| Supported memory module capacities: | 1GB, 16GB, 12GB, 2GB, 4GB, 32GB, 8GB, 48GB |
| Supported memory types: | DDR5-SDRAM |
| Supported processor sockets: | LGA 1700 |
| Supported storage drive interfaces: | M.2, SATA III |
| Supported storage drive types: | HDD & SSD |
| System management bios (smbios) version: | 2.7 |
| Top wi-fi standard: | Wi-Fi 6E (802.11ax) |
| Tpm connector: | Yes |
| Unbuffered memory: | Yes |
| Usb 2.0 connectors: | 2 |
| Usb 2.0 ports quantity: | 2 |
| Usb 3.2 gen 1 (3.1 gen 1) connectors: | 1 |
| Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: | 3 |
| Usb 3.2 gen 2 (3.1 gen 2) type-c ports quantity: | 1 |
| Usb connector type: | USB Type-C, USB Type-A |
| Warranty period: | 3 year(s) |
| Wi-fi: | Yes |
| Wi-fi standards: | Wi-Fi 4 (802.11n), 802.11g, 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), 802.11b, Wi-Fi 6E (802.11ax) |
| Width: | 244 mm |
| Wifi-ap antenna jack: | 2 |
| Windows operating systems supported: | Windows 11 x64, Windows 10 x64 |
| Wlan controller model: | Intel Wi-Fi 6E AX211 |
