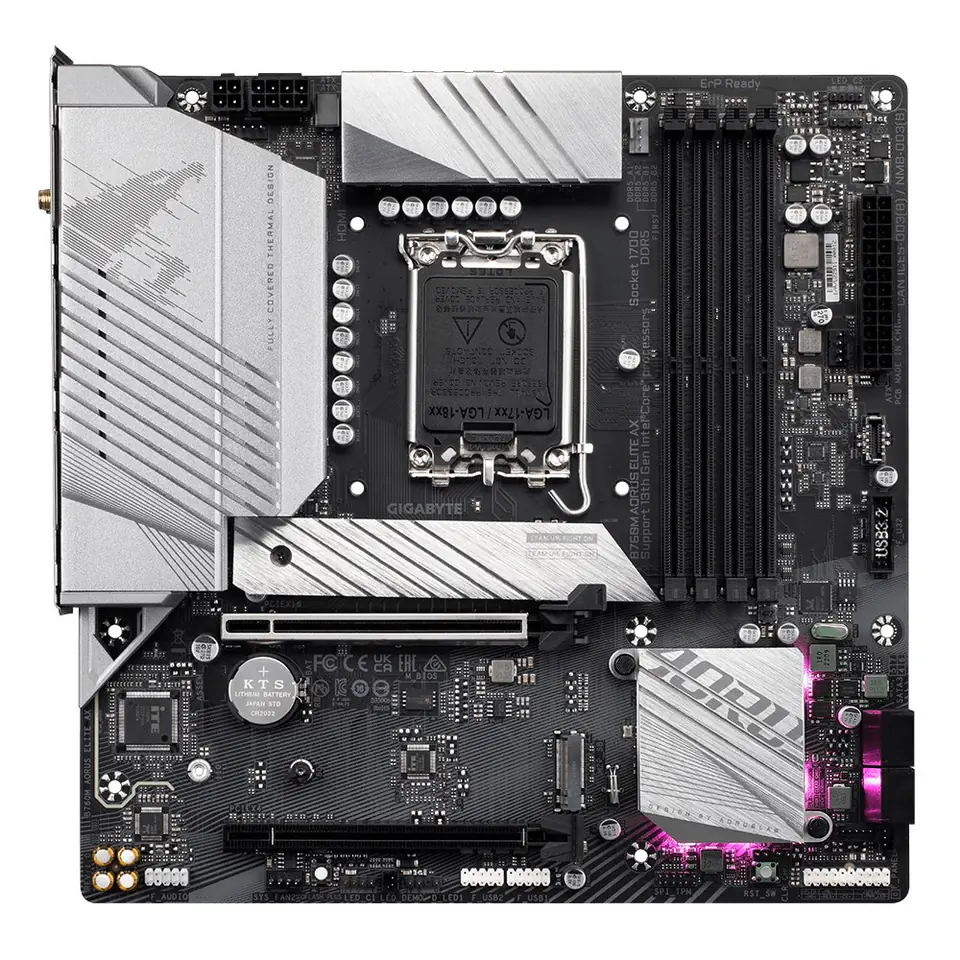

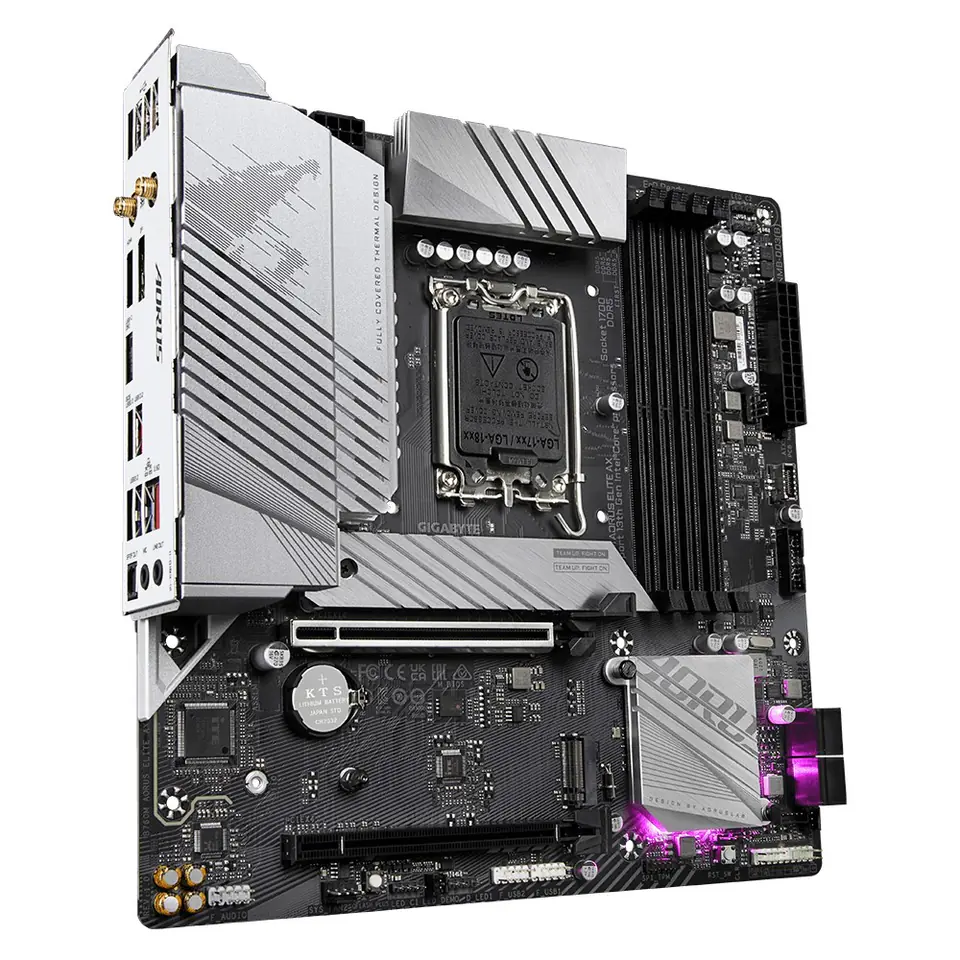

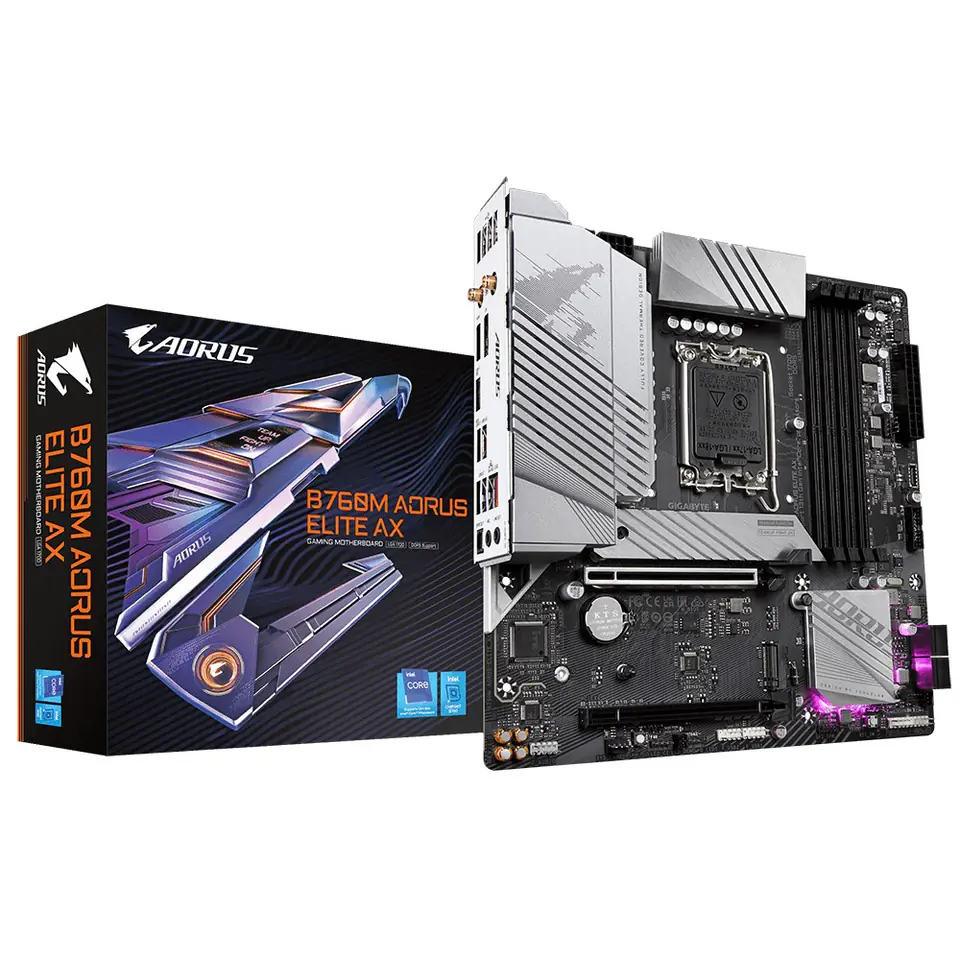

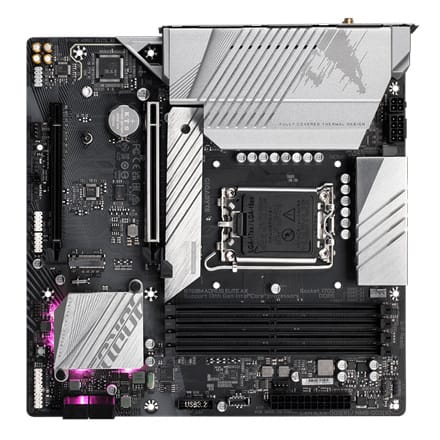

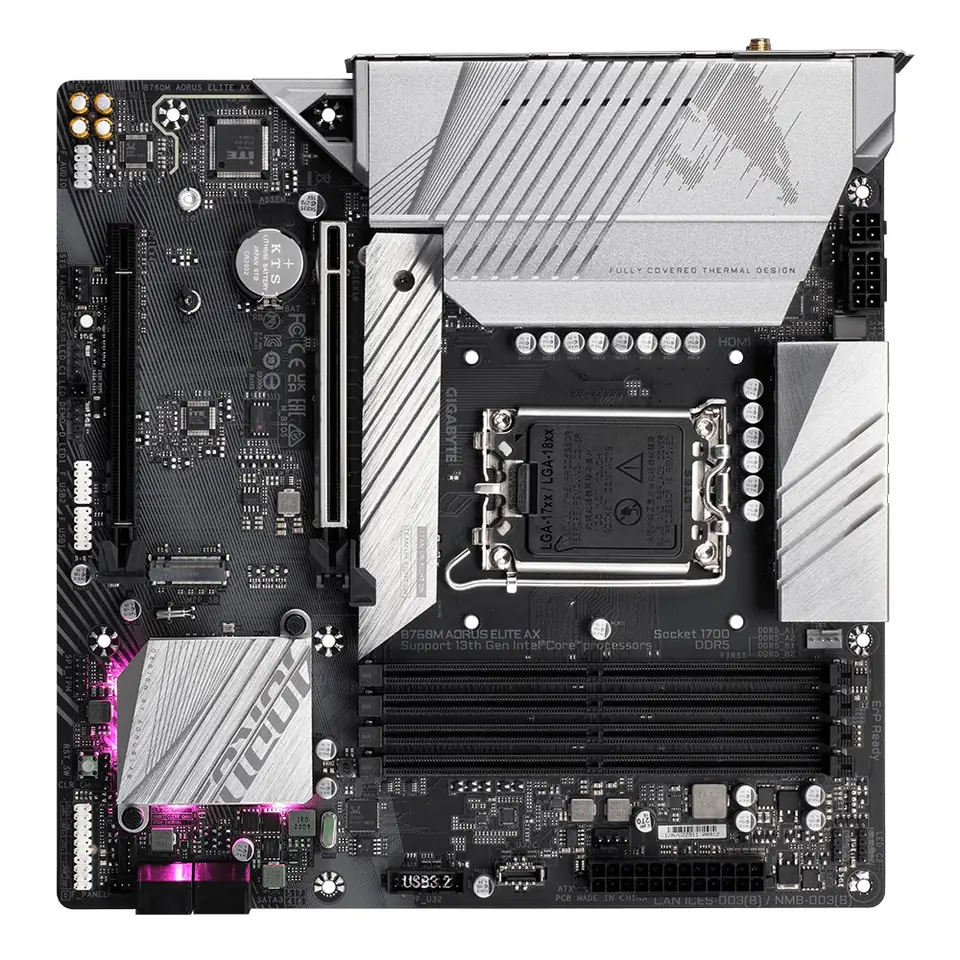

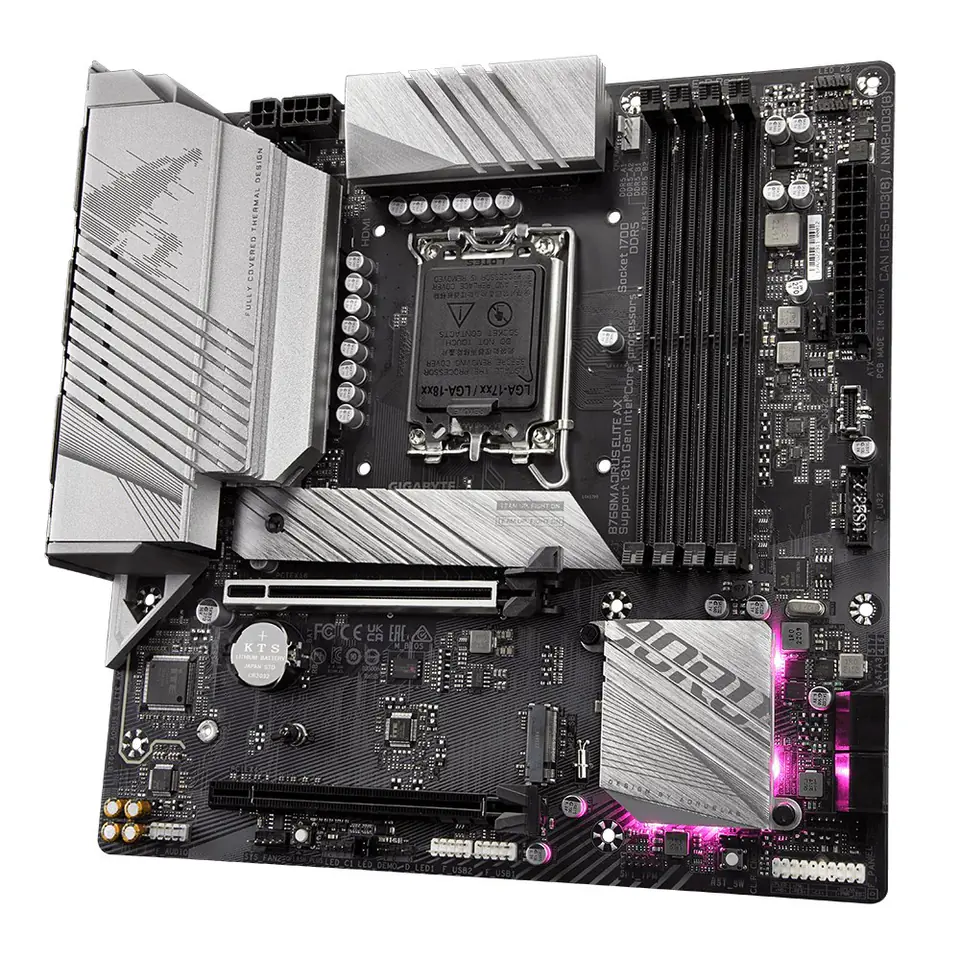

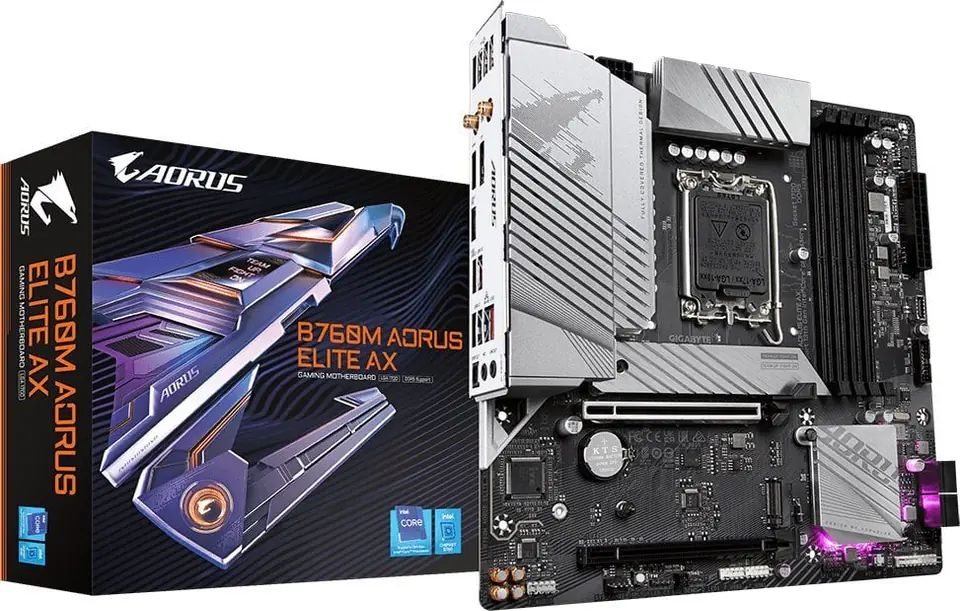

Gigabyte B760M AORUS ELITE AX motherboard Intel B760 LGA 1700 micro ATX
€211.47
Shipping from warehouse: M7
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Gigabyte
- Product code:
- B760M AORUS ELITE AX / 4719331851309
Share this product:
Specification
| Atx power connector (24-pin): | Yes |
|---|---|
| Audio output channels: | 7.1 channels |
| Bios type: | UEFI AMI |
| Bluetooth: | Yes |
| Bluetooth version: | 5.3 |
| Clear cmos jumper: | Yes |
| Compatible processor series: | Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Celeron® |
| Cpu fan connector: | Yes |
| Depth: | 244 mm |
| Desktop management interface (dmi) version: | 2.7 |
| Displayports quantity: | 1 |
| Eps power connector (8-pin): | Yes |
| Ethernet interface type: | 5 Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 1 |
| Front panel audio connector: | Yes |
| Front panel connector: | Yes |
| Hdcp: | Yes |
| Hdmi ports quantity: | 1 |
| Headphone outputs: | 1 |
| Maximum internal memory: | 128 GB |
| Maximum resolution: | 4096 x 2304 pixels |
| Memory slots type: | DIMM |
| Microphone in: | Yes |
| Motherboard chipset: | Intel B760 |
| Motherboard chipset family: | Intel |
| Motherboard form factor: | micro ATX |
| Number of chassis fan connectors: | 3 |
| Number of m.2 (m) slots: | 1 |
| Number of memory slots: | 4 |
| Number of sata iii connectors: | 4 |
| Number of storage drives supported: | 6 |
| Parallel processing technology support: | CrossFireX |
| Pc health monitoring: | Temperature, Voltage, Water cooling, Fan |
| Pci express x16 (gen 4.x) slots: | 1 |
| Peripheral (molex) power connectors (4-pin): | 1 |
| Power source type: | ATX |
| Processor manufacturer: | Intel |
| Processor socket: | LGA 1700 |
| Raid levels: | 0, 10, 5, 1 |
| Raid support: | Yes |
| Rgb led pin header: | Yes |
| S/pdif out connector: | Yes |
| Supported memory clock speed (max): | 7600 MHz |
| Supported memory clock speeds: | 7000, 6800, 5600, 7200, 5300 MHz, 6600, 6200, 6000, 4000, 4800, 7600 MHz, 7400, 6400, 5800, 5400 |
| Supported memory types: | DDR5-SDRAM |
| Supported processor sockets: | LGA 1700 |
| Supported storage drive interfaces: | M.2, SATA III |
| Supported storage drive types: | HDD & SSD |
| Thunderbolt headers: | 2 |
| Top wi-fi standard: | Wi-Fi 6E (802.11ax) |
| Tpm connector: | Yes |
| Unbuffered memory: | Yes |
| Usb 2.0 connectors: | 2 |
| Usb 2.0 ports quantity: | 4 |
| Usb 3.2 gen 1 (3.1 gen 1) connectors: | 1 |
| Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: | 3 |
| Usb 3.2 gen 2 (3.1 gen 2) connectors: | 1 |
| Usb 3.2 gen 2 (3.1 gen 2) type-a ports quantity: | 1 |
| Usb 3.2 gen 2x2 type-c ports quantity: | 1 |
| Wi-fi: | Yes |
| Wi-fi standards: | Wi-Fi 6E (802.11ax), 802.11b, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), 802.11g, 802.11a, Wi-Fi 6 (802.11ax) |
| Width: | 244 mm |
| Wifi-ap antenna jack: | 2 |
| Windows operating systems supported: | Windows 11, Windows 10 |
