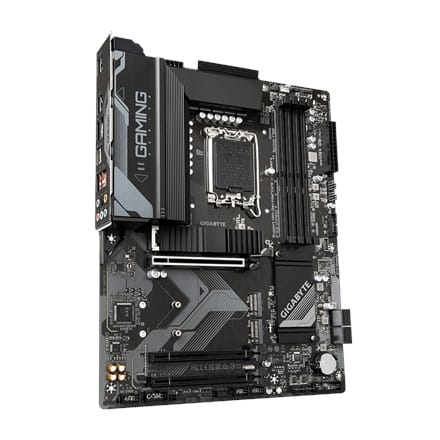

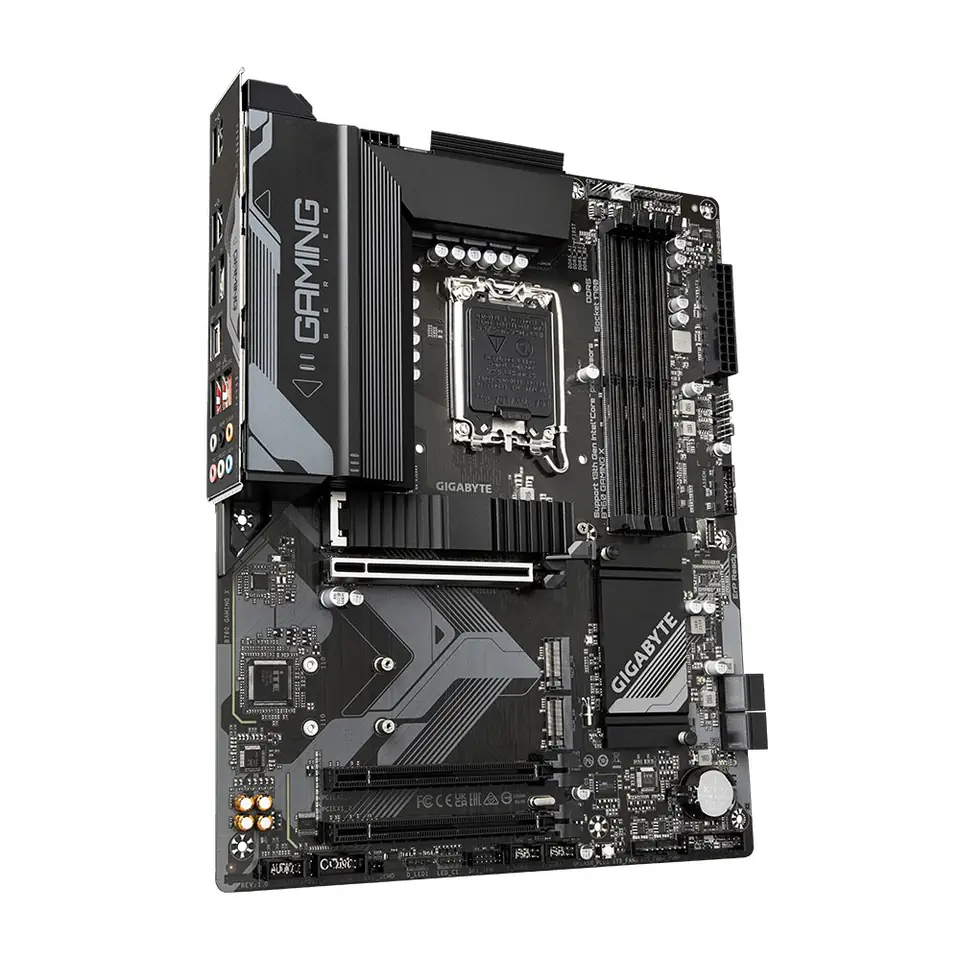

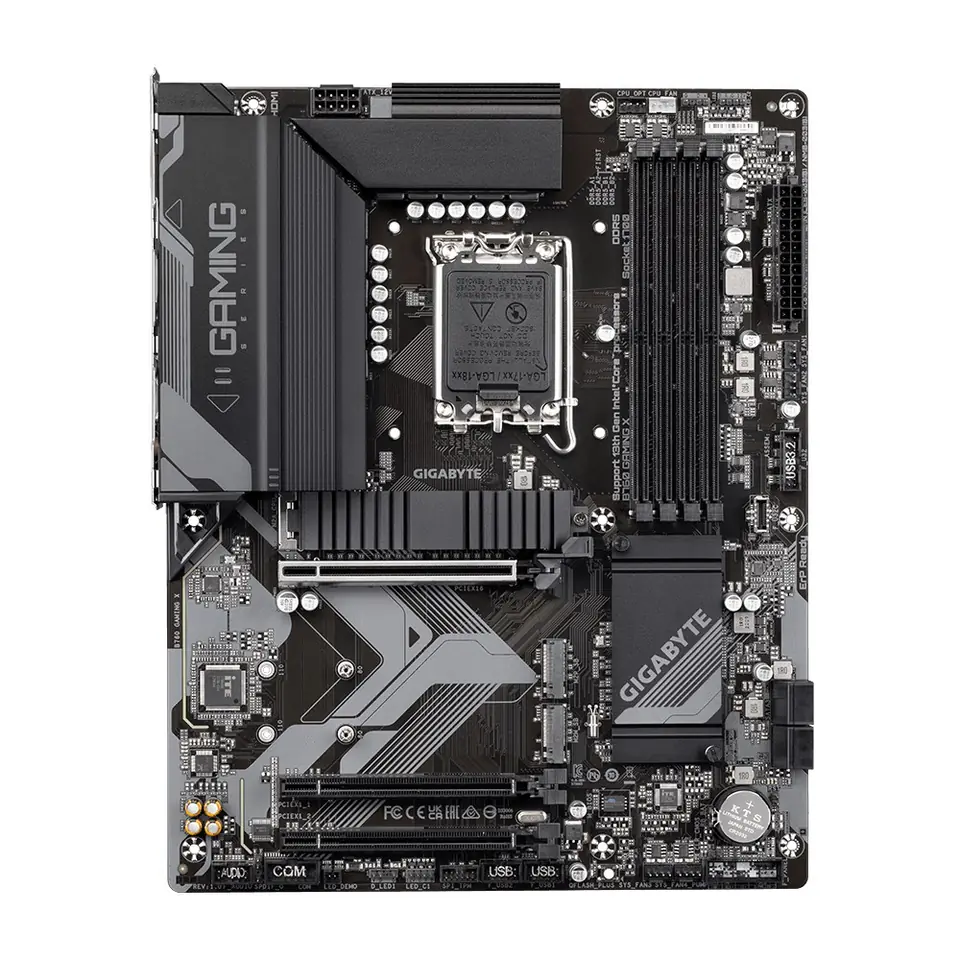

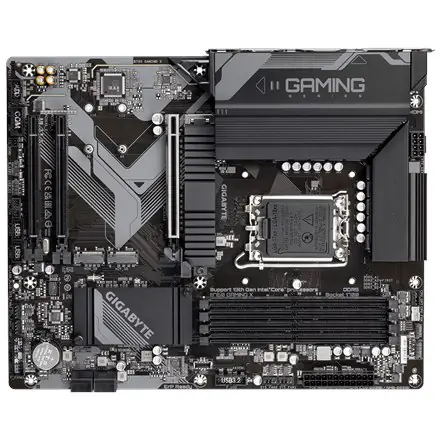

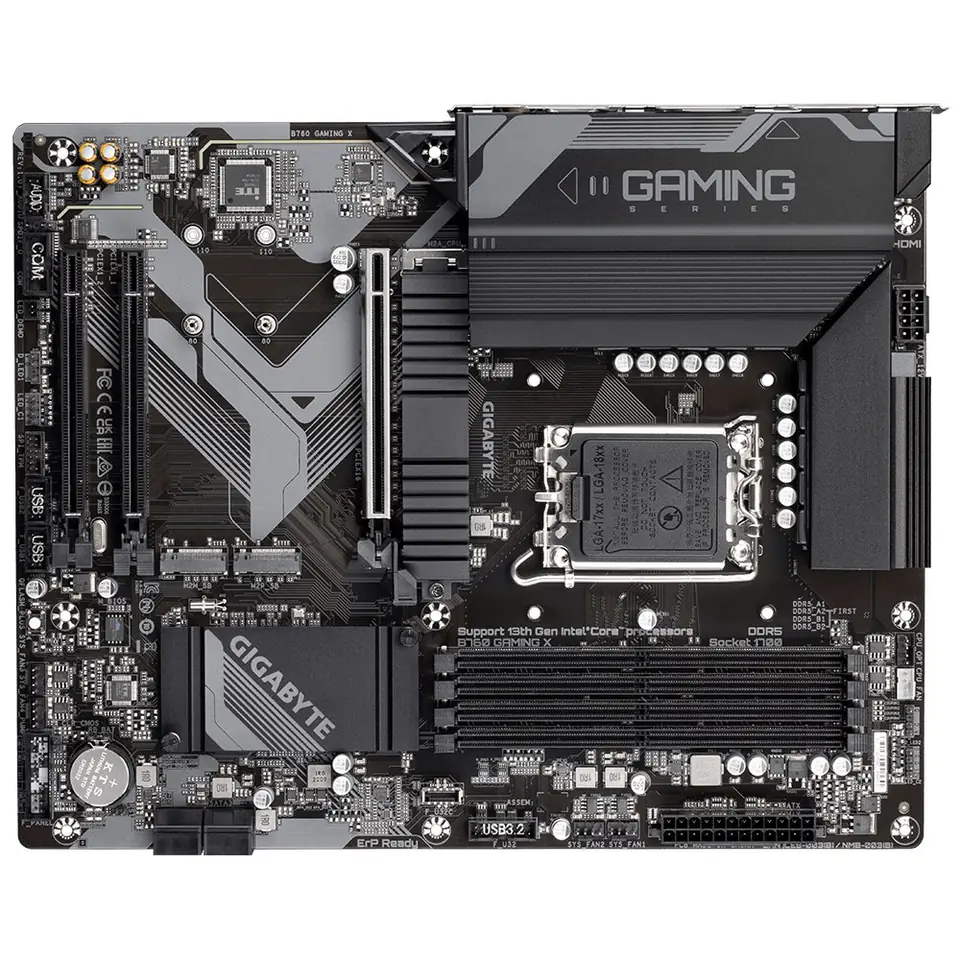

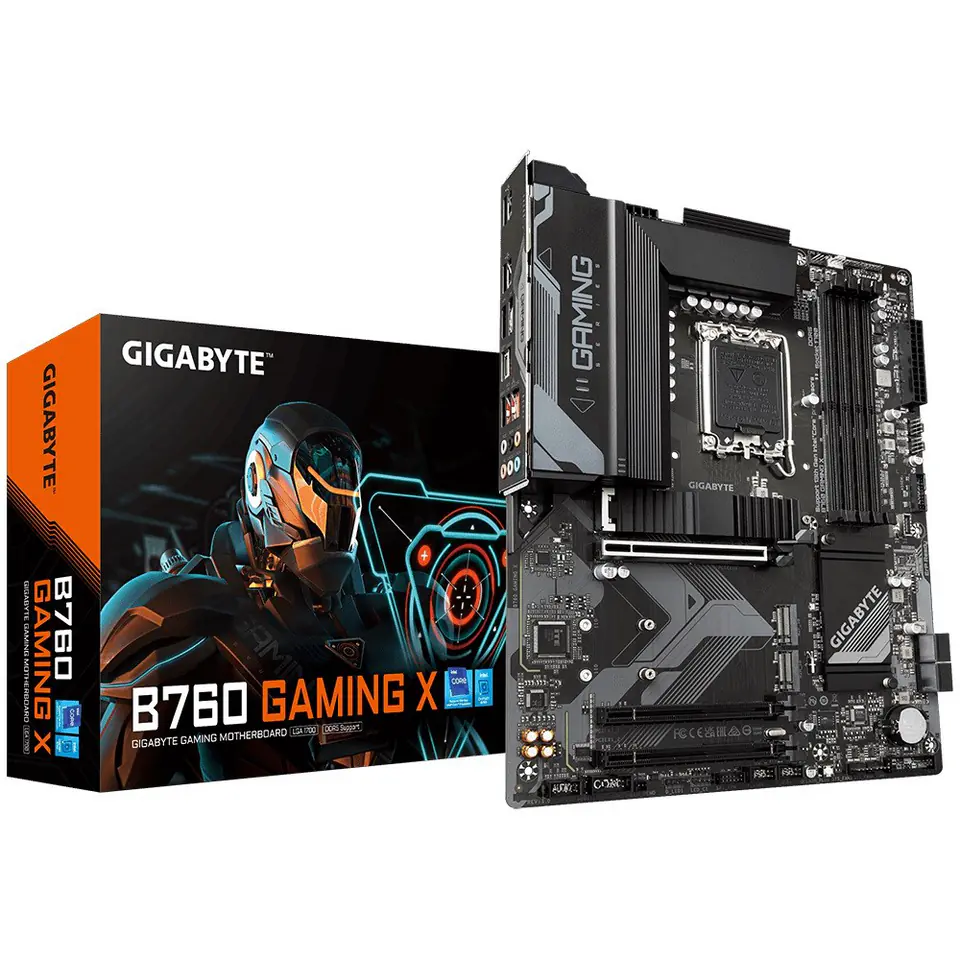

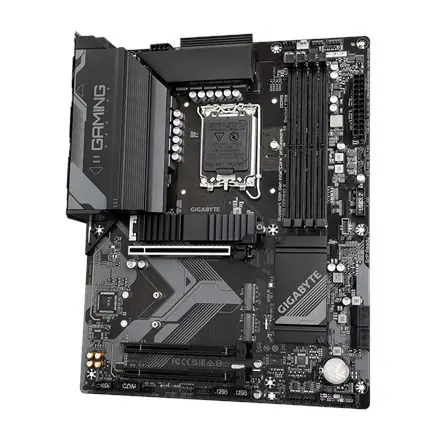

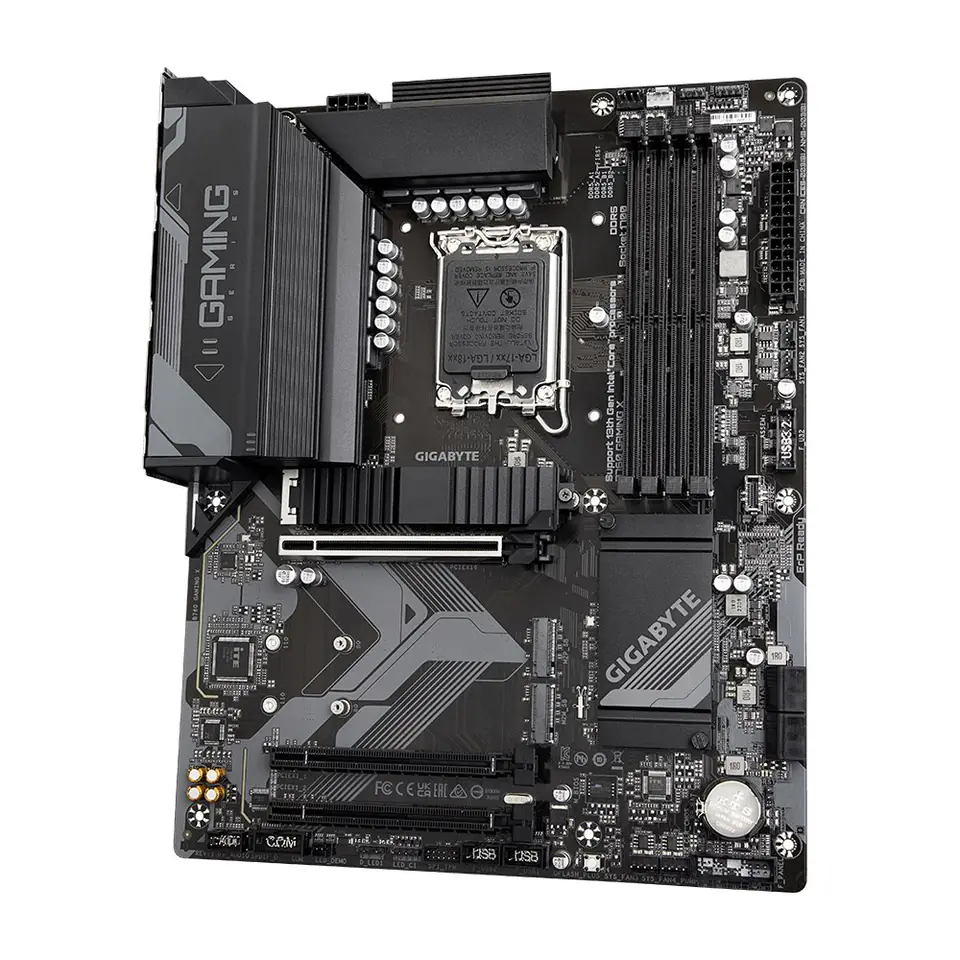

Gigabyte B760 GAMING X motherboard Intel B760 Express LGA 1700 ATX
€188.54
Shipping from warehouse: A3
Estimated shipping: Tue, Oct 22 - Fri, Oct 25
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Gigabyte
- Product code:
- B760 GAMING X / 4719331851989
Share this product:
Specification
| 12v power connector: | Yes |
|---|---|
| Acpi version: | 5.0 |
| Atx power connector (24-pin): | Yes |
| Audio output channels: | 7.1 channels |
| Batteries included: | Yes |
| Battery technology: | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type: | CR2032 |
| Battery weight: | 3 g |
| Bios memory size: | 256 Mbit |

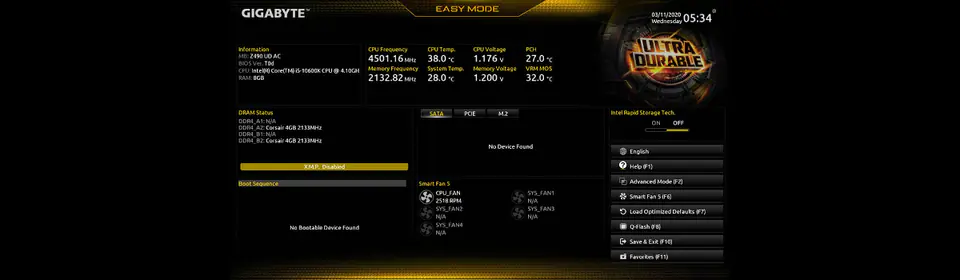

| Bios type: | UEFI AMI |
| Cables included: | SATA |
| Clear cmos jumper: | Yes |
| Compatible processor series: | Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Celeron® |
| Component for: | PC |
| Country of origin: | China |
| Cpu fan connector: | Yes |
| Depth: | 244 mm |
| Desktop management interface (dmi) version: | 2.7 |
| Directx version: | 12.0 |
| Displayport version: | 1.2 |
| Displayports quantity: | 1 |
| Ecc: | Y |
| Eps power connector (8-pin): | Yes |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 1 |
| Front panel audio connector: | Yes |
| Front panel connector: | Yes |
| Hdcp: | Yes |
| Hdmi ports quantity: | 1 |
| Hdmi version: | 2.0 |
| Headphone outputs: | 6 |
| Height: | 35 mm |
| Lithium weight per battery: | 0.07 g |
| Maximum internal memory: | 192 GB |
| Maximum internal memory supported by processor: | 192 GB |
| Maximum resolution: | 4096 x 2304 pixels |
| Memory channels: | Dual-channel |
| Memory slots type: | DIMM |
| Microphone in: | Yes |
| Motherboard chipset: | Intel B760 Express |
| Motherboard chipset family: | Intel |
| Motherboard form factor: | ATX |
| Non-ecc: | Y |
| Number of battery cells: | 1 |
| Number of hdds supported: | 4 |
| Number of m.2 (m) slots: | 3 |
| Number of memory slots: | 4 |
| Number of sata express connectors: | 4 |
| Number of sata iii connectors: | 4 |
| Number of storage drives supported: | 7 |
| Package depth: | 270 mm |
| Package height: | 80 mm |
| Package weight: | 1.62 kg |
| Package width: | 335 mm |
| Parallel processing technology support: | Not supported |
| Pc health monitoring: | Water cooling, Voltage, Temperature, Fan |
| Pci express x16 slots: | 3 |
| Power source type: | ATX |
| Processor manufacturer: | Intel |
| Processor socket: | LGA 1700 |
| Product colour: | Bronze |
| Products per shipping (inner) case: | 1 pc(s) |
| Raid levels: | 10, 5, 0, 1 |
| Raid support: | Yes |
| Rgb led pin header: | Yes |
| S/pdif out connector: | Yes |
| Serial port headers: | 1 |
| Supported memory clock speed (max): | 7600 MHz |
| Supported memory clock speeds: | 6600, 6800, 6200, 4000, 4800, 7600, 7400, 5200, 6400, 7000, 5600, 7200, 6000, 5800, 5400 |
| Supported memory module capacities: | 16GB, 1GB, 12GB, 2GB, 4GB, 48GB, 8GB, 32GB |
| Supported memory types: | DDR5-SDRAM |
| Supported processor sockets: | LGA 1700 |
| Supported storage drive interfaces: | M.2, SATA III |
| Supported storage drive types: | HDD & SSD |
| System management bios (smbios) version: | 2.7 |
| Tpm connector: | Yes |
| Unbuffered memory: | Yes |
| Usb 2.0 connectors: | 2 |
| Usb 2.0 ports quantity: | 5 |
| Usb 3.2 gen 1 (3.1 gen 1) connectors: | 1 |
| Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: | 1 |
| Usb 3.2 gen 1 (3.1 gen 1) type-c ports quantity: | 1 |
| Usb 3.2 gen 2 (3.1 gen 2) connectors: | 1 |
| Usb 3.2 gen 2 (3.1 gen 2) type-a ports quantity: | 1 |
| Usb connector type: | USB Type-A, USB Type-C |
| Warranty period: | 3 year(s) |
| Wi-fi: | No |
| Width: | 305 mm |
| Windows operating systems supported: | Windows 11 x64, Windows 10 x64 |
