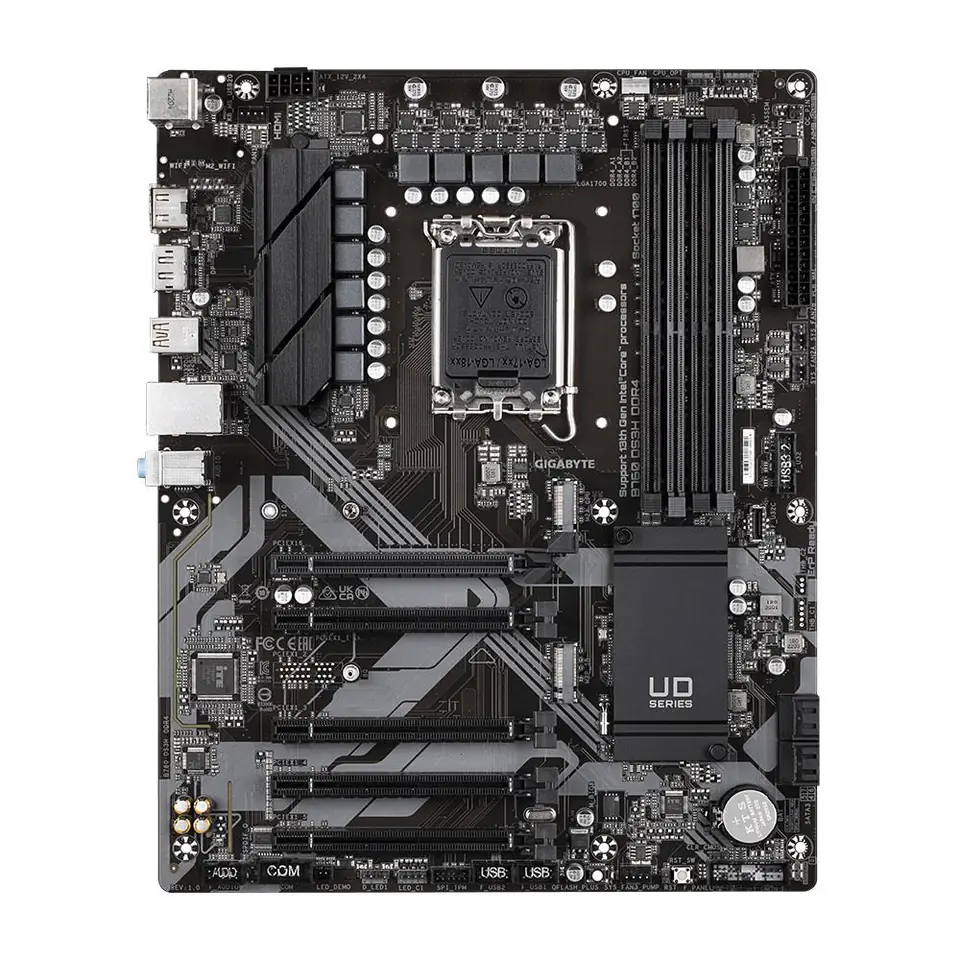

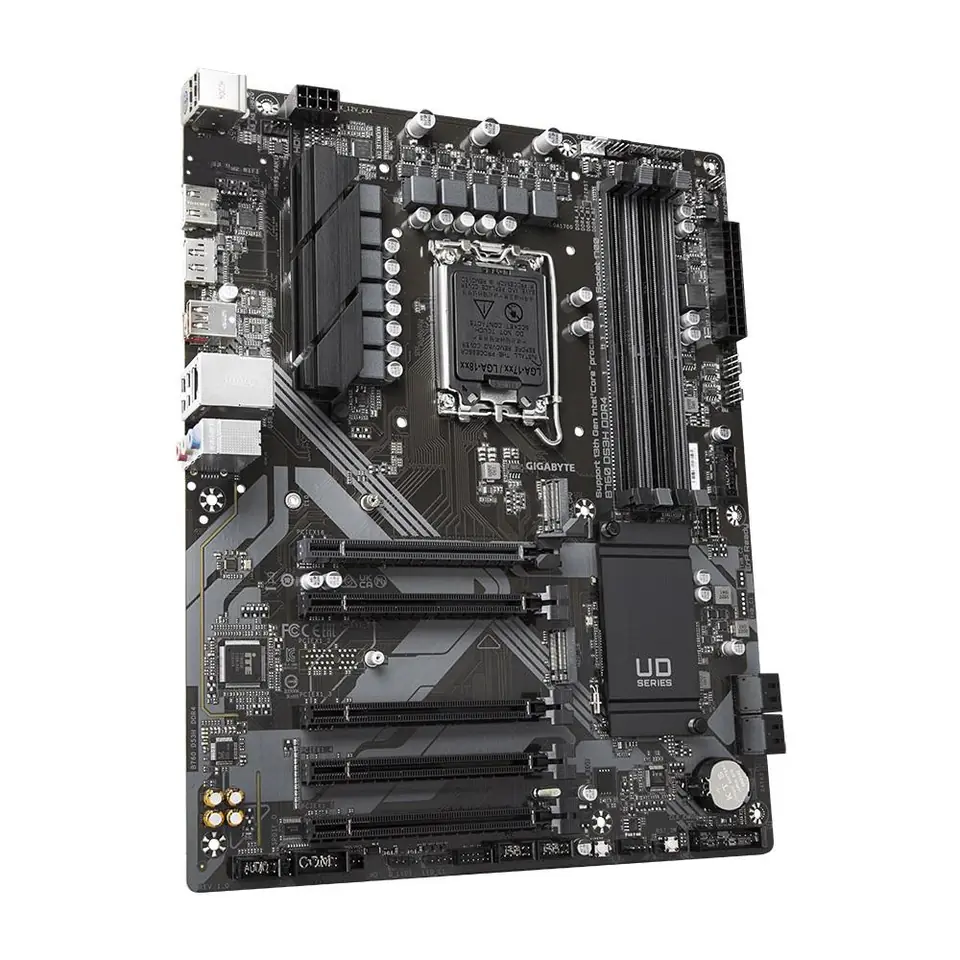

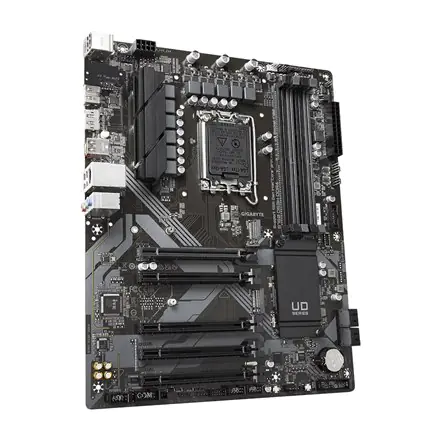

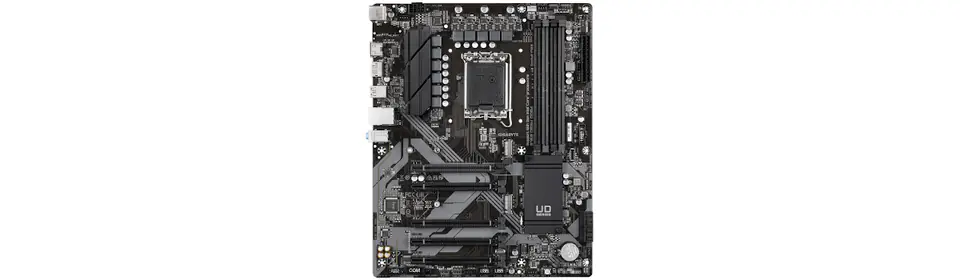

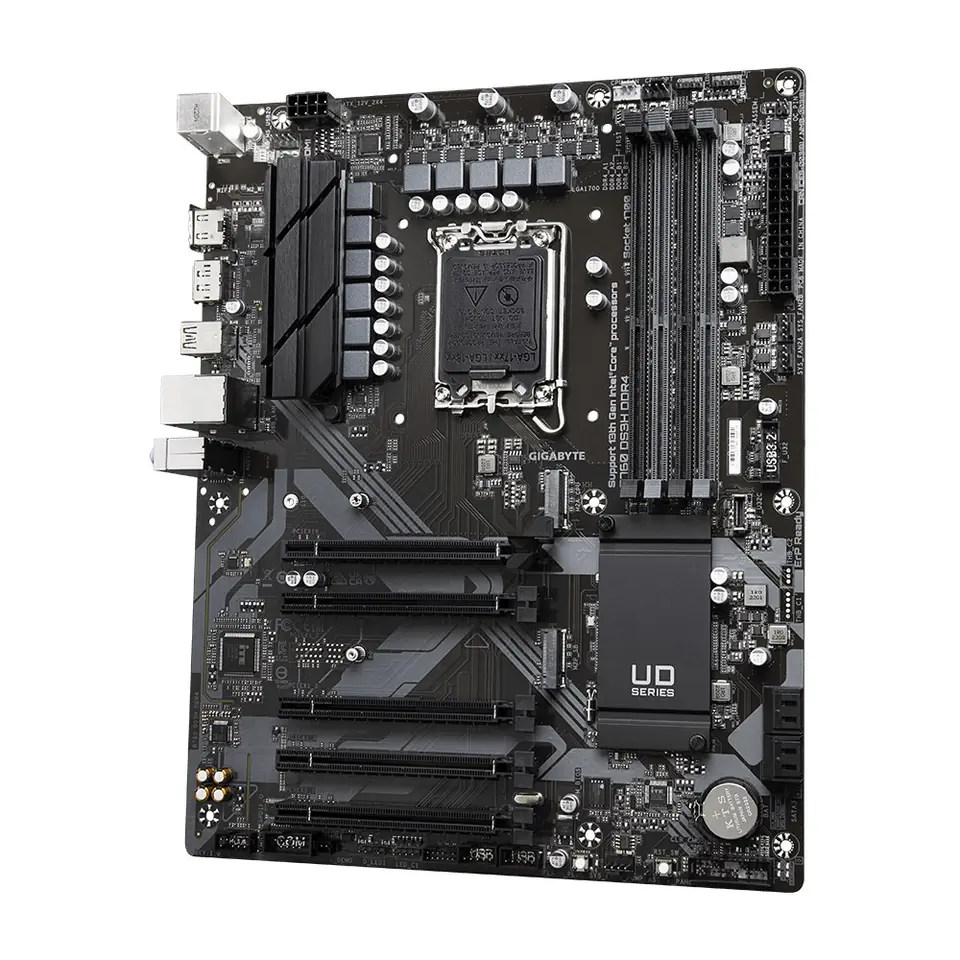

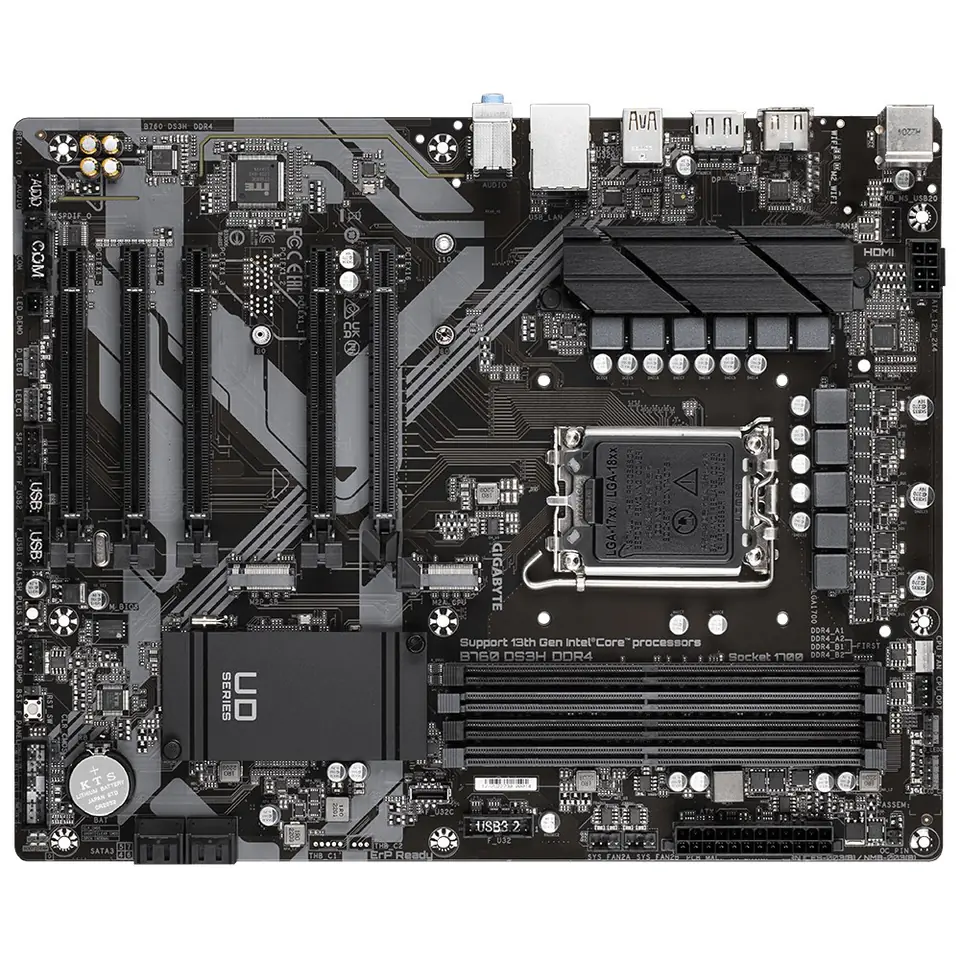

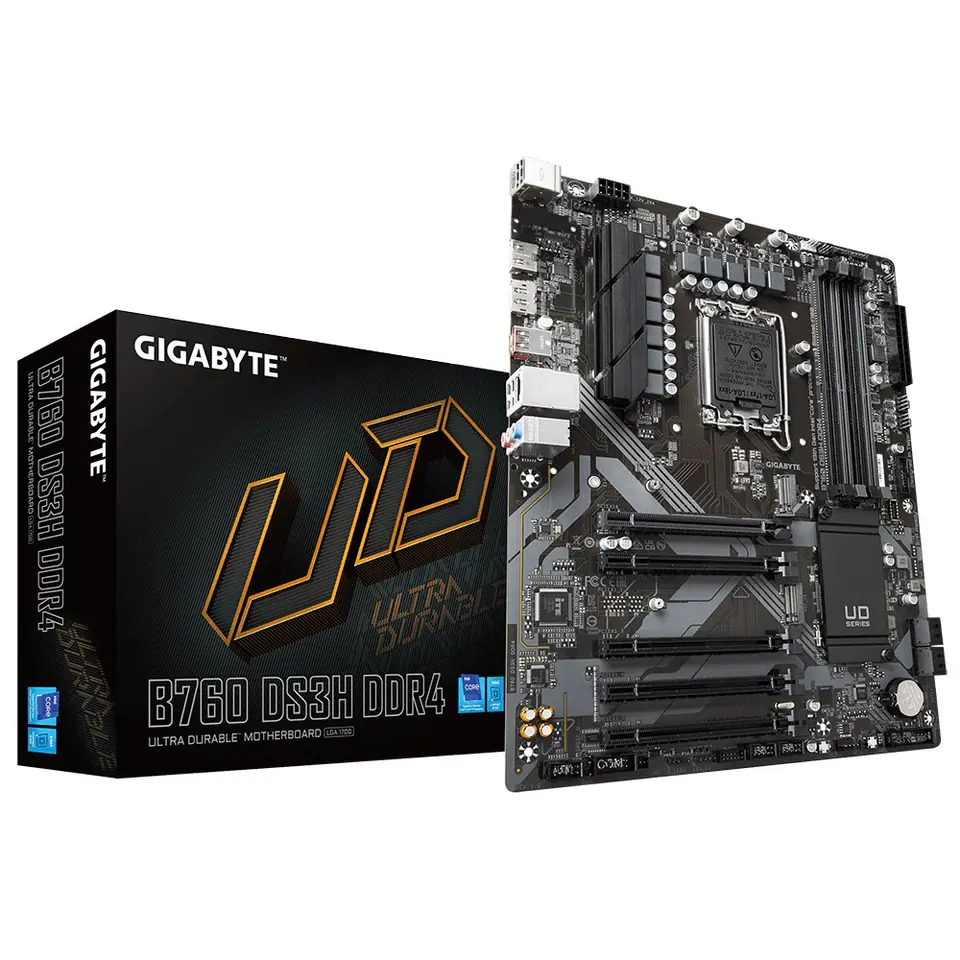

Gigabyte B760 DS3H DDR4 1.0 M/B Processor family Intel, Processor socket LGA1700, DDR4 DIMM, Memory slots 4, Supported hard dis
€153.17
Shipping from warehouse: A3
Estimated shipping: Mon, Nov 18 - Tue, Nov 19
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Gigabyte
- Product code:
- B760 DS3H DDR4 / 4719331850746
Share this product:
Specification
| 12v power connector: | Yes |
|---|---|
| Acpi version: | 5.0 |
| Atx power connector (24-pin): | Yes |
| Audio output channels: | 7.1 channels |
| Batteries included: | Yes |
| Battery technology: | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type: | CR2032 |
| Battery weight: | 3 g |
| Bios memory size: | 128 Mbit |

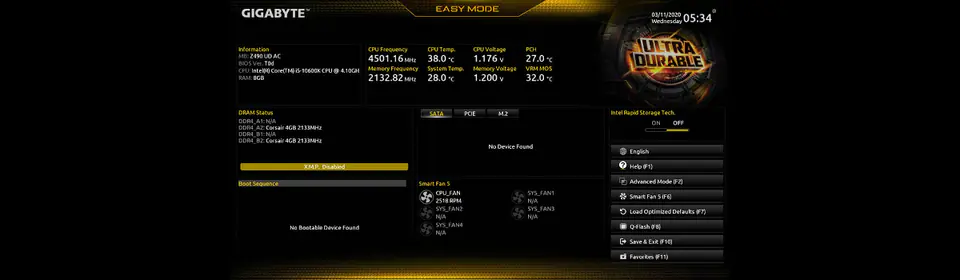

| Bios type: | UEFI AMI |
| Cables included: | SATA |
| Clear cmos jumper: | Yes |
| Compatible processor series: | Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Component for: | PC |
| Country of origin: | China |
| Cpu fan connector: | Yes |
| Depth: | 244 mm |
| Desktop management interface (dmi) version: | 2.7 |
| Directx version: | 12.0 |
| Displayport version: | 1.2 |
| Displayports quantity: | 1 |
| Ecc: | Y |
| Eps power connector (8-pin): | Yes |
| Ethernet interface type: | Gigabit Ethernet |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 1 |
| Front panel audio connector: | Yes |
| Front panel connector: | Yes |
| Hdcp: | Yes |
| Hdmi ports quantity: | 1 |
| Hdmi version: | 2.0 |
| Headphone outputs: | 3 |
| Height: | 35 mm |
| Lithium weight per battery: | 0.07 g |
| Maximum internal memory: | 128 GB |
| Maximum internal memory supported by processor: | 128 GB |
| Maximum resolution: | 4096 x 2304 pixels |
| Memory channels: | Dual-channel |
| Memory slots type: | DIMM |
| Microphone in: | Yes |
| Motherboard chipset: | Intel B760 Express |
| Motherboard chipset family: | Intel |
| Motherboard form factor: | ATX |
| Non-ecc: | Y |
| Number of battery cells: | 1 |
| Number of hdds supported: | 4 |
| Number of m.2 (m) slots: | 2 |
| Number of memory slots: | 4 |
| Number of sata iii connectors: | 4 |
| Number of storage drives supported: | 6 |
| Package depth: | 270 mm |
| Package height: | 80 mm |
| Package weight: | 1.31 kg |
| Package width: | 335 mm |
| Parallel processing technology support: | Not supported |
| Pc health monitoring: | Water cooling, Voltage, Fan, Temperature |
| Pci express x16 slots: | 5 |
| Processor manufacturer: | Intel |
| Processor socket: | LGA 1700 |
| Products per shipping (inner) case: | 1 pc(s) |
| Ps/2 ports quantity: | 1 |
| Raid levels: | 1, 5, 0, 10 |
| Raid support: | Yes |
| Rgb led pin header: | Yes |
| S/pdif out connector: | Yes |
| Serial port headers: | 1 |
| Supported memory clock speed (max): | 5333 MHz |
| Supported memory clock speeds: | 4500, 3200 MHz, 2666, 4266, 3400, 3866, 3733, 4300, 4400, 3466, 4133, 4000, 3666, 4800, 4933 MHz, 3800, 3333, 5000, 4600 MHz, 2933, 3600 MHz, 3300, 5133, 3000, 5333 MHz, 2400, 4700 MHz, 2133 |
| Supported memory module capacities: | 2GB, 4GB, 16GB, 8GB, 32GB, 1GB, 12GB |
| Supported memory types: | DDR4-SDRAM |
| Supported processor sockets: | LGA 1700 |
| Supported storage drive interfaces: | M.2, PCI Express 4.0, SATA III |
| Supported storage drive types: | HDD & SSD |
| System management bios (smbios) version: | 2.7 |
| Total number of sata connectors: | 4 |
| Tpm connector: | Yes |
| Unbuffered memory: | Yes |
| Usb 2.0 connectors: | 2 |
| Usb 2.0 ports quantity: | 4 |
| Usb 3.2 gen 1 (3.1 gen 1) connectors: | 2 |
| Usb 3.2 gen 2 (3.1 gen 2) type-a ports quantity: | 1 |
| Usb 3.2 gen 2x2 type-c ports quantity: | 1 |
| Usb connector type: | USB Type-C, USB Type-A |
| Warranty period: | 3 year(s) |
| Wi-fi: | No |
| Width: | 305 mm |
| Windows operating systems supported: | Windows 10 x64, Windows 11 x64 |
