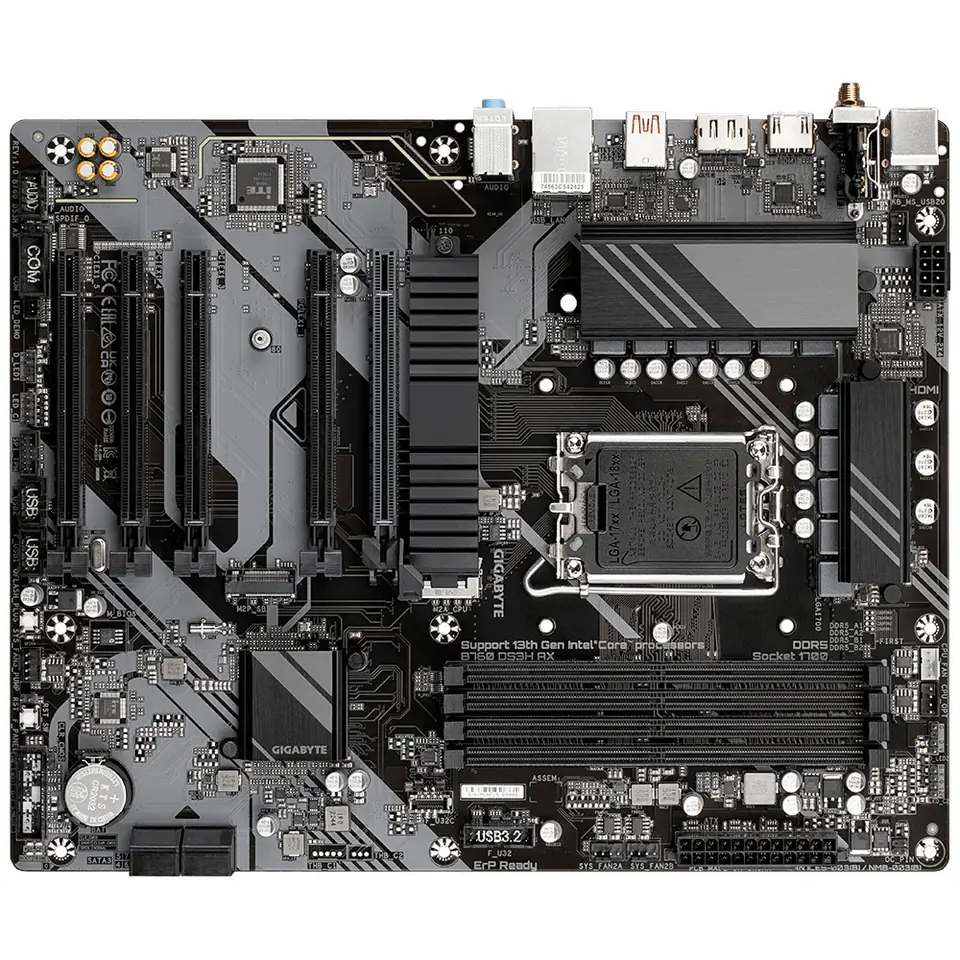

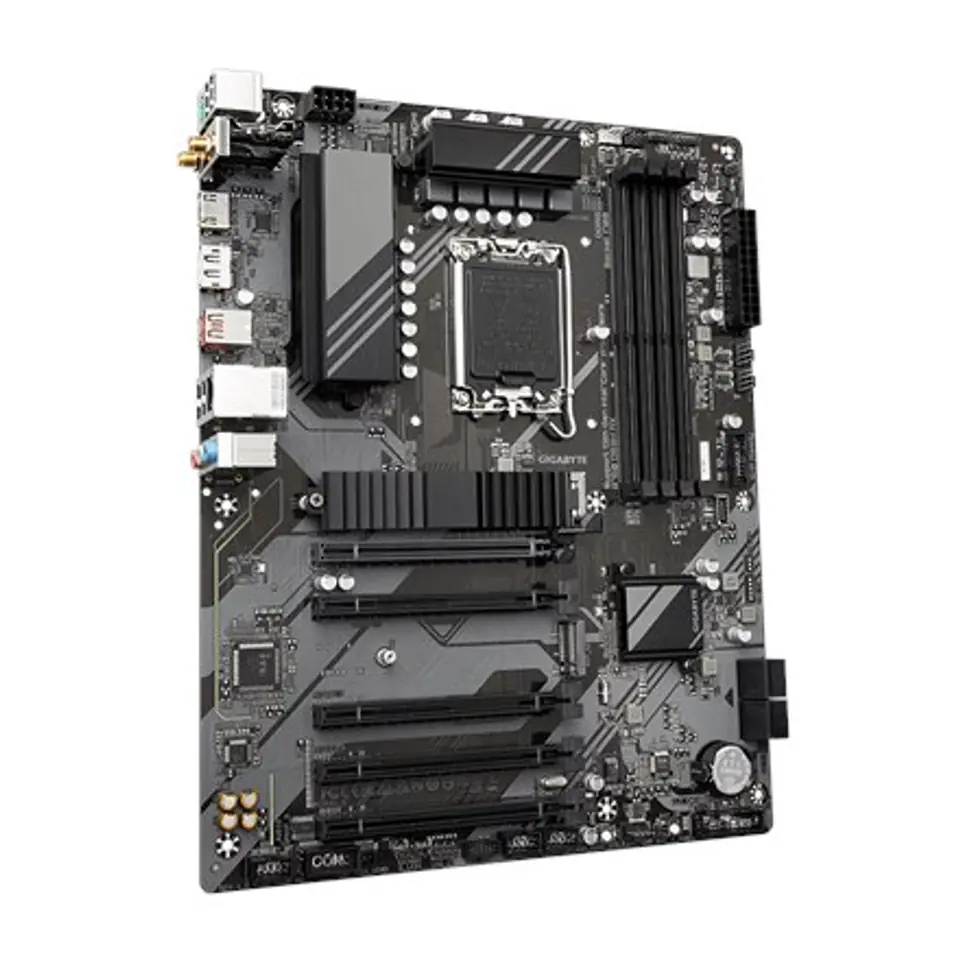

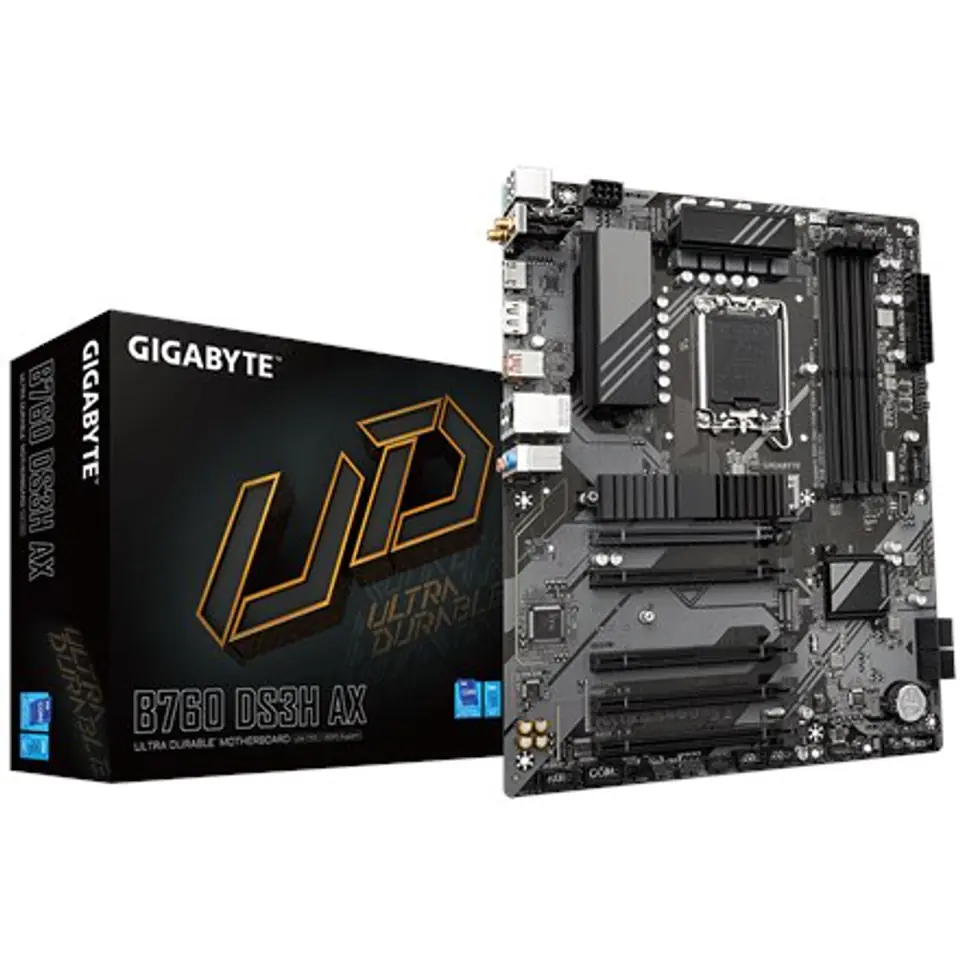

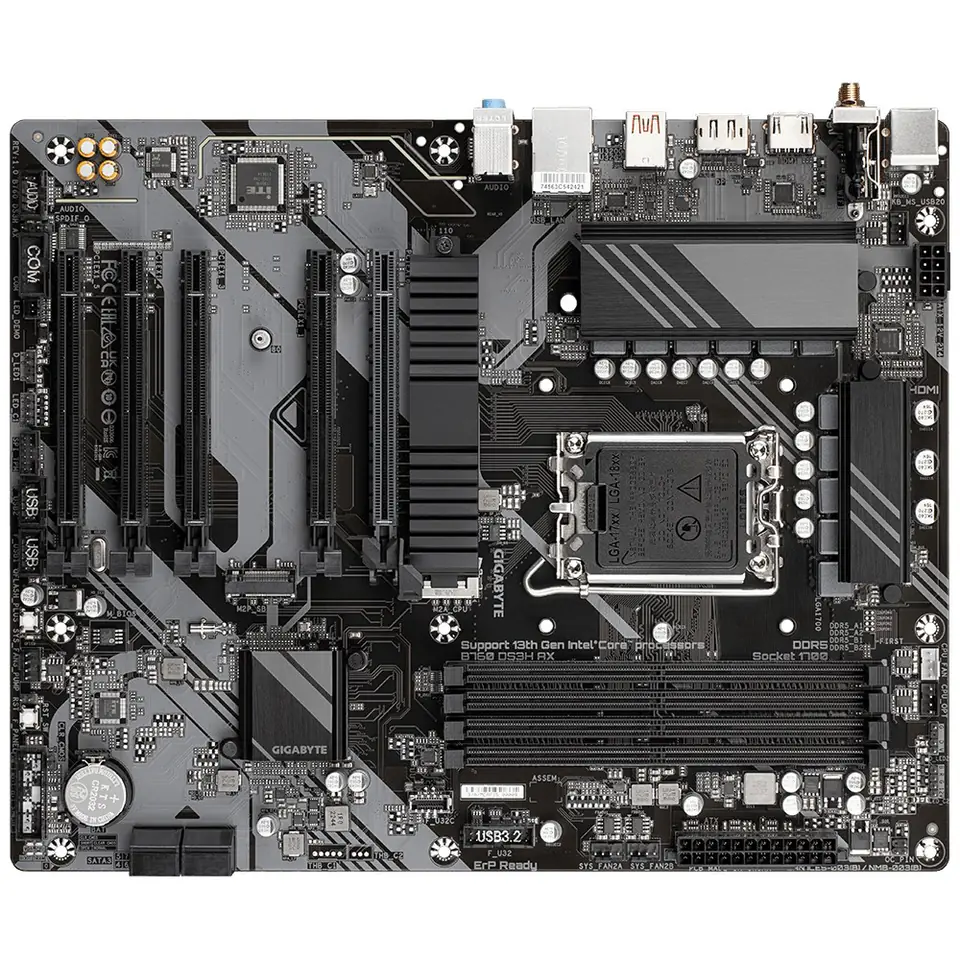

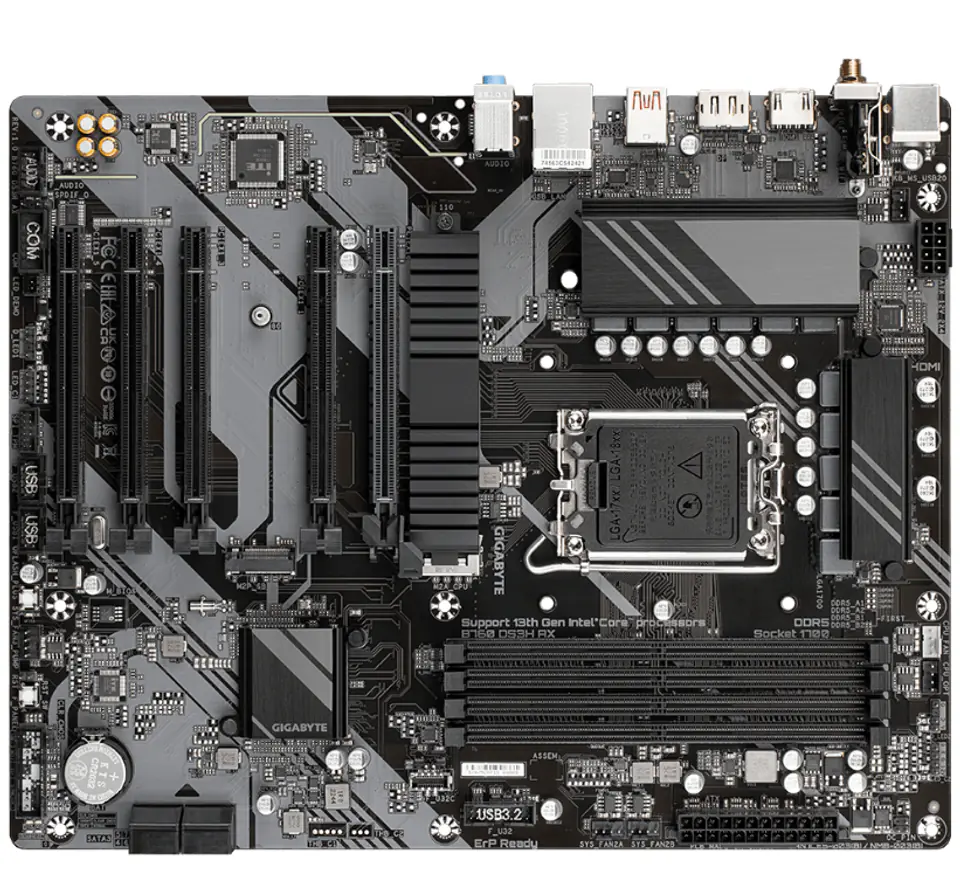

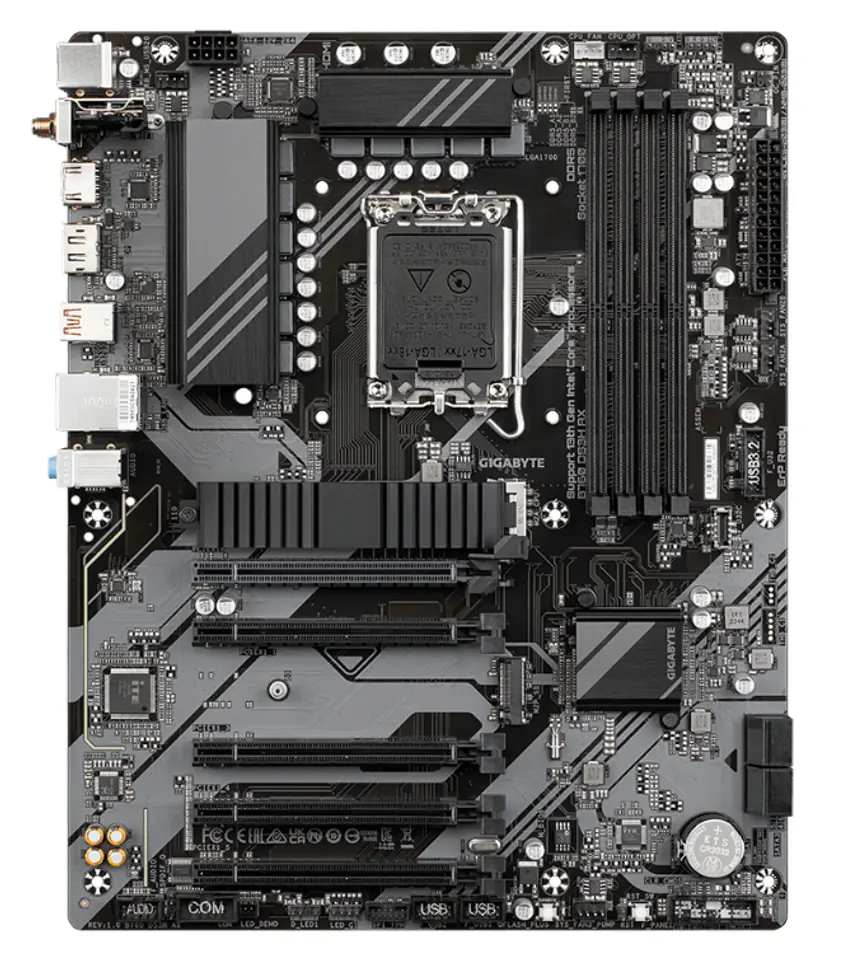

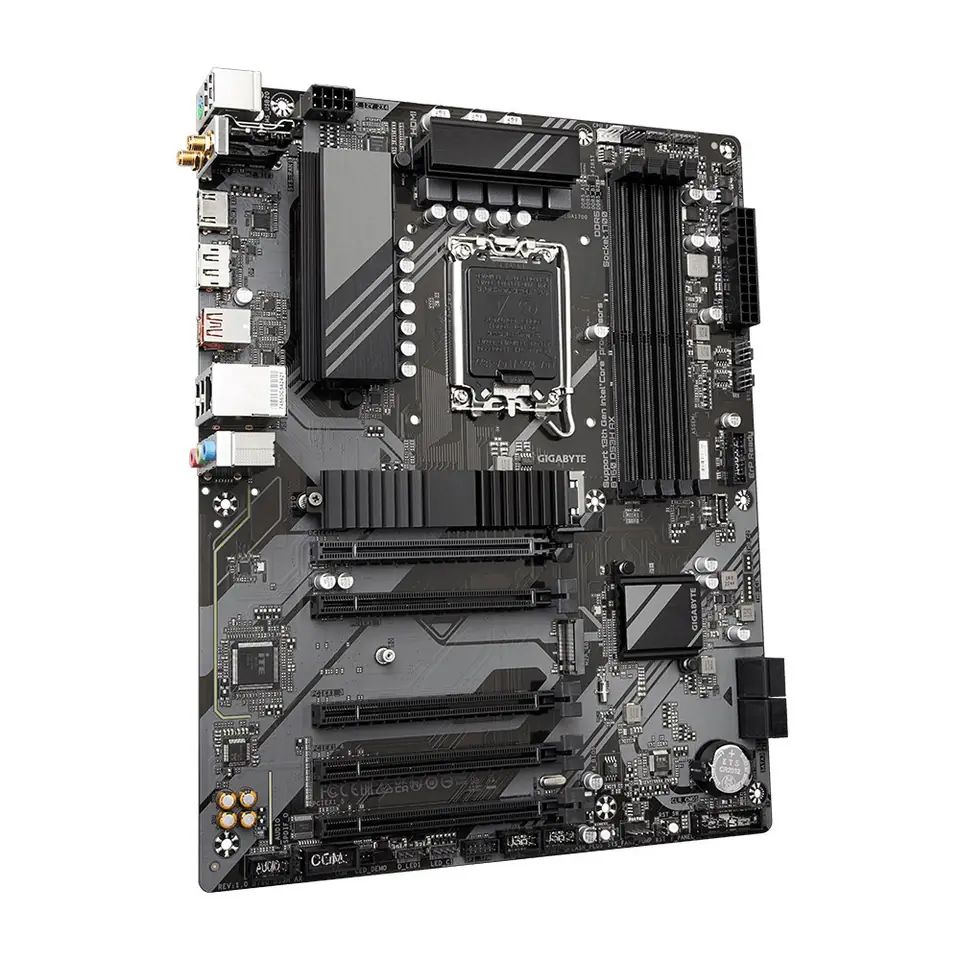

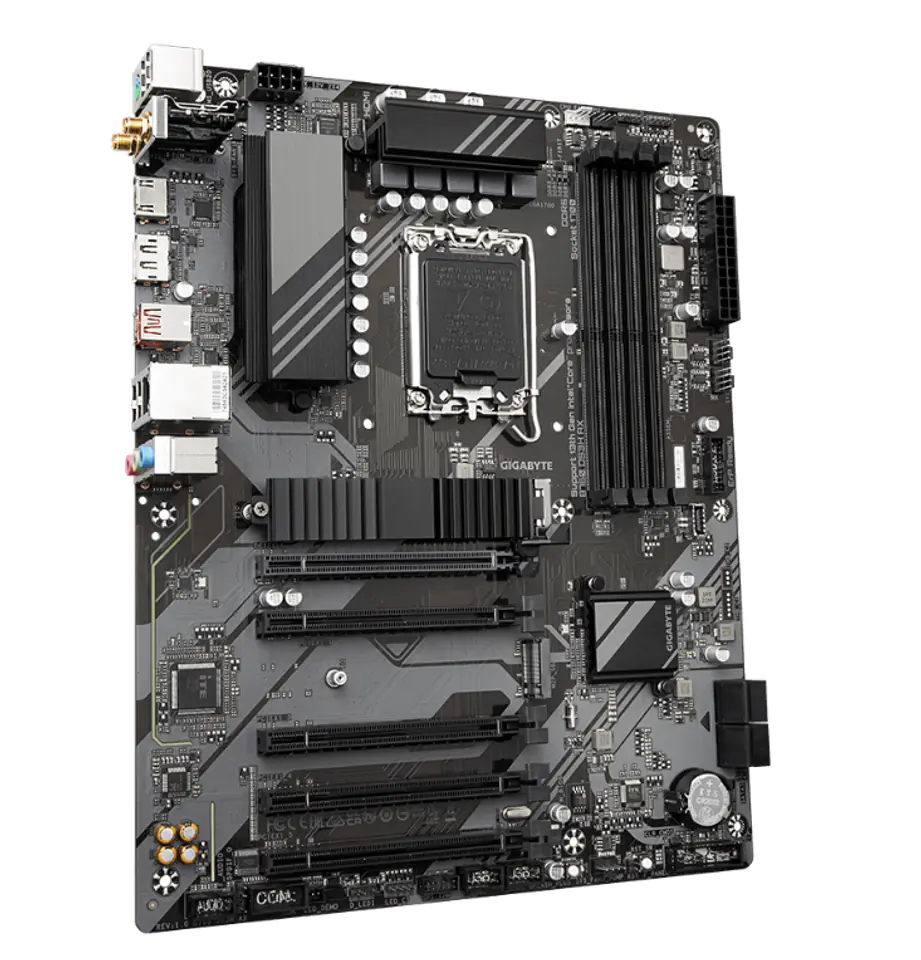

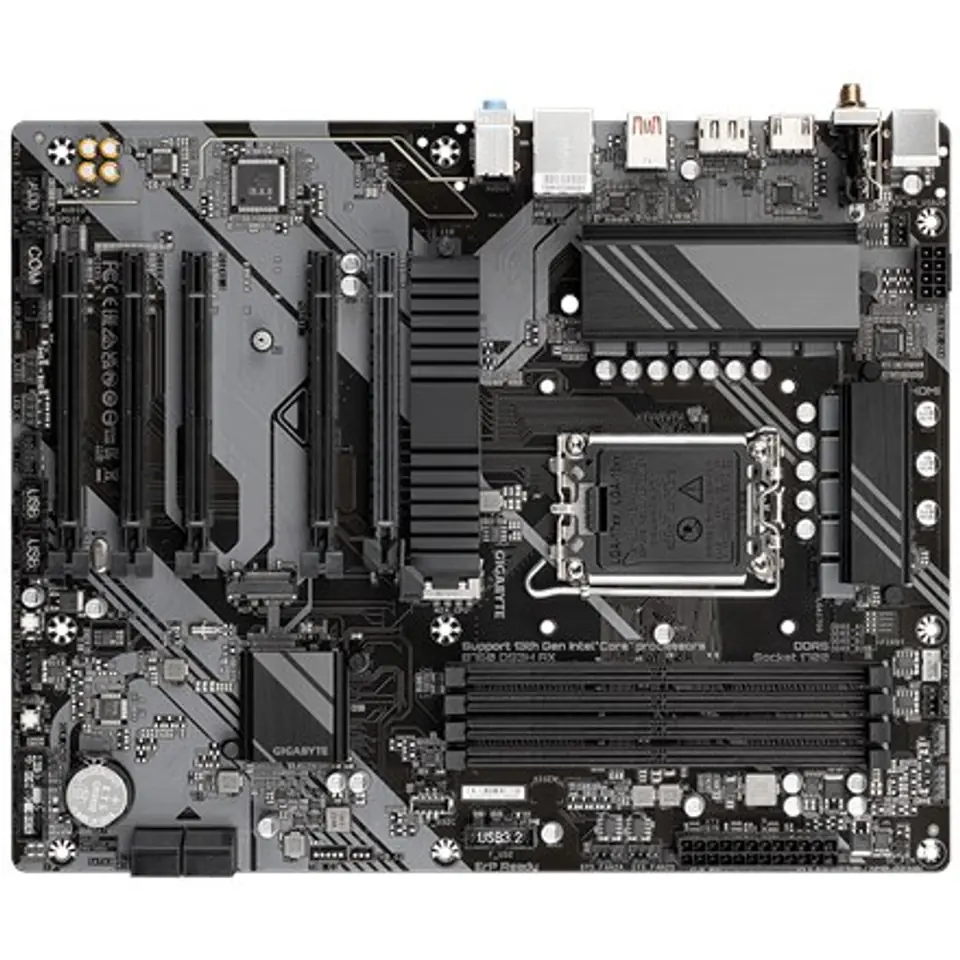

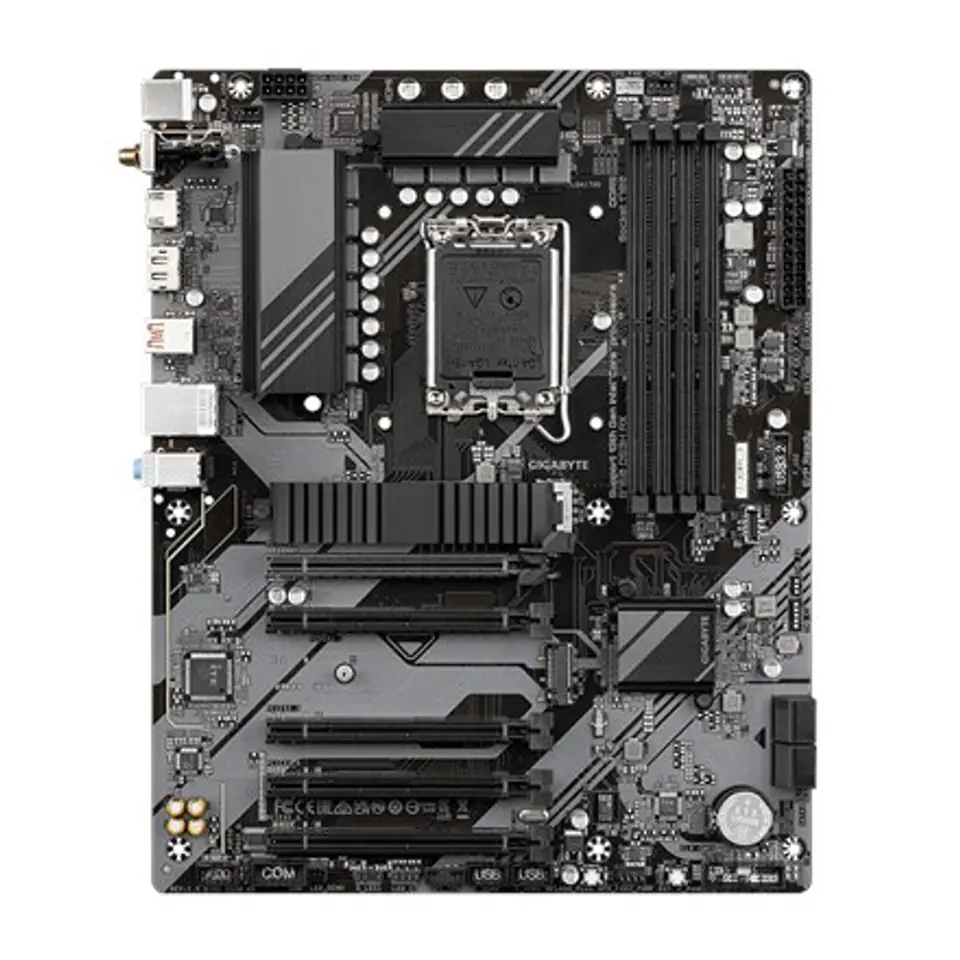

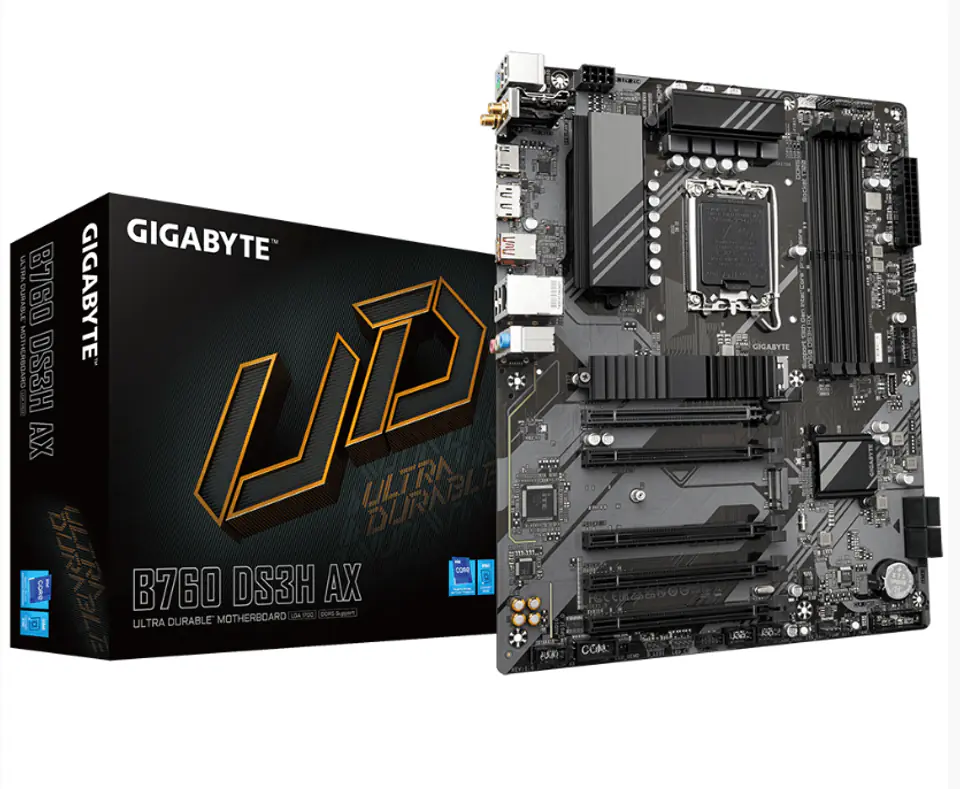

Gigabyte B760 DS3H AX (B760,S1700,ATX,DDR5)

Name: Gigabyte B760 DS3H AX (B760,S1700,ATX,DDR5)
Brand: Gigabyte
SKU: 1489723
Price: 172.61 EUR
Availability: InStock

€172.61

Shipping from warehouse: ⁨A3⁩

Estimated shipping: Mon, Apr 7 - Tue, Apr 8

14 days returnUnconditional return policy

Availability:: large quantity
Brand:: Gigabyte
Product code:: B760 DS3H AX / 4719331852757

Specification

12v power connector:	Yes
Acpi version:	5.0
Atx power connector (24-pin):	Yes
Audio output channels:	7.1 channels
Batteries included:	Yes
Battery technology:	Lithium-Manganese Dioxide (LiMnO2)
Battery type:	CR2032
Battery weight:	3 g
Bios memory size:	128 Mbit
Bios type:	UEFI AMI
Bluetooth:	Yes
Bluetooth version:	5.3
Cables included:	SATA
Clear cmos jumper:	Yes
Compatible processor series:	Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Celeron®
Component for:	PC
Country of origin:	China
Cpu fan connector:	Yes
Depth:	244 mm
Desktop management interface (dmi) version:	2.7
Directx version:	12.0
Displayport version:	1.2
Displayports quantity:	1
Ecc:	Yes
Eps power connector (8-pin):	Yes
Ethernet interface type:	Gigabit Ethernet
Ethernet lan:	Yes
Ethernet lan (rj-45) ports:	1
Front panel audio connector:	Yes
Front panel connector:	Yes
Hdcp:	Yes
Hdmi ports quantity:	1
Hdmi version:	2.0
Headphone outputs:	3
Height:	35 mm
Lithium weight per battery:	0.07 g
Maximum internal memory:	192 GB
Maximum internal memory supported by processor:	192 GB
Maximum resolution:	4096 x 2304 pixels
Memory channels:	Dual-channel
Memory slots type:	DIMM
Microphone in:	Yes
Motherboard chipset:	Intel B760 Express
Motherboard chipset family:	Intel
Motherboard form factor:	ATX
Non-ecc:	Yes
Number of battery cells:	1
Number of hdds supported:	4
Number of m.2 (m) slots:	2
Number of memory slots:	4
Number of sata iii connectors:	4
Number of storage drives supported:	6
Package depth:	270 mm
Package height:	80 mm
Package weight:	1.34 kg
Package width:	335 mm
Parallel processing technology support:	Not supported
Pc health monitoring:	Fan, Temperature, Voltage, Water cooling
Pci express x16 slots:	5
Power source type:	ATX
Processor manufacturer:	Intel
Processor socket:	LGA 1700
Product colour:	Bronze
Products per shipping (inner) case:	1 pc(s)
Ps/2 ports quantity:	1
Raid levels:	0, 1, 10, 5
Raid support:	Yes
Rgb led pin header:	Yes
S/pdif out connector:	Yes
Serial port headers:	1
Supported memory clock speed (max):	7600 MHz
Supported memory clock speeds:	5800, 5400, 5200, 6000 MHz, 7600 MHz, 6600, 6800, 5600, 7200, 7400, 7000, 4000, 4800 MHz, 6400, 6200
Supported memory module capacities:	2GB, 4GB, 12GB, 8GB, 48GB, 32GB, 16GB, 1GB
Supported memory types:	DDR5-SDRAM
Supported processor sockets:	LGA 1700
Supported storage drive interfaces:	M.2, SATA III
Supported storage drive types:	HDD & SSD
System management bios (smbios) version:	2.7
Top wi-fi standard:	Wi-Fi 6E (802.11ax)
Total number of sata connectors:	4
Tpm connector:	Yes
Unbuffered memory:	Yes
Usb 2.0 connectors:	2
Usb 2.0 ports quantity:	4
Usb 3.2 gen 1 (3.1 gen 1) connectors:	1
Usb 3.2 gen 2 (3.1 gen 2) type-a ports quantity:	1
Usb 3.2 gen 2x2 type-c ports quantity:	1
Usb connector type:	USB Type-C, USB Type-A
Warranty period:	3 year(s)
Wi-fi:	Yes
Wi-fi standards:	802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), Wi-Fi 6E (802.11ax), 802.11b, 802.11g
Width:	305 mm
Wifi-ap antenna jack:	2
Windows operating systems supported:	Windows 10 x64, Windows 11 x64
Wlan controller model:	Realtek RTL8852CE

B760 DS3H AX

Supports Intel Core 14th/ 13th /12th processors
Unmatched Performance: Hybrid 8+2+1 Phases Digital VRM Solution
Dual-Channel DDR5 Memory: Supports 4*DIMM XMP memory modules
Next-Gen Memory: 2* PCIe 4.0 x4 M.2 slots
EZ-Latch: PCIe 4.0x16 slot with quick release design
High-Speed Networking: GbE LAN and Wi-Fi 6E 802.11ax

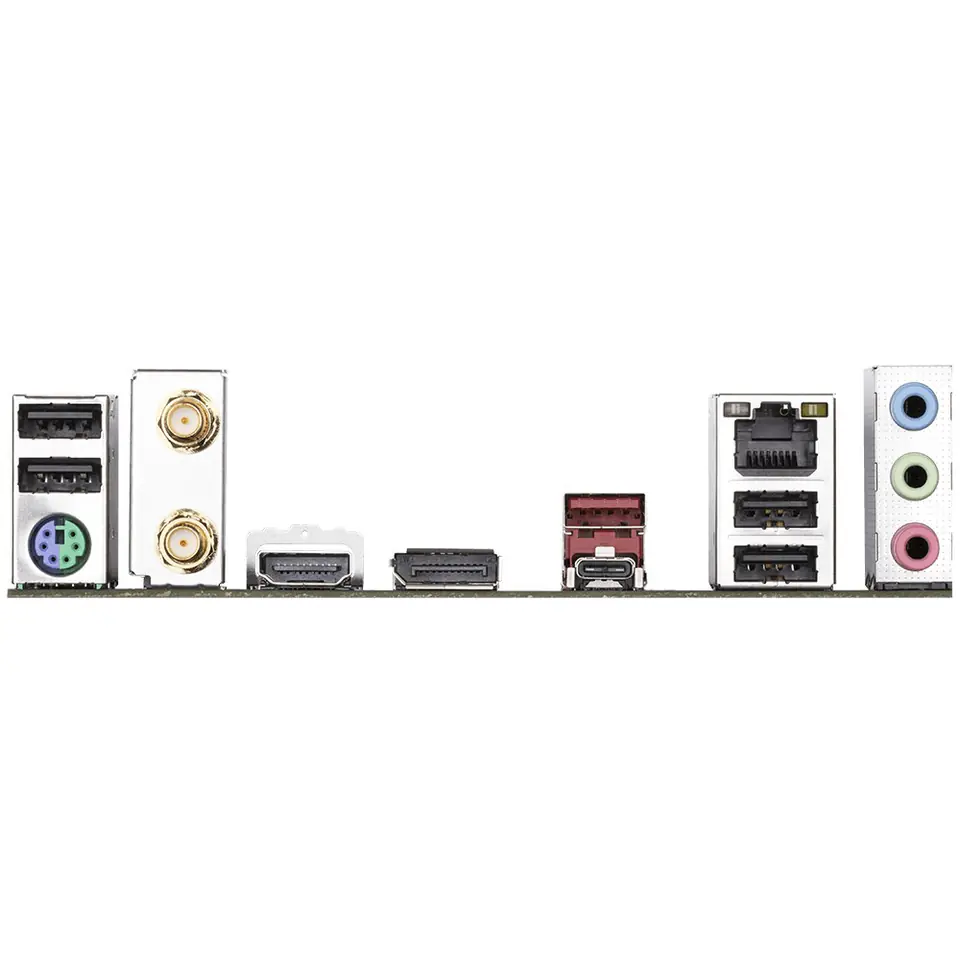

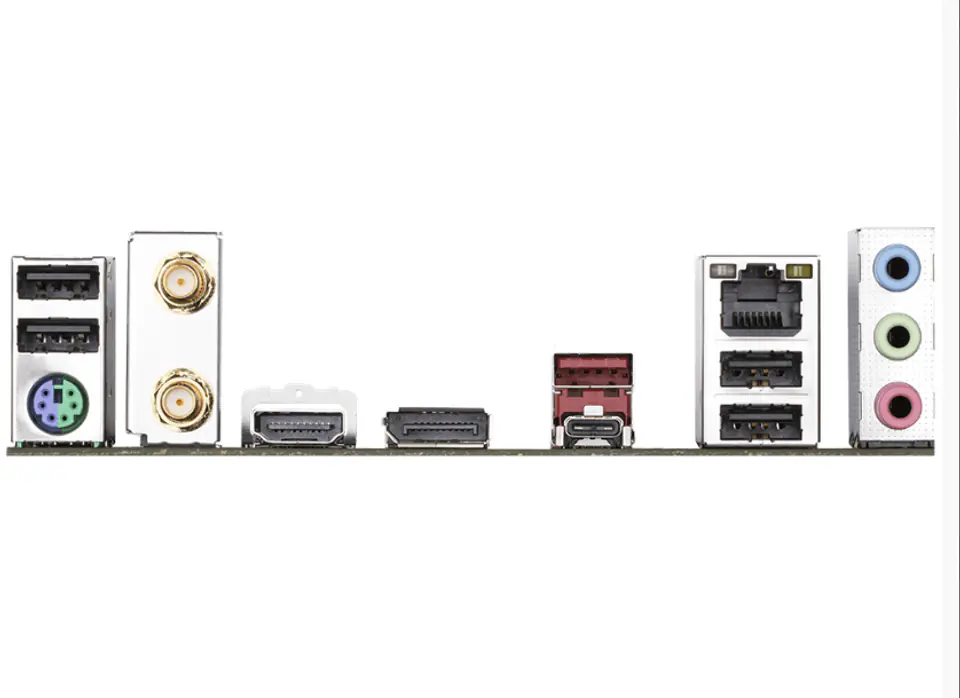

Expanded Connectivity: Rear USB-C 20Gbps, DP, HDMI
Smart Fan 6: Includes multiple temperature sensors, hybrid fan headers with FAN STOP function
Q-Flash Plus: Update BIOS without installing CPU, memory and graphics card

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
