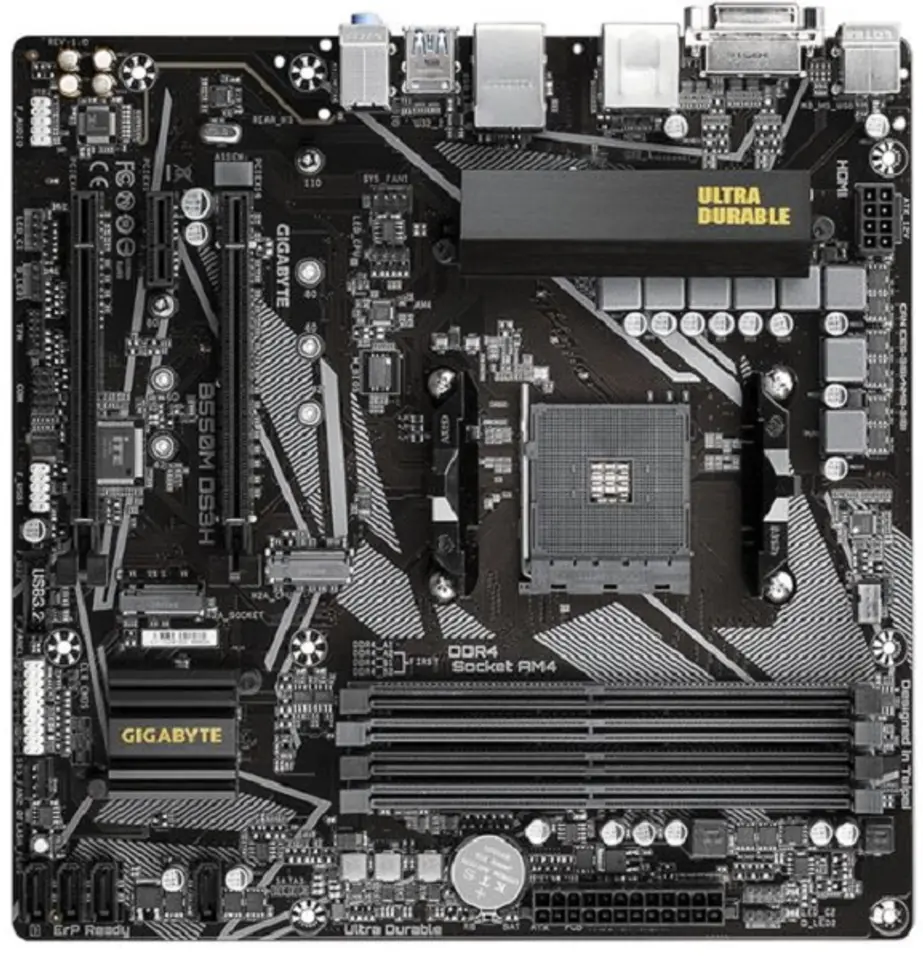

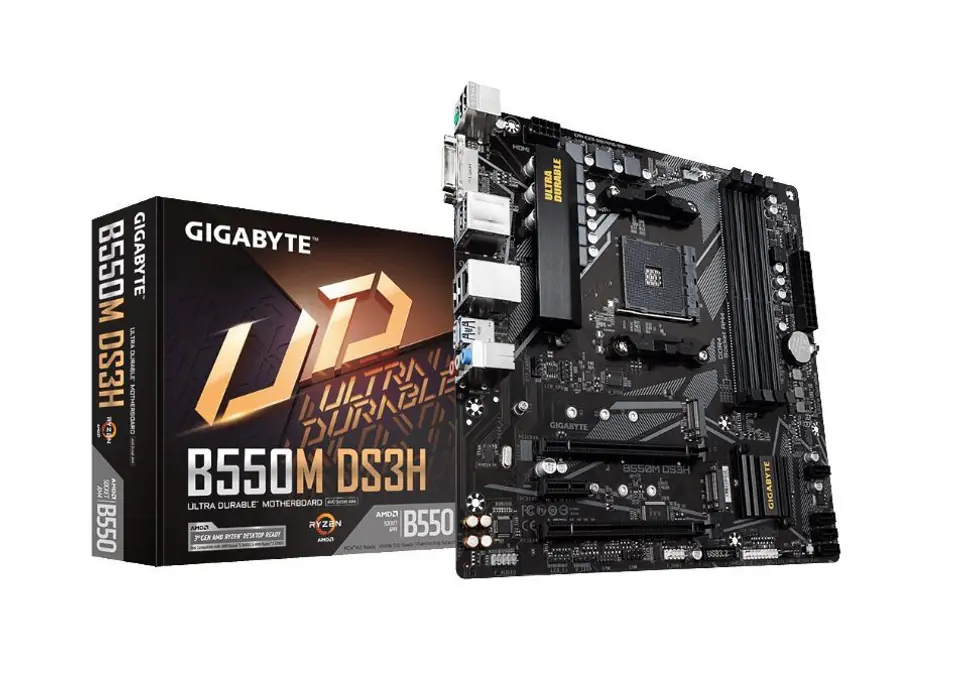

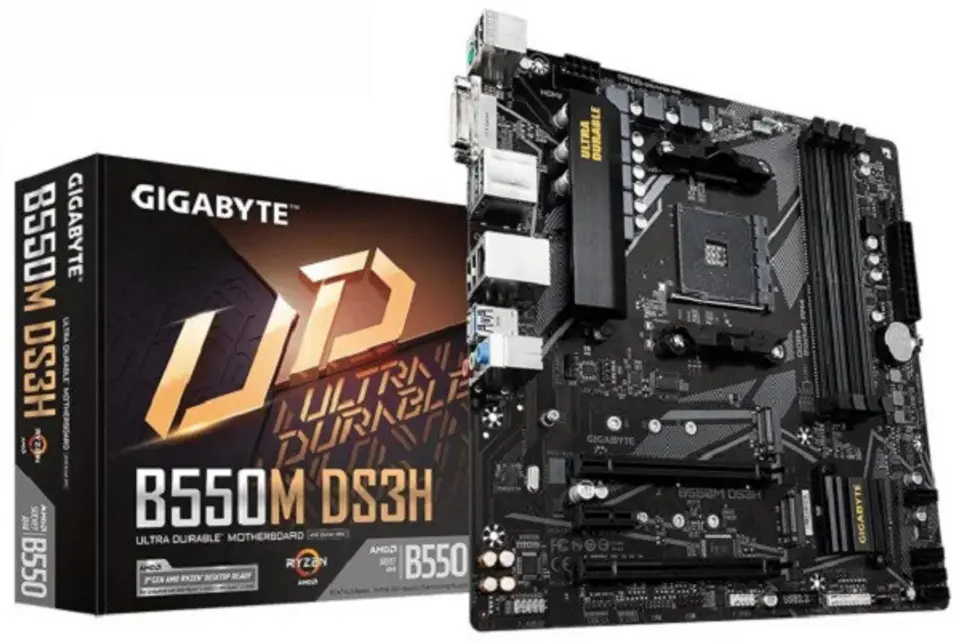

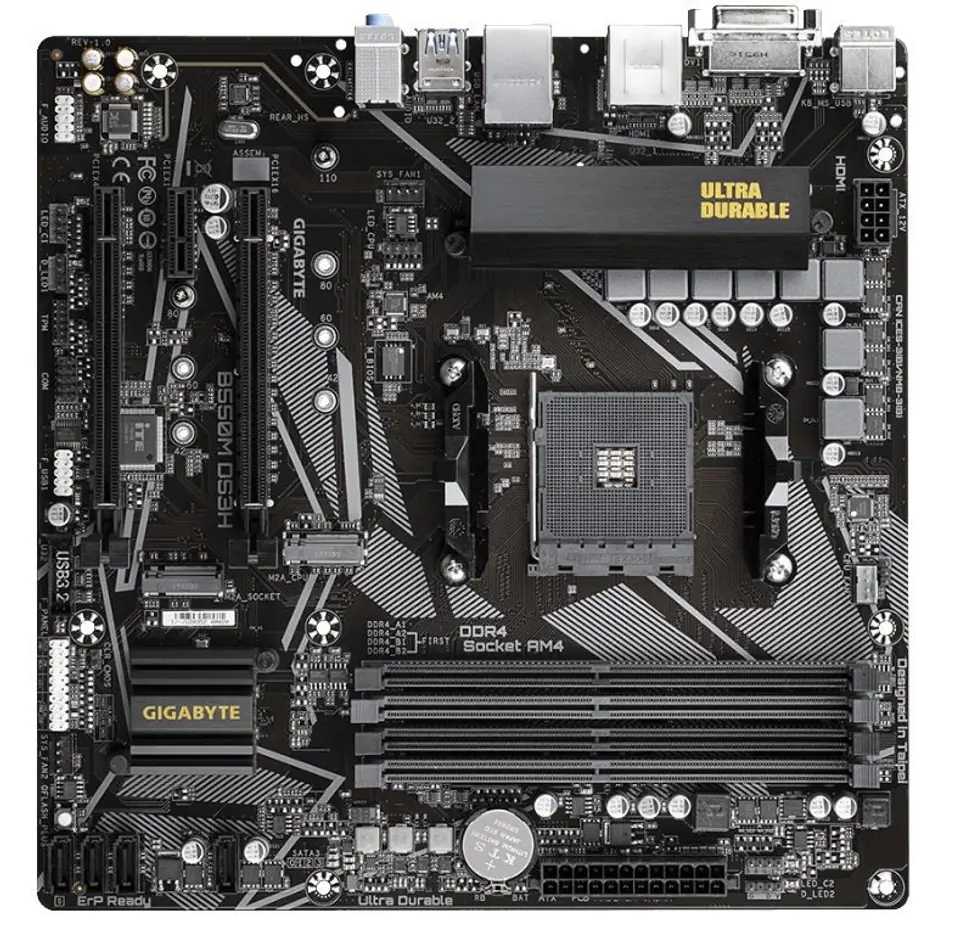

GIGABYTE B550M DS3H Socket AM4 MICRO ATX Motherboard
€111.66
Shipping from warehouse: M7
Estimated shipping: Thu, Nov 14 - Mon, Nov 18
14 days returnUnconditional return policy
- Availability:
- large quantity
- Product code:
- 0889523022917
Share this product:
Specification
| Audio chipset: | Realtek ALC-887 |
|---|---|
| Back panel connectors: | 1x DVI-D, 1x PS/2, 1x RJ-45, 4x USB 2.0, 1x HDMI, 3x Audio, 4x USB 3.2 |
| Bios: | AMI UEFI |
| Bios rom (mb): | 256 |
| Built-in raid controller: | RAID 0, RAID 1, RAID 10 |
| Card linking support: | no |
| Chipset type: | AMD B550 |
| Compatibility: | The current list of supported processors and memory can be found on the manufacturer's website (CPU/Memory Support list) |
| Depth (mm): | 174 |
| Drive connectors: | 4x SATA III, 2x M.2 Slot |
| Equipment: | Software |
| Expansion slots: | 1x PCI Express x1, 2x PCI Express x16 |
| External audio connectors: | 3x audio |
| Graphics chipset: | CPU dependent |
| Graphics memory: | Shared with RAM |
| Integrated graphics: | yes |
| Integrated network adapter: | yes |
| Internal connectors: | 1x USB 2.0, ATX 24P, TPM, CPU Fan, Serial port, Clear CMOS, 2x System Fan, 1x Front Panel Connector, 1x Front Panel Audio connector, 1x 8-pin 12V power supply, 1x USB 3.2 |
| Maximum memory (gb): | 128 |
| Maximum number of processors: | 1 |
| Memory bus frequencies (mhz): | 2133, 2400, 2667, 2933, 3200, 3333, 3600, 4000, 4400, 4600, 4733 |
| Modem: | no |
| Multi-channel memory support: | Dual-Chanel |
| Network adapter chipset: | Realtek GbE |
| Number of memory slots: | 4 |
| Other parameters: | High Definition Audio, ACPI 5.0, Maximum HDMI port resolution: 4096 x 2160 @ 60 Hz |
| Plate standard: | micro ATX |
| Processor manufacturer: | AMD |
| Socket type: | Socket AM4 |
| Sound technologies: | HD Audio |
| Supported channels: | 2, 5.1, 7.1, 4 |
| Supported memory: | DDR4 |
| Supported processors: | Ryzen with Radeon graphics, 3rd generation Ryzen |
| Technologies: | USB |
| Type of packaging: | BOX |
| Warranty: | 3 years |
| Width (mm): | 244 |
| Wireless support: | no |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
