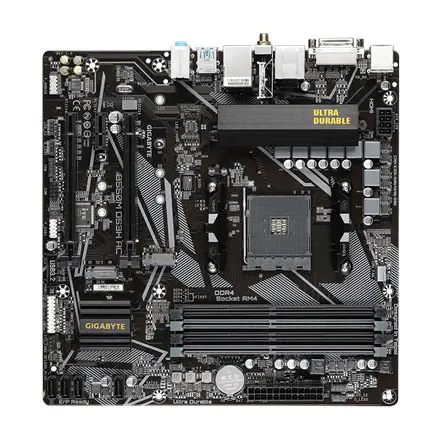

Gigabyte B550M DS3H Socket AM4 micro ATX AMD B550

Name: Gigabyte B550M DS3H Socket AM4 micro ATX AMD B550
Brand: Gigabyte
SKU: 1189032
Price: 121.14 EUR
Availability: InStock

€121.14

Shipping from warehouse: ⁨N2⁩

Estimated shipping: Tue, Oct 1 - Fri, Oct 4

14 days returnUnconditional return policy

Availability:: large quantity
Brand:: Gigabyte
Product code:: B550M DS3H AC / 4719331810962

Specification

12v power connector:	Yes
Atx power connector (24-pin):	Yes
Audio connector:	Yes
Audio output channels:	7.1 channels
Batteries included:	Yes
Battery technology:	Lithium-Manganese Dioxide (LiMnO2)
Battery type:	CR2032
Battery weight:	3 g
Bios type:	UEFI AMI
Bluetooth:	Yes
Bluetooth version:	4.2
Clear cmos jumper:	Yes
Compatible processor series:	AMD Ryzen 5 5th Gen, AMD Ryzen 7 5th Gen, AMD Ryzen 9 5th Gen, 3rd Generation AMD Ryzen 5
Cooling type:	Passive
Country of origin:	China
Cpu fan connector:	Yes
Depth:	244 mm
Desktop management interface (dmi) version:	2.7
Digital audio optical out:	3
Directx version:	12.0
Displayport version:	1.4
Displayports quantity:	1
Dvi-d ports quantity:	1
Eps power connector (8-pin):	Yes
Ethernet interface type:	Gigabit Ethernet
Ethernet lan:	Yes
Ethernet lan (rj-45) ports:	1
Front panel audio connector:	Yes
Front panel connector:	Yes
Hdcp:	Yes
Hdmi ports quantity:	1
Hdmi version:	2.1
Headphone outputs:	1
Height:	35 mm
Lithium weight per battery:	0.07 g
Maximum internal memory:	128 GB
Maximum internal memory supported by processor:	128 GB
Maximum resolution:	4096 x 2160 pixels
Memory channels:	Dual-channel
Memory slots type:	DIMM
Microphone in:	Yes
Motherboard chipset:	AMD B550
Motherboard chipset family:	AMD
Motherboard form factor:	micro ATX
Number of battery cells:	1
Number of hdds supported:	4
Number of m.2 (m) slots:	2
Number of memory slots:	4
Number of parallel ata connectors:	1
Number of sata iii connectors:	4
Number of storage drives supported:	6
On-board graphics card:	No
Package depth:	268 mm
Package height:	68 mm
Package weight:	1.09 kg
Package width:	270 mm
Parallel connector:	Yes
Parallel processing technology support:	Not supported
Pc health monitoring:	Fan, Voltage, CPU, Temperature
Pci express x1 (gen 3.x) slots:	1
Pci express x1 slots:	1
Pci express x16 (gen 4.x) slots:	1
Pci express x16 slots:	1
Pci express x4 slots:	1
Power fan connector:	Yes
Power source type:	ATX
Processor manufacturer:	AMD
Processor socket:	Socket AM4
Product colour:	Bronze
Products per shipping (inner) case:	1 pc(s)
Ps/2 ports quantity:	1
Raid levels:	1, 10, 0
Raid support:	Yes
Supported memory clock speed (max):	4733 MHz
Supported memory clock speeds:	2667, 4400, 3333, 4000, 4600 MHz, 2133, 3200 MHz, 2400, 2933, 3600, 4733 MHz
Supported memory module capacities:	8GB, 16GB, 32GB, 4GB
Supported memory types:	DDR4-SDRAM
Supported processor sockets:	Socket AM4
Supported storage drive interfaces:	M.2, SATA III
Supported storage drive types:	HDD & SSD
Top wi-fi standard:	Wi-Fi 5 (802.11ac)
Total number of sata connectors:	4
Tpm connector:	Yes
Unbuffered memory:	Yes
Usb 2.0 connectors:	1
Usb 2.0 ports quantity:	4
Usb 3.2 gen 1 (3.1 gen 1) connectors:	1
Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity:	4
Usb connector type:	USB Type-A
Warranty period:	3 year(s)
Wi-fi:	Yes
Wi-fi standards:	802.11b, Wi-Fi 4 (802.11n), 802.11a, 802.11g, Wi-Fi 5 (802.11ac)
Width:	244 mm
Windows operating systems supported:	Windows 11 x64, Windows 10 x64
Wlan controller model:	Realtek RTL8822CE

AMD B550 Ultra Durable Motherboard with Pure Digital VRM, PCIe 4.0 x16, Dual PCIe 4.0/3.0 M.2, Intel Dual Band 802.11ac WIFI, Realtek GbE LAN, Smart Fan 5 with FAN STOP, RGB FUSION 2.0, Q -FlashPlus

Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 Series
Dual Channel ECC/Non-ECC DDR4 Unbuffered Memory, 4 DIMMs
5+3 phase pure digital VRM with low RDS(on) MOSFETs.
x16 slot ready for Ultra Durable PCIe 4.0
Dual ultra-fast NVMe PCIe 4.0/3.0 M.2 slots
Built-in Intel Dual Band 802.11ac & BT 4.2 Wireless with WIFI Antenna
High-quality audio capacitors and a noise shield ensure the highest sound quality
Realtek GbE LAN with bandwidth management
Support HDMI and DVI on the back
RGB FUSION 2.0 supports addressable LED strips and RGB LED strips
Smart Fan 5 includes multiple temperature sensors, hybrid fan connectors with FAN STOP function
Q-Flash Plus Update BIOS without installing CPU, memory or graphics card
Designing anti-sulphur resistors

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
