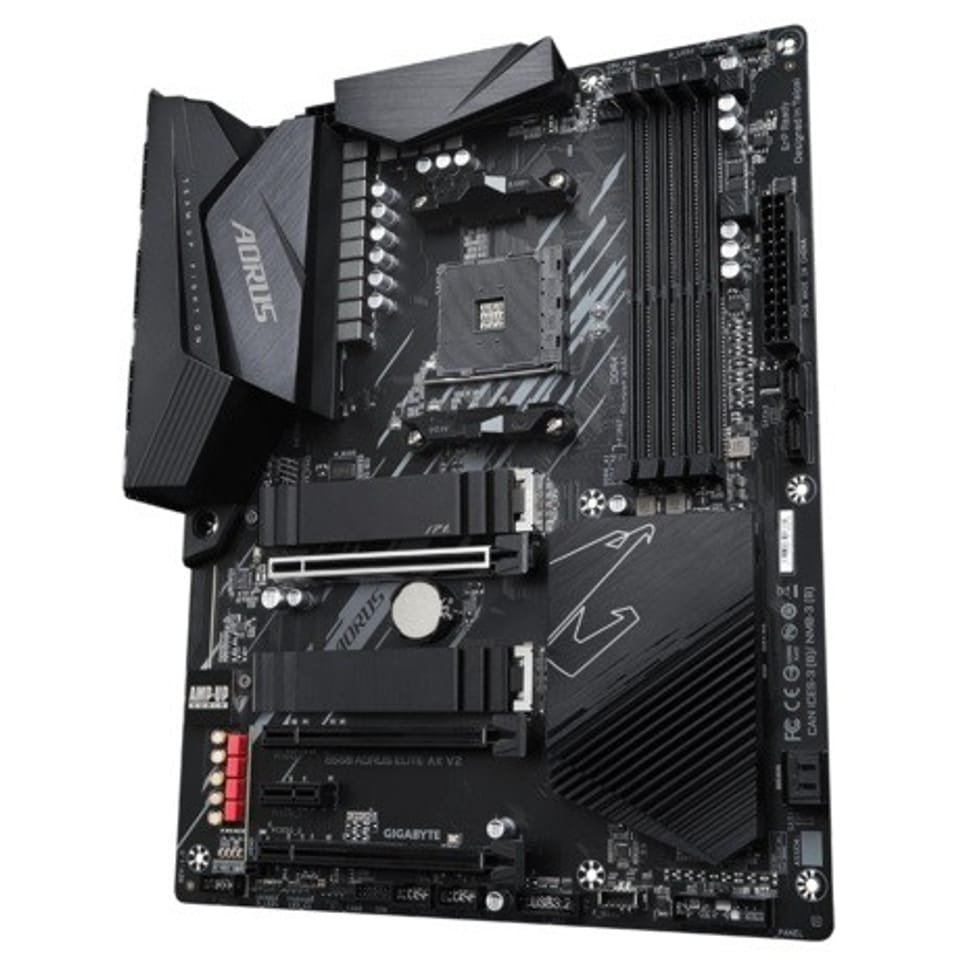

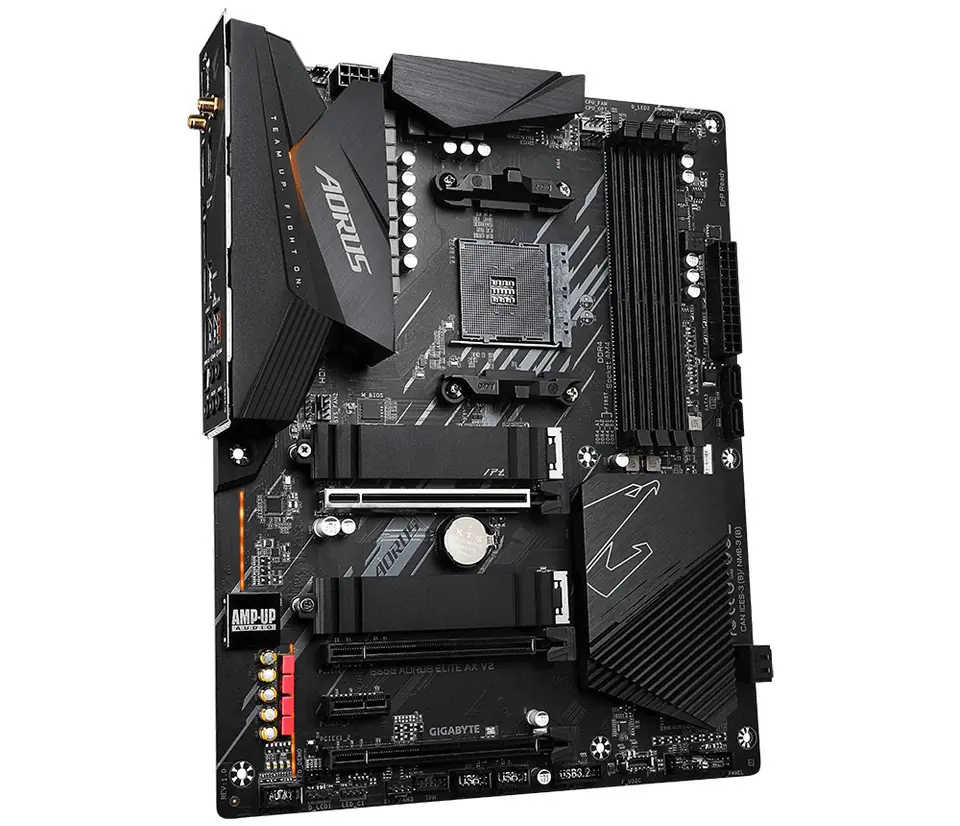

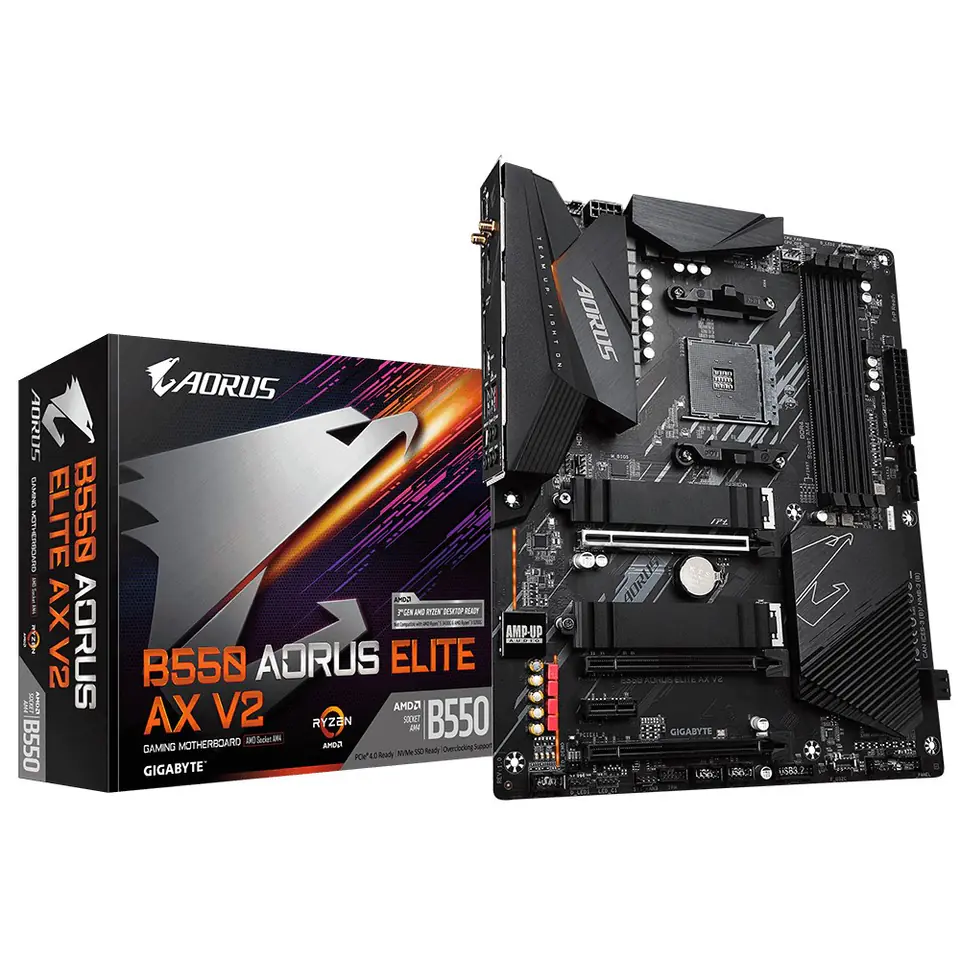

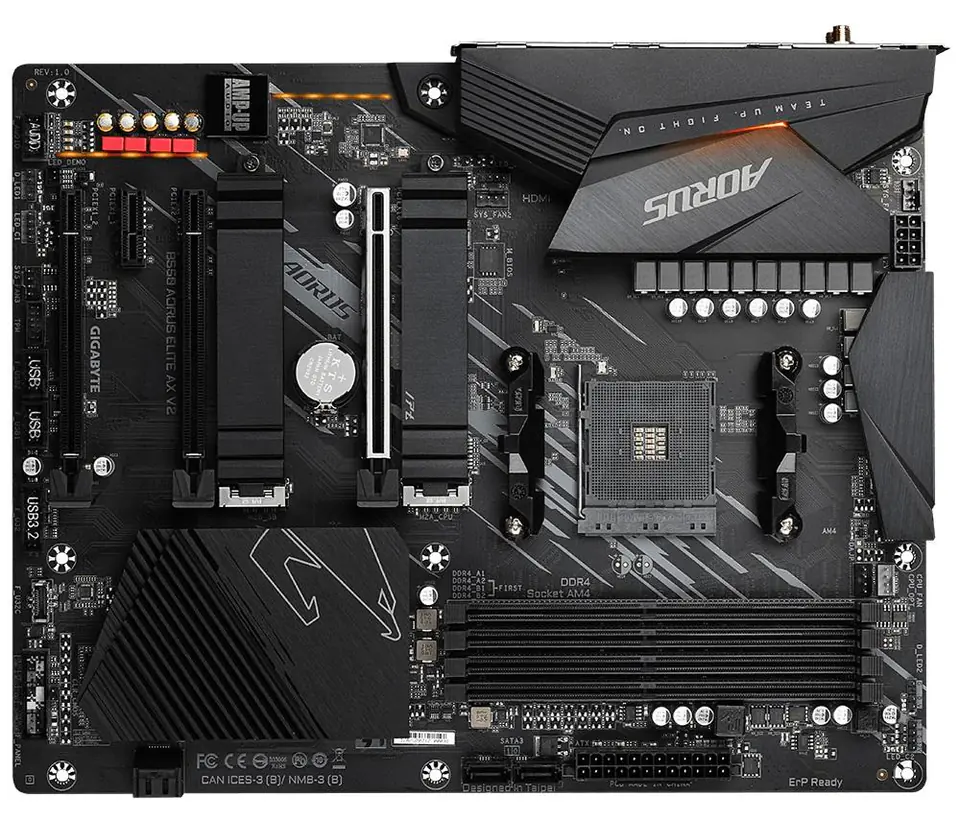

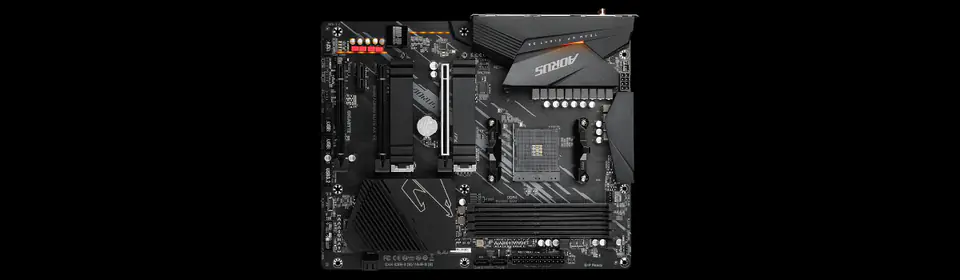

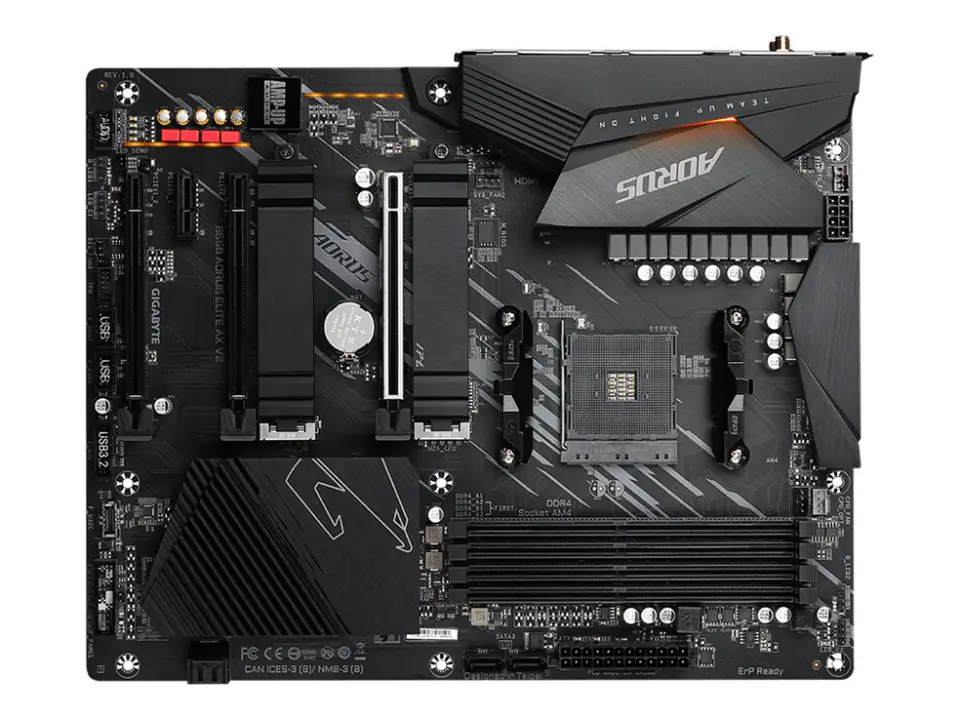

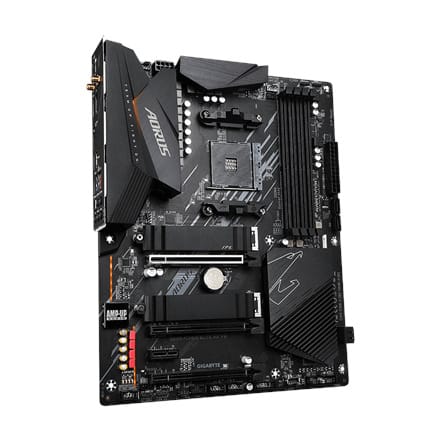

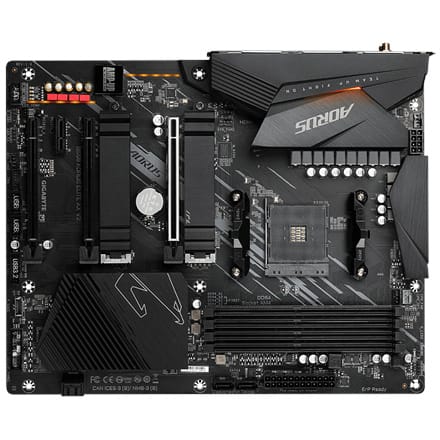

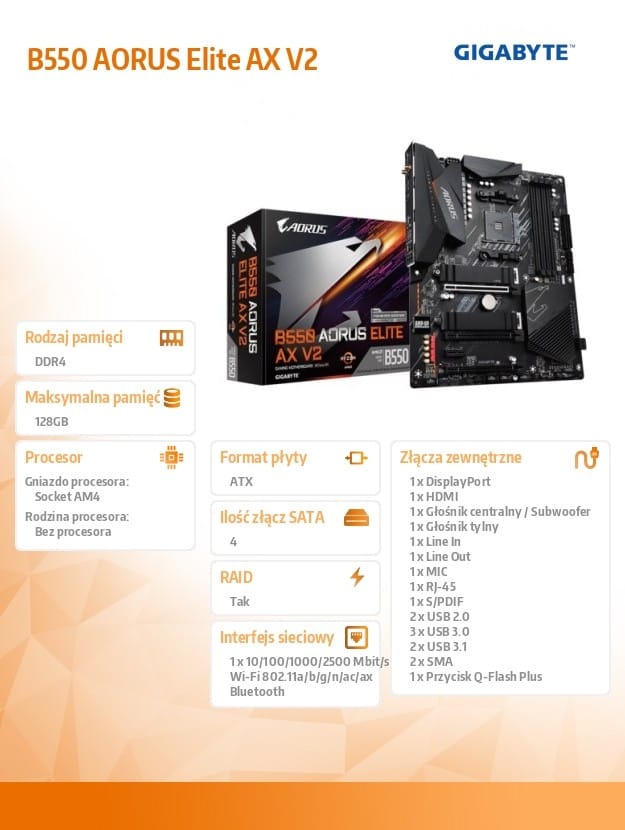

Gigabyte B550 AORUS ELITE AX V2 motherboard AMD B550 Socket AM4 ATX

Name: Gigabyte B550 AORUS ELITE AX V2 motherboard AMD B550 Socket AM4 ATX
Brand: Gigabyte
SKU: 366924
Price: 190.47 EUR
Availability: InStock

€190.47

Shipping from warehouse: ⁨M7⁩

Estimated shipping: Mon, Nov 18 - Thu, Nov 21

14 days returnUnconditional return policy

Availability:: large quantity
Brand:: Gigabyte
Product code:: B550 AORUS ELITE AX V2 / 4719331809904

Specification

12v power connector:	Yes
Atx power connector (24-pin):	Yes
Audio chip:	Realtek ALC1200
Audio output channels:	7.1 channels
Batteries included:	Yes
Battery technology:	Lithium-Manganese Dioxide (LiMnO2)
Battery type:	CR2032
Battery weight:	3 g

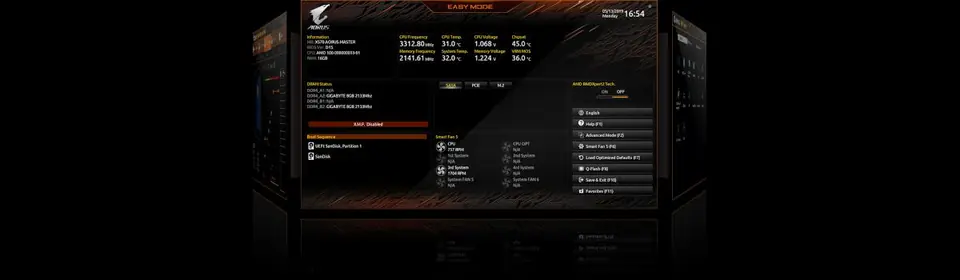

Bios type:	UEFI AMI
Bluetooth:	Yes
Bluetooth version:	5.2
Clear cmos jumper:	Yes
Compatible processor series:	AMD Ryzen 3000 Series
Country of origin:	China
Cpu fan connector:	Yes
Depth:	244 mm
Desktop management interface (dmi) version:	2.7
Directx version:	12.0
Displayports quantity:	1
Ecc сompatibility:	ECC & Non-ECC

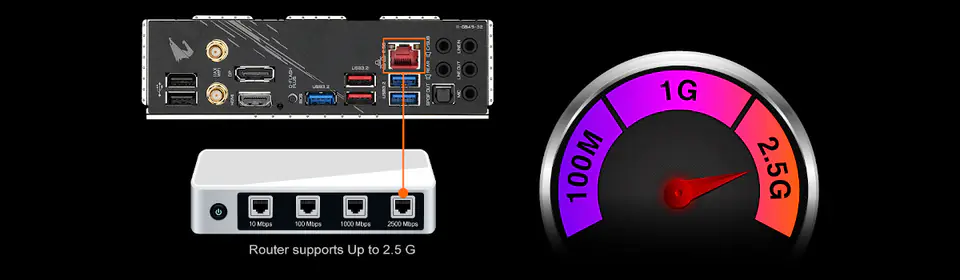

Ethernet interface type:	2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet lan:	Yes
Ethernet lan (rj-45) ports:	1
Front panel audio connector:	Yes
Front panel connector:	Yes
Harmonized system (hs) code:	84733020
Hdmi ports quantity:	1
Headphone outputs:	1
Height:	35 mm
Lithium weight per battery:	0.07 g
Maximum internal memory:	128 GB
Maximum internal memory supported by processor:	128 GB
Maximum number of smp processors:	1
Maximum resolution:	5120 x 2880 pixels
Memory channels:	Dual-channel
Memory slots type:	DIMM
Microphone in:	Yes
Motherboard chipset:	AMD B550
Motherboard chipset family:	AMD
Motherboard form factor:	ATX
Number of battery cells:	1
Number of chassis fan connectors:	3
Number of hdds supported:	4
Number of m.2 (m) slots:	2
Number of memory slots:	4
Number of sata connectors:	4
Number of sata iii connectors:	4
Number of storage drives supported:	6
Package depth:	270 mm
Package height:	80 mm
Package weight:	1.89 kg
Package width:	335 mm
Parallel processing technology support:	Not supported
Pc health monitoring:	Fan, Voltage, CPU, Temperature
Pci express x1 (gen 3.x) slots:	1
Pci express x16 (gen 4.x) slots:	1
Pci express x16 slots:	2
Power source type:	ATX
Processor manufacturer:	AMD
Processor socket:	Socket AM4
Product colour:	Black
Products per shipping (inner) case:	1 pc(s)
Raid levels:	0, 1, 10
Raid support:	Yes
Rgb led pin header:	Yes
S/pdif out port:	Yes
Supported memory clock speed (max):	4733 MHz
Supported memory clock speeds:	3200 MHz, 2667, 4400, 3333, 2933, 3600, 4733 MHz, 4000, 2133 MHz, 2400, 4600
Supported memory module capacities:	32GB, 16GB, 8GB
Supported memory types:	DDR4-SDRAM
Supported processor sockets:	Socket AM4
Supported processor sockets (cooler):	Socket AM4
Supported storage drive interfaces:	M.2, SATA III
Supported storage drive types:	HDD & SSD
Top wi-fi standard:	Wi-Fi 6E (802.11ax)
Total number of sata connectors:	4
Tpm connector:	Yes
Unbuffered memory:	Yes
Usb 2.0 connectors:	2
Usb 2.0 ports quantity:	2
Usb 3.2 gen 1 (3.1 gen 1) connectors:	1
Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity:	3
Usb 3.2 gen 2 (3.1 gen 2) type-a ports quantity:	2
Warranty period:	3 year(s)
Weight:	1.12 kg
Wi-fi:	Yes
Wi-fi standards:	Wi-Fi 6E (802.11ax), 802.11b, 802.11a, Wi-Fi 6 (802.11ax), 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Width:	305 mm
Wifi-ap antenna jack:	2
Windows operating systems supported:	Windows 11 x64, Windows 10 x64
Wlan controller model:	Intel Wi-Fi 6E AX210

Gwarancja:

Płyta główna AMD B550 AORUS z 12 + 2 fazami Digital Twin Power Design, powiększonymi radiatorami powierzchniowymi, podwójnym PCIe 4.0/3.0 x4 M.2 z podwójną osłoną termiczną, Intel WiFi 6 802.11ax, 2.5GbE LAN, USB Type-C z przodu, RGB FUSION 2.0, Q-Flash Plus

B550 AORUS Elite AX V2

AMD B550

RAID 0, RAID 1, and RAID 10

Wsparcie dla APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Obsługa @ BIOS
EasyTune
Fast Boot
Game Boost
Obsługa ON/OFF Charge

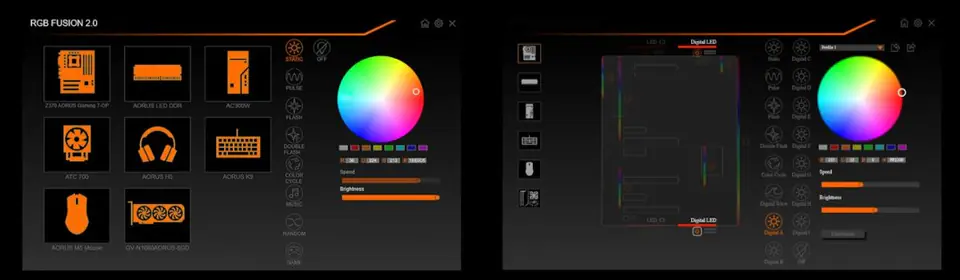

RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Obsługa Q-Flash
wsparcie dla Xpress Install

1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

30.5cm x 24.4cm

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
