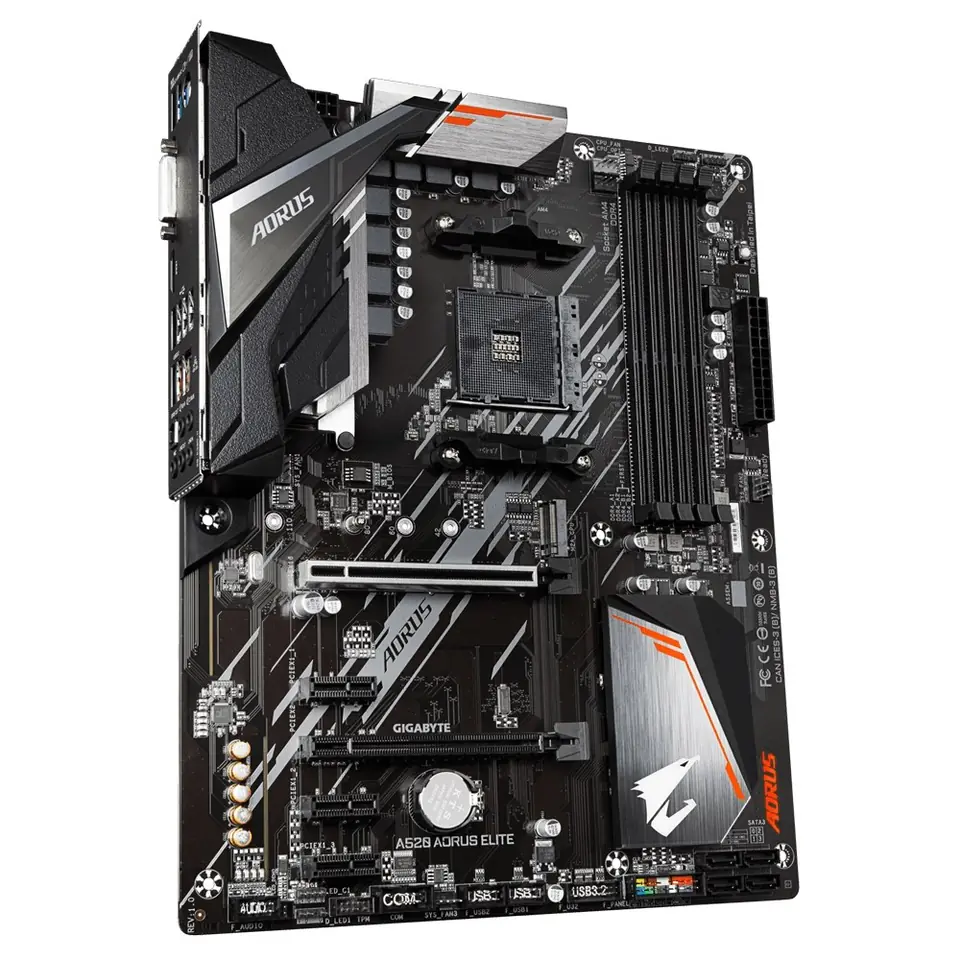

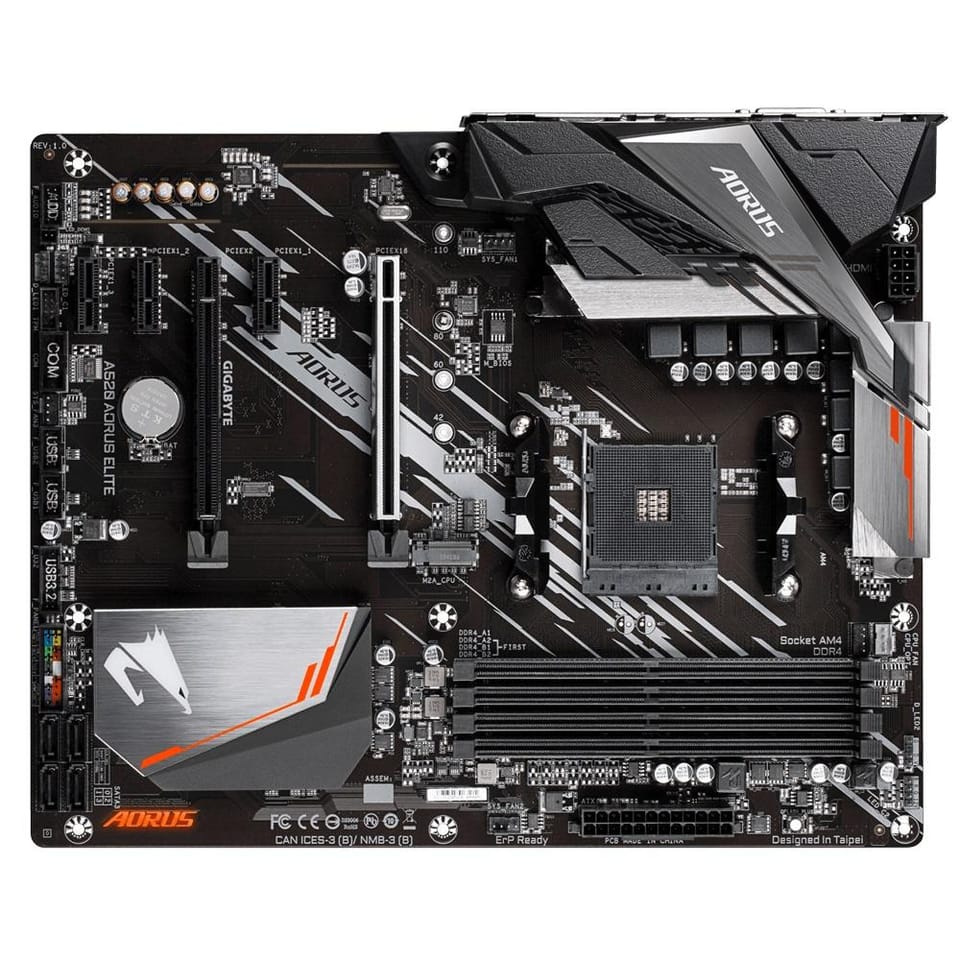

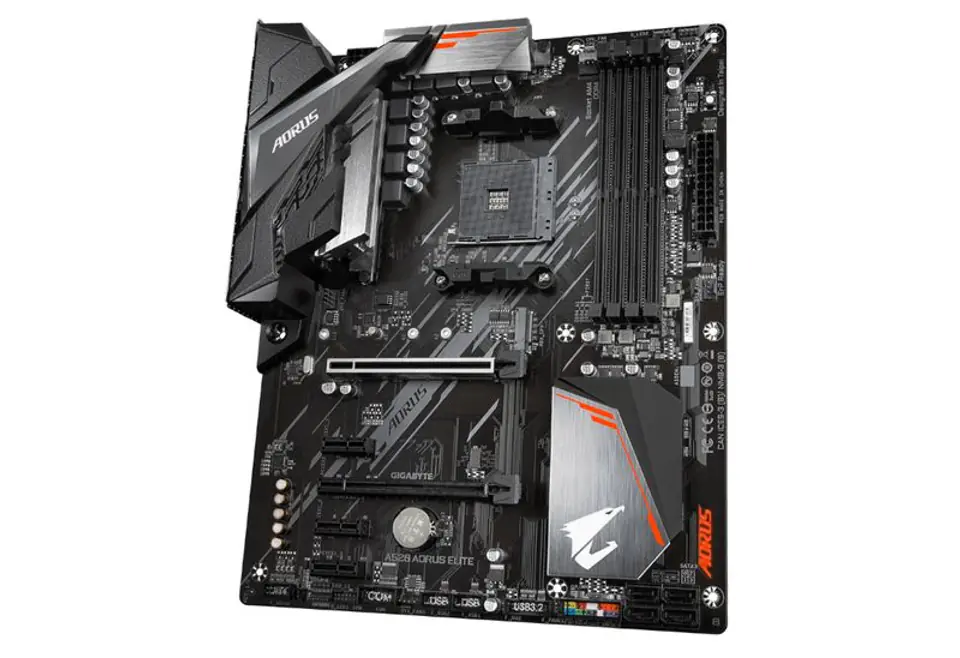

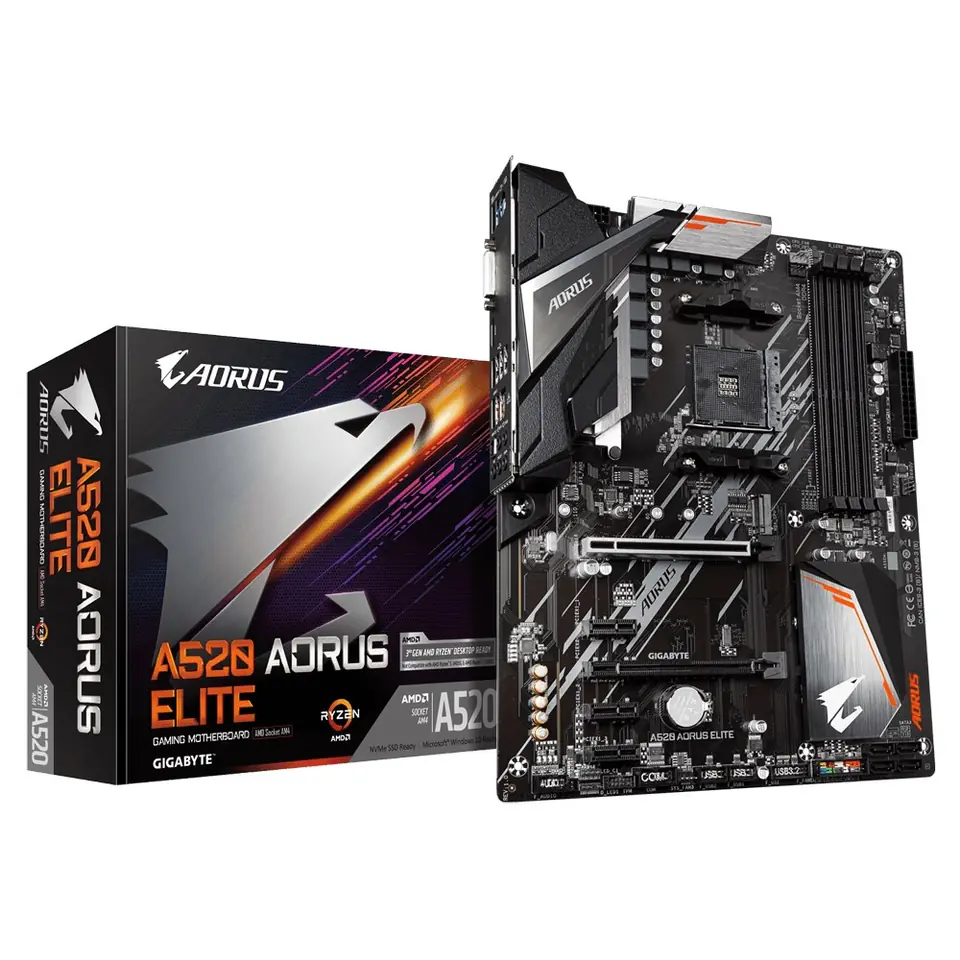

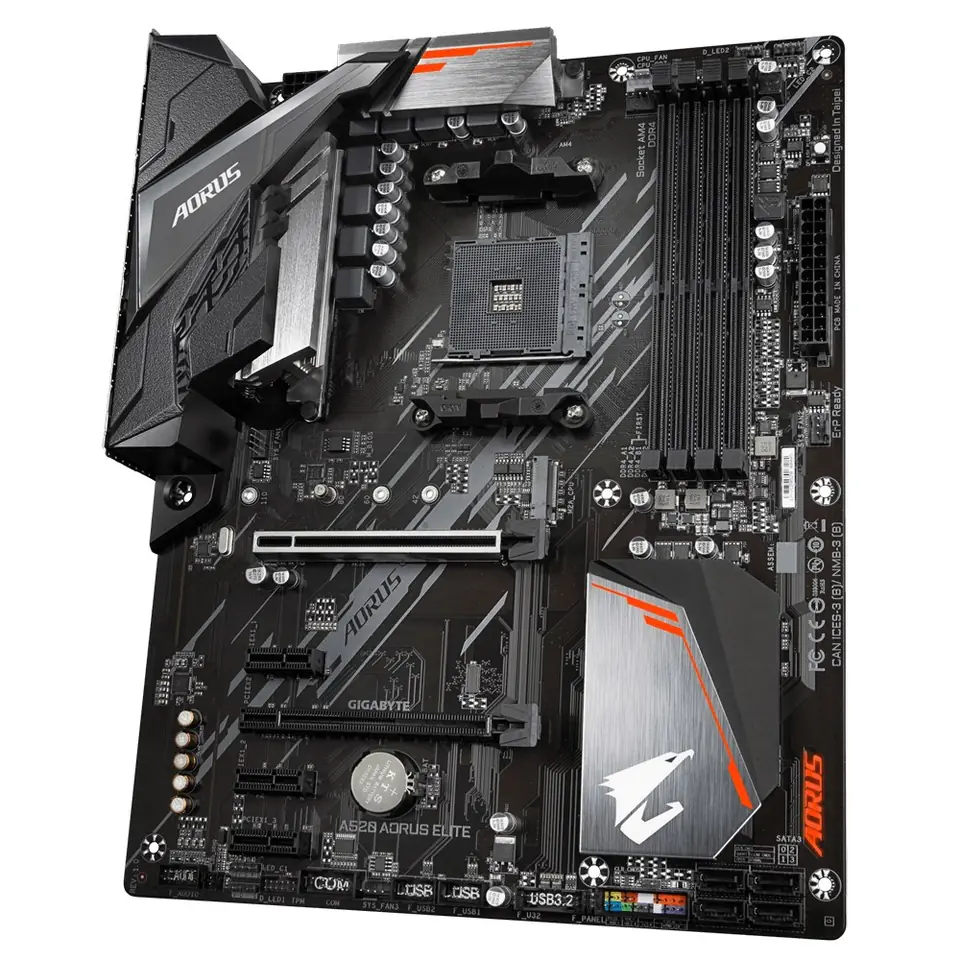

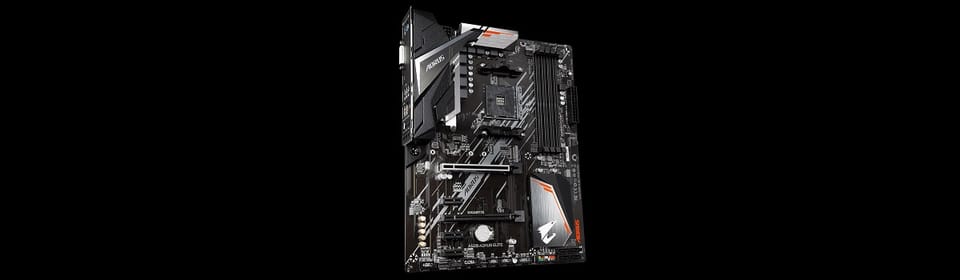

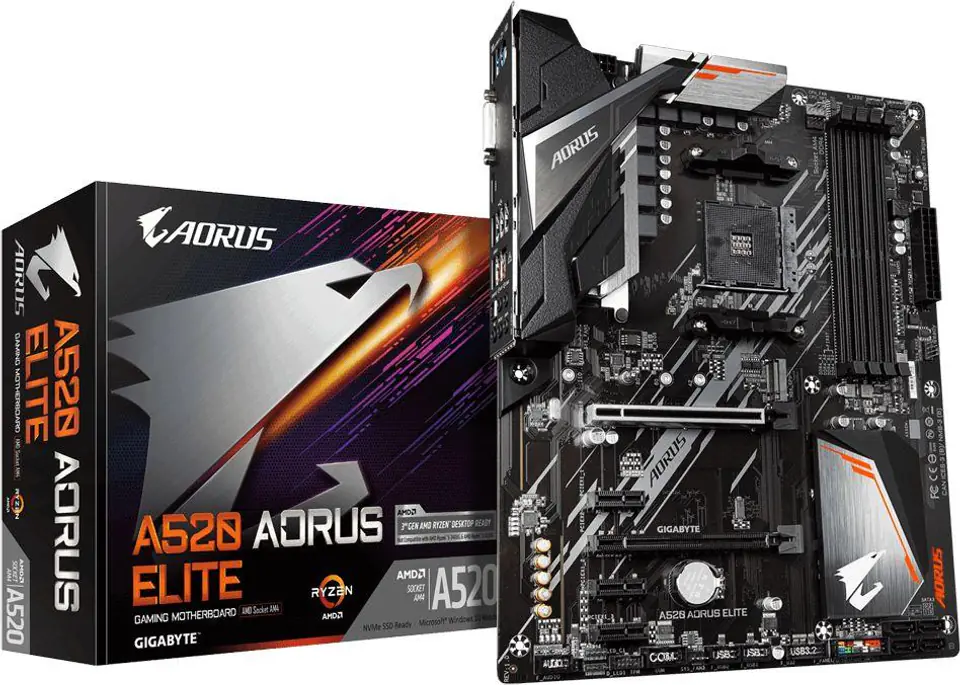

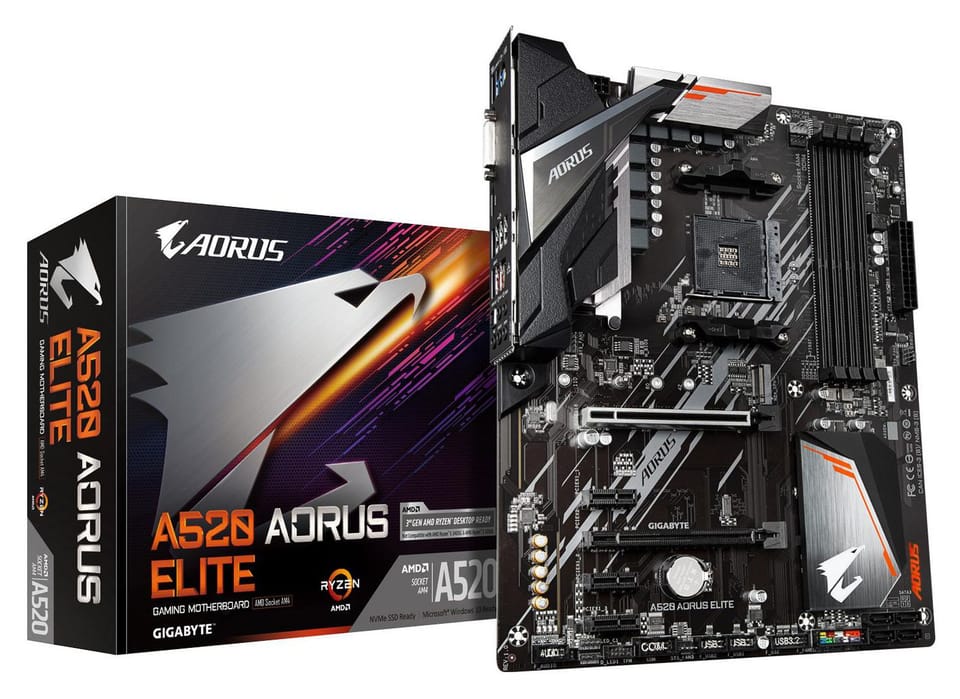

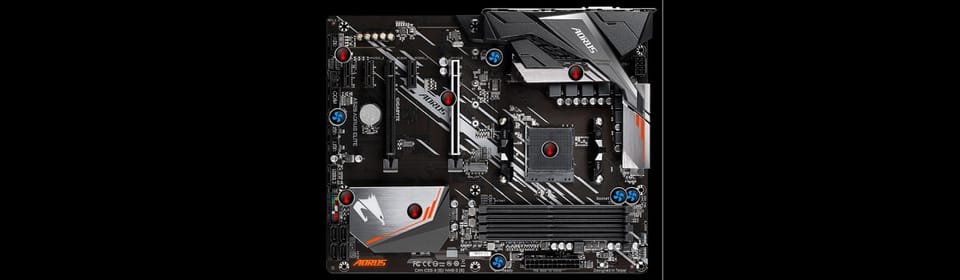

Gigabyte A520 AORUS ELITE motherboard Socket AM4 ATX AMD A520
€102.31
Shipping from warehouse: M7
Estimated shipping: Mon, Nov 25 - Tue, Nov 26
14 days returnUnconditional return policy
- Availability:
- large quantity
- Brand:
- Gigabyte
- Product code:
- A520 AORUS ELITE / 4719331809812
Share this product:
Specification
| Atx power connector (24-pin): | Yes |
|---|---|
| Audio chip: | Realtek ALC1200 |
| Audio output channels: | 7.1 channels |
| Bios type: | UEFI AMI |
| Clear cmos jumper: | Yes |
| Compatible processor series: | 3rd Generation AMD Ryzen™ 7, 3rd Generation AMD Ryzen 5, 3rd Generation AMD Ryzen™ 9, 3rd Generation AMD Ryzen™ 3 |

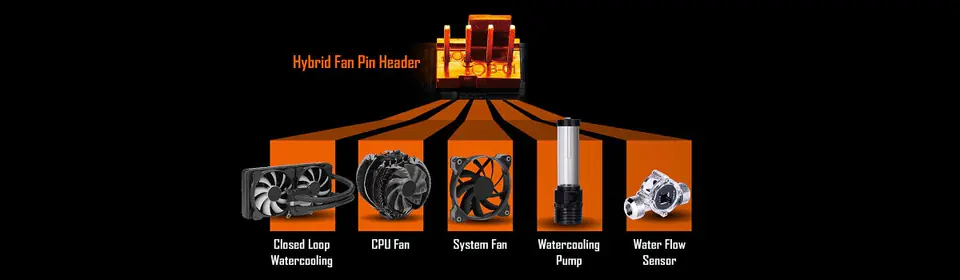

| Cpu fan connector: | Yes |
| Depth: | 244 mm |
| Desktop management interface (dmi) version: | 2.7 |

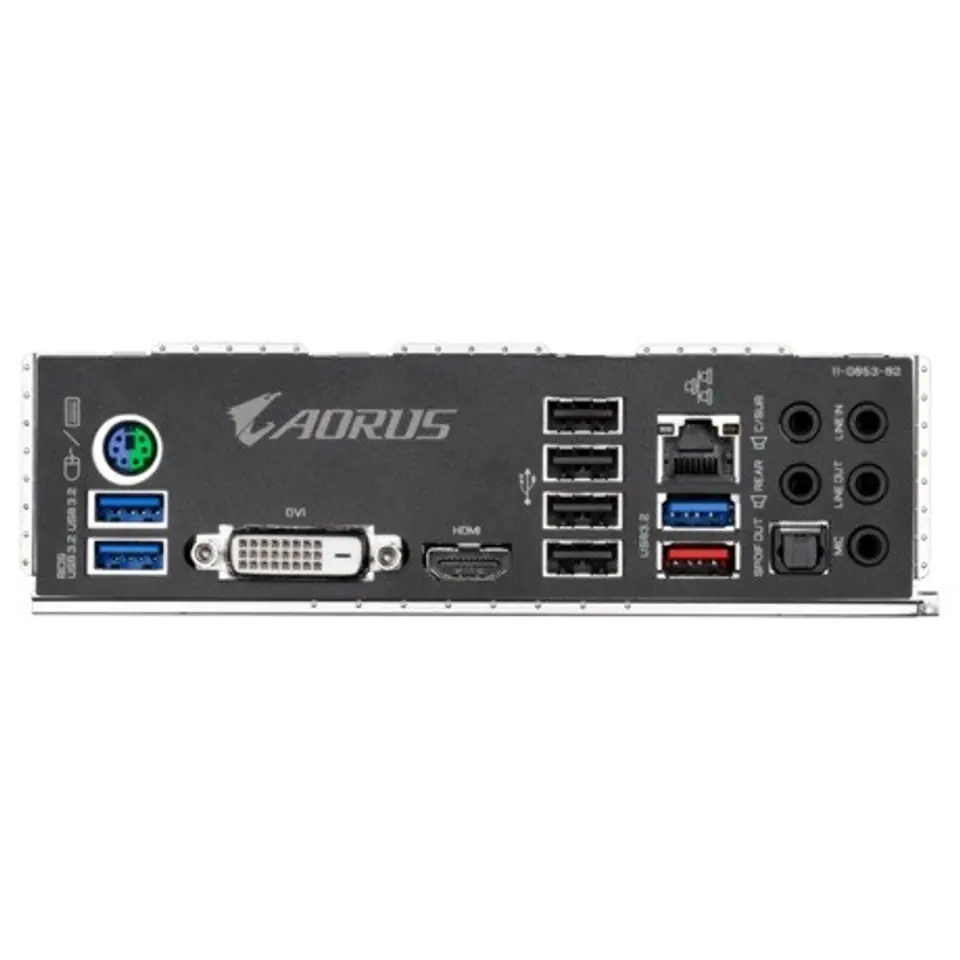

| Dvi-d ports quantity: | 1 |
| Eps power connector (8-pin): | Yes |
| Ethernet interface type: | Gigabit Ethernet |
| Ethernet lan: | Yes |
| Ethernet lan (rj-45) ports: | 1 |
| Front panel audio connector: | Yes |
| Front panel connector: | Yes |
| Hdcp: | Yes |
| Hdmi ports quantity: | 1 |
| Hdmi version: | 2.1 |
| Headphone outputs: | 5 |
| Maximum internal memory: | 128 GB |
| Maximum resolution: | 4096 x 2160 pixels |
| Memory channels: | Dual-channel |
| Memory slots type: | DIMM |
| Motherboard chipset: | AMD A520 |
| Motherboard chipset family: | AMD |
| Motherboard form factor: | ATX |
| Number of m.2 (m) slots: | 1 |
| Number of memory slots: | 4 |
| Number of sata iii connectors: | 4 |
| Number of storage drives supported: | 5 |
| Pc health monitoring: | Temperature, Voltage, Fan |
| Pci express x1 slots: | 3 |
| Pci express x16 slots: | 1 |
| Power fan connector: | Yes |
| Processor manufacturer: | AMD |
| Processor socket: | Socket AM4 |
| Ps/2 ports quantity: | 1 |
| Raid levels: | 0, 1, 10 |
| Rgb led pin header: | Yes |
| S/pdif out port: | Yes |
| Serial port headers: | 1 |
| Supported memory clock speeds: | 4000, 3333, 2667, 4400 MHz, 2133, 3200 MHz, 2933, 3600, 4733 MHz, 2400, 4600 |
| Supported memory types: | DDR4-SDRAM |
| Supported processor sockets: | Socket AM4 |
| Supported storage drive interfaces: | M.2, Serial ATA III |
| Tpm connector: | Yes |
| Unbuffered memory: | Yes |
| Usb 2.0 connectors: | 2 |
| Usb 2.0 ports quantity: | 4 |
| Usb 3.2 gen 1 (3.1 gen 1) connectors: | 1 |
| Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: | 3 |
| Usb 3.2 gen 2 (3.1 gen 2) type-a ports quantity: | 1 |
| Width: | 305 mm |
| Windows operating systems supported: | Windows 10 x64 |
