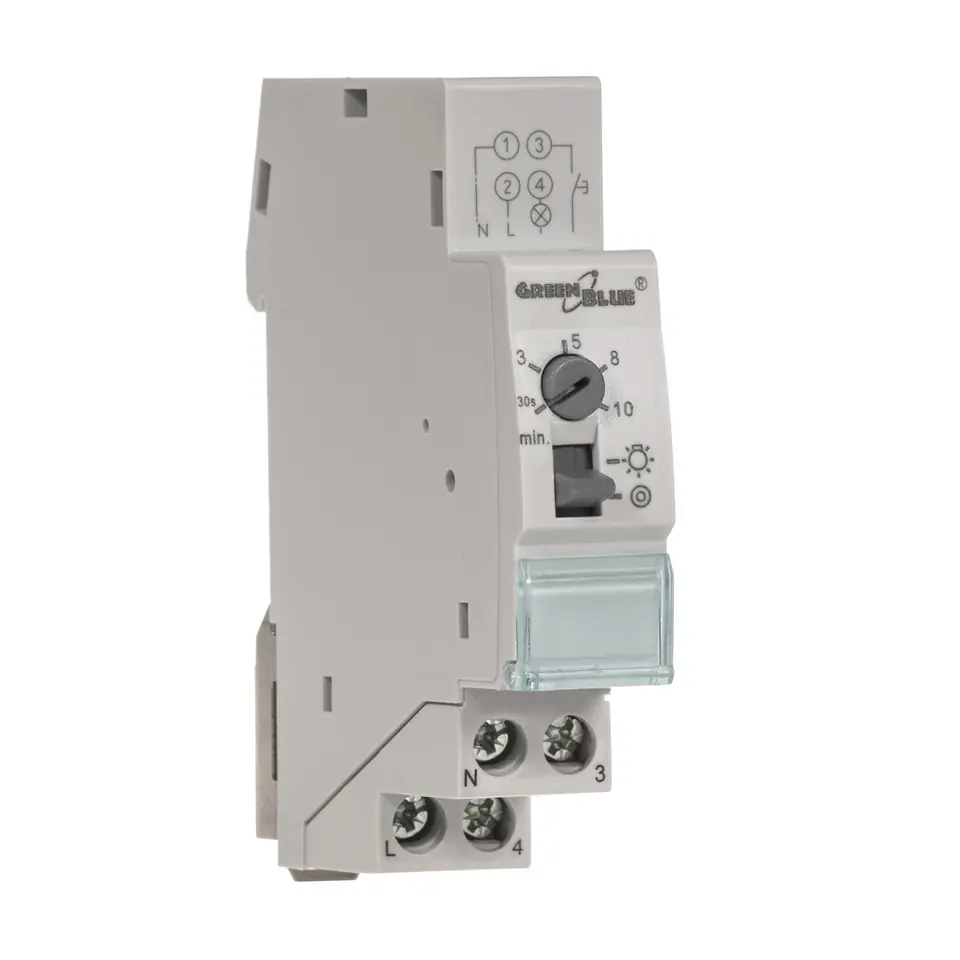

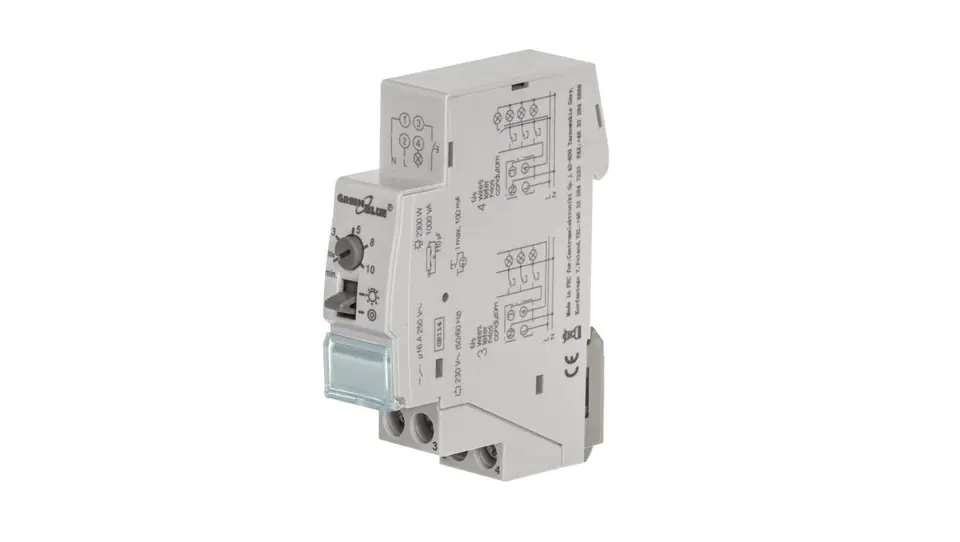

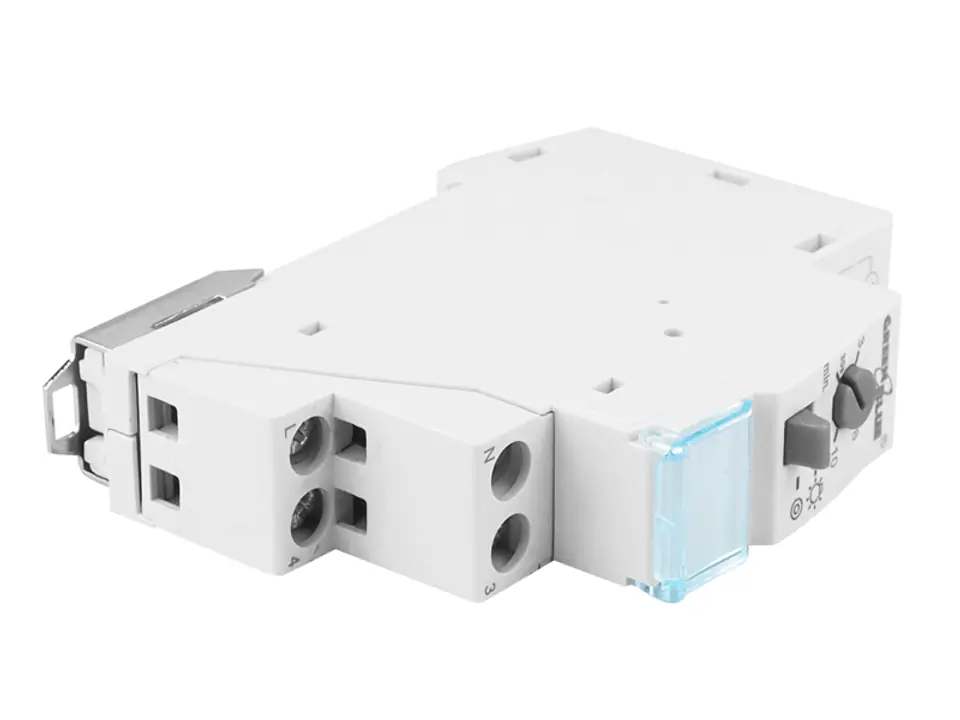

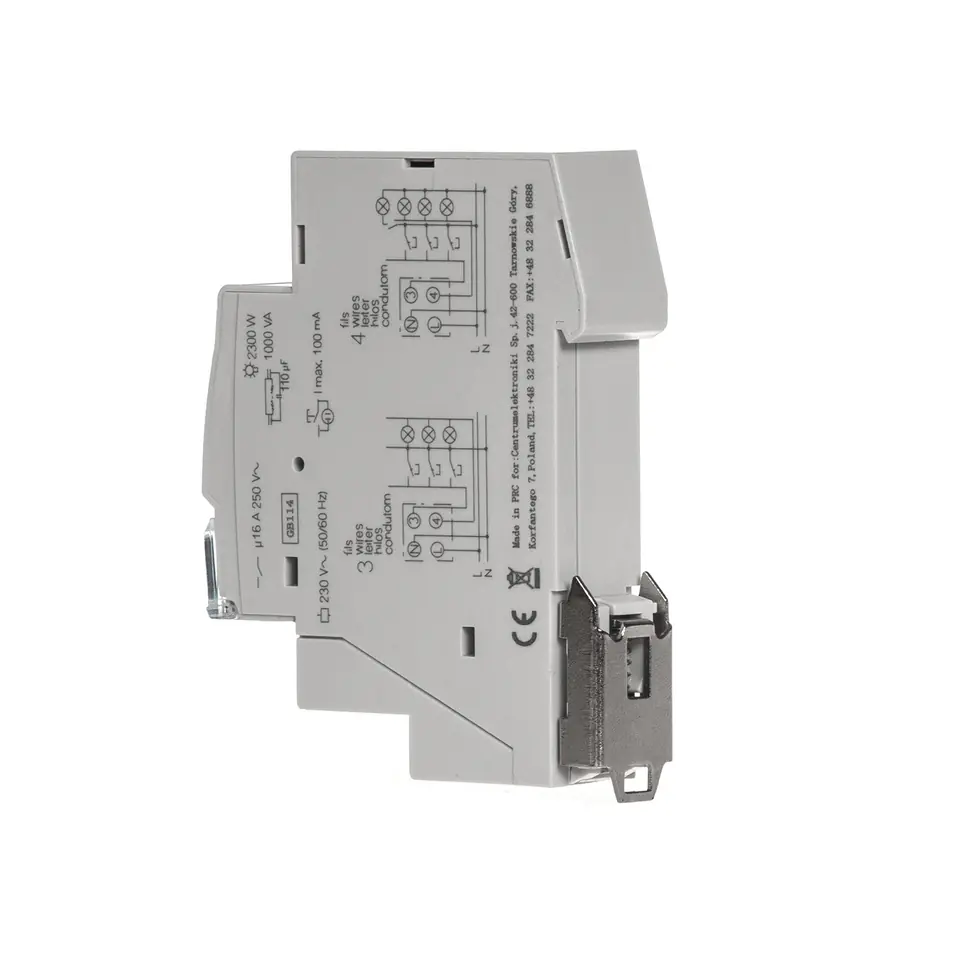

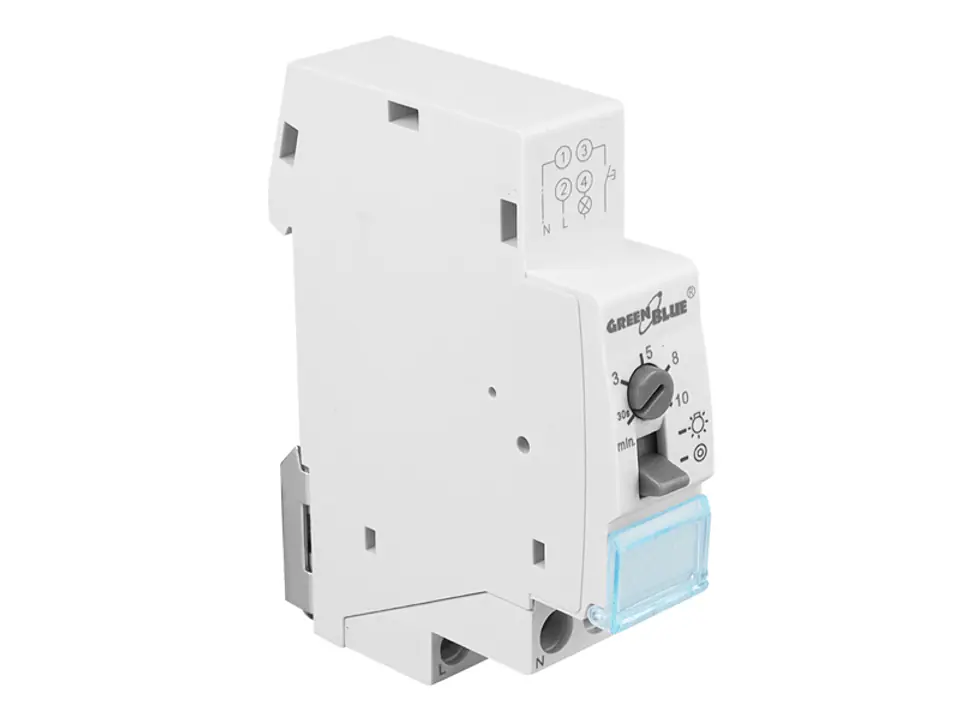

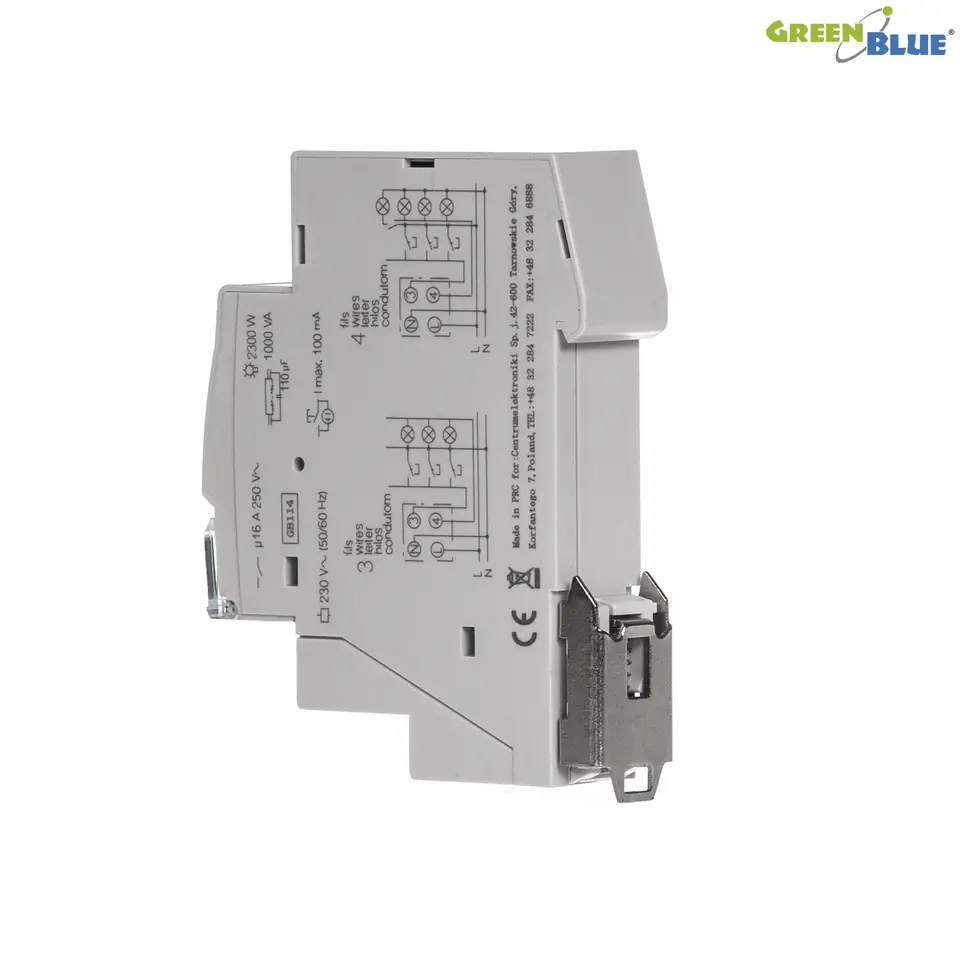

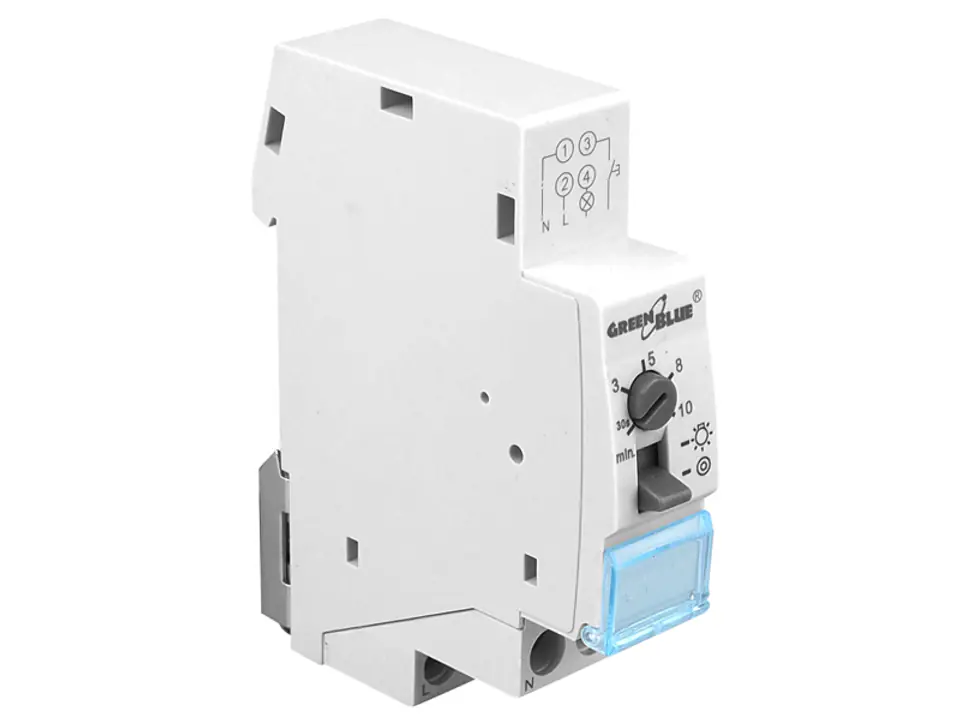

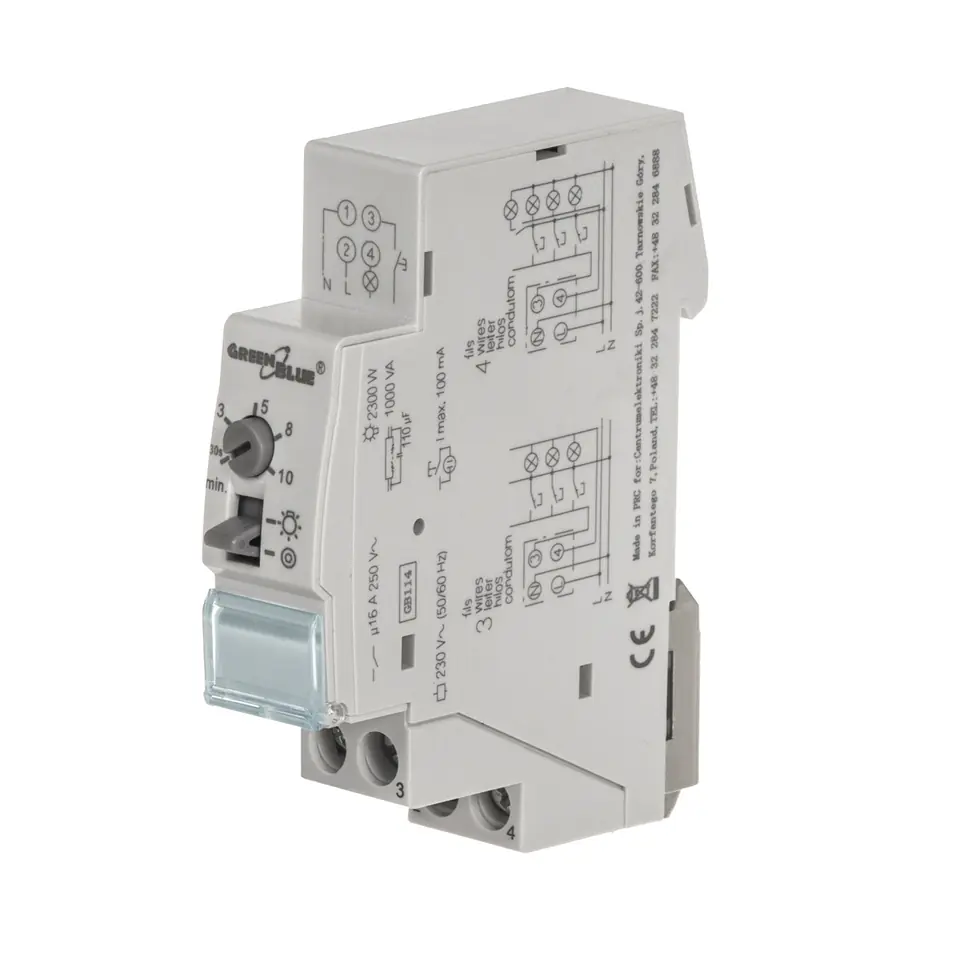

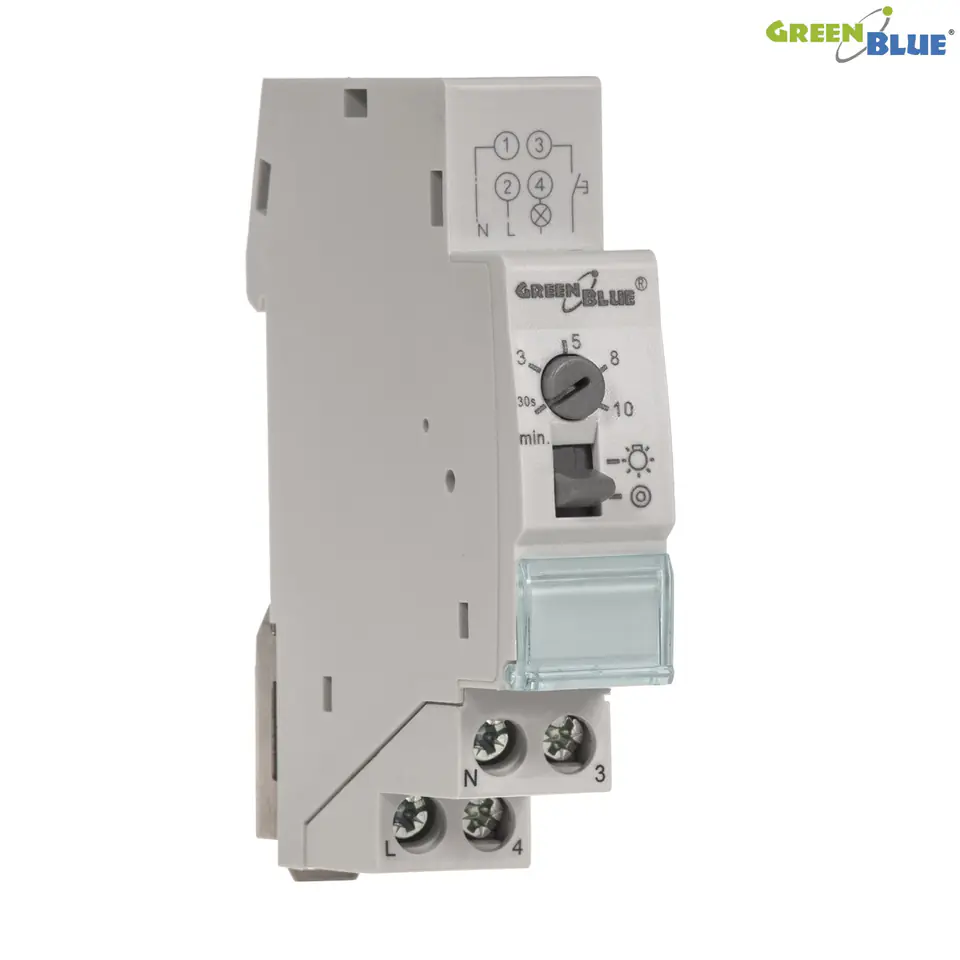

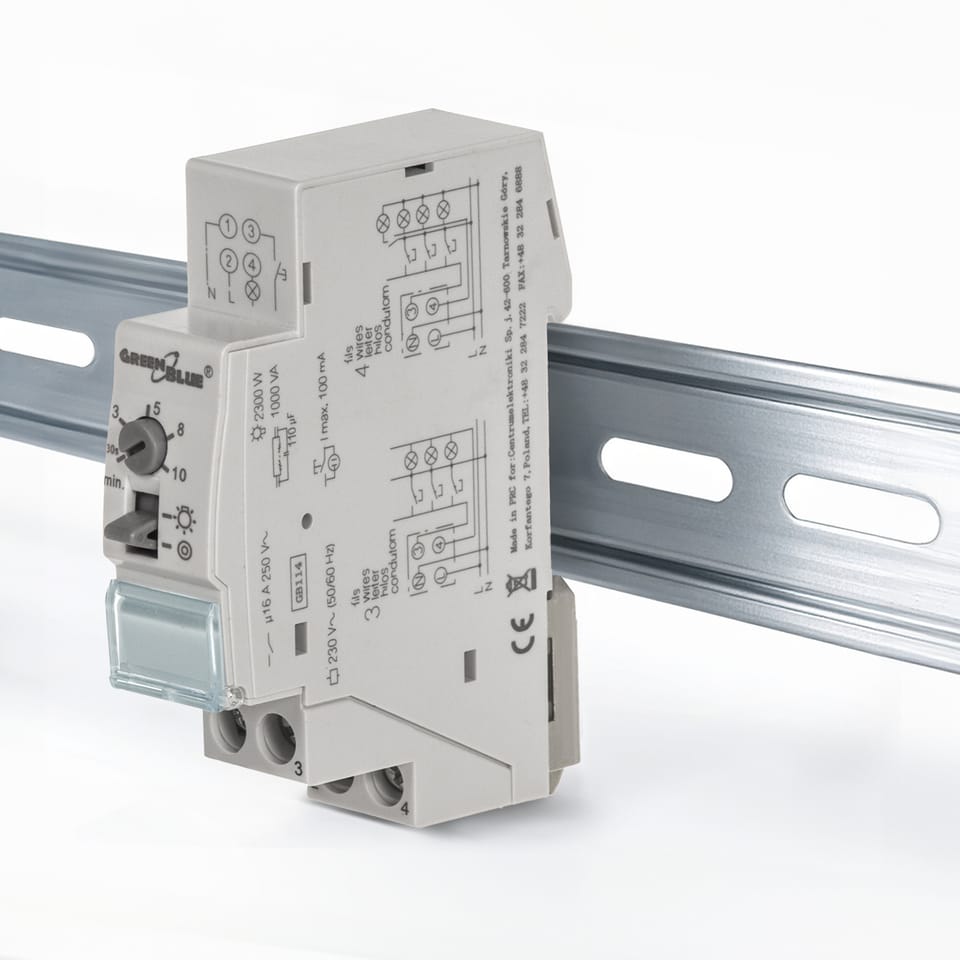

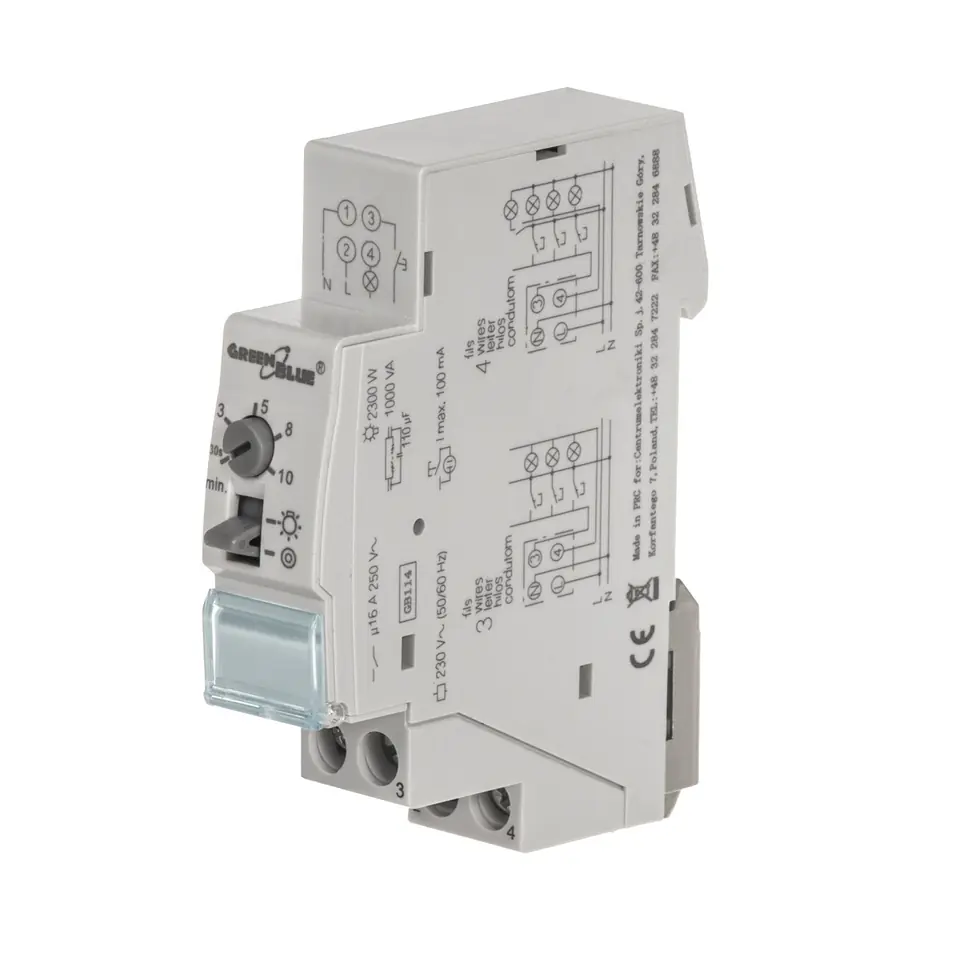

GB114 45780 Stair vending machine for DIN rail adjustable 30s-10m max 2300W
The staircase automaton is used to maintain the lighting on in corridors, staircases, communication routes of office buildings and hotels or other facilities for a specified period of time, after which the lighting will be automatically turned off.
Specification:
- Infinitely adjustable working time: 30 sec. - 10 min.
- Two modes of operation - continuous or temporary

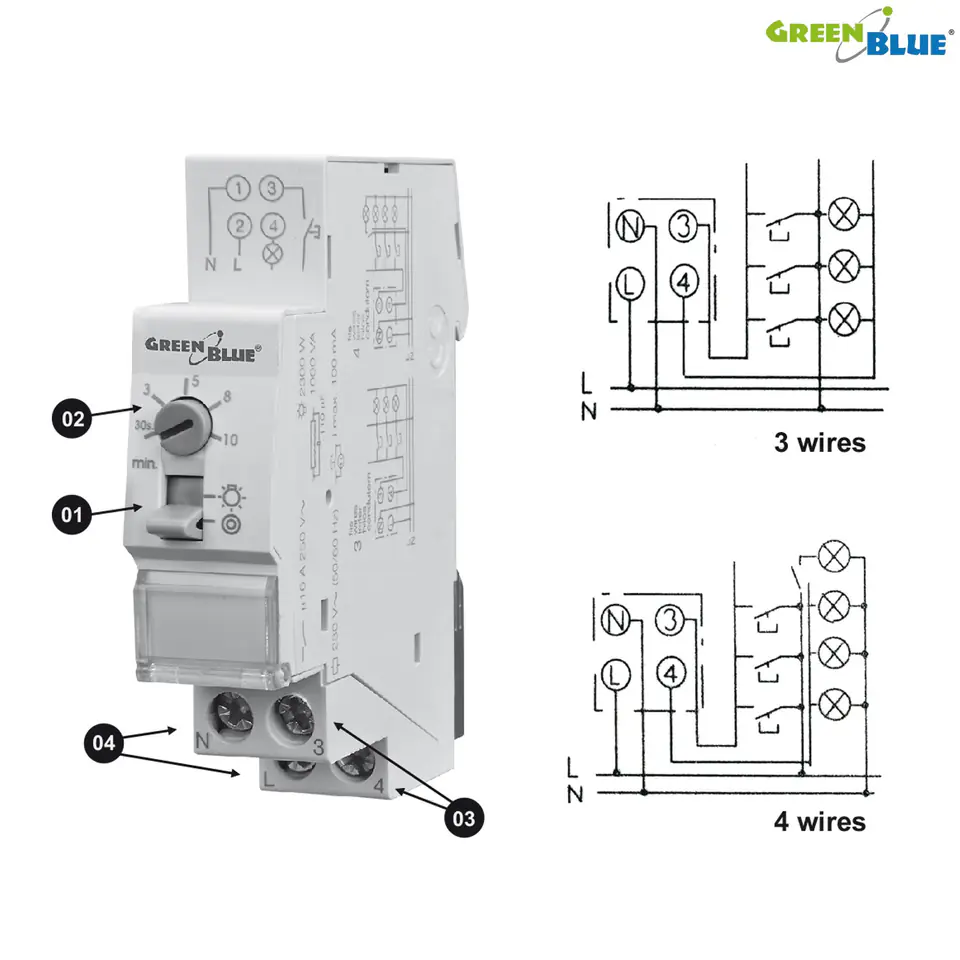

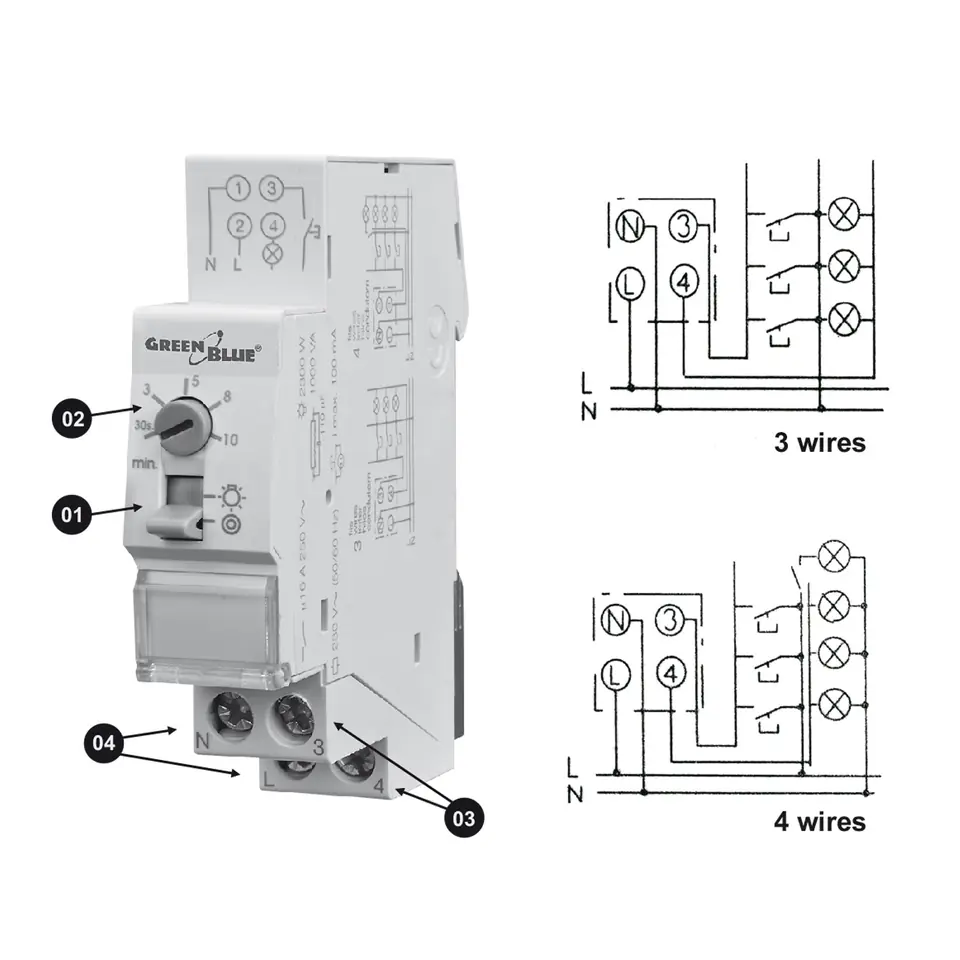

- 3 or 4-wire installation

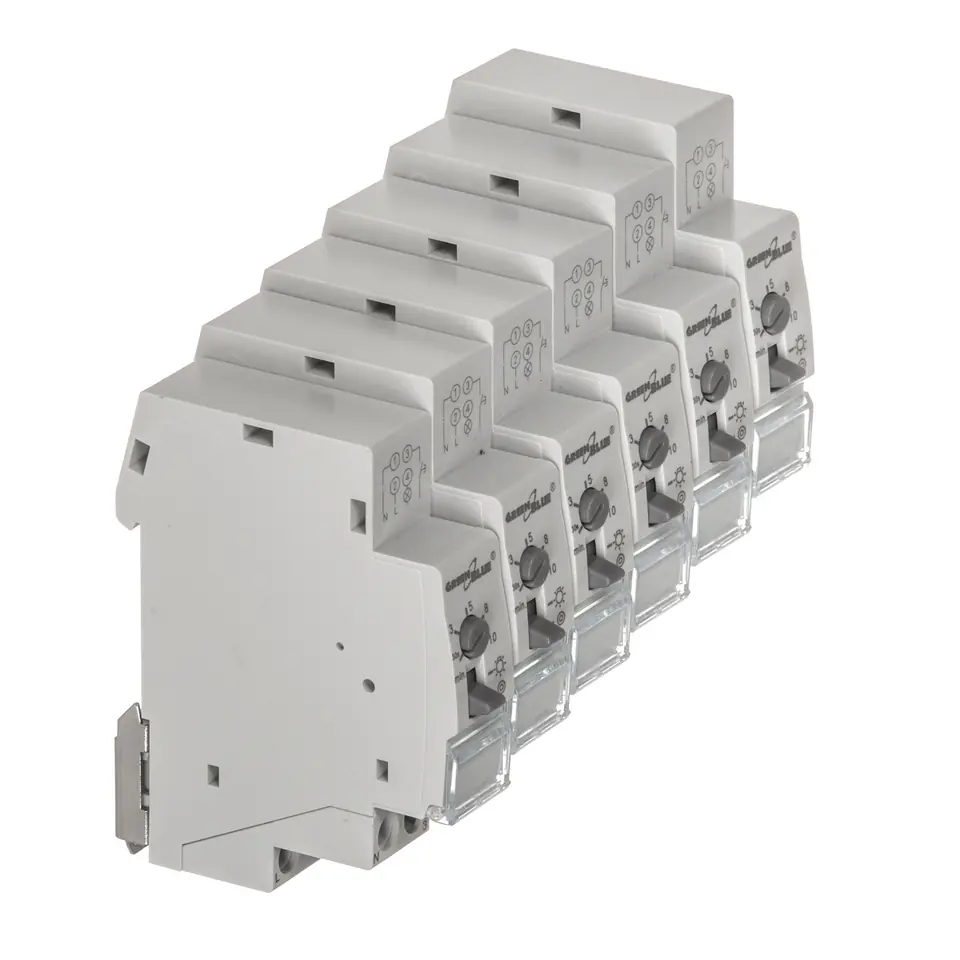

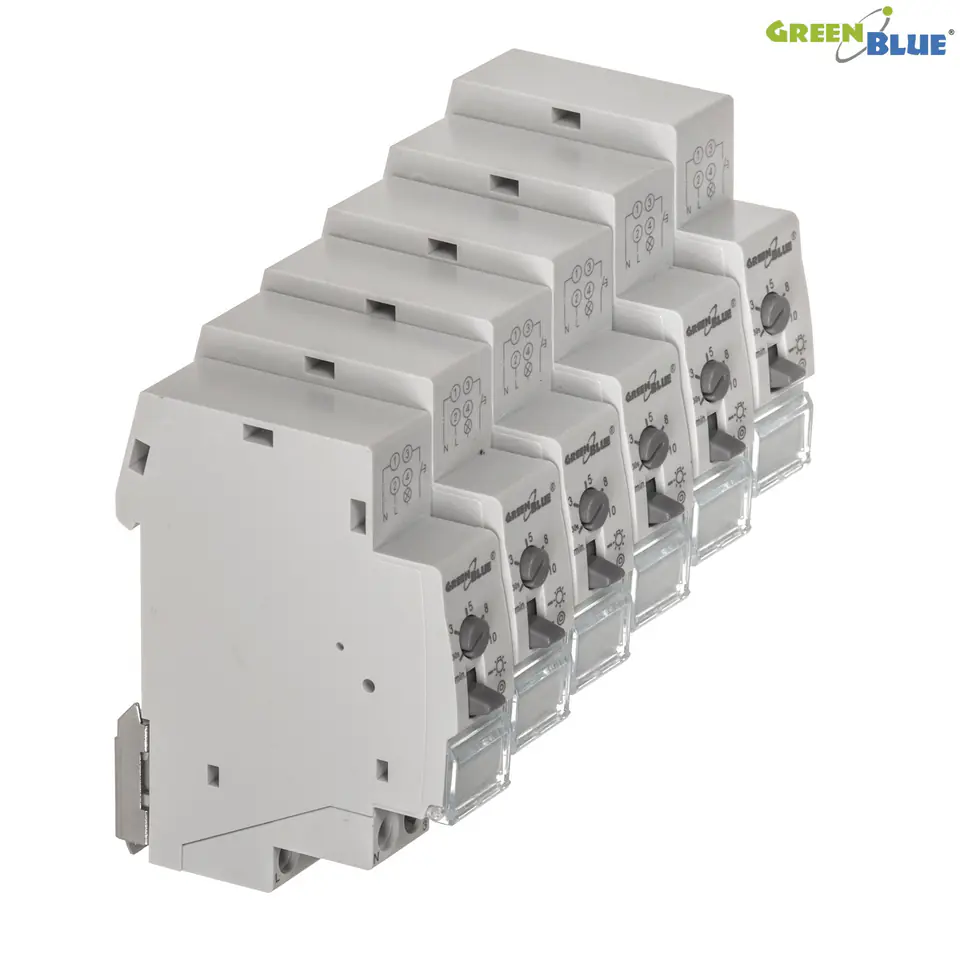

- 1-module housing, mounted on a standard DIN rail
- Works with LED lighting
Technical data:
- Connectors None
- Mains
- Grey

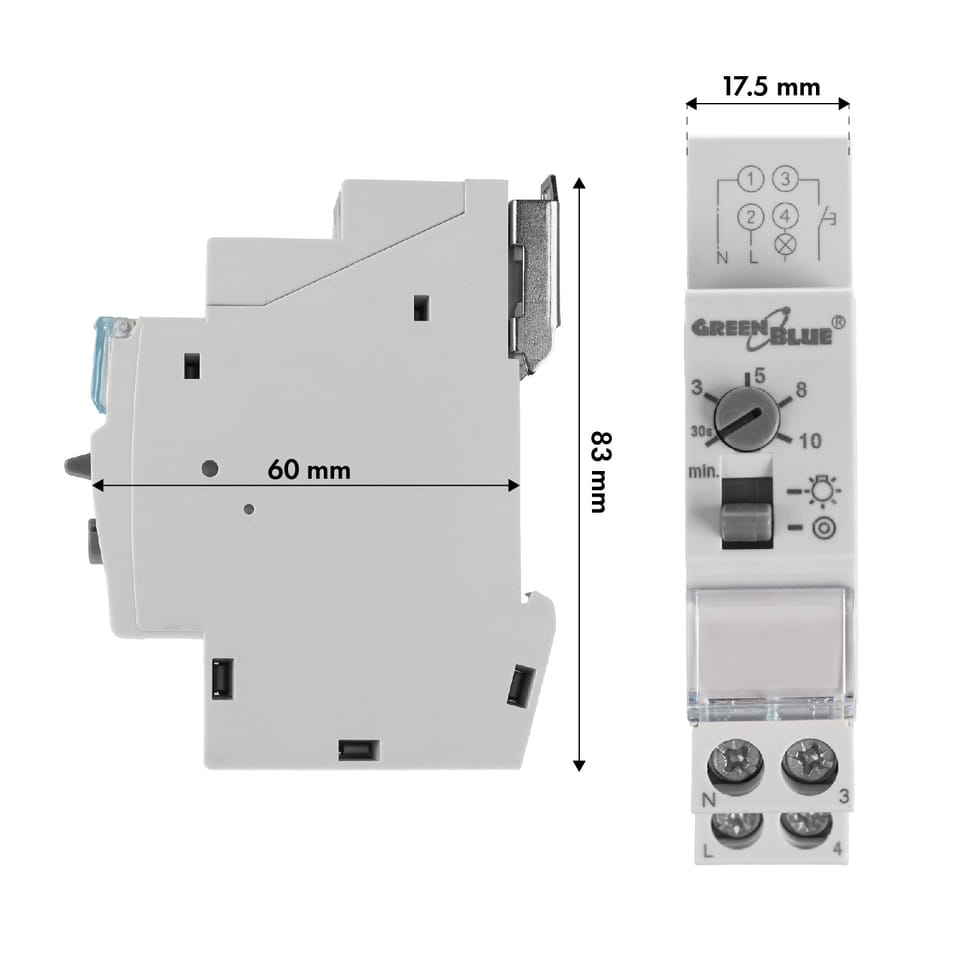

- Dimensions 17,5 x 83 x 60 mm
- Max. current: 10A/250V
- Protection class: IP20
- Mounting: DIN rail
- Operating temperature: -10/50o
