Product code: 1010659

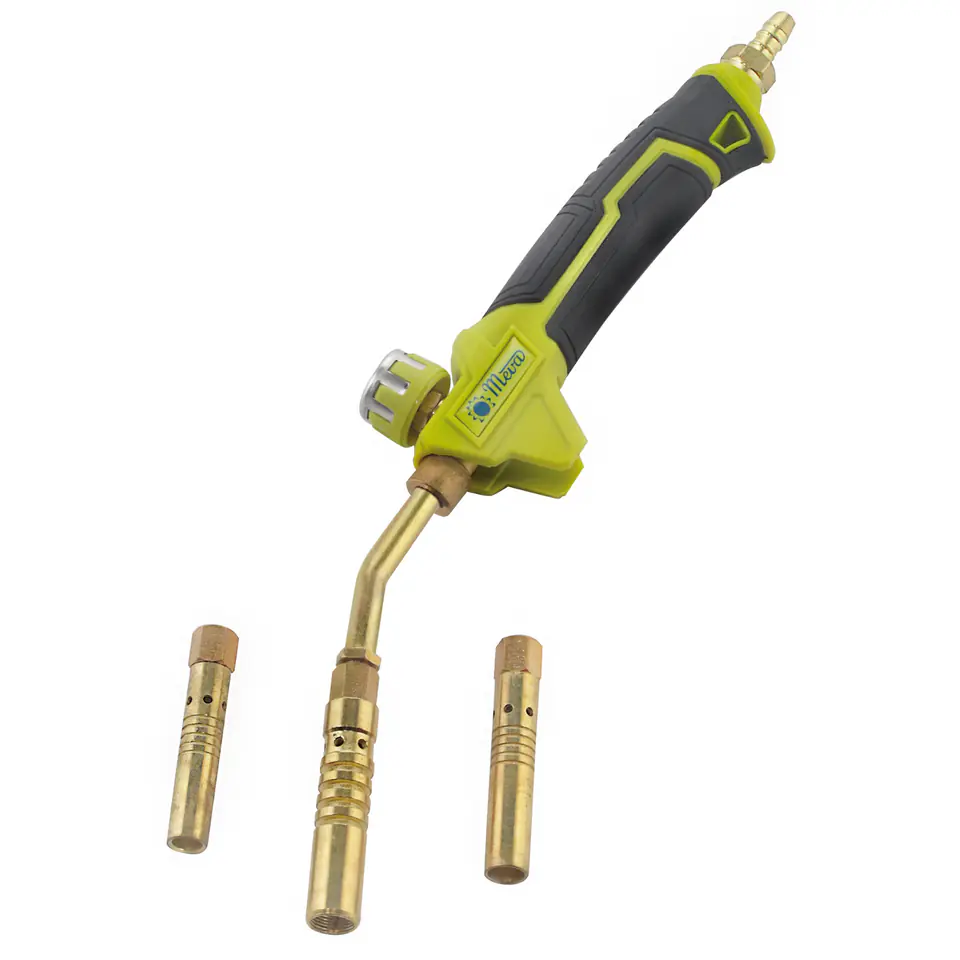

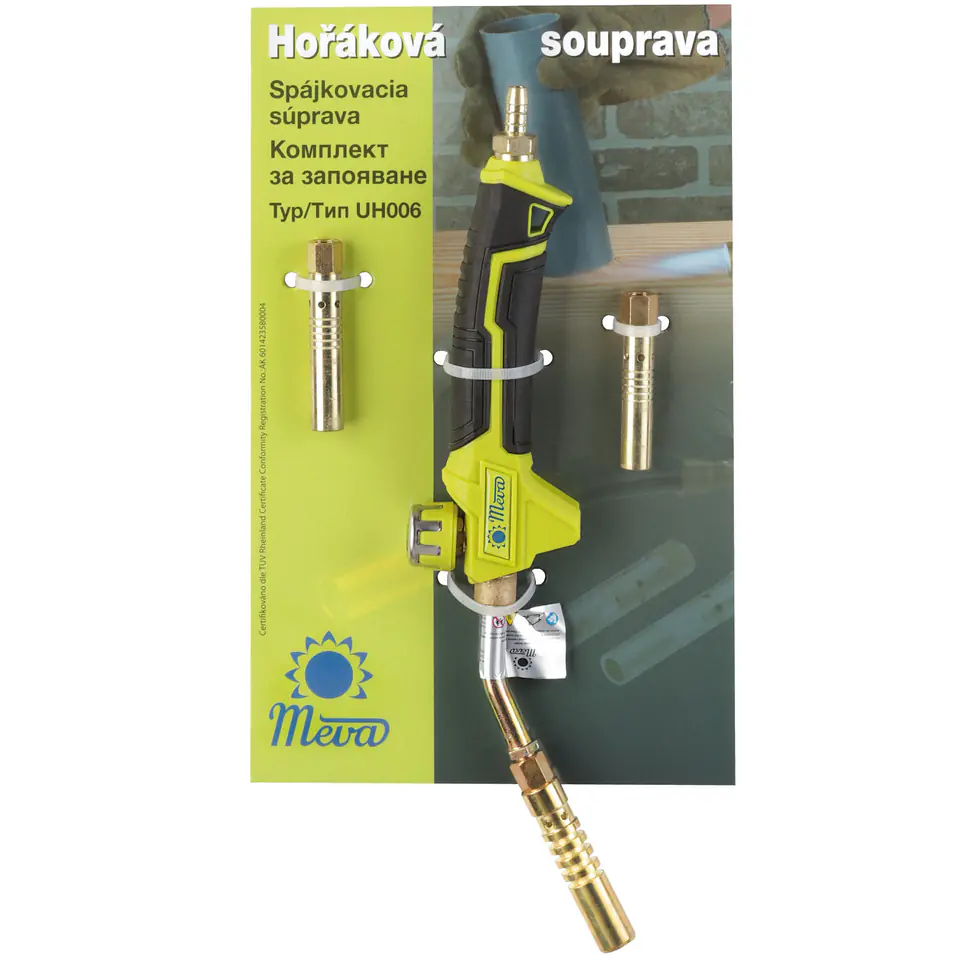

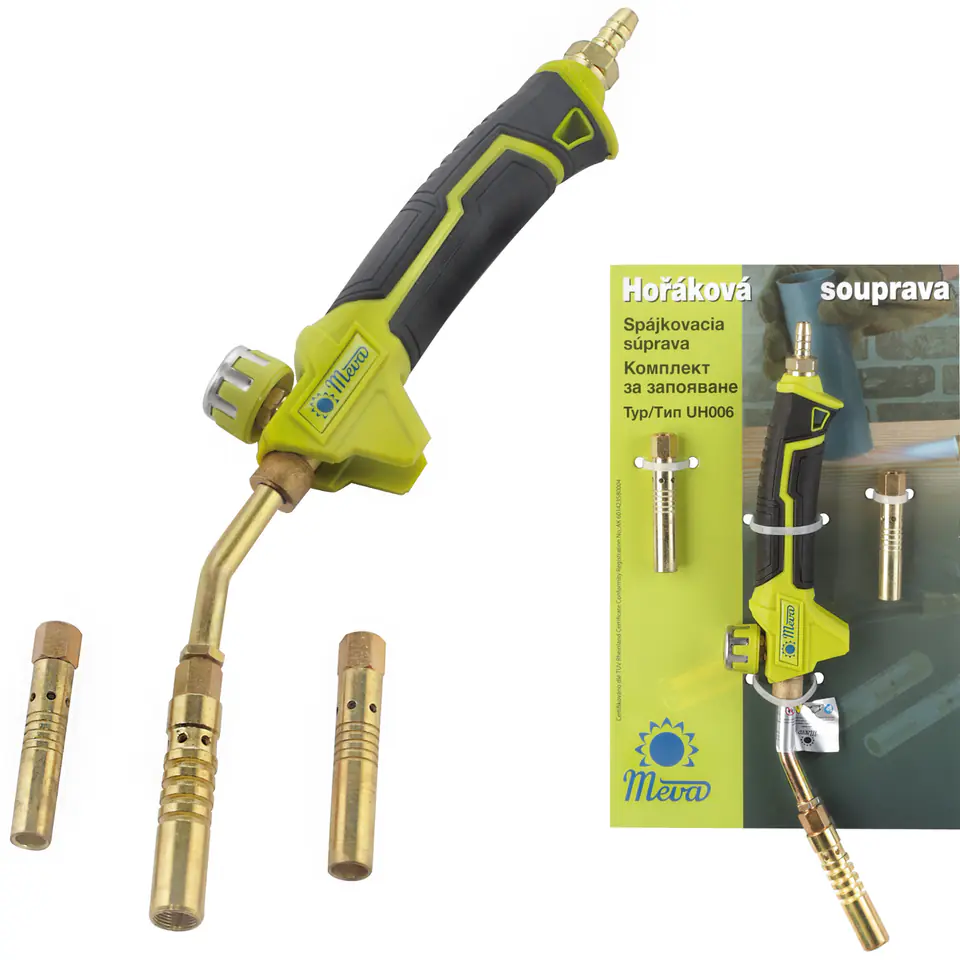

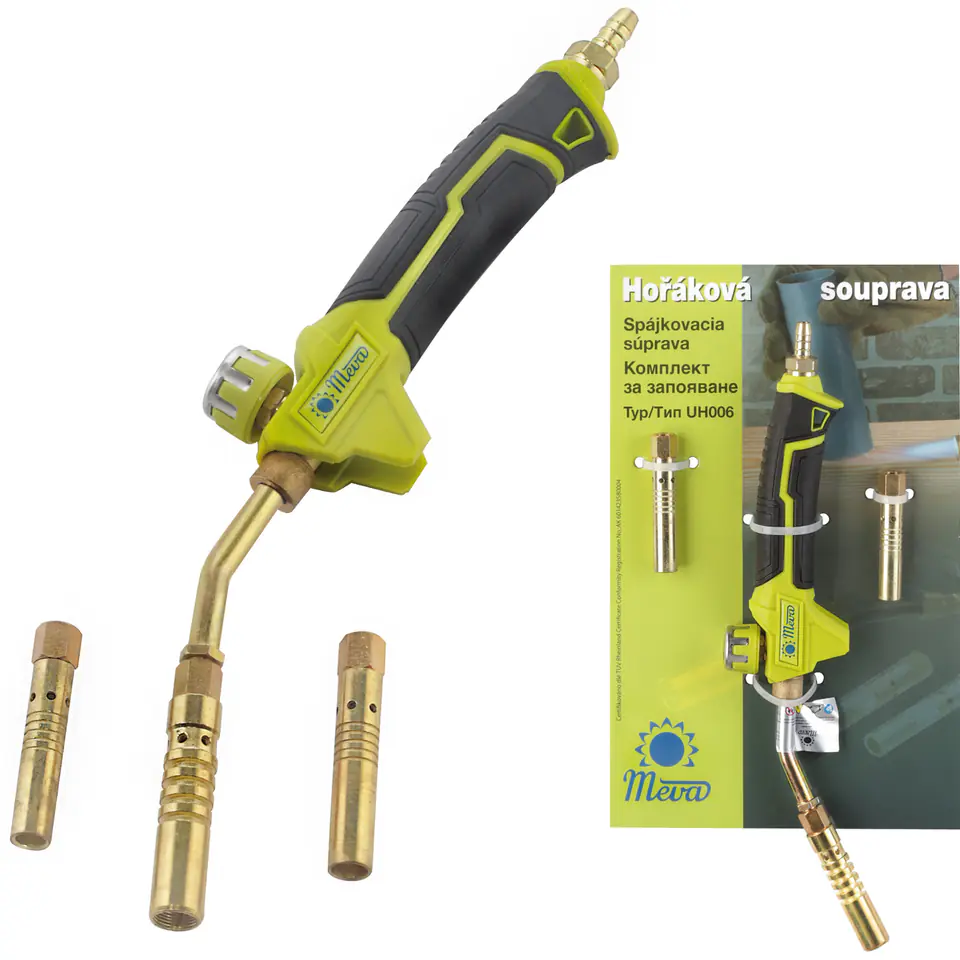

High quality product of the Czech leader in the production of gas appliances and accessories MEVA company existing since 1898. Extremely durable and effective gas burner for hard and soft soldering. It will also work well when heating various materials or removing paints. The burner can be powered by G30 gas, propane-butane from a standard LPG cylinder. The gas supply hose is mounted by means of cable ties. The soldering torch with a power of up to 2.1 kW is equipped with a convenient handle with a knob used to regulate the gas flow.
Features and functions of a construction gas burner:
- - high power effectively warms up or melts the material,
- - smoothly adjustable flame,
- - easy and economical to use
- - contoured handle and light weight increase the comfort of work.
- - Fuel source: 2 or 10 kg LPG cylinder
- - Fuel: G30 (propane, butane or a mixture thereof)
- - Recommended working pressure of burners: 1 ÷ 4 bar
- - Connection to the gas cylinder - two options:
- with hose and cable ties: tip for connecting the hose length 28mm / dia. 8mm
- by G 3/8" L connector
- - Power consumption (at pressure) 2 ÷ 3 bar): 1.4 kW
- - Consumption (at pressure) 2 ÷ 3 bar): 100 g/h
- - Nozzle diameter (designation): avg. 0.15 mm (No. 15)
- - Minimum room volume: 15 m3
- - Power consumption (at pressure) 2 ÷ 3 bar): 1.7 kW
- - Consumption (at pressure) 2 ÷ 3 bar): 120 g/h
- - Nozzle diameter (designation): avg. 0,20 mm (No 20)
- - Minimum room volume: 17 m3
- - Power consumption (at pressure) 2 ÷ 3 bar): 2.1 kW
- - Consumption (at pressure) 2 ÷ 3 bar): 150 g/h
- - Nozzle diameter (designation): avg. 0,30 mm (No. 30)
- - Minimum room volume: 21 m3
- - handle with control valve (with connecting pin)
- - 3 burners (dia. 13 / 14 / 20 mm)
