Gantry reed switch KN-D4 designed for surface mounting
GANTRY REED SWITCH KN-D4
€12.57
Shipping from warehouse: D4
Estimated shipping: Mon, Nov 25 - Wed, Nov 27
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Product code:
- KN-D4 / 5902887019470
Share this product:
Specification
| Detection:: | Opening the gate |
|---|---|

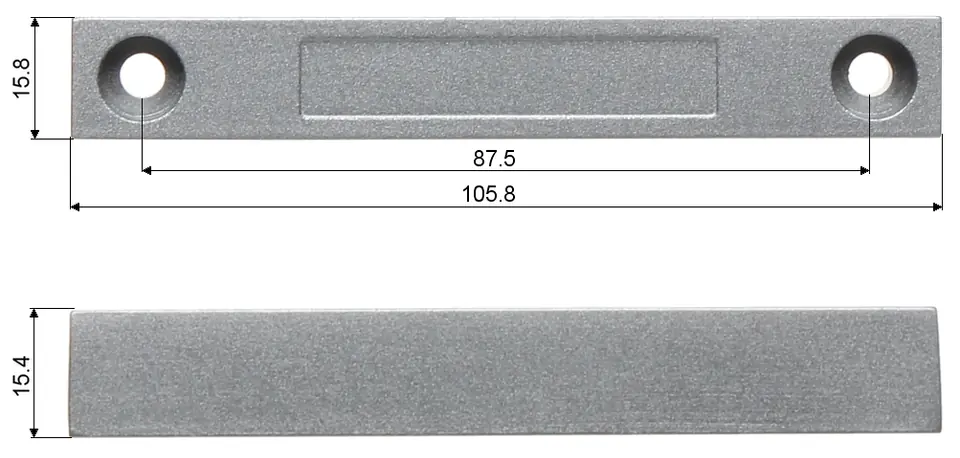

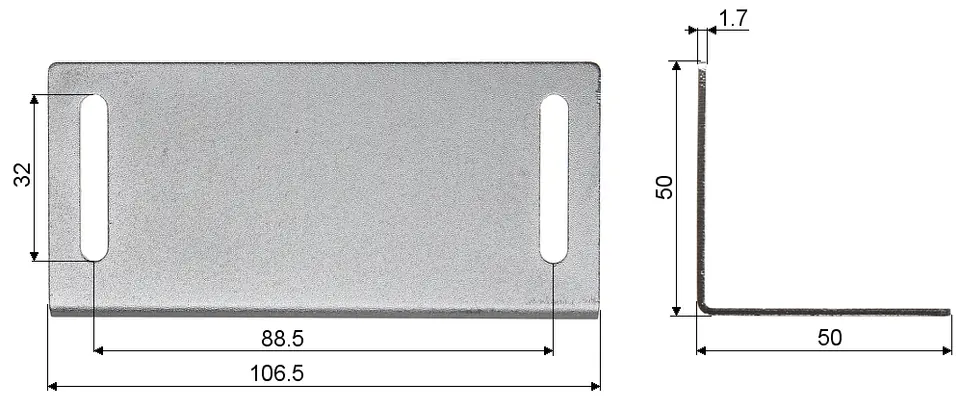

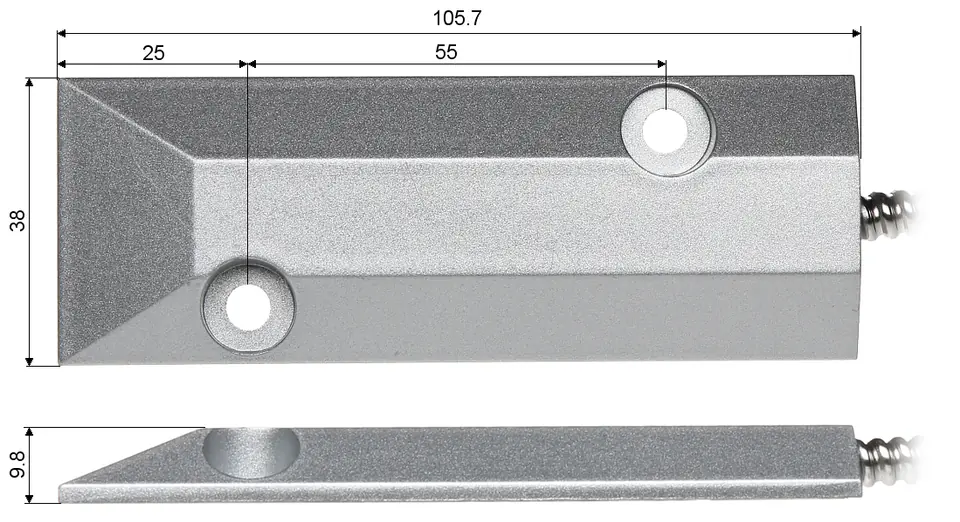

| Dimensions:: | 105.7 x 38 x 9.8 mm - Reed switch 105.8 x 15.8 x 15.4 mm - magnet 106.5 x 50 x 50 mm - Angle |
| Maximum switchable current:: | 400 mA |
| Maximum switchable voltage of the reed switch:: | 20 volts |
| Opening distance of reed switch contacts:: | 70 mm |
| Reed contact closing distance:: | 68 mm |
| Scales:: | 0.23 kg |
| Selected features:: | Reinforced metal hermetic housing, Aluminum NC alarm output - magnet close to a reed switch - does not cause alarm, contacts are shorted Wires in a metal sheath Wire length : 40 cm An angle is included |
| Warranty:: | 2 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
