| Colour:: | silver |
|---|---|
| Detection:: | Opening a door or window |

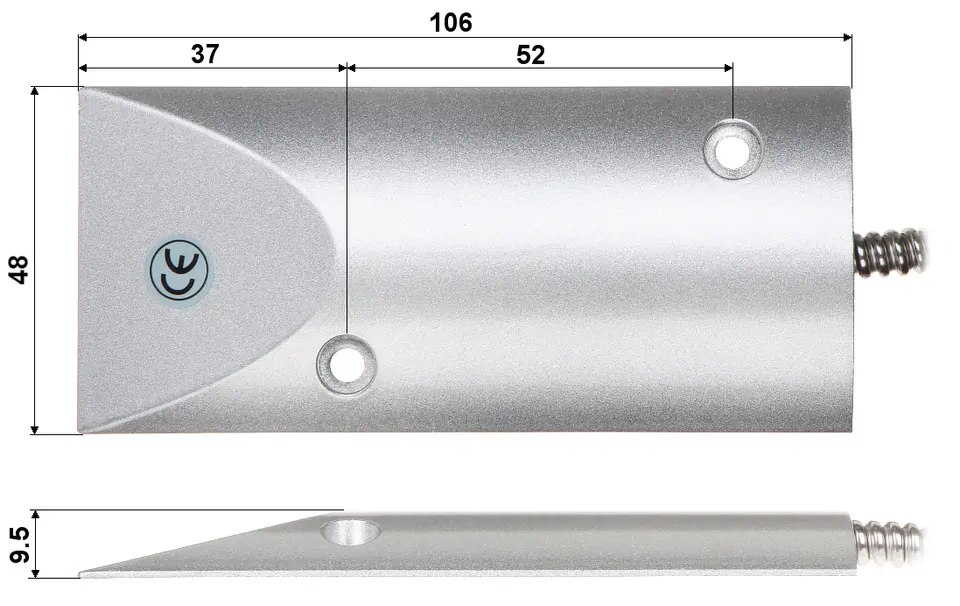

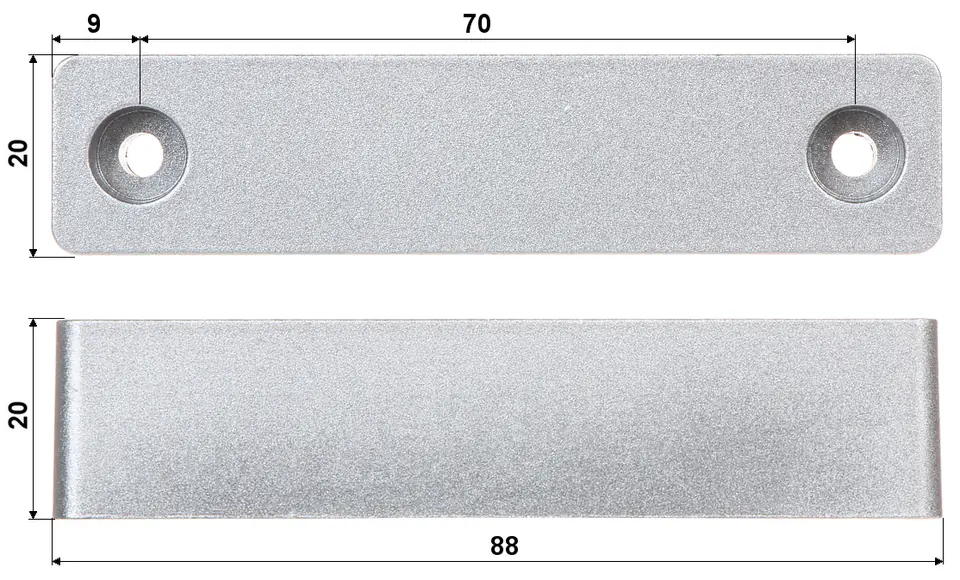

| Dimensions:: | 106 x 48 x 9.5 mm - Reed switch 88 x 20 x 20 mm - Magnet |
| Maximum switchable current:: | 10 mA |
| Maximum switchable voltage of the reed switch:: | 20 volts |
| Opening distance of reed switch contacts:: | 20 mm |
| Reed contact closing distance:: | 19 mm |
| Scales:: | 0.19 kg (total) |
| Selected features:: | Reinforced metal hermetic housing NC output - magnet similar to a reed switch - does not cause alarm, contacts are shorted Wire length: 40 cm The wires are protected by a metal spiral tube with a length of 36.5 cm |
| Warranty:: | 2 years |
Magnetic detectors can be used wherever there is a need to control the condition of doors, windows or other moving elements, e.g. to protect or control access to specific objects, rooms, devices, automation systems, etc.
The sensor is designed for surface mounting
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
