| Assembly: | To the wall |
|---|---|
| Case: | Plastic |
| Colour: | Ivory |
| Dimensions: | 213 x 93 x 36 mm |
| Maximum single output current: | 1 A |
| Maximum supply current: | 8 A |
| Number of power inputs: | 2 pcs. 2.1/5.5mm socket / cable terminals |
| Number of power outputs: | 8 pcs. Cable clamps |
| Number of video inputs: | 8 pcs. Cable clamps |
| Number of video outputs: | 8 pcs. BNC socket |
| Operating temperature / relative humidity: | -50 °C ... 55 °C / < 95 % |
| Producer / brand: | DELTA |
| Scales: | 0.29 kg |
| Standard: | AHD - 5 Mpx HD-CVI - 8 Mpx 4K UHD HD-TVI - 8 Mpx 4K UHD CVBS - PAL / NTSC |
| Type of fuse inserts: | 1A/250V (5/20mm) |
| Warranty: | 3 years |

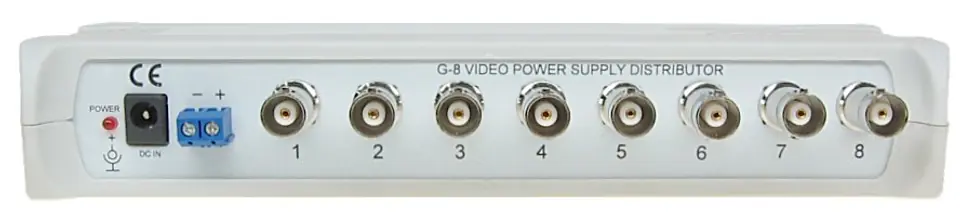

G-8 is a passive device, designed for convenient connection of 8 YAP CCTV cables (coax + power supply) and orderly power distribution from one power supply

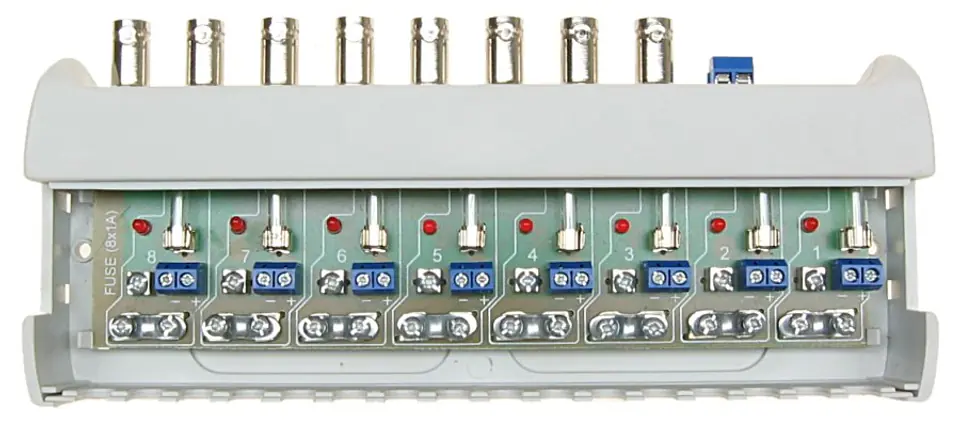

The G-8 socket branches the power supply to 8 outputs, each of which is protected by a fuse and has an LED indicating its blowout (lack of lighting means blowing the fuse)
