Fuse inserts are used to protect power installations from overload and short circuitAll fuse inserts have fuse blow indicators that are visible through the nut after installation

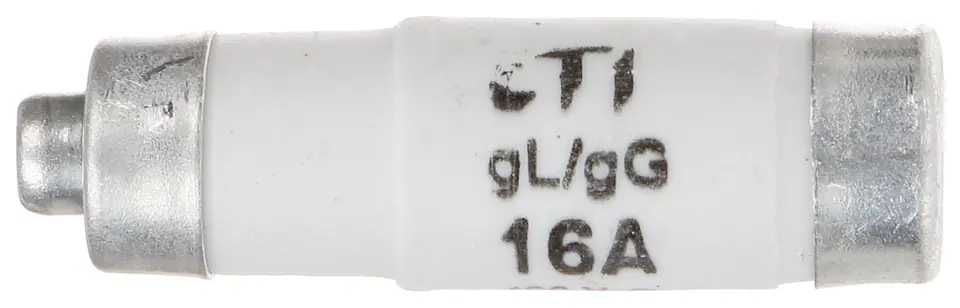

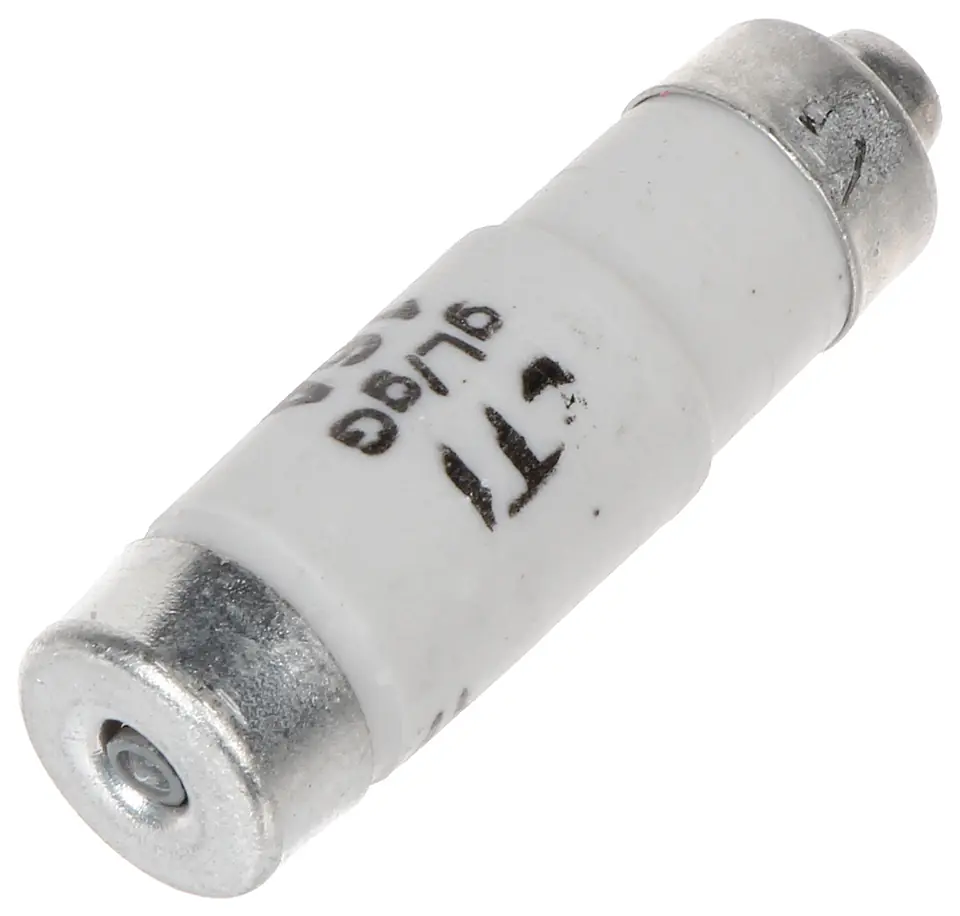

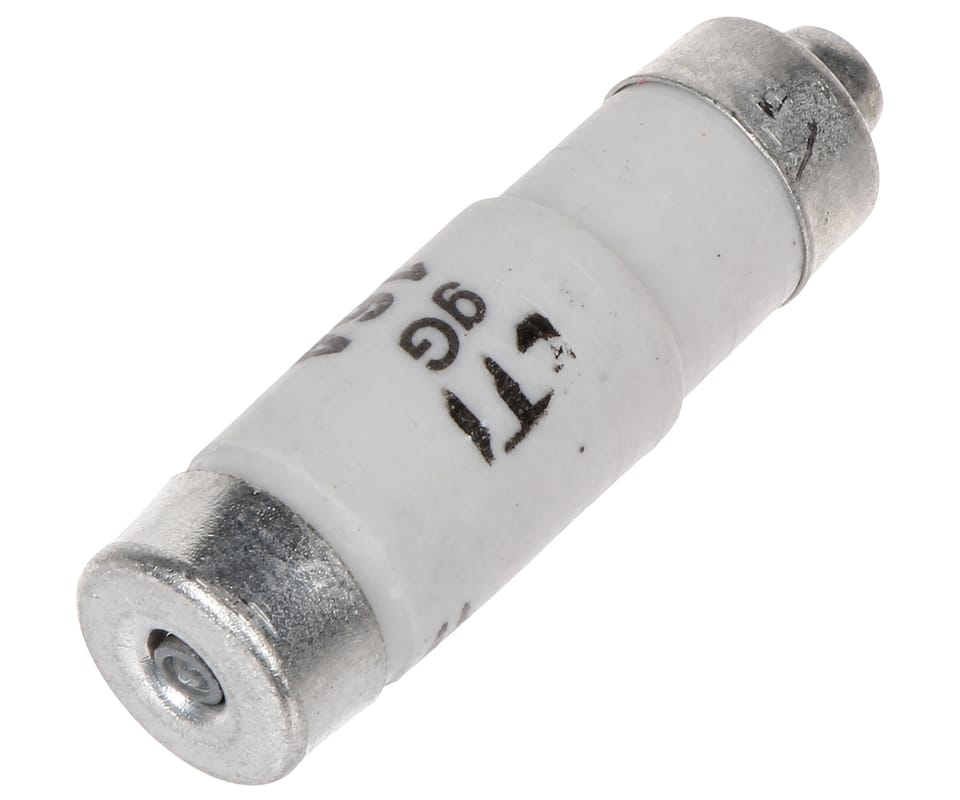

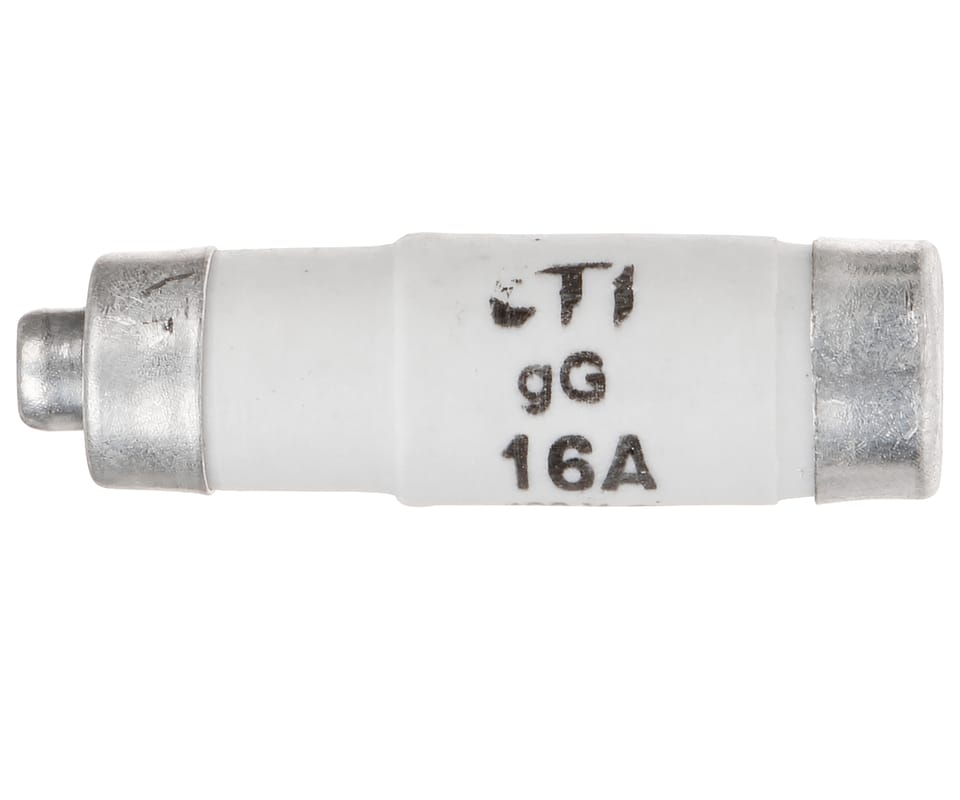

FUSE INSERT ETI-D01/16A 16 A 400 V gL/gG E14 ETI
€1.77
Shipping from warehouse: D4
Estimated shipping: Tue, Nov 26 - Fri, Nov 29
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- ETI
- Product code:
- ETI-D01/16A / 3838895000525
Share this product:
Specification
| Case: | Ceramic |
|---|---|
| Current: | 16 amps |

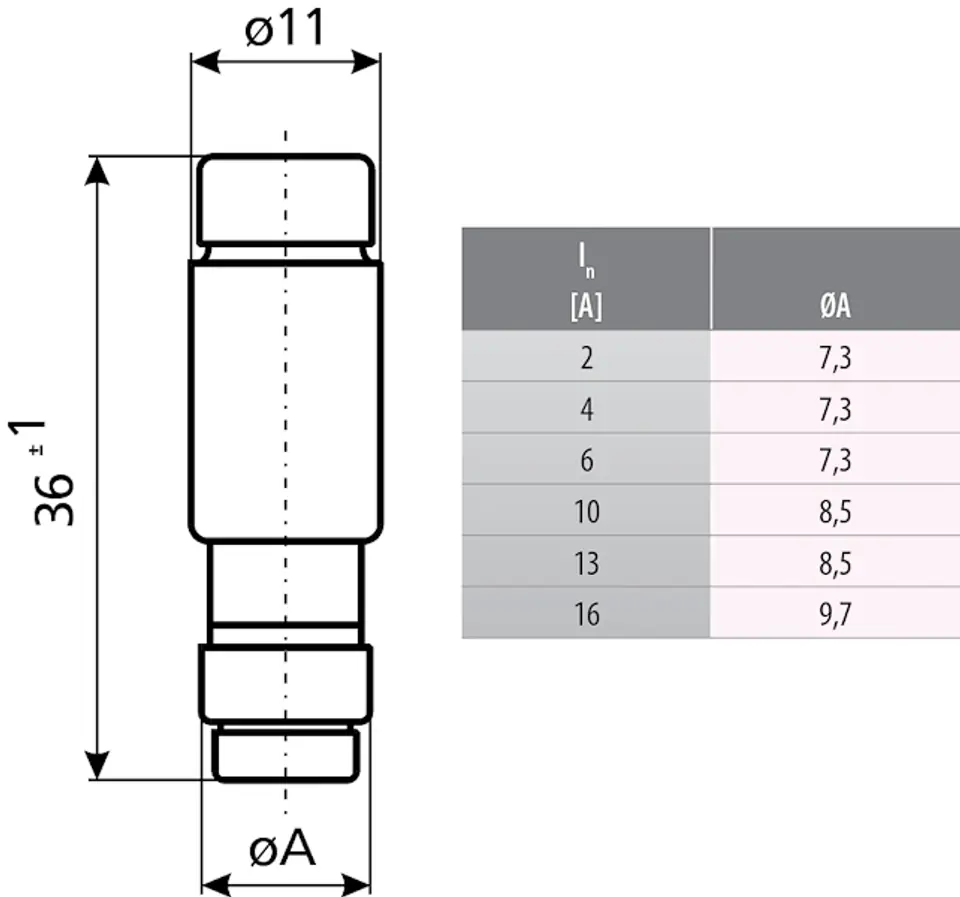

| Dimensions: | Ø 11 x 36 mmØ 9.7 mm (A) |
| Fuse characteristics: | gL/gG |
| Fuse socket: | E14 |
| Producer / brand: | ETI |
| Rated short-circuit switching capacity: | 50000 A AC, 8000 A DC |
| Scales: | 0.0066 kg |
| Selected features: | Low power and energy losses Low temperature rise High short-circuit limiting capacity Stability of current-time characteristics and full selectivity of operation Selective cooperation with circuit breakers |
| Size: | D01 |
| Type: | D0 |
| Voltage: | 250 VAC, 400 VAC |
| Warranty: | 2 years |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
