| Case: | Plastic, TH-35 bracket mounting |
|---|---|

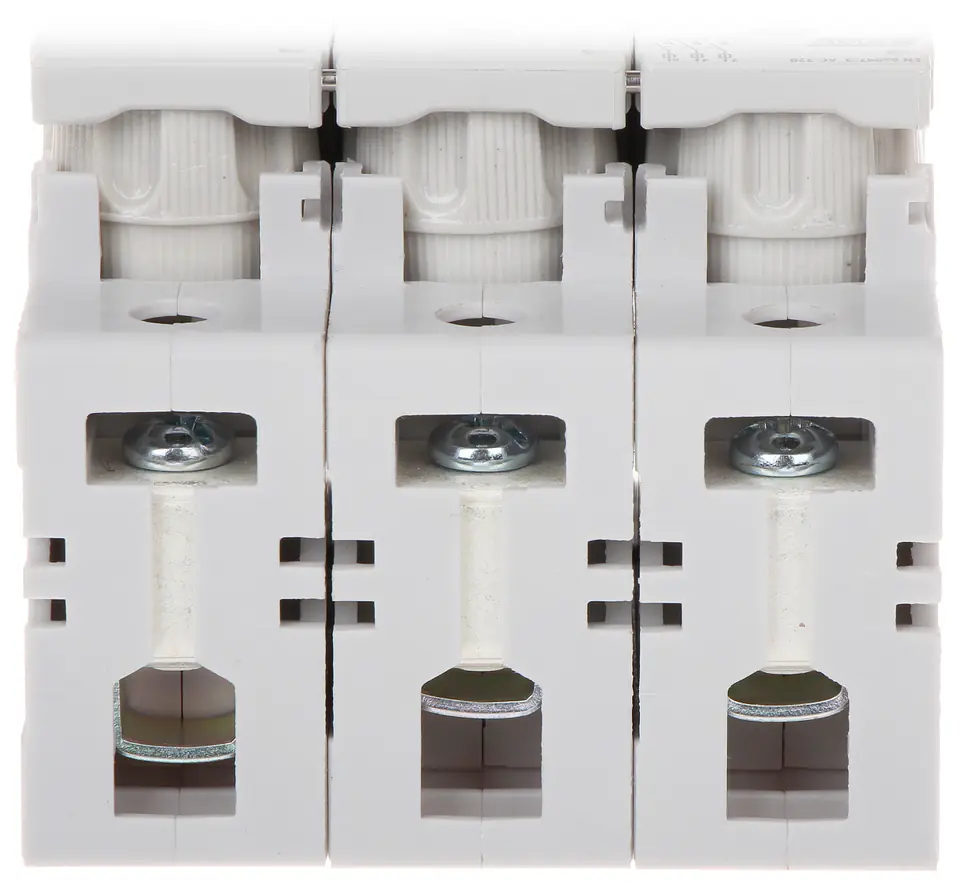

| Connector type: | cable clamps |
| Current: | 63 amps |
| Dimensions: | 83 x 70.3 x 79.5 mm |
| Environmental class: | II |
| Number of poles: | 3 |
| Operating temperature: | -26 °C ... 60 °C |
| Producer / brand: | LEGRAND |
| Rated insulation voltage: | 500 volts |
| Rated short-circuit switching capacity: | 50000 A AC |
| Rated withstand surge voltage: | 6000 volts |
| Scales: | 0.49 kg |
| Type (size): | D02 |
| Type of device: | Three-phase |
| Voltage: | 400 VAC |
| Warranty: | 2 years |
| Width in modules 17.5 mm: | 4.5 |
| Wire cross section: | 2.5 ... 25 mm² |

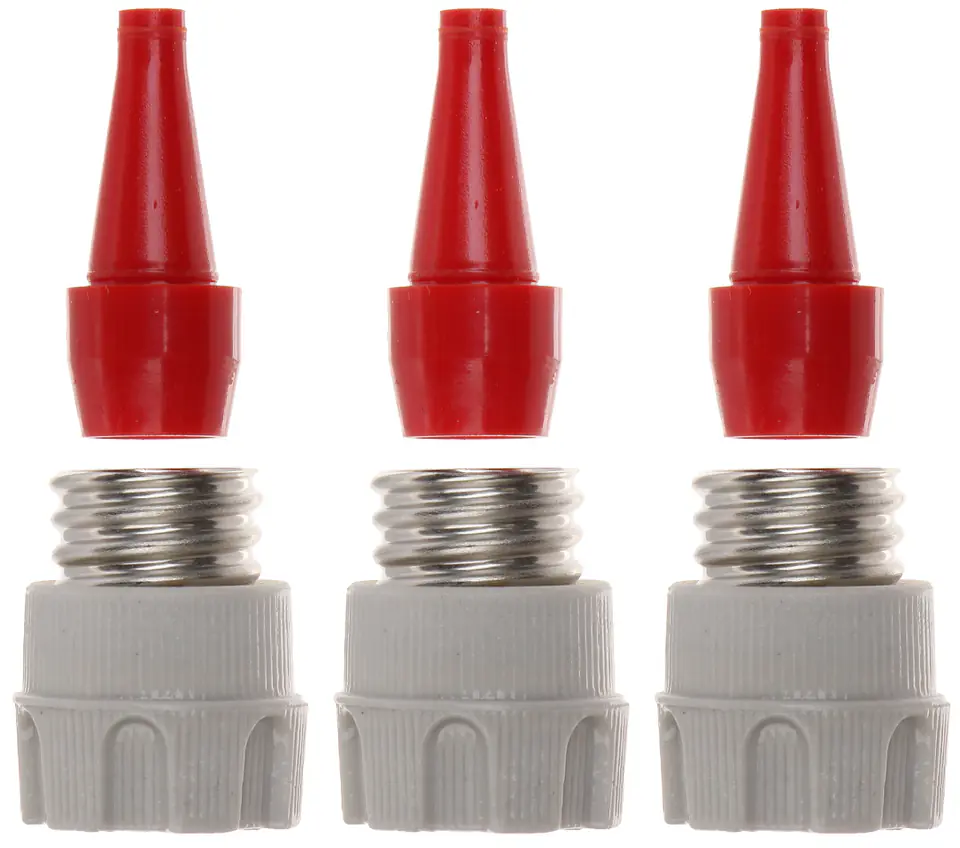

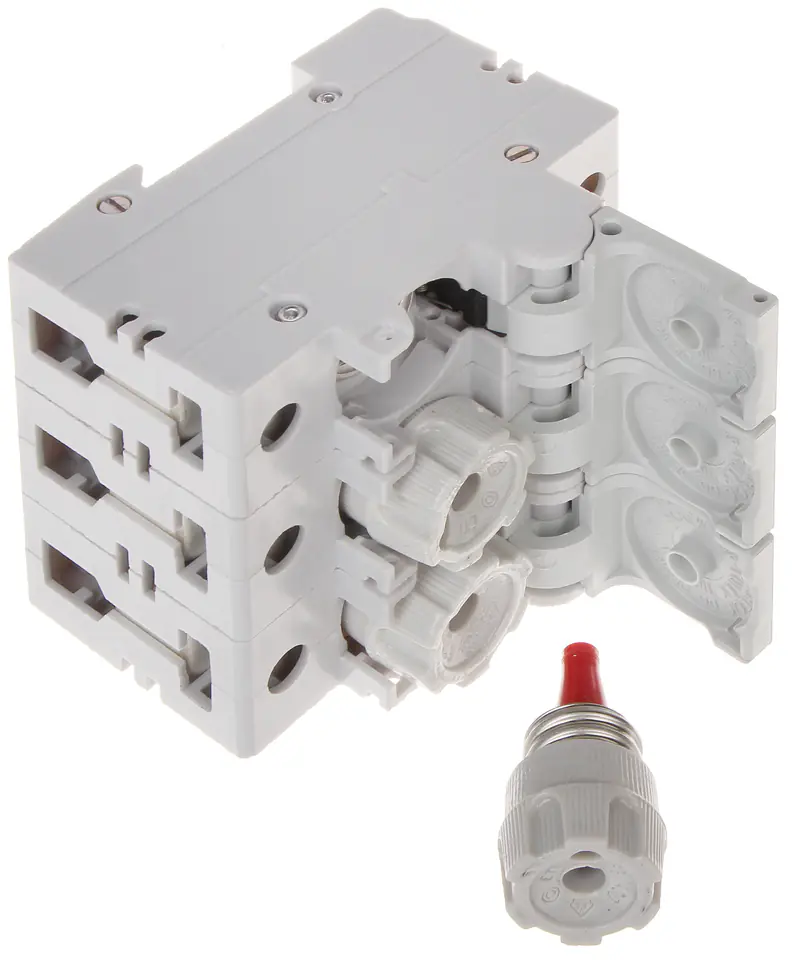

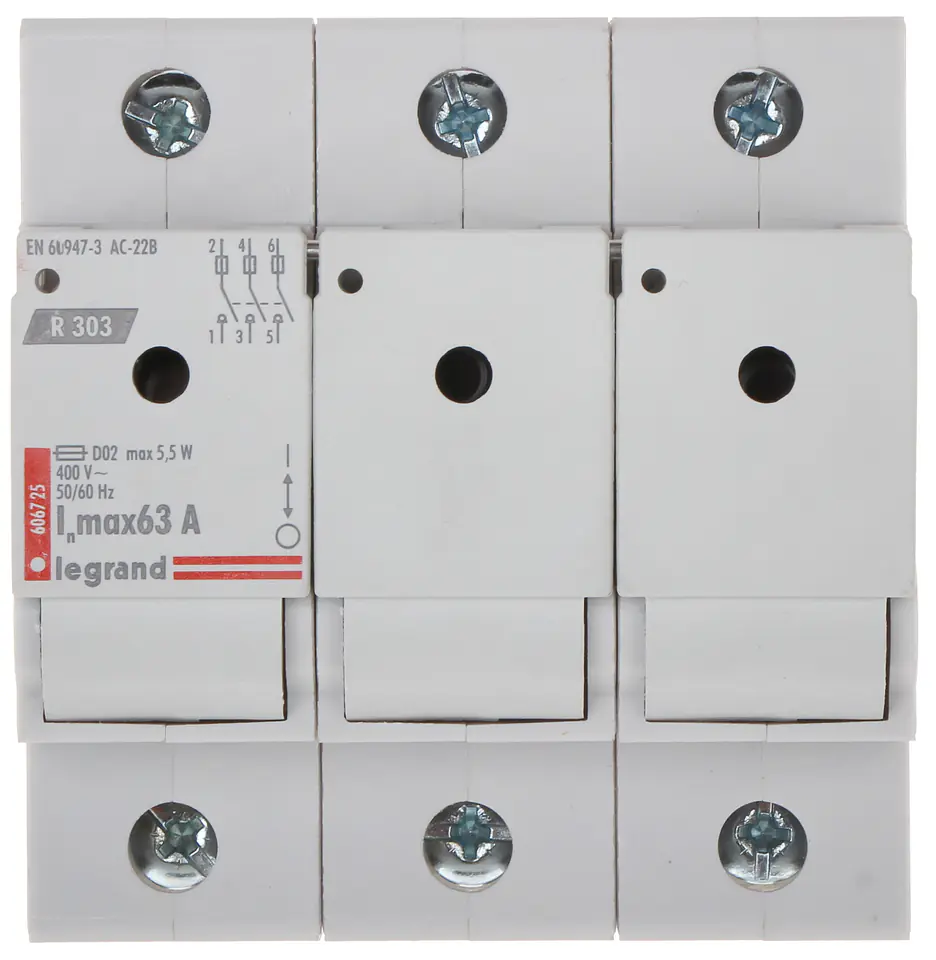

Isolation disconnectors without fuse insert – provide an insulating break and allow you to choose the right fuse inserts depending on your needsThe devices are equipped with dummy inserts AD02The LE-606725 disconnector is designed for installation on the TH-35 bracket
REMARK! The device requires the installation of type D02 fuse inserts (available separately) with a rated current not exceeding 63A
