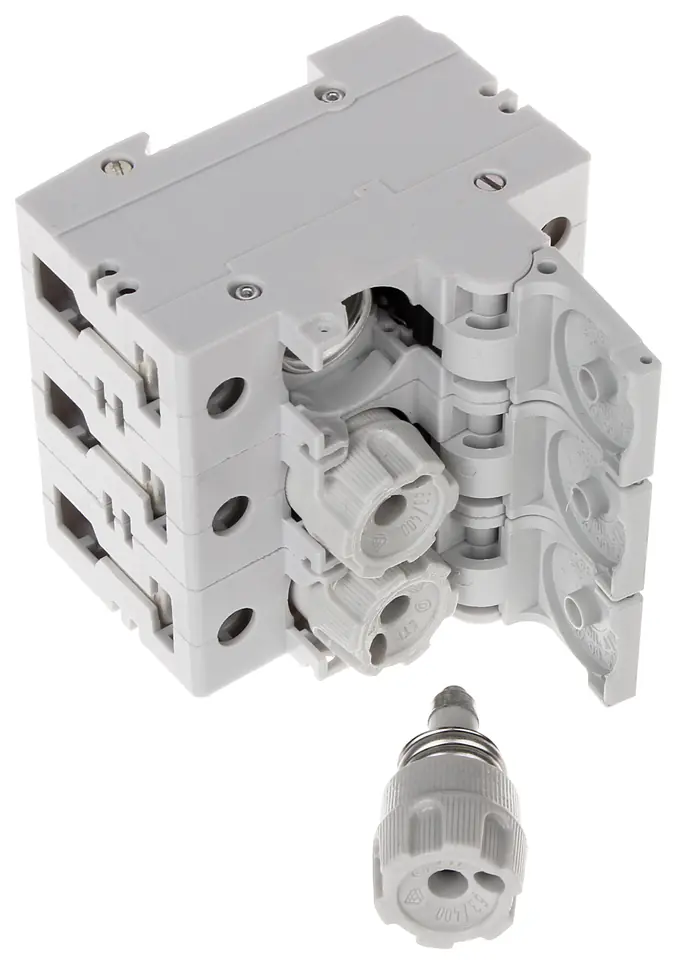

Isolation disconnectors with fuse inserts are a combination of two functions in one device – an insulating disconnector and overcurrent protection implemented by a fuse insertThe devices protect the electrical installation against the effects of short circuits and overloads, and after removing the insert they provide a visible insulating gapThe LE-606702 disconnector is designed for mounting on the TH-35 bracket

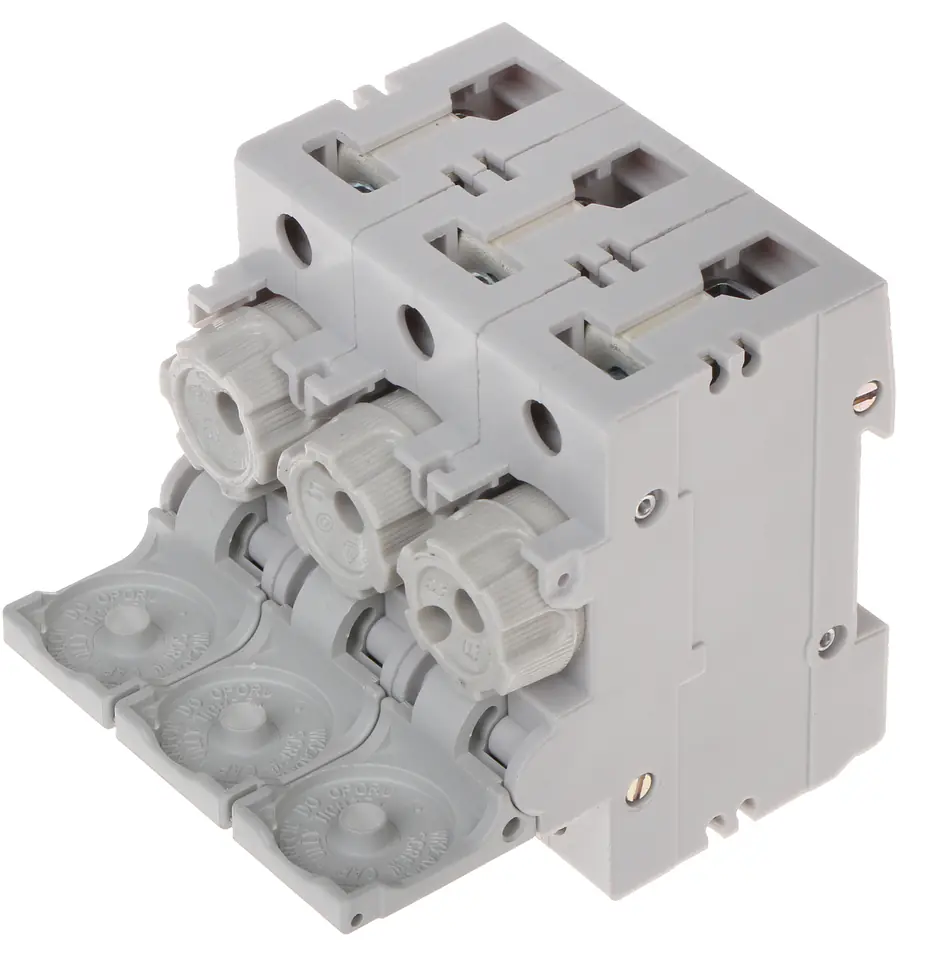

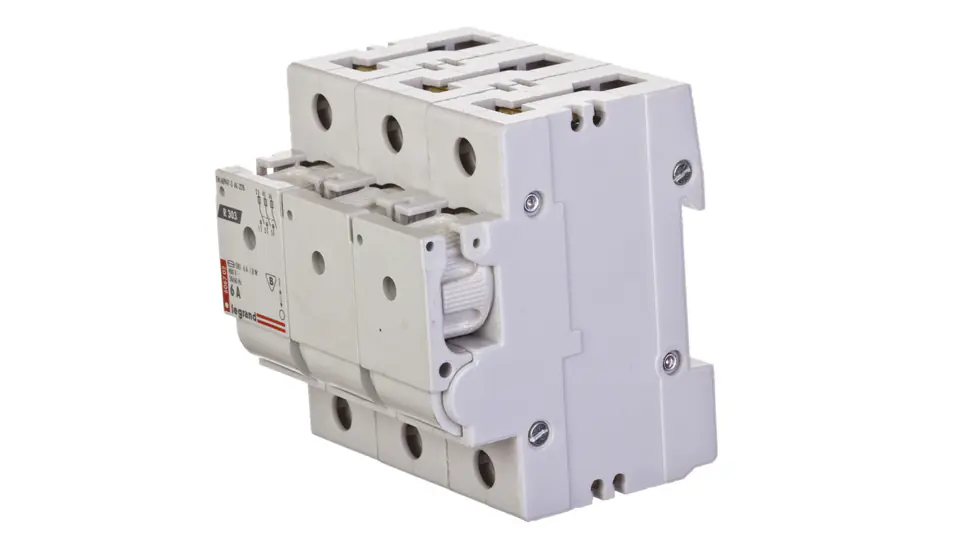

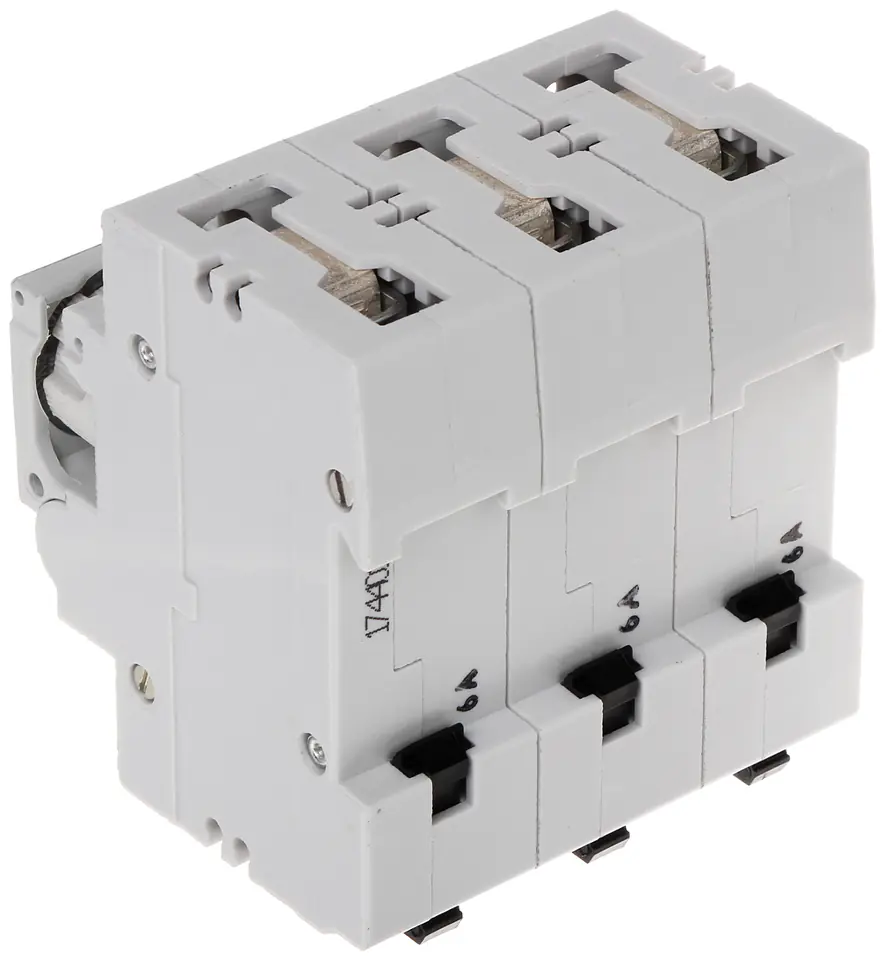

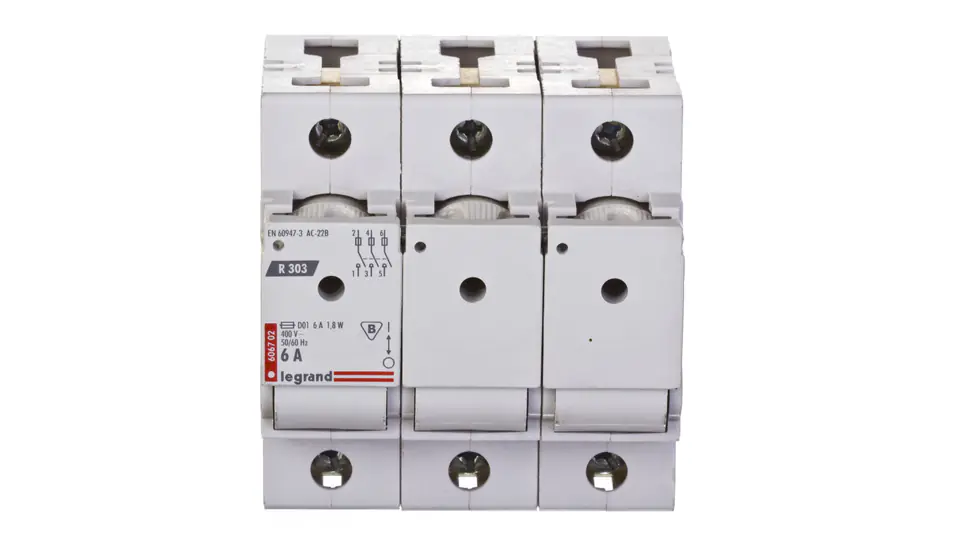

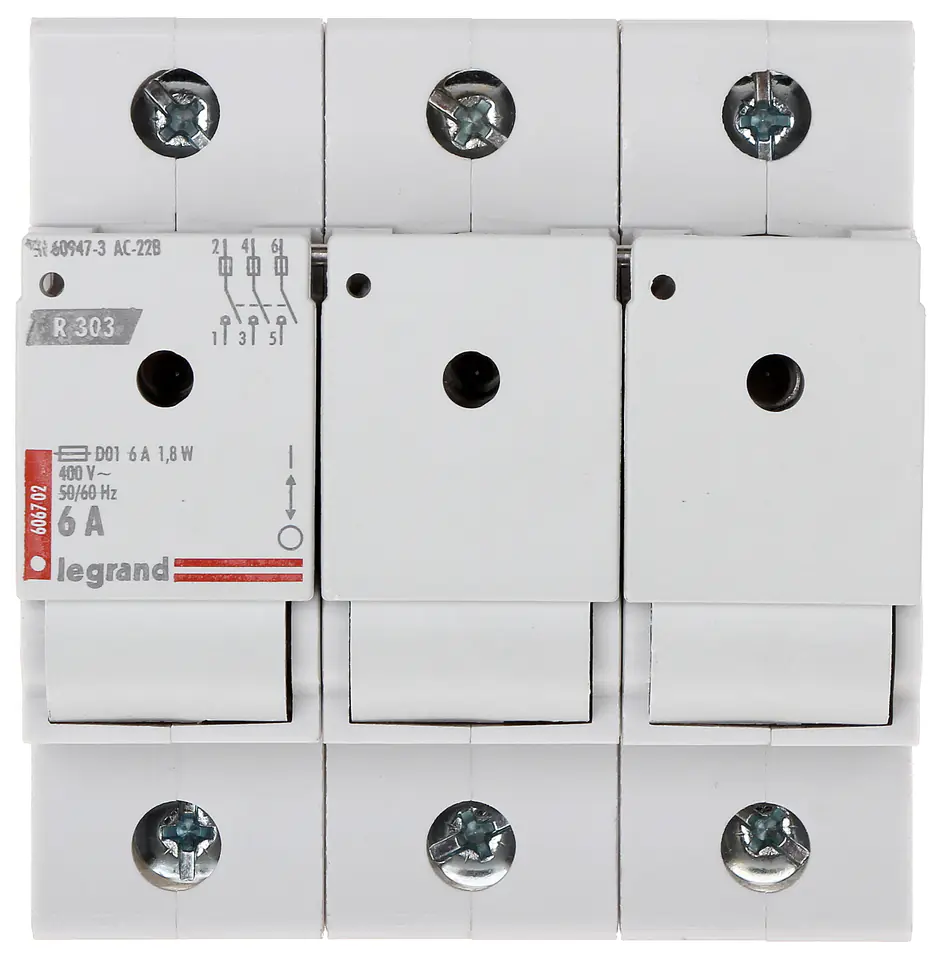

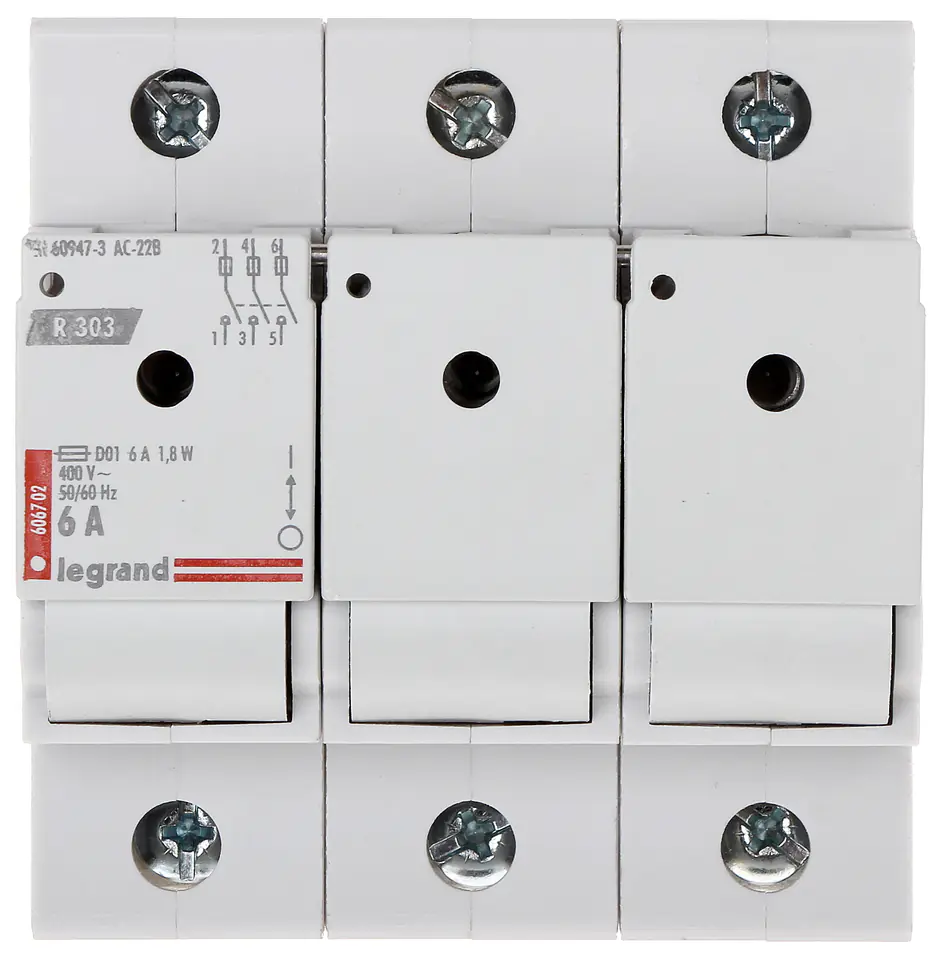

FUSE DISCONNECTOR LE-606702 THREE-PHASE 6 A D01 LEGRAND
€157.95
Shipping from warehouse: D4
Estimated shipping: Tue, Dec 24 - Fri, Dec 27
14 days returnUnconditional return policy
- Availability:
- moderate quantity
- Brand:
- Legrand
- Product code:
- LE-606702 / 3245066067025
Share this product:
Specification
| Case: | Plastic, TH-35 bracket mounting |
|---|---|

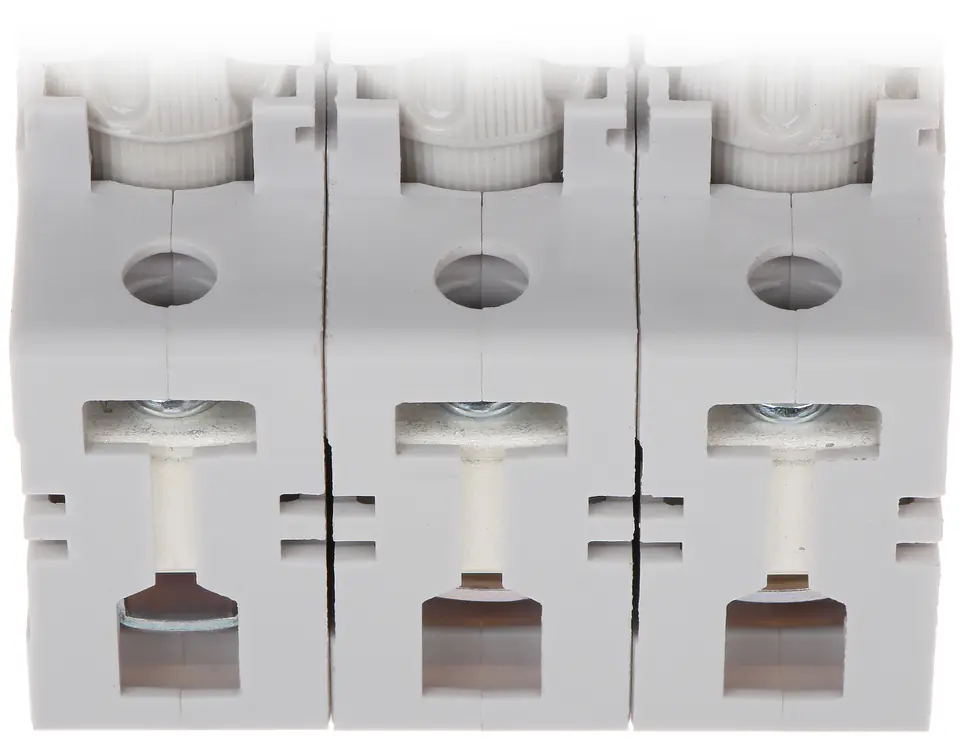

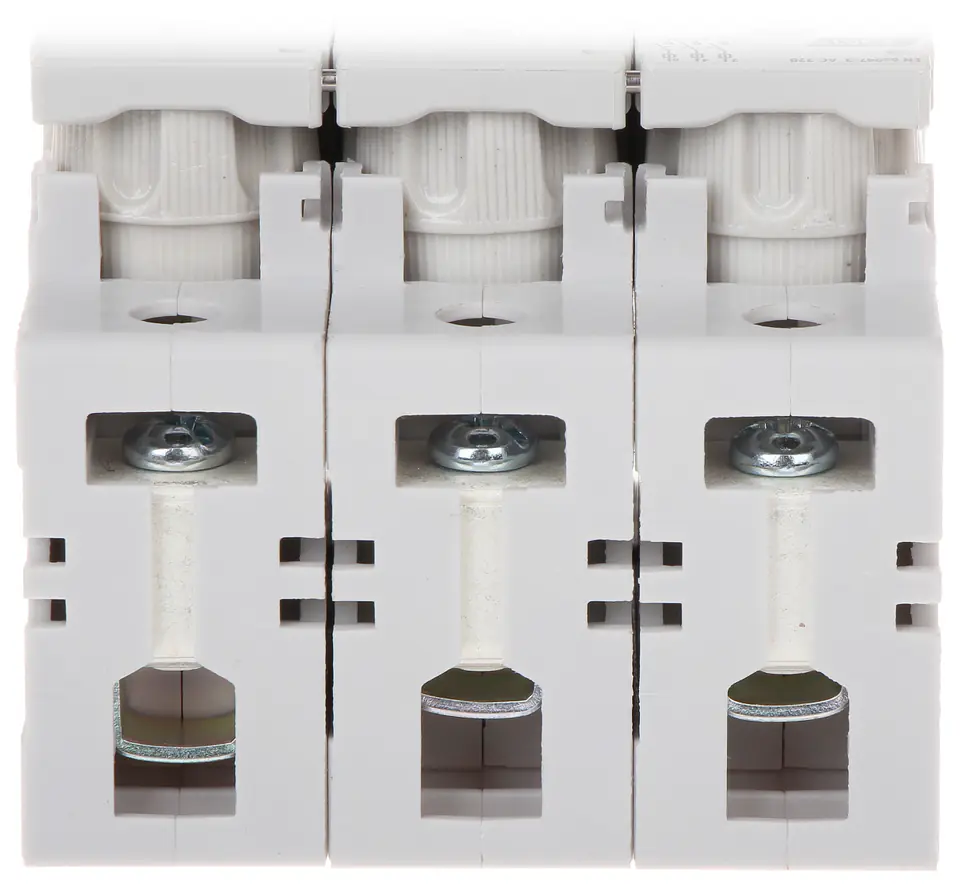

| Connector type: | cable clamps |
| Current: | 6 A |
| Dimensions: | 83 x 70.3 x 79.5 mm |
| Environmental class: | II |

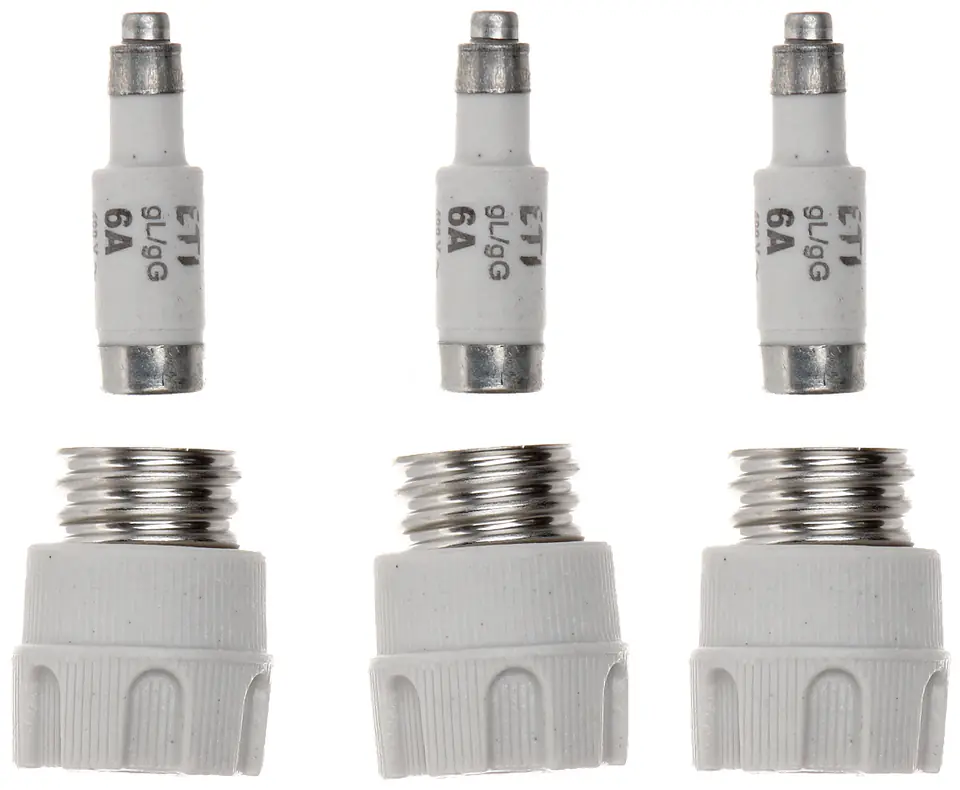

| Fuse characteristics: | gL/gG |
| Number of poles: | 3 |
| Operating temperature: | -26 °C ... 60 °C |
| Producer / brand: | LEGRAND |
| Rated insulation voltage: | 500 volts |
| Rated short-circuit switching capacity: | 50000 A AC |
| Rated withstand surge voltage: | 6000 volts |
| Scales: | 0.51 kg |
| Type (size): | D01 |
| Type of device: | Three-phase |
| Voltage: | 400 VAC |
| Warranty: | 2 years |
| Width in modules 17.5 mm: | 4.5 |
| Wire cross section: | 2.5 ... 25 mm² |
Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
