Full Hollow Twist Drill Bit SL, Z3, shank HA,5xD 5,30mm GÜHRING

€39.84
Shipping from warehouse: ⁨B6⁩
Estimated shipping: Tue, Dec 24 - Fri, Dec 27
14 days returnUnconditional return policy
Availability:
moderate quantity
Brand:
GÜHRING
Product code:
9055180053000 / 4031093650458

Specification

Aluminium > 8% silicon:120
Cast iron gg/gts:80
Cast iron gg/gts f:0.160 mm/rev.
Copper alloys:180
Ggg cast iron:70

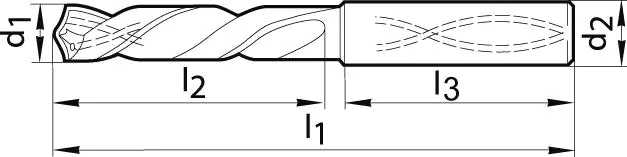

Grip ø h6:6 mm
Ø m7/h7:5.3 mm
Overall length:82 mm
Shank length l3:36 mm
Spiral length:44 mm

Twist drill, solid carbide, SuperLine

Design: 3-blade, with sharp top, special grinding and special correction. Lateral approach angle 28°, core thickness greater than normal, no convergence.
Application: for making accurate holes with precise shape in solid material up to max. 5 x D. Designed specifically for cast iron and long-particle aluminium alloys.
Note: thanks to the centering tip, drilling can be eliminated under certain conditions.

Despite our best efforts, we cannot guarantee that the published technical data and photos do not contain inaccuracies or errors, which, however, cannot be a basis for claims.
